PRYB-900F Automatic Cold Glue Straight Line Bottom Lock Side Glue Box Mini Paper Tray Forming Folder Gluer Machine
Spu:
1600705852502
Description

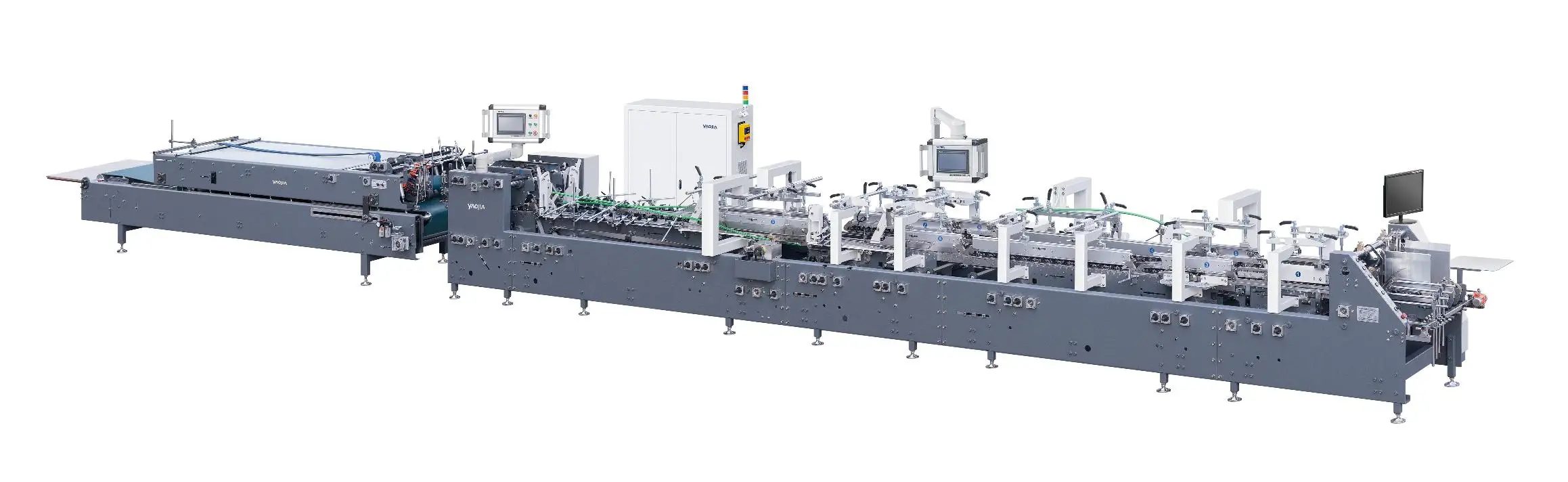

PRYB-900F Folder Gluer Machine
Features
Pace-Setter PRYB-900F for straight line box,bottom lock box,4&6 corners box,side glue box ,box inside box,mini box and some other special-shaped box(irregular box)of high-speed production.The machine max speed is 400 meters/min.Suitable for cardboard 200~800gsm ,corrugated board E-flute and F-flute.
Technical Parameters
Processed Materials |
||
Cardboard |
200 ~ 800 gsm |
|
Corrugated Flute Type |
E-Flute and F-Flute |
|
Capability |
||
Speed |
Max. 400 m/min |
|
Paper Width Size |
Max. 850 mm, Min. 76 mm |
|

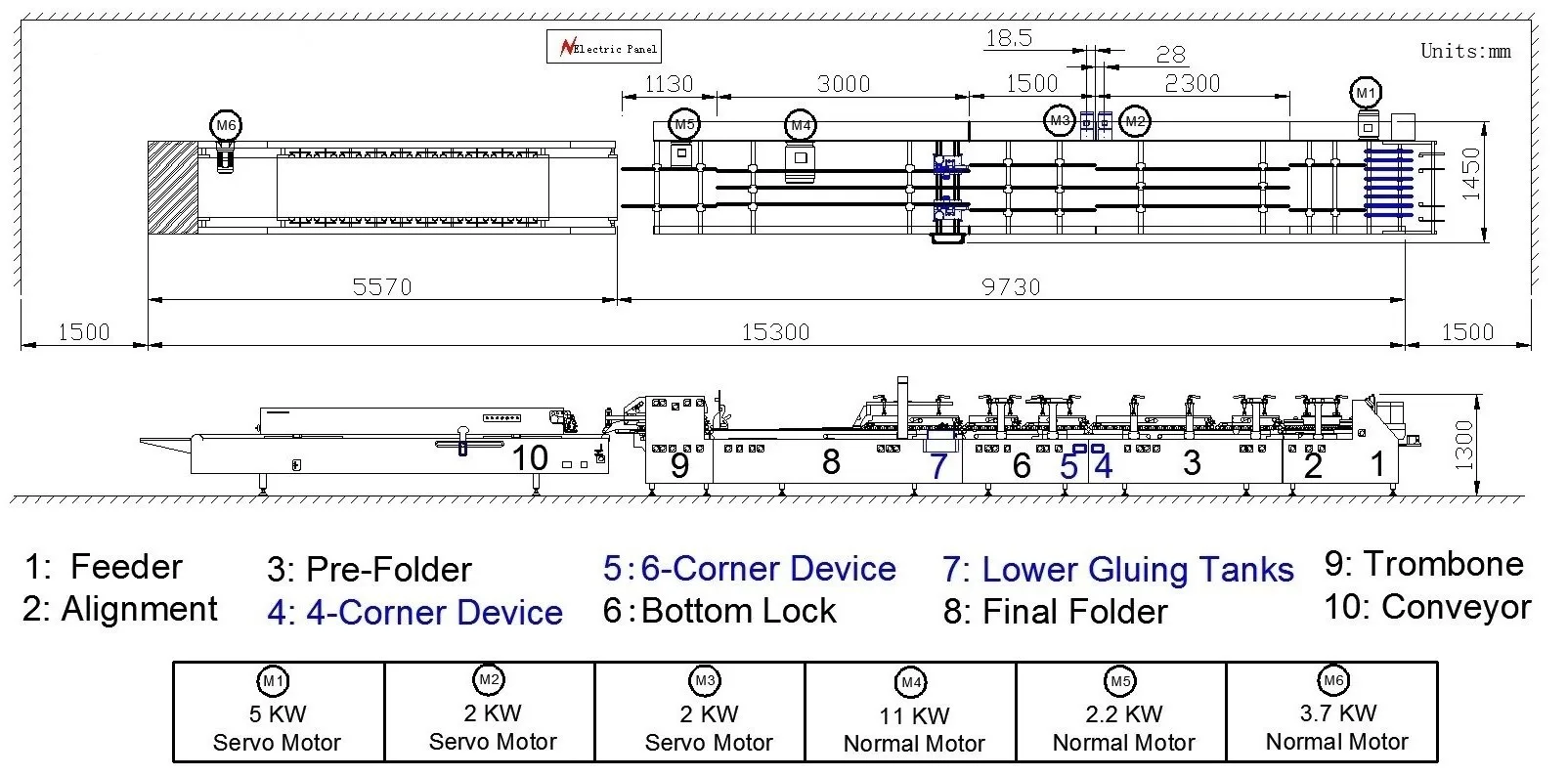

Dimensions & Weight |
||
Length |
15.3 m |
|
Width |
1.45 m |
|
Height |
1.9 m |
|
Net Weight |
6.5 Ton |
|
Installation |
||
Electrical Connected Load |
27 kw |
|
Power Supply |
380 Volts 3 Phase 50 Hz |
|
Compressed Air |
6 bar |
|
Air Compressor Capacity |
10 m³/h |
|
Air Tank Capacity |
60 L |
|
Configuration
Feeder
*Fully Automatic Feeder With Servo Motor 5kw
*8 pcs 30mm Friction Belts Soft Rubber Compound(4 vacuum belts)
*4 Back Carton Supports
*3 Front paper supports(Quick adjustment for thickness of substrate)
*2 Paper Side Guides
*Vibrator
*Full Colour Video Monitor(Supervise view final product at the end of the Machine)
*8 pcs 30mm Friction Belts Soft Rubber Compound(4 vacuum belts)
*4 Back Carton Supports
*3 Front paper supports(Quick adjustment for thickness of substrate)
*2 Paper Side Guides
*Vibrator
*Full Colour Video Monitor(Supervise view final product at the end of the Machine)
Aliening Unit
*2 Bottom Transport Carriers(fitted with 34mm wide Belts)
*1 left Hand Side Squaring Guide
*1 Right Hand Side Squaring Guide
*4 Top paper support guides
*Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank
*1 left Hand Side Squaring Guide
*1 Right Hand Side Squaring Guide
*4 Top paper support guides
*Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank
Pre Fold Unit
*1st and 3rd crease
*Bottom left had side carriage 43 millimeter wide belt
*3 Bottom Carriers
*3 Top carriers
*Bottom left had side carriage 43 millimeter wide belt
*3 Bottom Carriers
*3 Top carriers
Crash Lock Unit
*3 Bottom Transport carriers
*3 Top Transport carriers
*4 Sets of crash lock hooks
*3 Sets of diagonal folding shoes 2 Unit per Set
*Bottom chromed support bars
*3 Top Transport carriers
*4 Sets of crash lock hooks
*3 Sets of diagonal folding shoes 2 Unit per Set
*Bottom chromed support bars

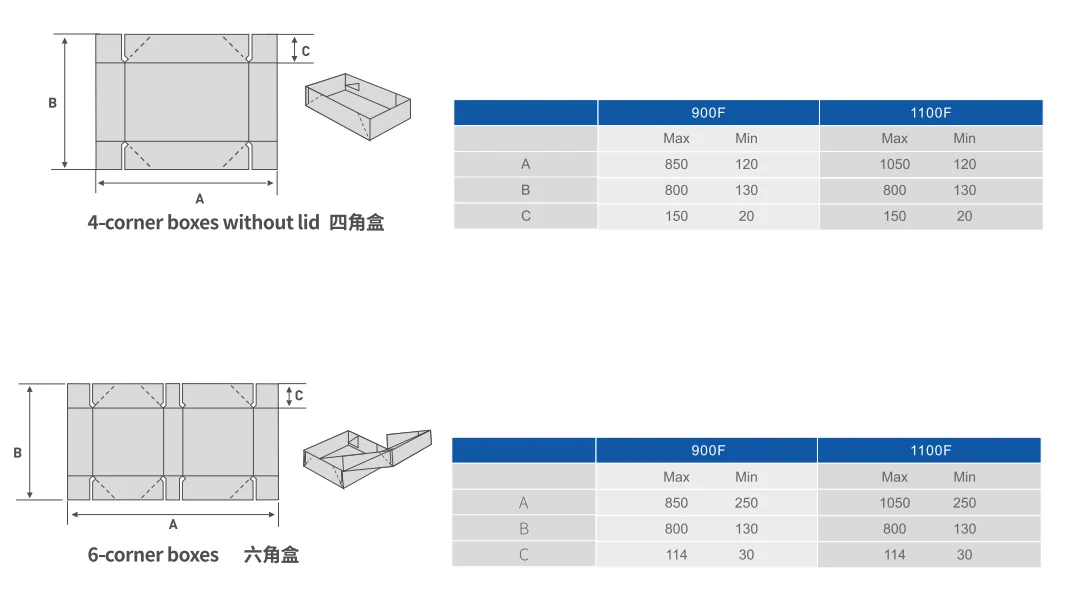

4 And 6 Corner
*2 Servo Drive Motors 2kw Each
*3 Folding Hooks 4 Corners
*3 Folding Hooks 6 Corners
*6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine
*Moveable Touch screen Commander Module(For programing Measurement’s:Speed and position and Electronic angel of the folding Hooks)
*3 Folding Hooks 4 Corners
*3 Folding Hooks 6 Corners
*6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine
*Moveable Touch screen Commander Module(For programing Measurement’s:Speed and position and Electronic angel of the folding Hooks)
Final Folding Unit
*Folding 2 and 4 crease
*Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc
*Guide rollers Left and right
*Adjustable speed control of belts left and right
*Removable Center top and bottom carriers(For production of small size boxes)
*Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc
*Guide rollers Left and right
*Adjustable speed control of belts left and right
*Removable Center top and bottom carriers(For production of small size boxes)
Trombone Unit
*Double Trombone(Telescopic)
*Motorized variable speed control of Belt Speed for smooth delivery
*Motorized variable speed control of Belt Speed for smooth delivery
*Moveable Touch screen Commander Module
*Independently motor drive
*Independently motor drive
Pressing Unit
*1 Drive Motor(Standard 3.7 KW)
*Front and Backward position
*Pneumatic pressing (Adjustable via Pneumatic Regulator valves)
*Front and Backward position
*Pneumatic pressing (Adjustable via Pneumatic Regulator valves)

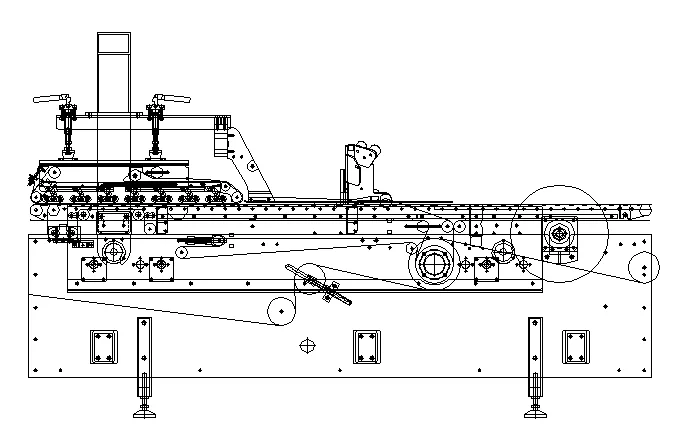

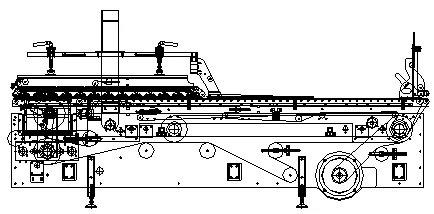

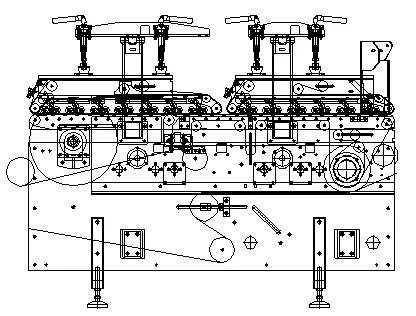

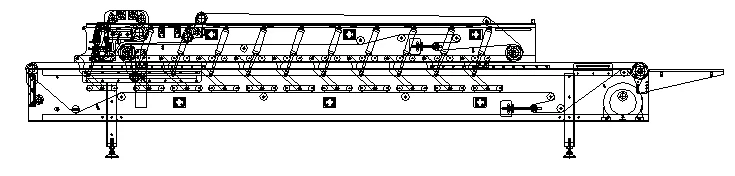

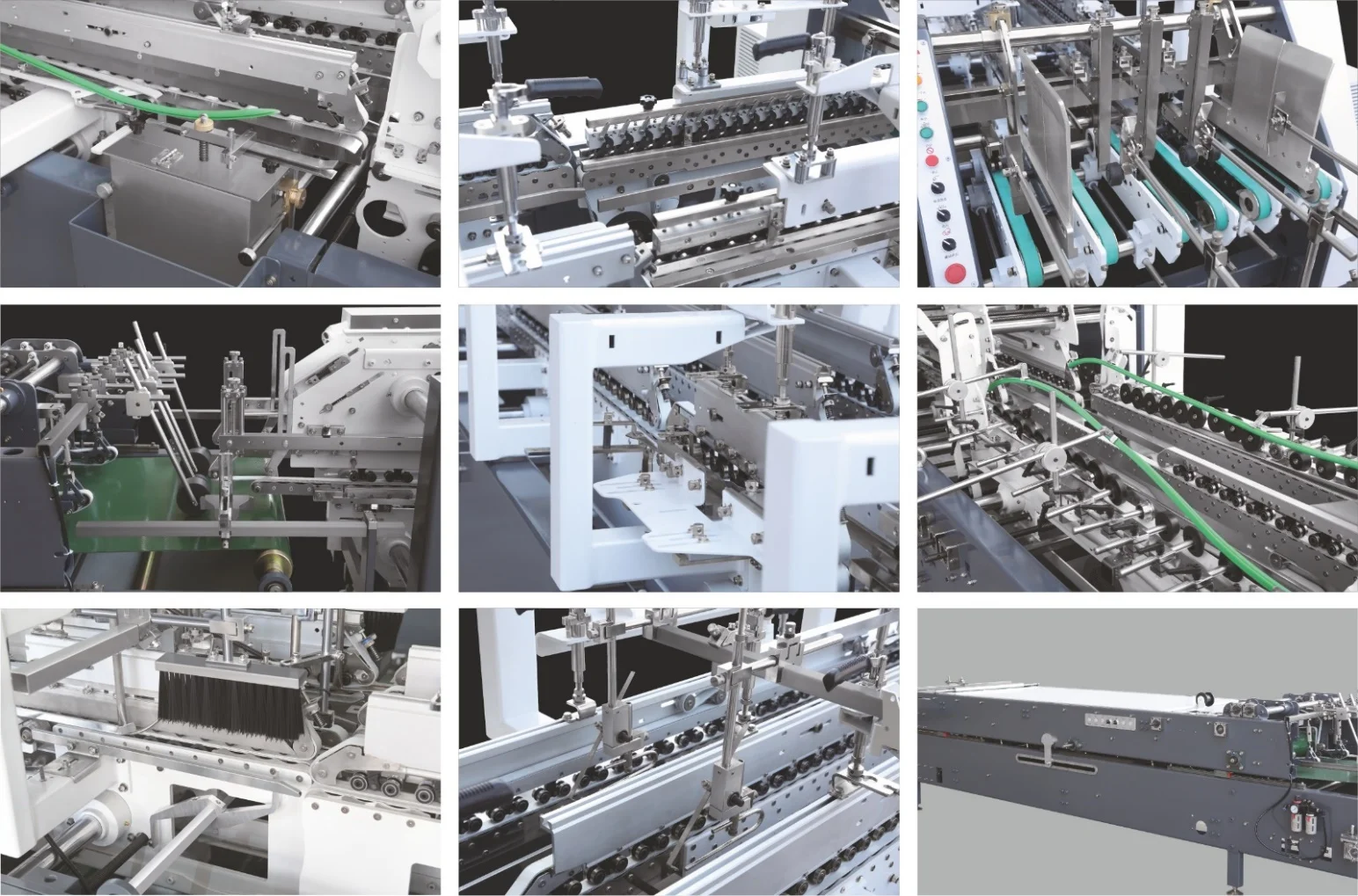

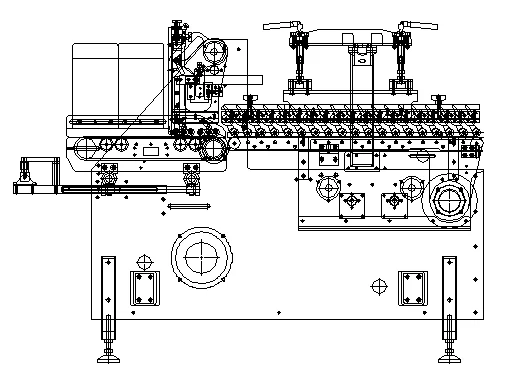

Machine Pictures
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.
We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:Shanghai company is 12 years old, the factory is more than 20years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.
We have agents in South Africa,Morocco and Italy.
