Description
| Model No. | Product | Qty | Unit Price (FOB China) | Delivery Time |
| AEM-1650V | Automatic die cutting machine | 1 set | USD100000.00 | 60days |
| AEM-1650VQ | Automatic die cutting machine (with waste stripping) | 1 set | USD118000.00 | 60days |
| Option | four-sides stripping device | USD10000.00 | 60days | |
| Option | auto batch delivery system | USD5000.00 | 60days | |
| Option | Preload device | USD5000.00 | 60days |
After sale services and component replacement
One year guarantee. During the period of quality guarantee, we supply the spare part in free for replacement in case of quality problem, if there get a problem with machine, buyer can not solve it, buyer can take a video of machine running then send to seller.
Packaging
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Date
Within 60 days after payment of deposit.
Terms of Transportation
Seller shall deliver equipment at its factory and may arrange transportation for Buyer but freight shall be for Buyer’s account.
Terms of Payment
50% deposit by T/T upon final confirmation and balance before shipment; or L/C. After completion, buyer shall come to seller’s factory to check and inspect.
Quality Assurance
Seller provides a 12-month guarantee period. After the guarantee, seller shall still provide technical support to buyer.
Training, Installation and Test Run
1. Seller shall provide training for Buyer in Seller’s factory;
2. Or Seller sends technicians (engineers) to Buyer’s factory. Buyer shall pay the round trip air fare and accommodation. Each technician charges USD150/per day.
*This quotation is valid for 60 days.
**All the above prices and conditions are subject to our final confirmation
Wendy
Sales Manager for
Shanghai PrintYoung International Industry Co., Ltd
Tel: 0086-21-50303885
Mobile&Whatsapp: 008613816748090
Email:[email protected], [email protected]
Professional Printing Equipment and Materials Manufacturer and Supplier.

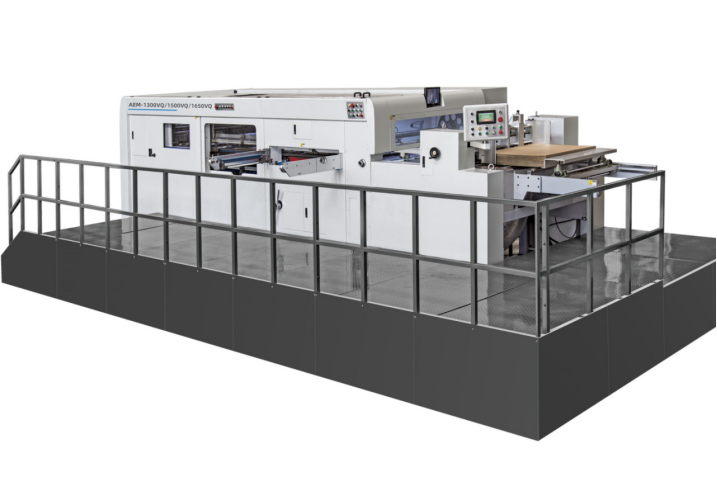

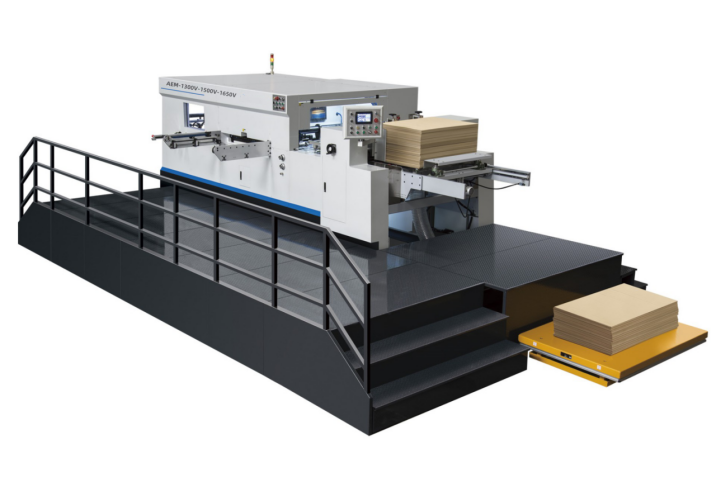

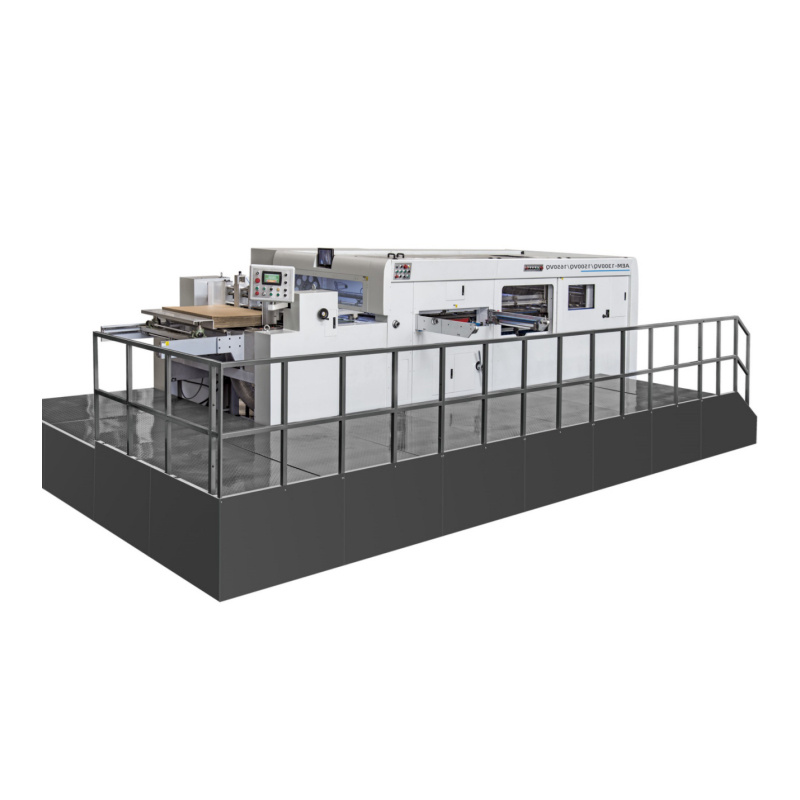

AEM-1650V & AEM-1650VQ
Automatic die cutting machine (waste stripping)
【Professional manufacturer】
Application
AEM-V(Q) lead edge feeder die cutting machine is specially designed for die cutting and creasing the thick board, like corrugated board(<8 mm). It is equipped with advanced friction paper feeding device.
Features
Safety, Energy Saving, Efficient
1. Platen press is driven by Taiwan TECO main motor with Panasonic inverter; the running of complete machine is controlled by PLC centralized controlling system which can automatically examine the working status and test unusual status as well as record the working condition. According to the Europe Safety Standard, we design reasonably to make the operability and safety perfect combination.
2. Advanced alarm system of starting up will remind operator to leave the unsafe area. Automatically detecting whole process, if malfunction, non-paper or paper stuck, the pneumatic clutch will separate and stop automatically which reduce the waste of paper, protect the staff and equipment.
3. Elaborate pre-stacked device and paper feeding & delivery non-stop devices reduce the time of stacking, improve the efficiency of machine and increase your income.
4. Selected European, Japanese, Taiwan electrical and pneumatic components improve the stability of the machine and reduce the frequency of inanimateness.
5. Mainframe and base adopt high strength spheroidal graphite iron QT500-7 which is accurately processed by numerical control center, guarantee the machine run stably in long time when bearing large pressure. The cores of the platen press machine such as crankshaft, worm gear, are all imported high-class alloy steel, which are processed by quenching and high temperature tempering with a long working life.
6. Lubrication system for core parts is equipped with display device for oil pressure and alarming device for insufficient pressure of oil and air.
7. Supply long-term and complete technical training as well as prompt free maintains for one year, guarantee that our clients can fully master the production technology of our equipment. Our machine is with Perfect design, accurate installation, high stability, high security, low noise.
Specifications
| Machine Model | AEM-V Automatic Die Cutting Machine | ||||
| Machine configuration | Friction feeder | √ | |||
| Platen press section | √ | ||||
| Stripping unit | OPTIONAL | ||||
| Sheet delivery unit | √ | ||||
| Model | AEM-1300V | AEM-1500V | AEM-1650V | ||
| Max. Sheet Size | 1320×980 mm | 1500×1100 mm | 1670×1210 mm | ||
| Min. Sheet Size | 470×370 mm | 470×440 mm | 520×460 mm | ||
| Feeding Pile Height | 300mm | 300mm | 300mm | ||
| Delivery Pile Height | 1200mm | 1200mm | 1300mm | ||
| Max. Die-Cutting Size | 1300×970 mm | 1490×1090 mm | 1650×1200 mm | ||
| Inner Chase Size | 1330×992 mm | 1540×1100 mm | 1660×1215 mm | ||
| Die Cutting Plate Size | 1320×982 mm | 1500×1100 mm | 1680×1186 mm | ||
| Cutting Rule Height | 23.8mm | 23.8mm | 23.8mm | ||
| Cutting Plate Thickness | 7mm | 7mm | 7mm | ||
| Stock Range | Paperboard:0.25～2 mm | ||||
| Corrugated paper:＜8 mm | |||||
| Die-Cutting Accuracy | ≤±0.2 mm | ≤±0.25 mm | ≤±0.25 mm | ||
| Max. Die-Cutting Pressure | 280 T | 300 T | 300 T | ||
| Max. Machine Speed | 5000 S/H | 4800 S/H | 4500 S/H | ||
| Min Gripper Margin | 7mm | 7mm | 7mm | ||
| Air Supply | 0.6-0.7Mpa, 0.36m³/Min | ||||
| Power Requirement | 3 phases 380V 50HZ | ||||
| Main Motor Power | 11KW | 15KW | 15KW | ||
| Total Power | 17.8kw | 22KW | 22KW | ||
| Total Machine Weight | 18 T | 20 T | 23 T | ||
| Total Machine Weight(with stripper) | 20.5 T | 22.5 T | 25 T | ||
| Overall Dimension | 6000(+1800)×2350(+1900)×2350mm | 6500(+2000)×2600(+2200)×2850 mm | 6900(+2300)×3000(+2300)×2550 mm | ||
| Overall Dimension (with stripper) | 7200(+1800)×2350(+1900)×2350mm | 7900(+2000)×2600(+2200)×2850 mm | 8400(+2300)×3000(+2300)× 2550 mm | ||
| >> Standard configuration | |||||
| >Paper Feeding Section: feeder and conveyor table | |||||||||
|

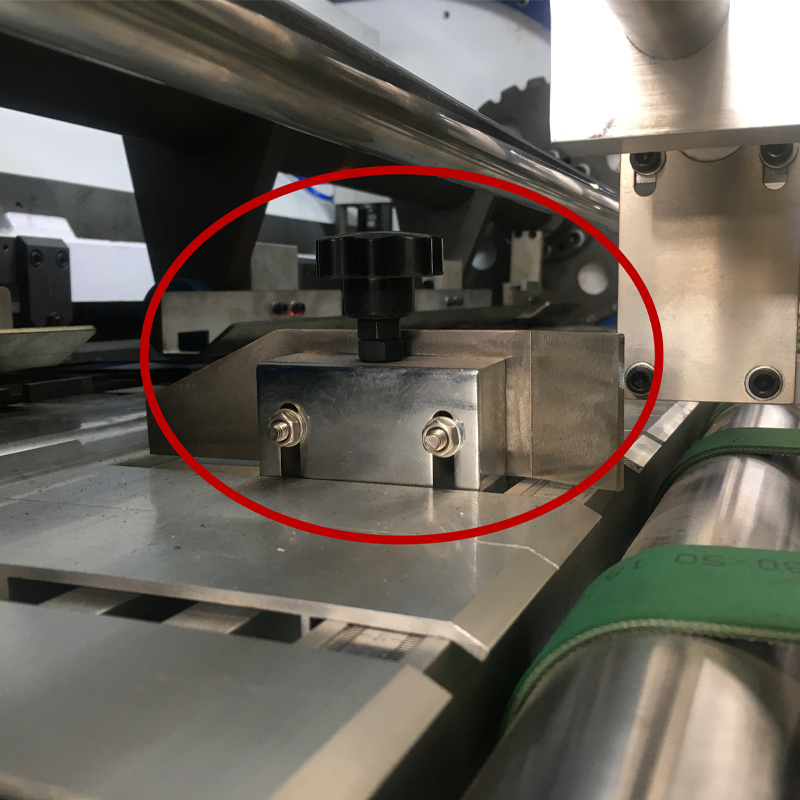

1.Advanced lead edge feeder for thick paperboard and corrugated board. 2. Conveyer table with anti-wore PU press rollers and the brush wheels guarantees high feeding accuracy of paper, the conveyer belt can be adjusted nonstop. 3. Side lay and front lay guarantee accuracy of the sheet position. 4. Skew paper and accumulated paper detection function and auto stop function: when the sensors detect the paper is skewed or accumulated before being delivered to platen press section, machine will stop. | |||||||||

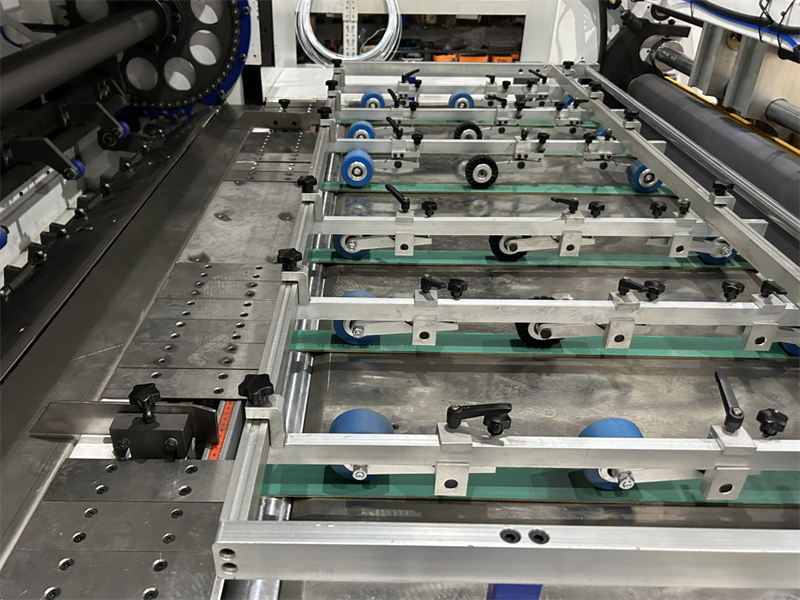

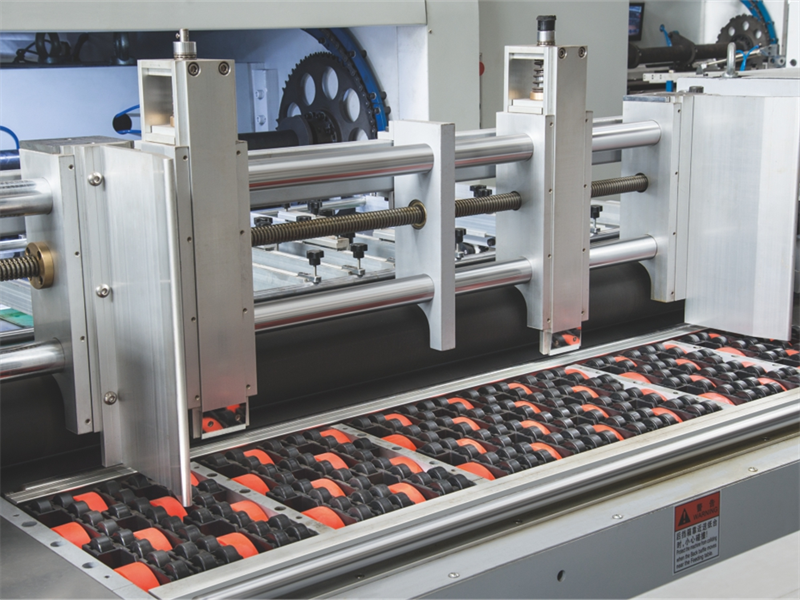

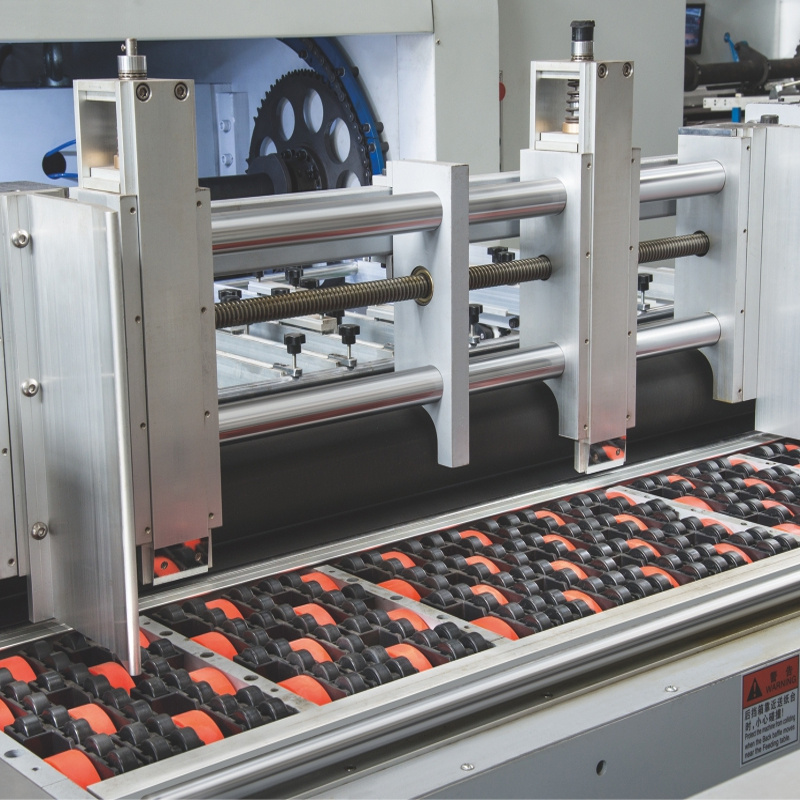

| Lead edge feeder | Conveyer table | ||||||||
 |
 |
||||||||

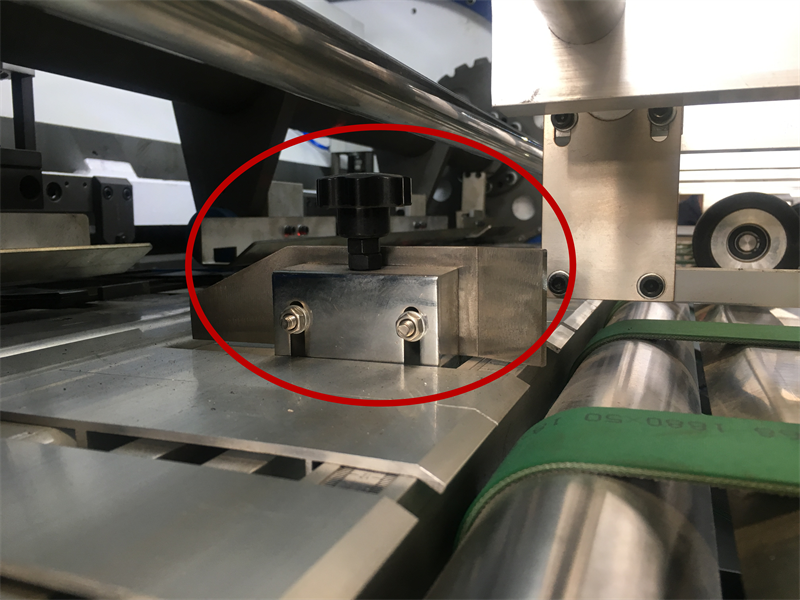

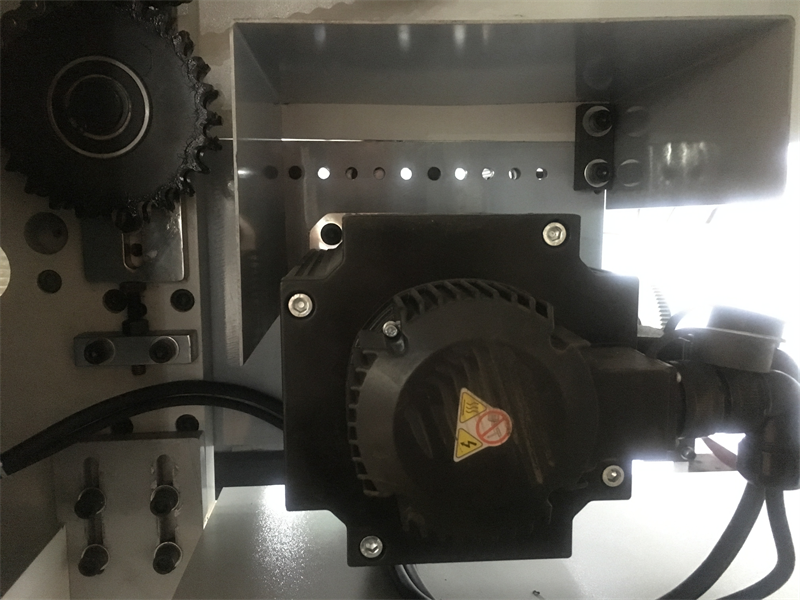

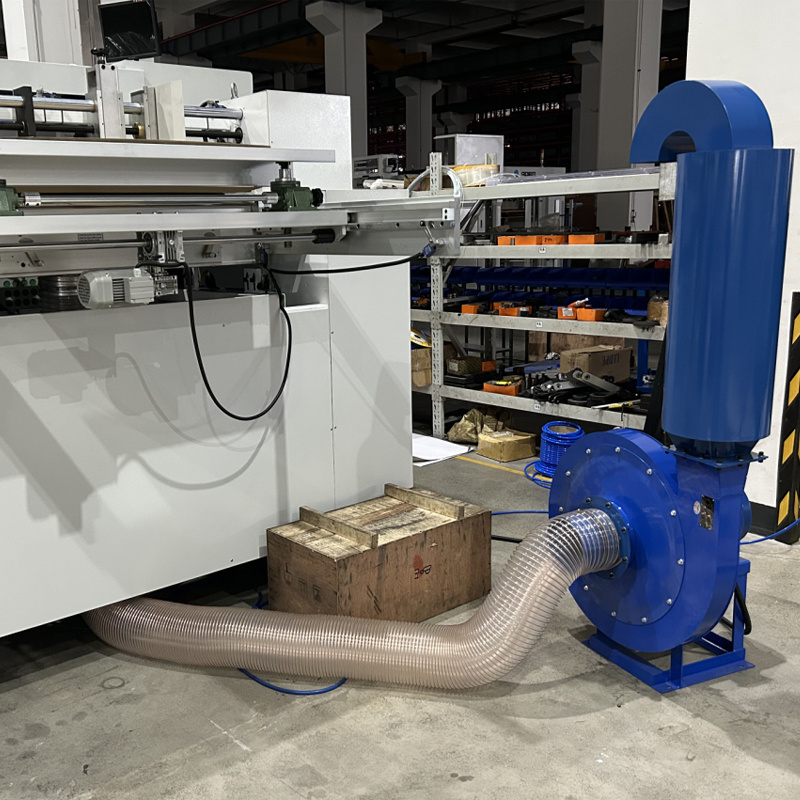

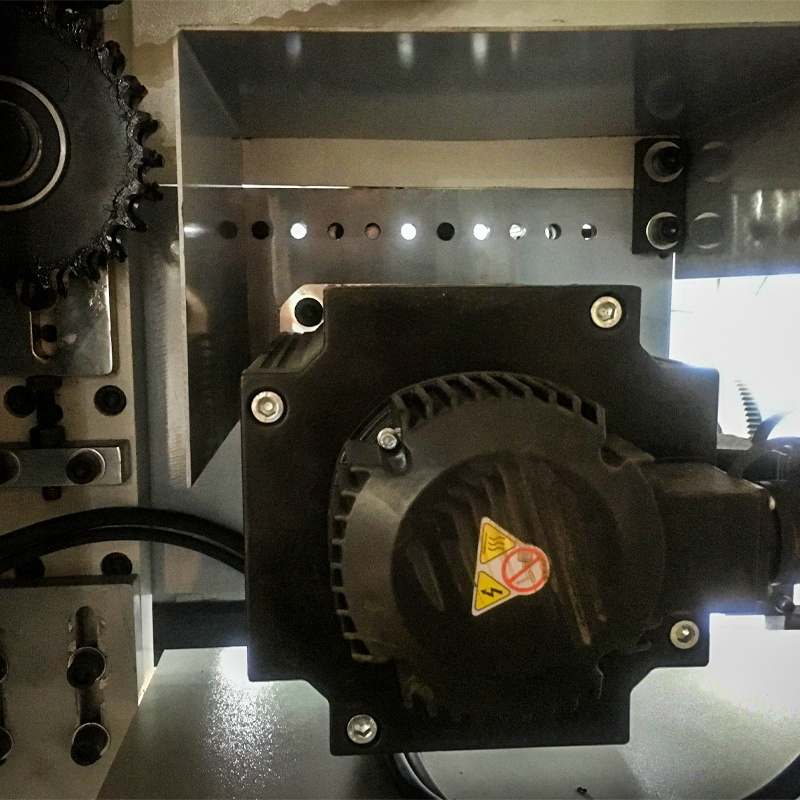

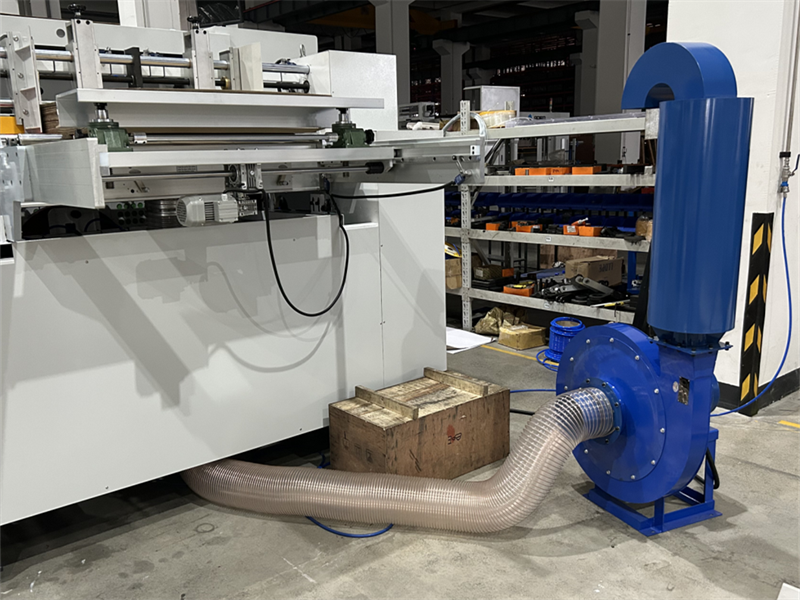

| Servo motor | Side lay | Suction fan | |||||||
 |
 |
 |
|||||||
| >Platen Press Section | |||||||||
|
1.Main body adopts high-strength ductile iron QT500 with special casting process. The Ni-Cr-Mo Alloy crankshaft with special craft process treatment and super wear-resistant worm and gear. 2. High pressure automatic oil motor with filter and cooling fan recycles the oil to lubricate the main transmission parts(crankshaft, worm and gear). And the auto oil pump lubricates all of the necessary parts(gear, chains, etc.) 3. Big flywheel with the pneumatic clutch guarantees high precision when machine is high speed running. 4.Human-friendly design for die and liner plate(Manganese Steel)changing. Die frame can be overturned and locked pneumatically. 5. High-precision cam indexer to control the gripper bars to deliver paper in accurate position. 6. High-strength Ti-Al alloy grippers and wear-resisting chains for gripper bar. | |||||||||

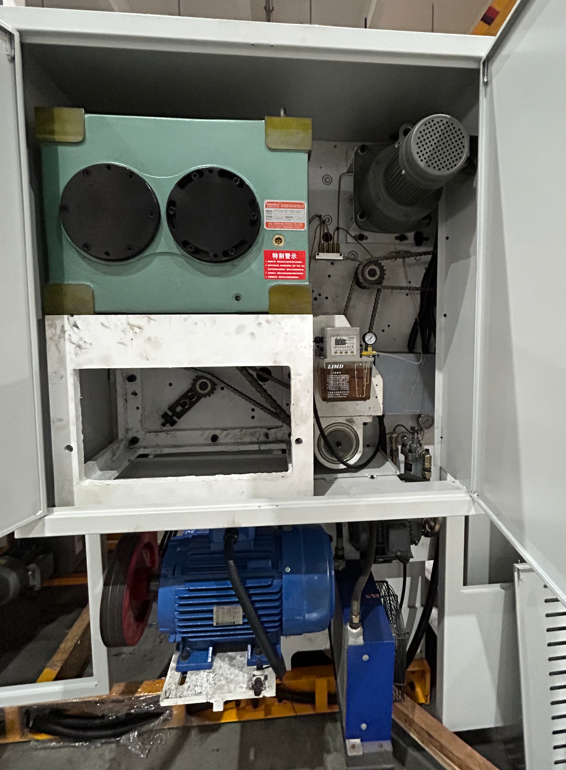

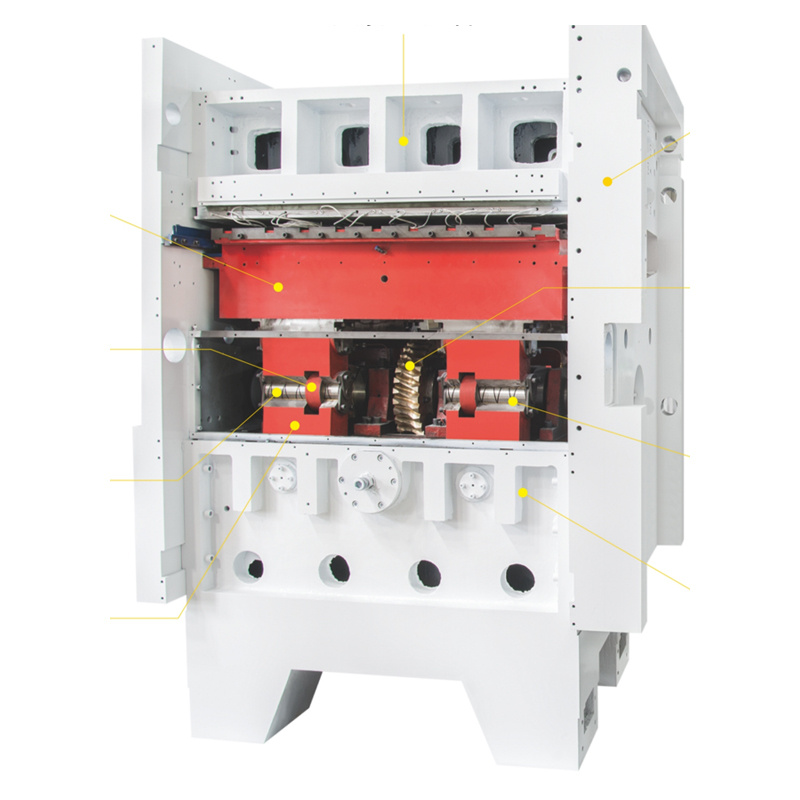

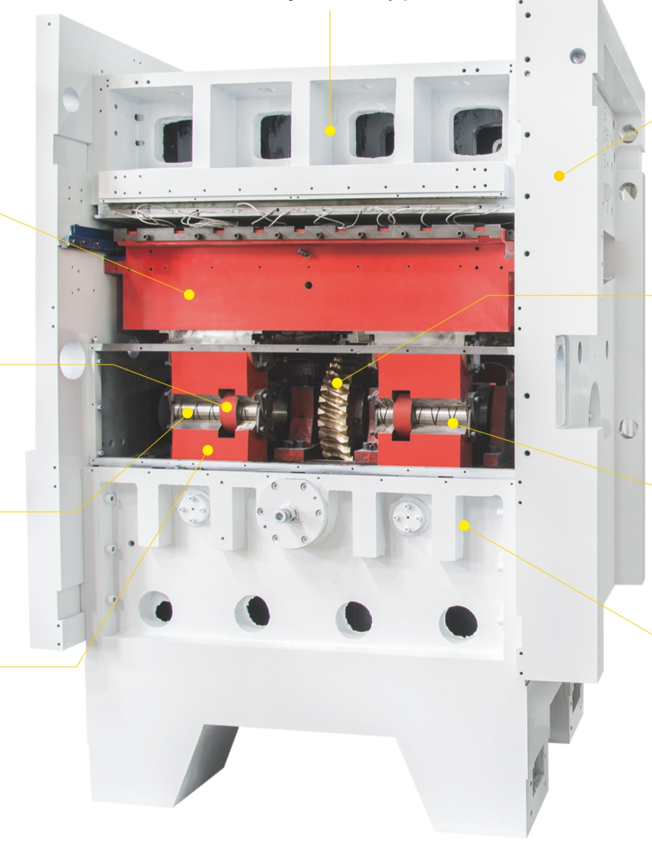

| Main body | Cam indexer | ||||||||
 |
 |
||||||||

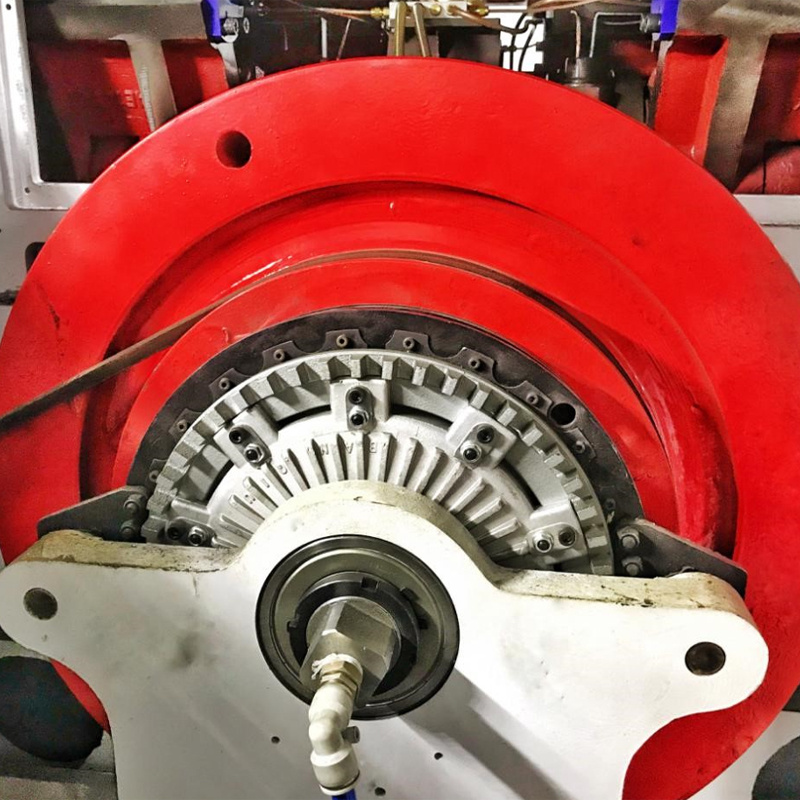

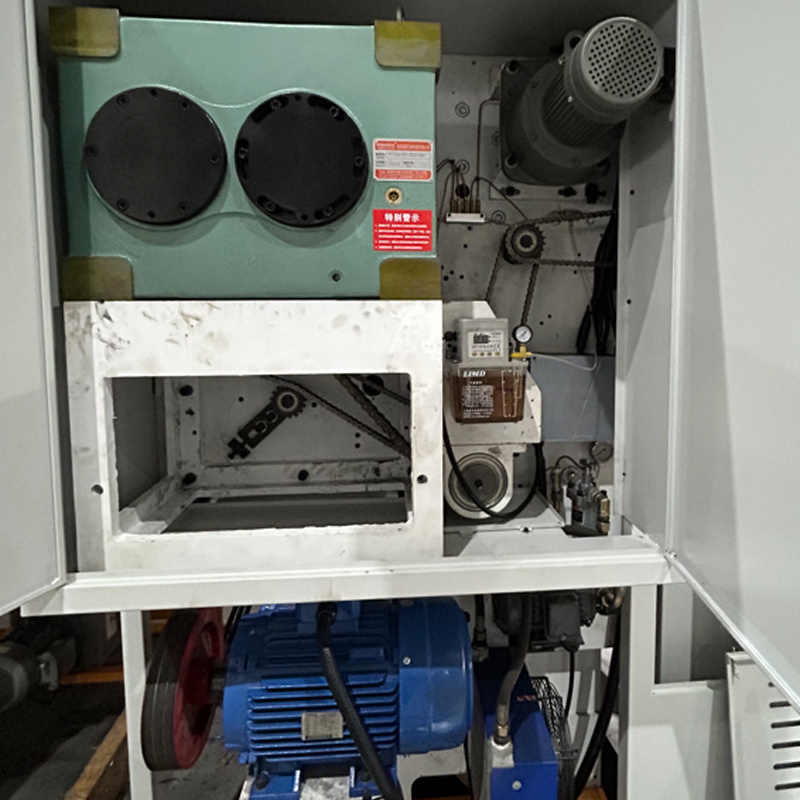

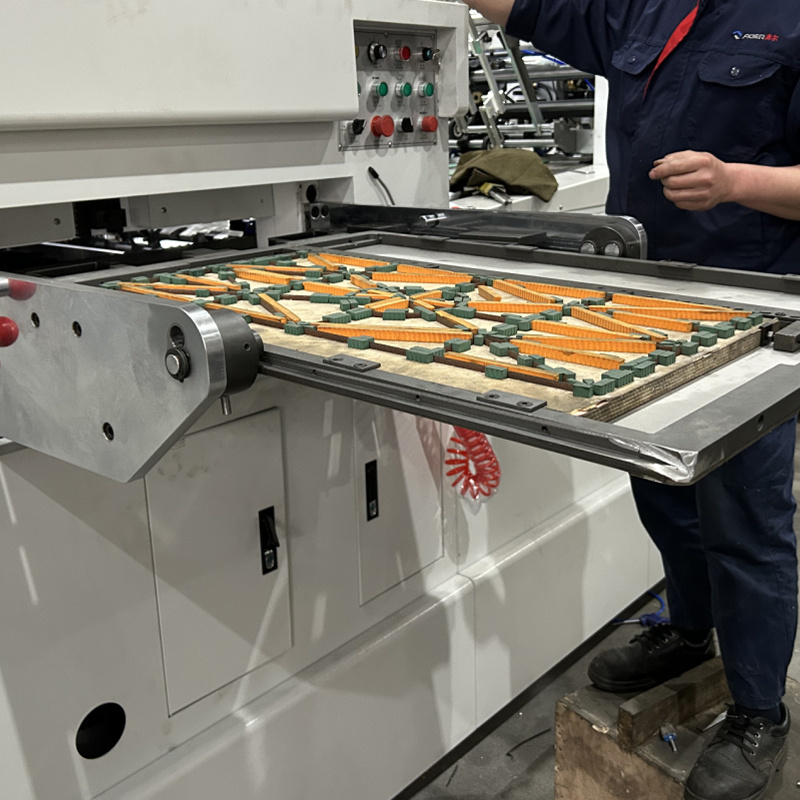

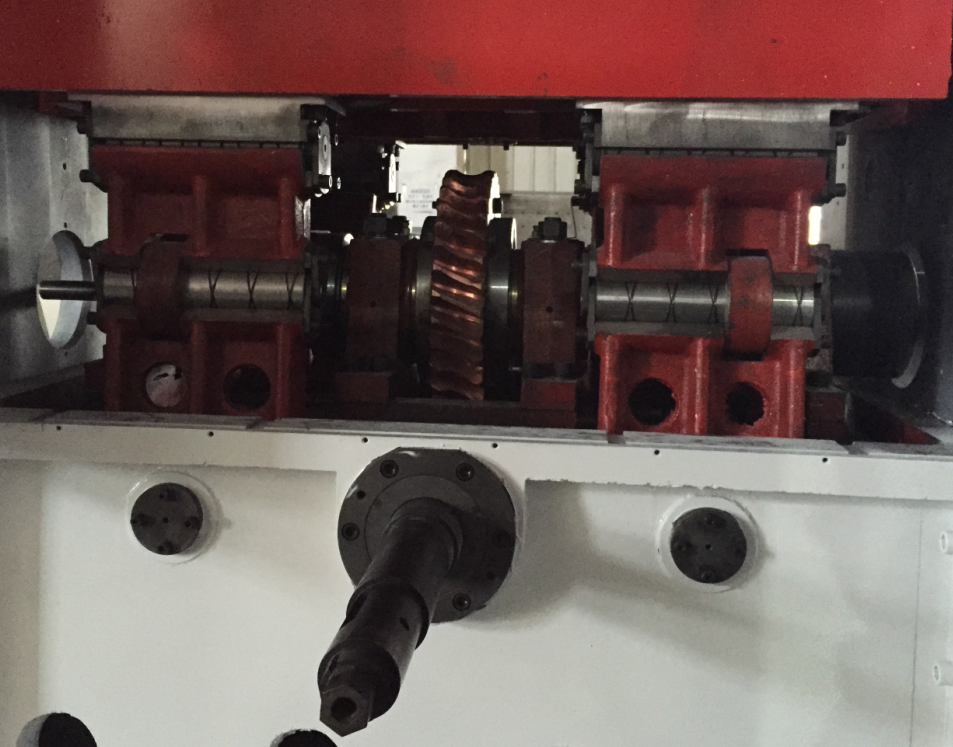

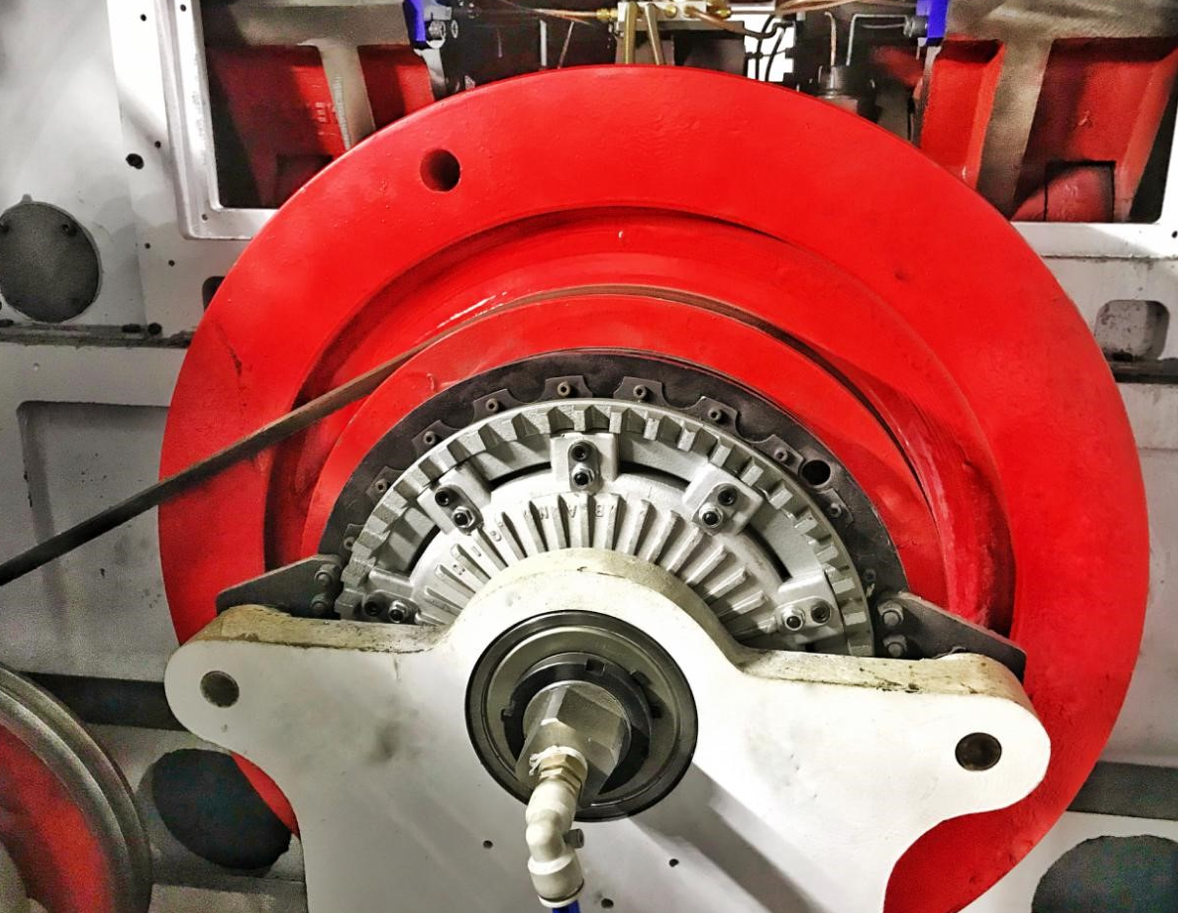

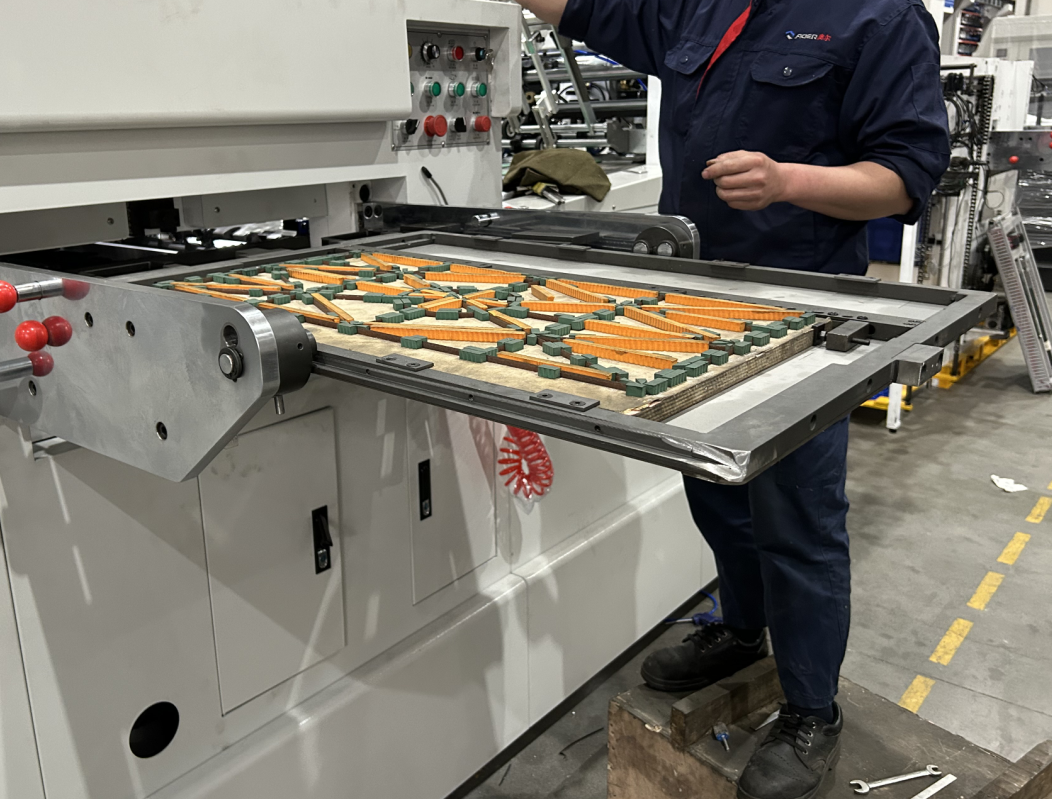

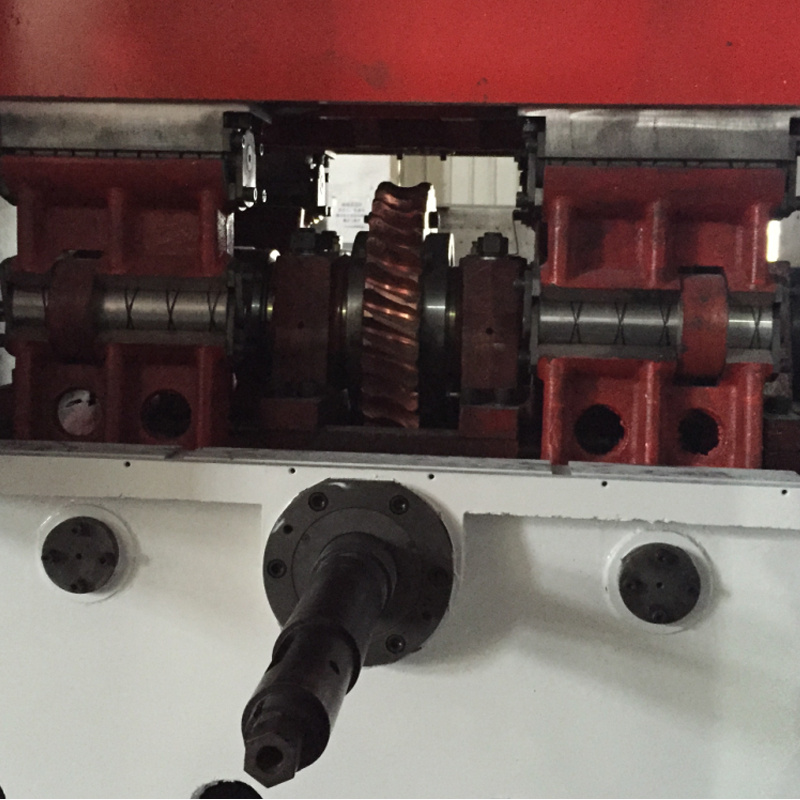

| Pneumatic clutch | Worm and worm gear | Die frame overturn | |||||||
 |
 |
 |
|||||||

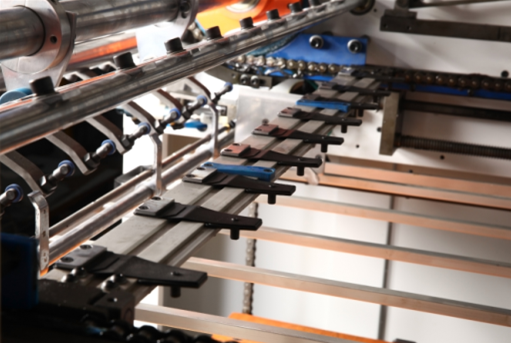

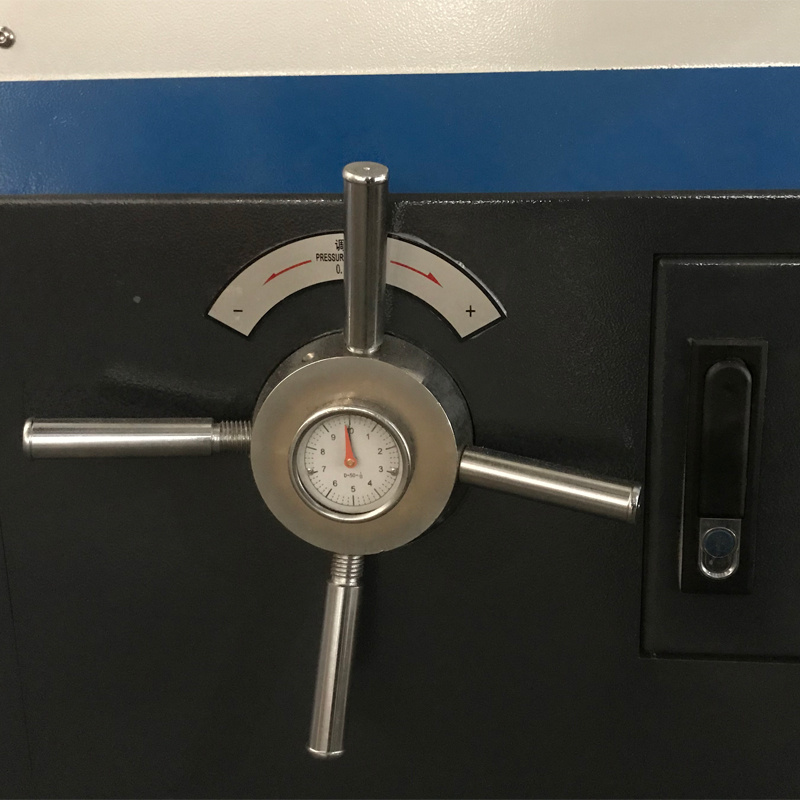

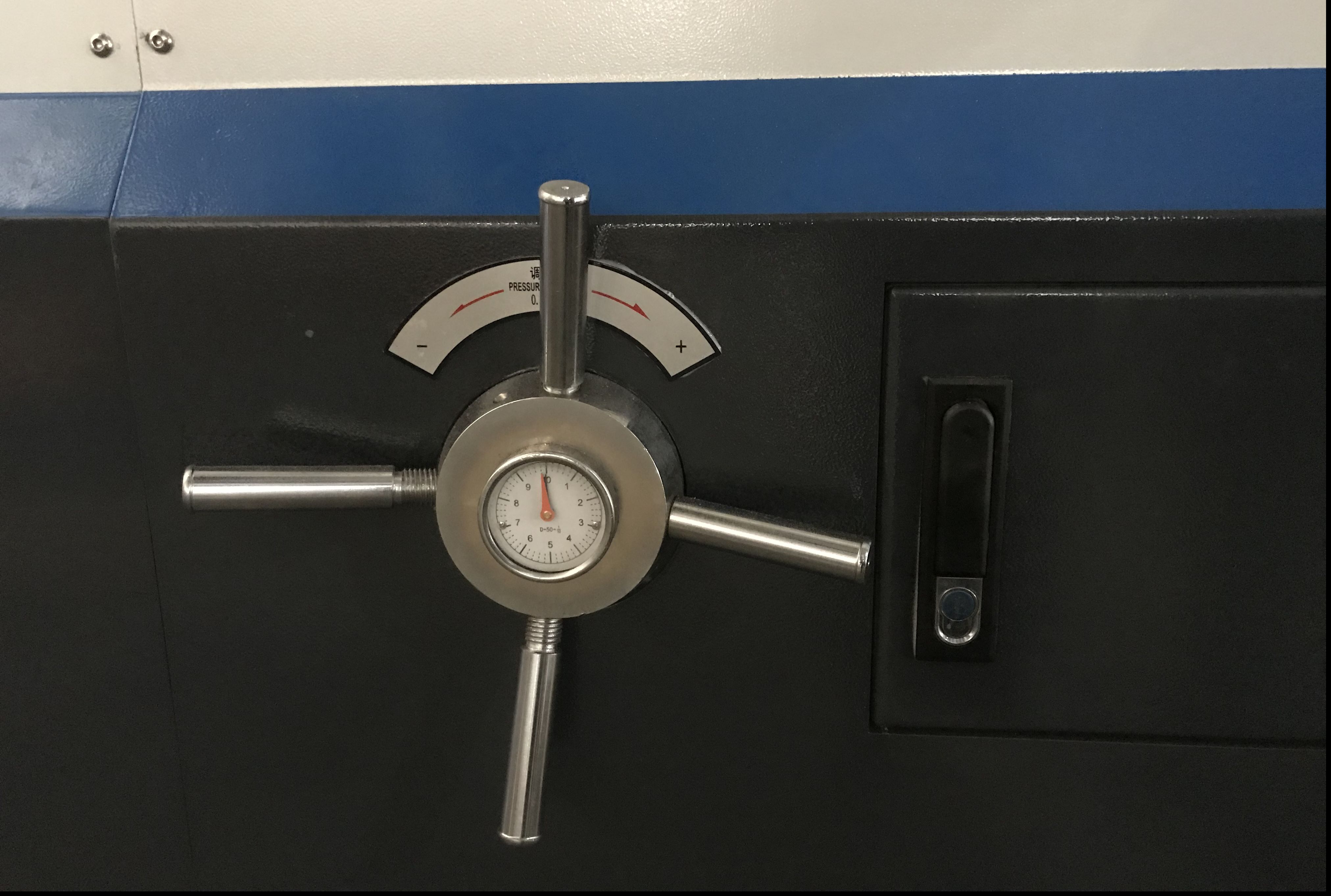

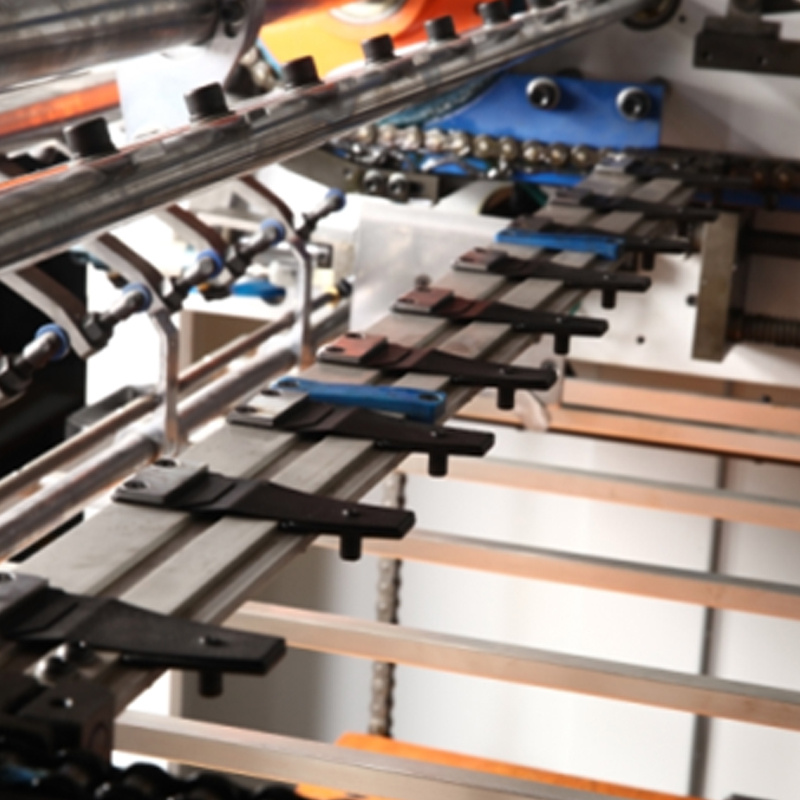

| Pneumatic frame lock | Gripper bar | Pressure adjustment | |||||||
 |
 |
 |
|||||||

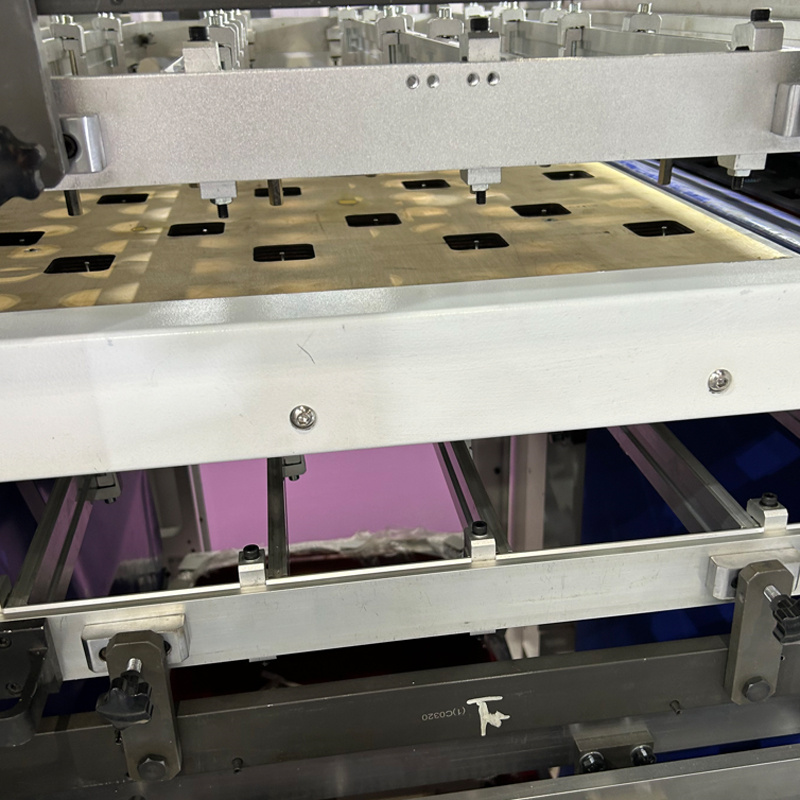

| >Stripper Section(OPTIONAL) | |||||||||
|

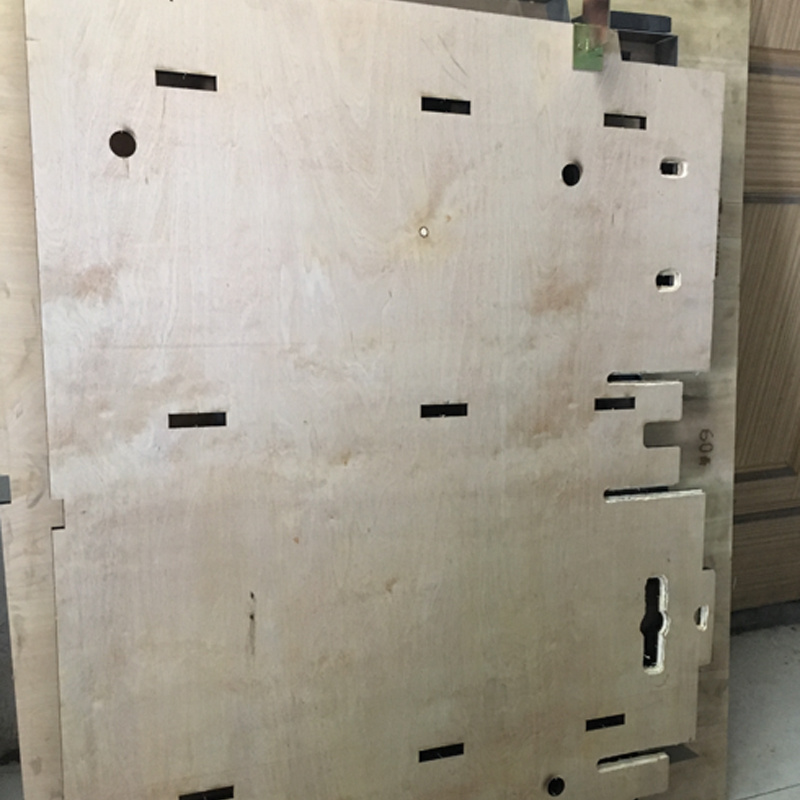

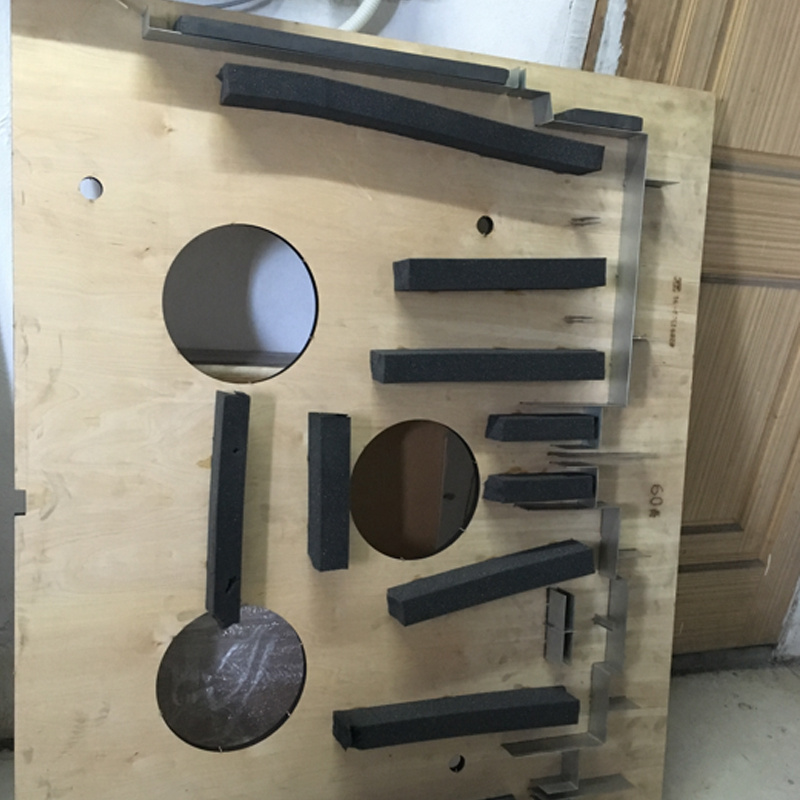

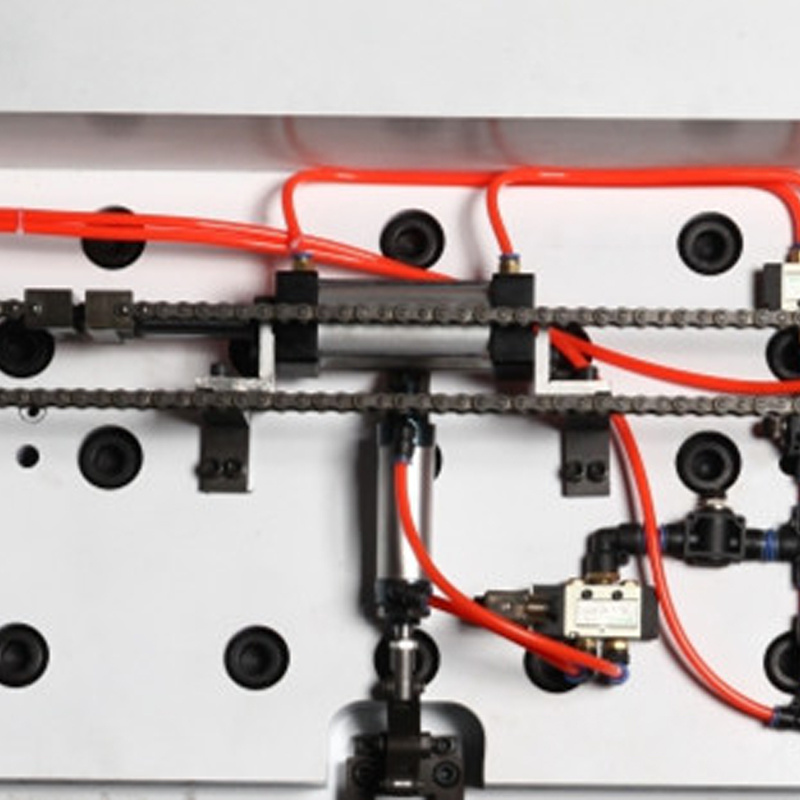

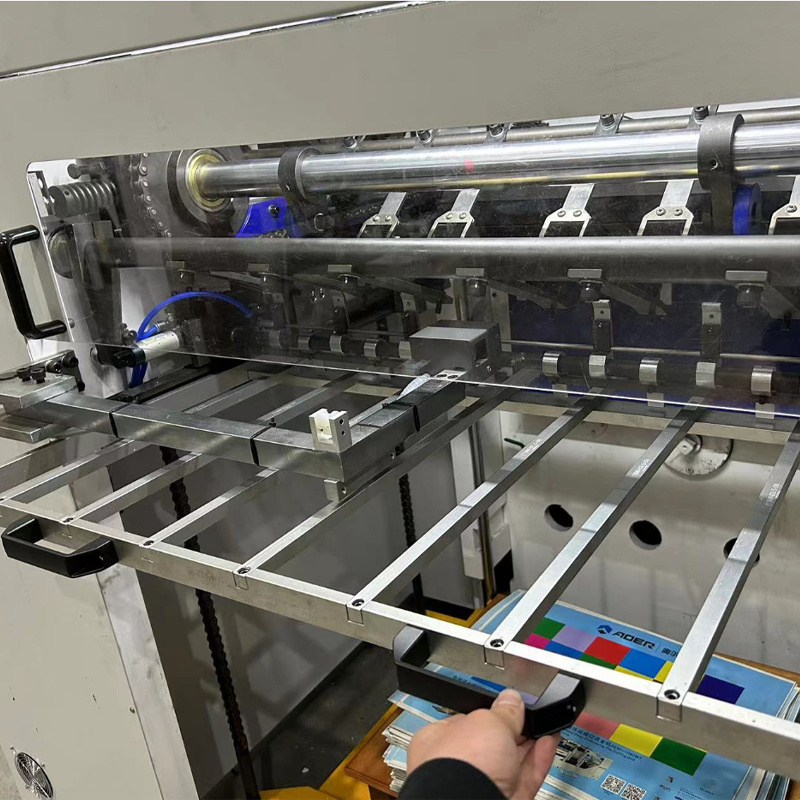

1.Stripper is composed of three frames (upper, middle, and bottom frame) which can be pulled out for installation of pins. 2.Stripper bar with pins or male-female plate for waste stripping. | |||||||||

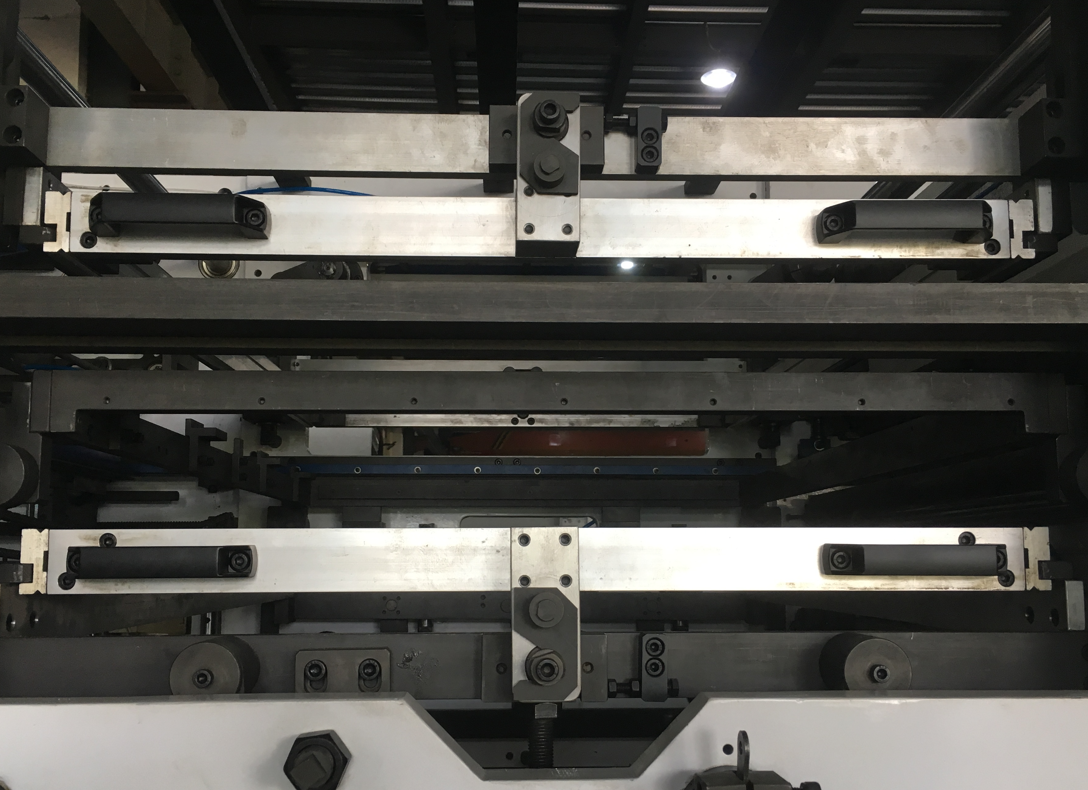

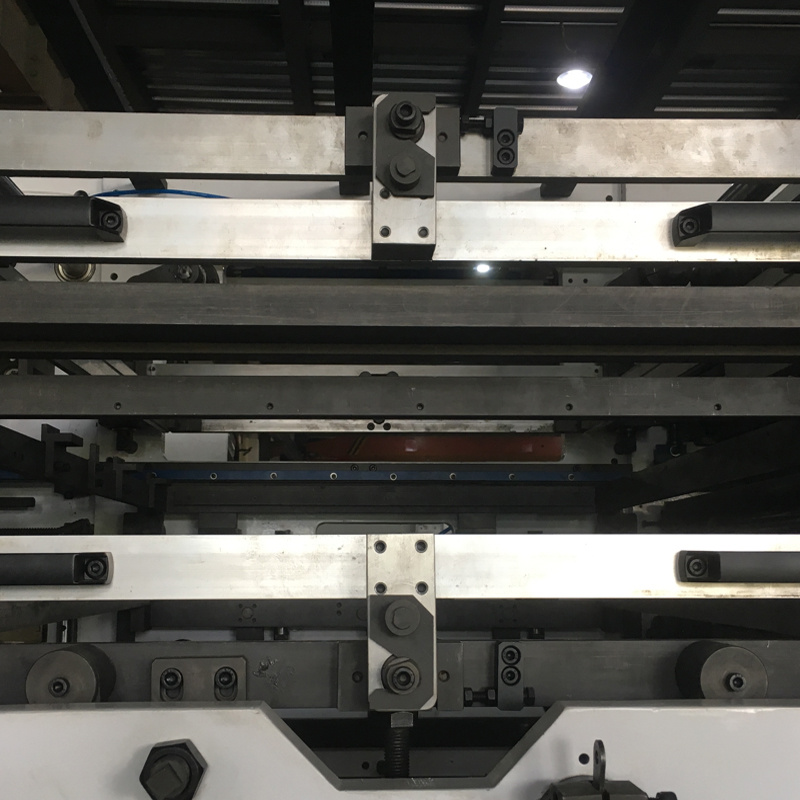

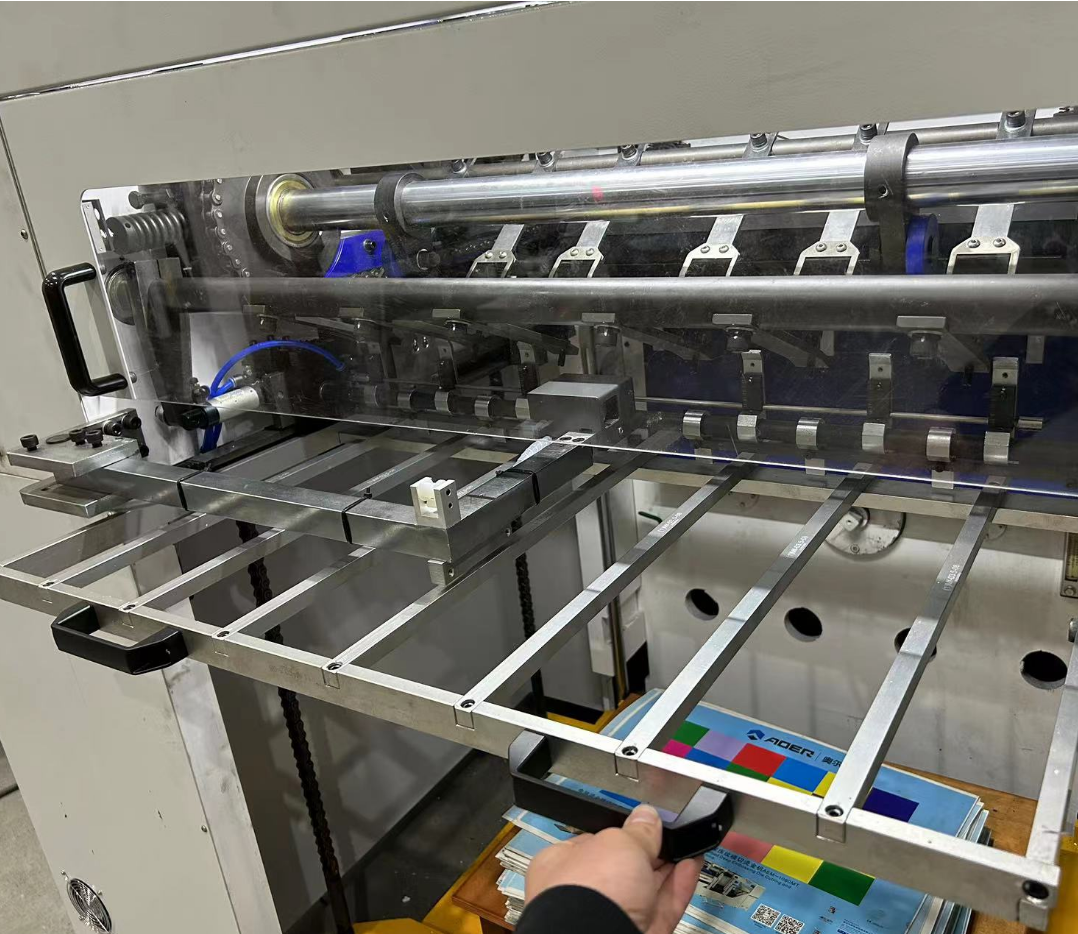

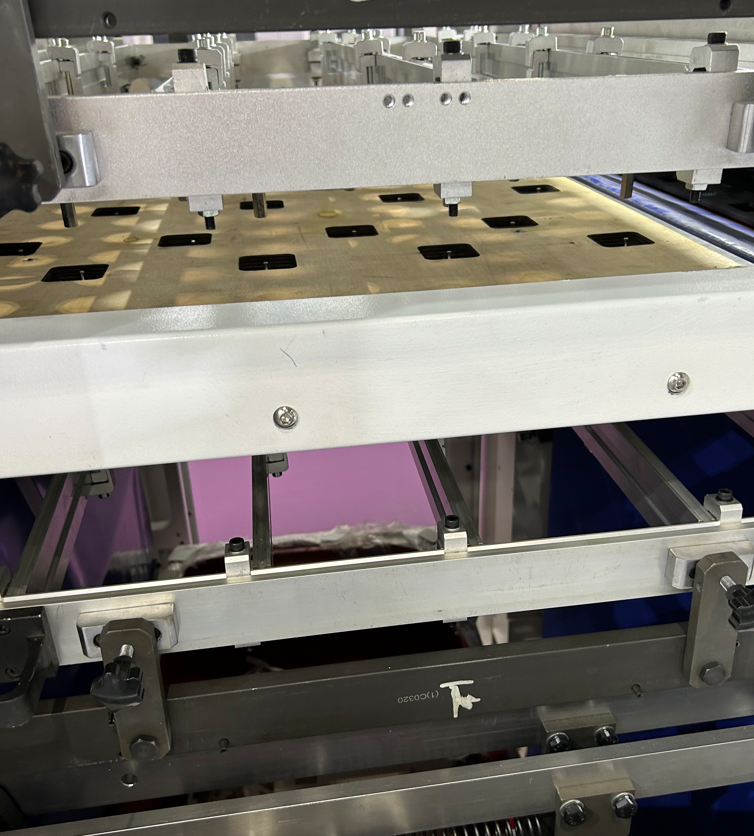

| Stripper | |||||||||
 |
 |
||||||||

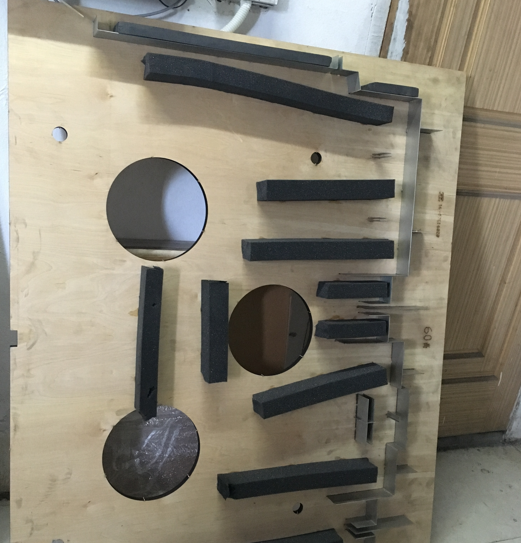

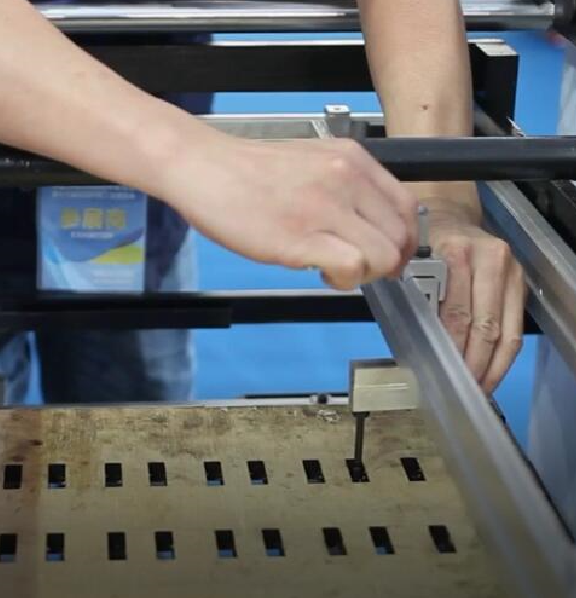

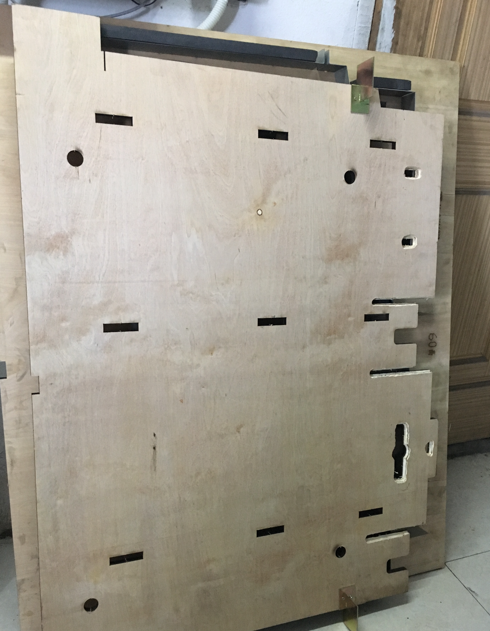

| Stripping bar with pins(optional) | Male/female plate(Standard) | ||||||||
 |
 |
 |
|||||||

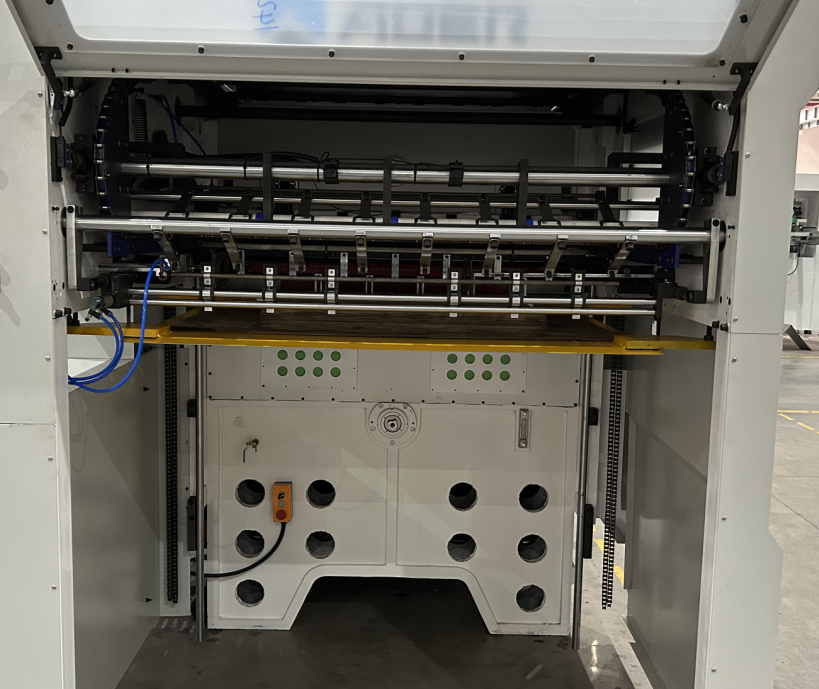

| >Paper Delivery Section | |||||||||
|
1.Automatic aligning device, double side blowers and hair brush guarantee paper pile in good order, no matter the paper is thick or thin. 2.Overrun-prevention device: The sheet is moved upwards with the gripper bar, the detection sensor will be initiated and machine will stop. 3.Gripper chains protection device: sensors are connected to the main chains to monitor the tightness of the chains. When it is detected to be loose, the machine will be stopped. 4.The non-stop paper delivery device. 5.Tag insert device(1 set) to record the sheets quantity. | |||||||||

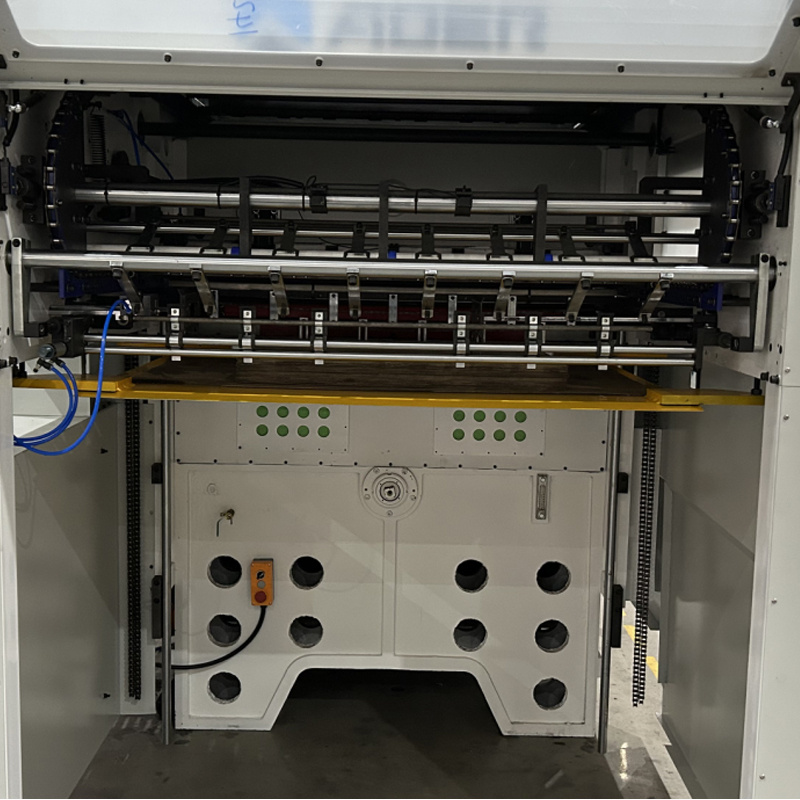

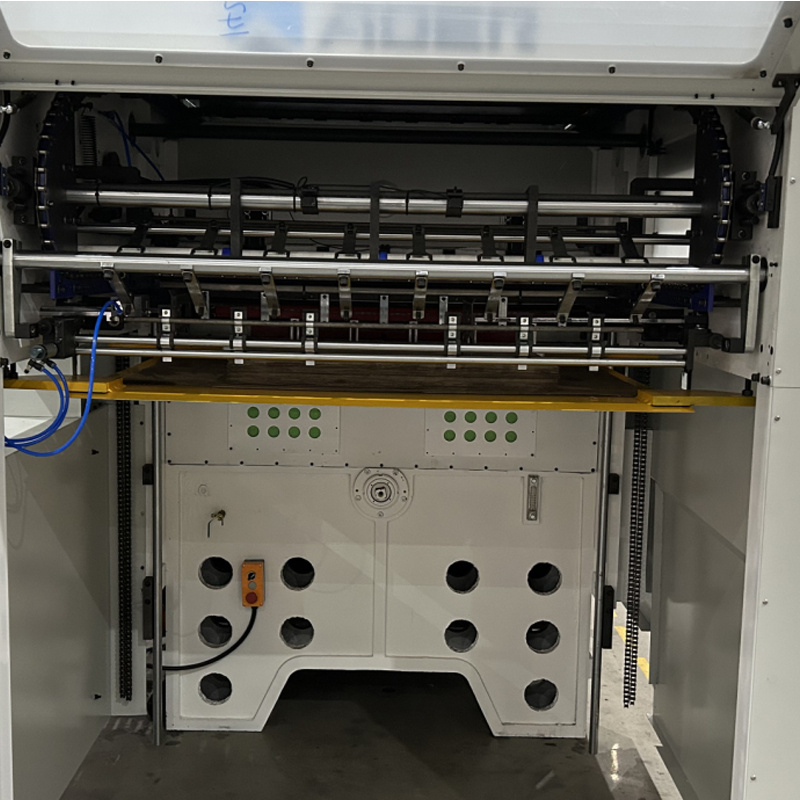

| Paper delivery section | Paper delivery section | ||||||||
 |
 |
||||||||

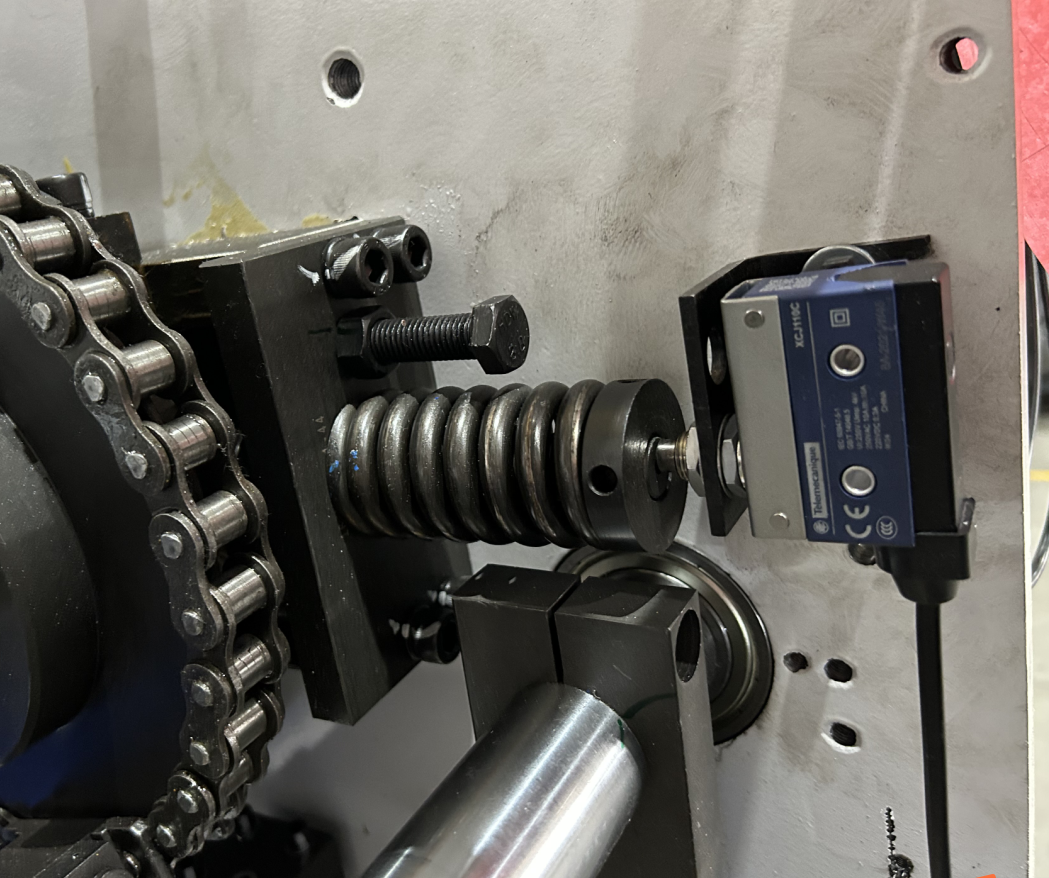

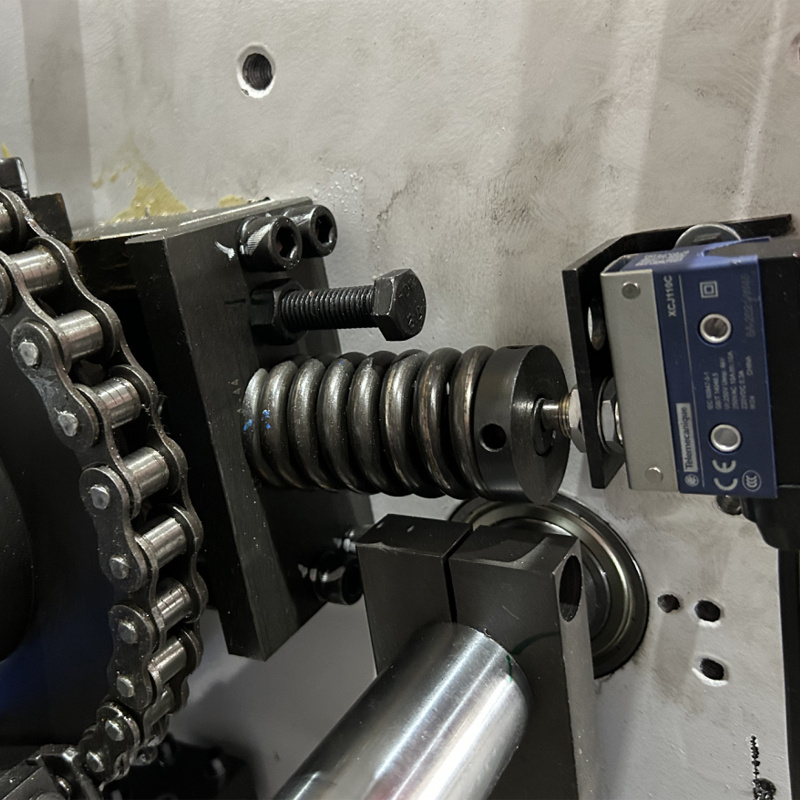

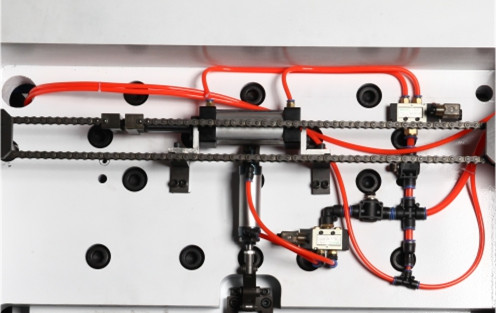

| Non-stop collection mechanism | Main chain protection device | Tag insert device | |||||||
 |
 |
 |
|||||||

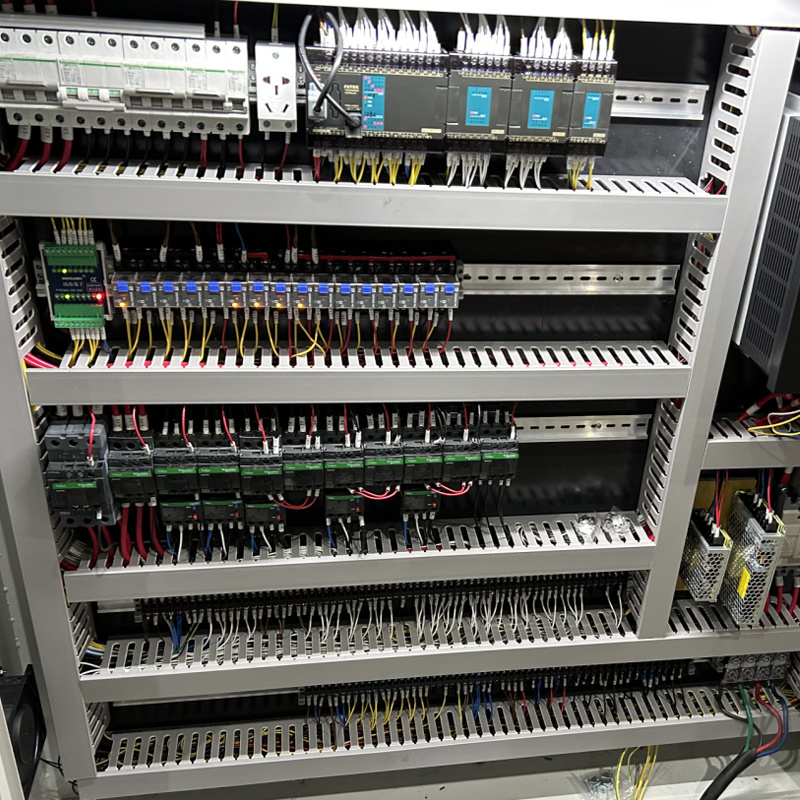

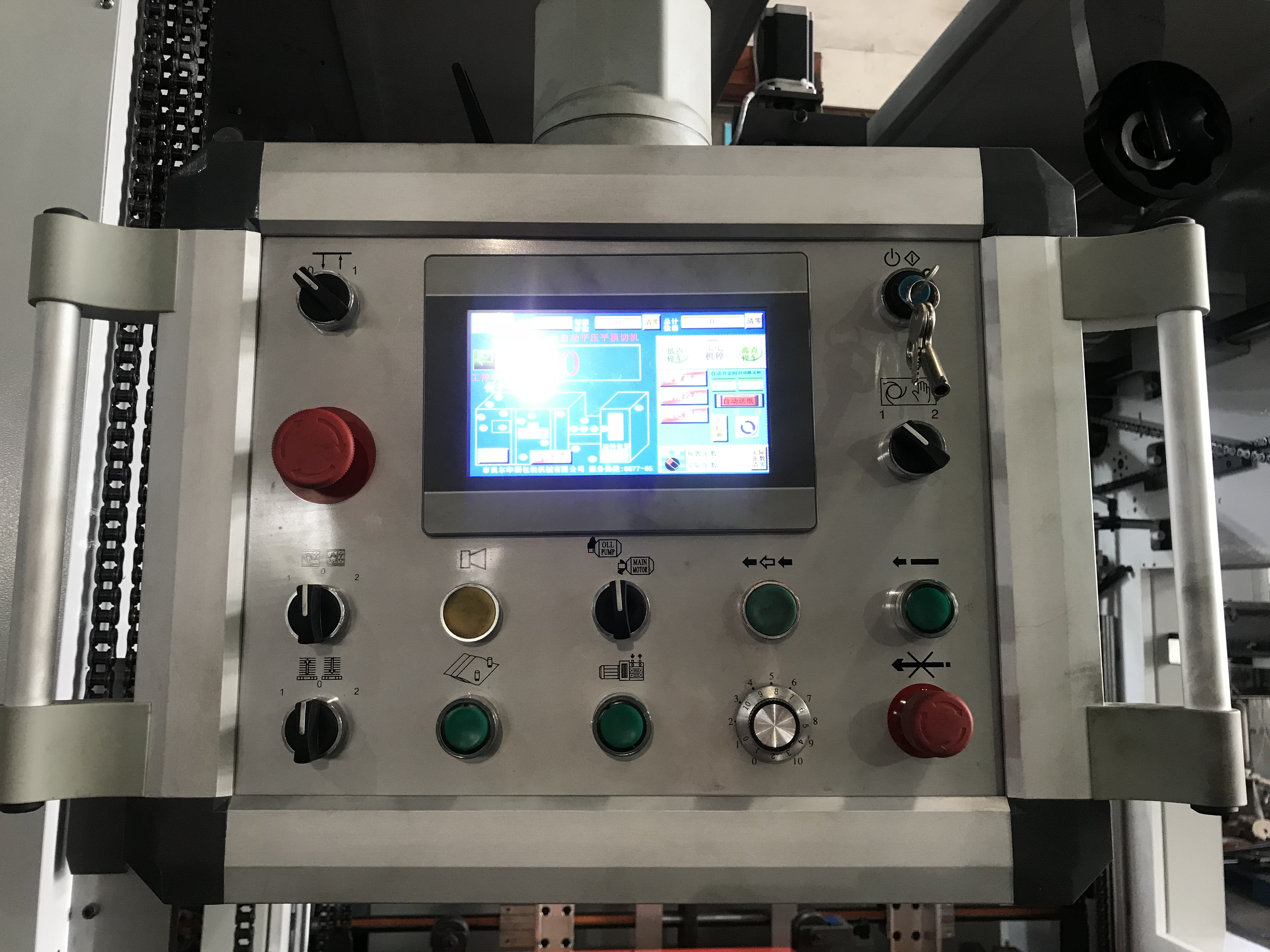

| >Electrical box and control system | |||||||||
|
1.Interface controls are integrated, and numerous electrical switch controls are set in operation screen which is easy operation and easy understanding. 2.PLC centralized controlling system can automatically examine the working status and test unusual status as well as record the working condition. 3. Problem diagnosis function on touch screen, if any problems occur, you can check touch screen to find it. 4. Chinese, English or other any language(optional) on touch screen 5.Electrical components and electrical circuit are in accord with Europe American safety standard. | |||||||||

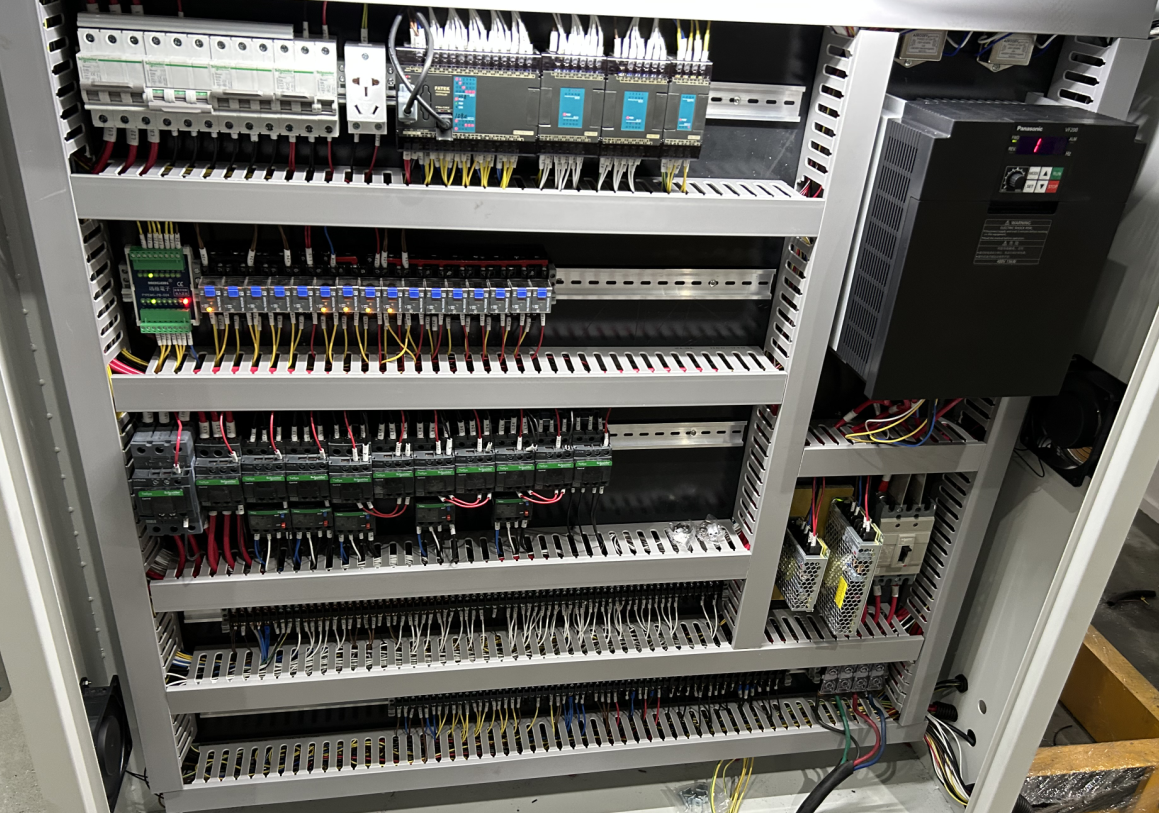

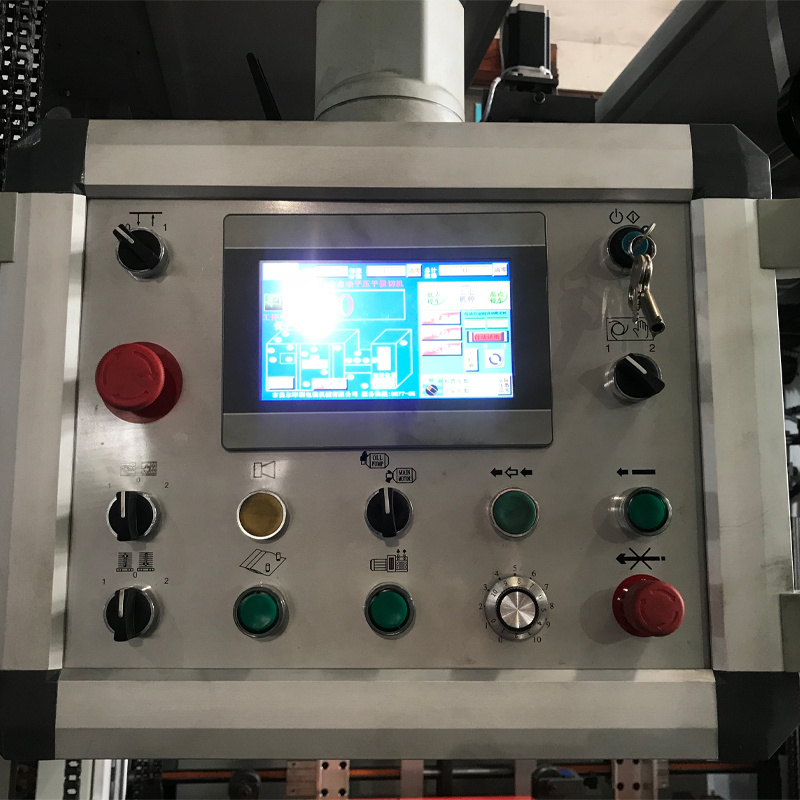

| Electric box | Touch screen | ||||||||
 |
 |
||||||||
| >> Main Configuration list | |||||||||
| >Main parts list | |||||||||
| Name | Materials (Brand)/Origin | quantity | |||||||
| Main frame structure | QT500-7 spheroidal graphite cast iron | 1 set | |||||||
| Platen press base-plate | 75Cr1 alloy steel | 1 set | |||||||
| Crankshaft | Cr-Ni-Mo alloy steel,Taiwan | 1 set | |||||||
| Worm gear | Xingtang, China | 1 set | |||||||
| Gripper bar | Ti-Al alloy (high strength), Taiwan | Several sets | |||||||
| Gripper teeth | Manganese steel, Taiwan | Several pcs | |||||||
| Cam indexing unit | Handex, Taiwan | 1 set | |||||||
| Main transmission chain | TYC, Taiwan | Several pcs | |||||||
| Main key bearing | NSK,Japan | Several pcs | |||||||
| >Main electrical parts and pneumatic parts | |||||||||
| PLC and touch screen | Fatek, Taiwan | 1 set | |||||||
| Touch Screen | WECON, Taiwan | 1 set | |||||||
| Main motor | Teco, Taiwan | 1 set | |||||||
| Gear motor | CPG/Dongli, Taiwan | Several sets | |||||||
| Hydraulic lubrication motor | Lisheng, China | 1 set | |||||||
| Lubrication pump | LIMD, China | 1 set | |||||||
| Inverter | Delta, Taiwan | 1 set | |||||||
| Encoder | Omron, Japan | 1 set | |||||||
| Fiber optic sensor | Panasonic, Japan | Several pcs | |||||||
| photoelectric sensor | Panasonic, Japan | Several pcs | |||||||
| Relay | Schneider, France | Several pcs | |||||||
| AC contactor | Schneider, France | Several pcs | |||||||
| Breaker | Schneider, France | Several pcs | |||||||
| Button | Schneider, France | Several pcs | |||||||
| Rotary joint | SMC, Japan | 1 pc | |||||||
| Pneumatic electromagnetic valve | Airtac, Taiwan | Several pcs | |||||||

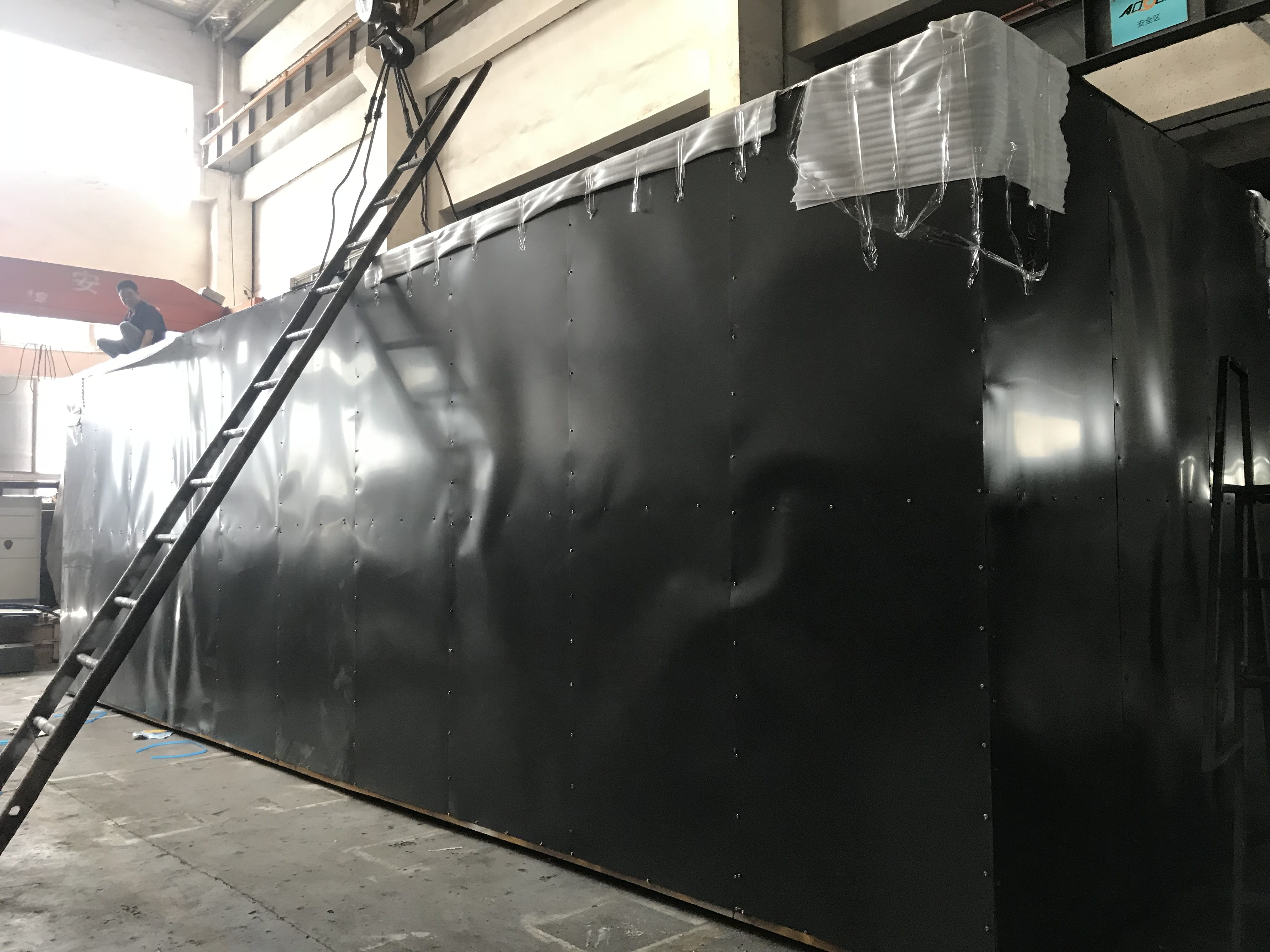

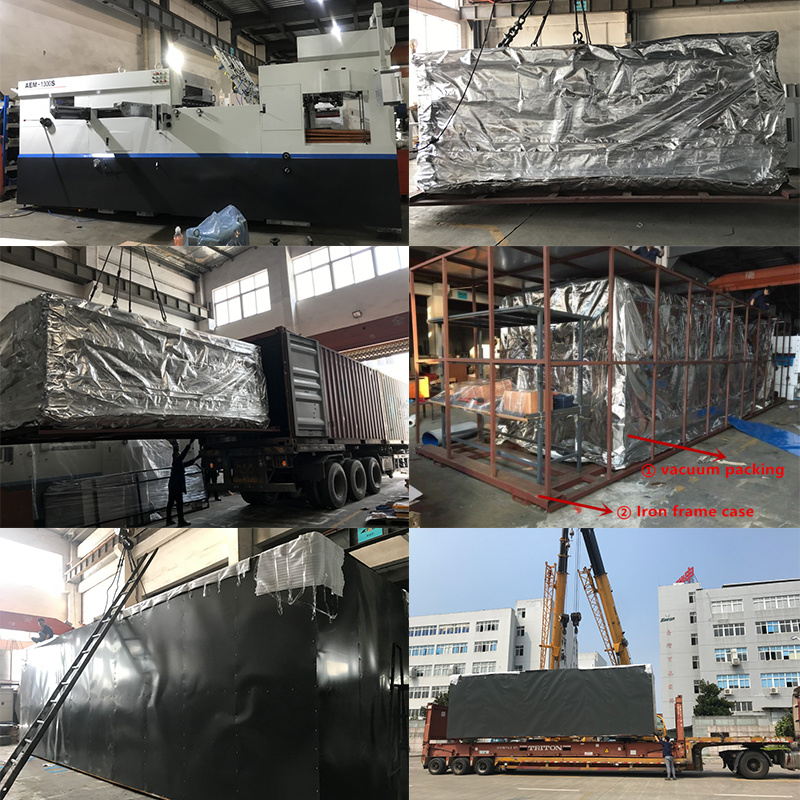

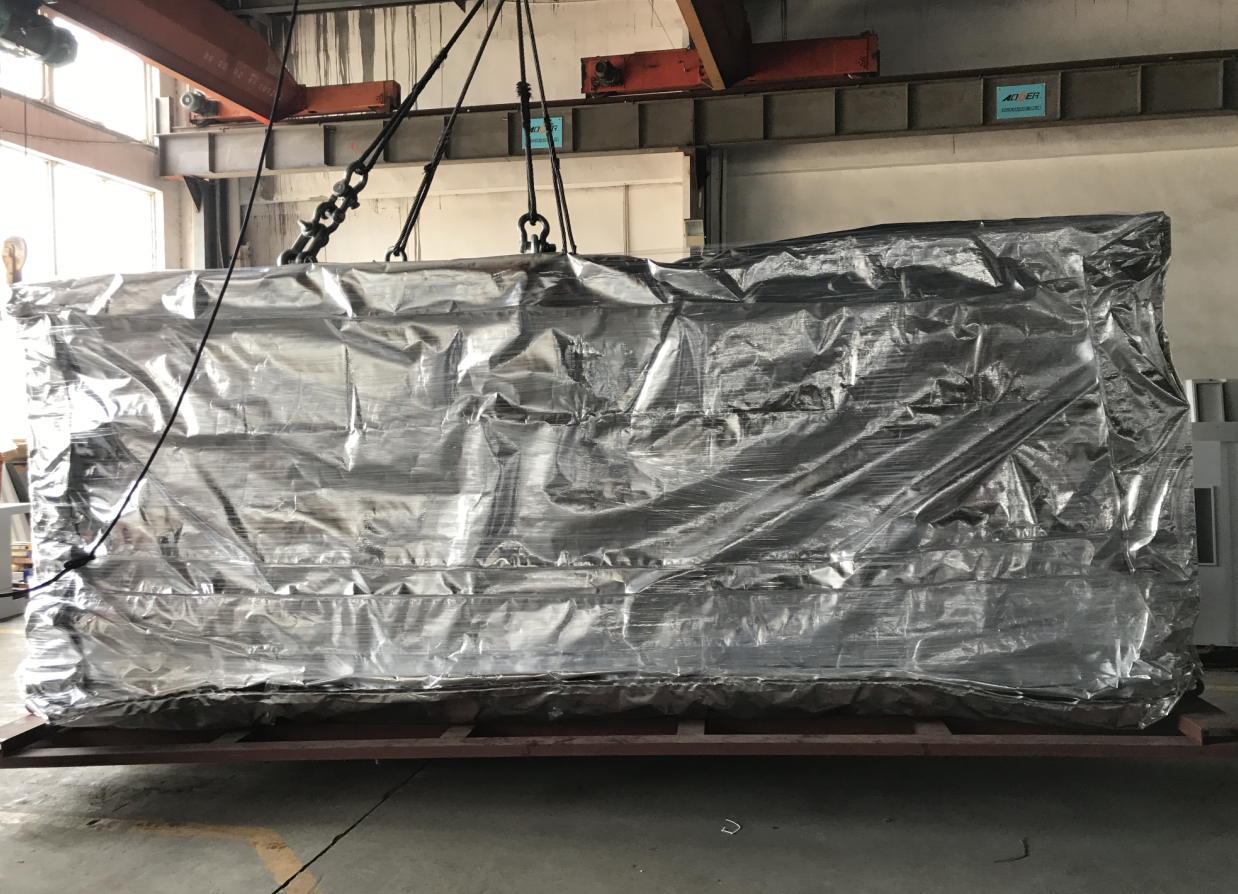

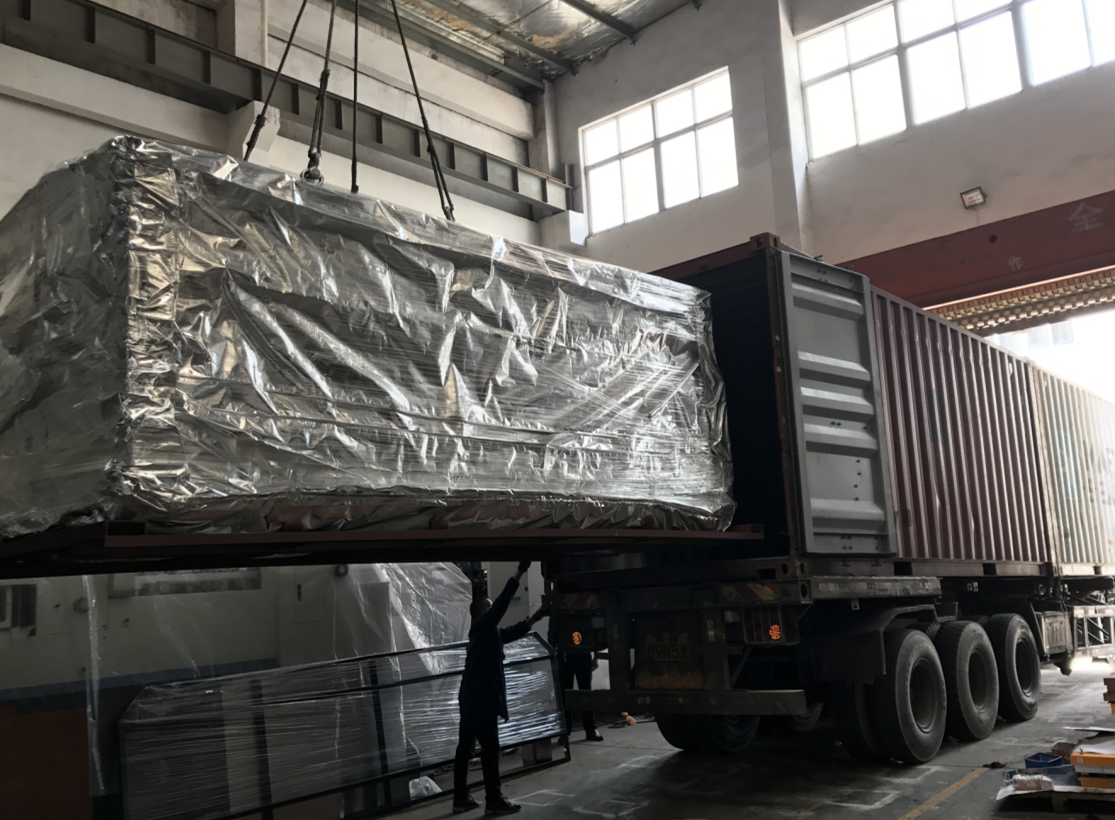

| >>Packing and Delivery Information | |||||||||

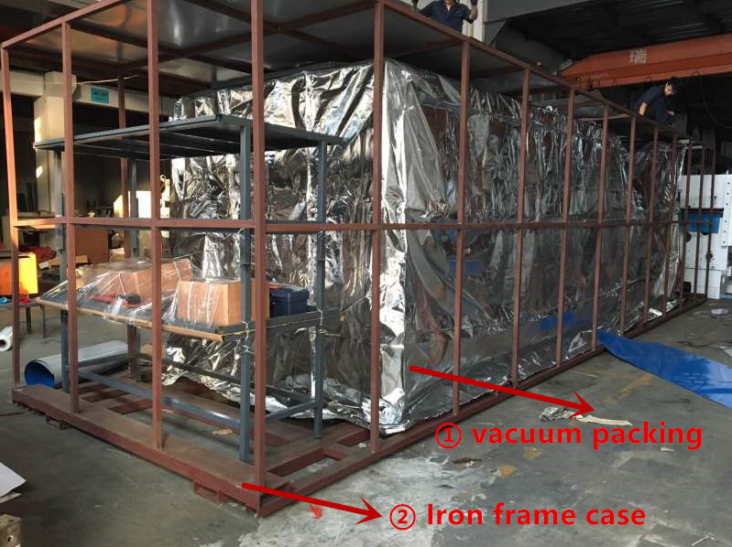

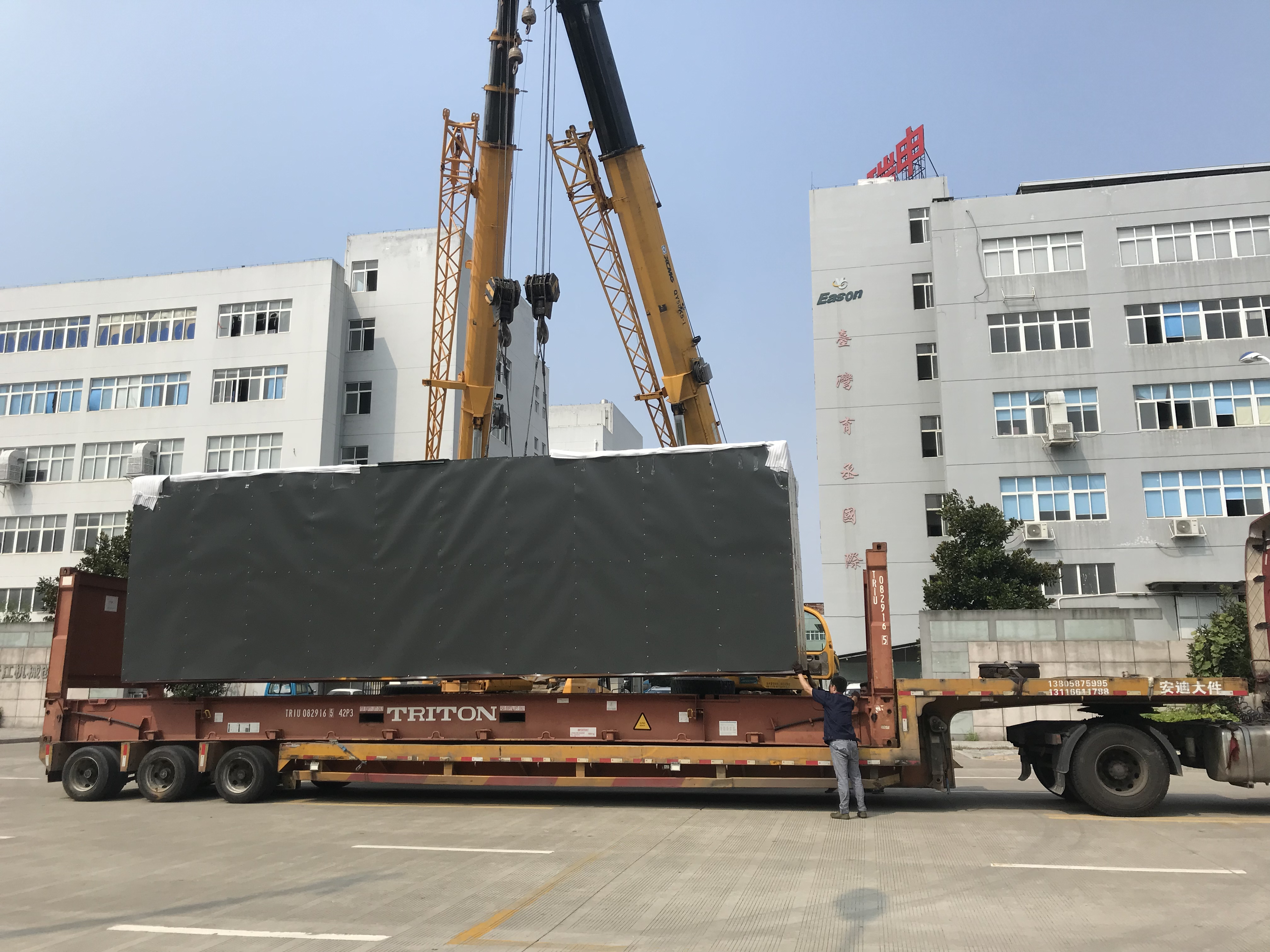

| Machine | Vacuum Packing | Loading Container | |||||||
 |
 |
 |
|||||||
| Machine | Vacuum Packing | Loading Container | |||||||
 |
 |
 |
|||||||

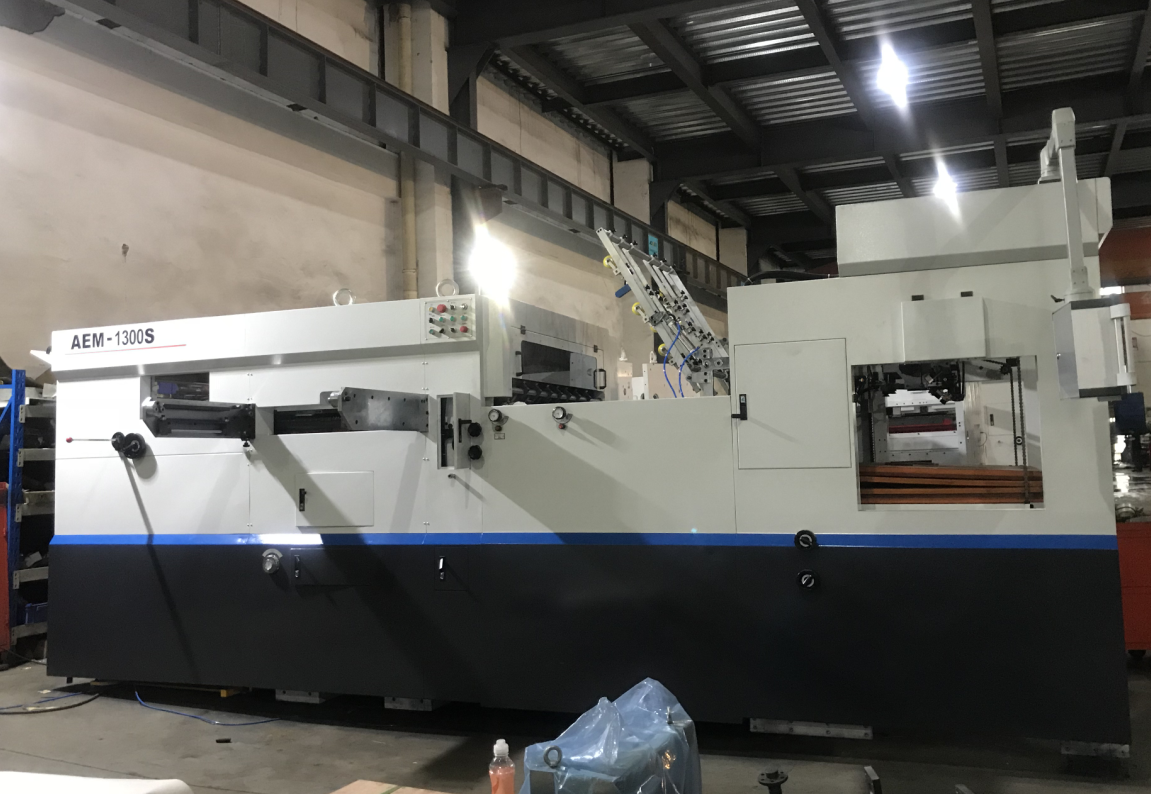

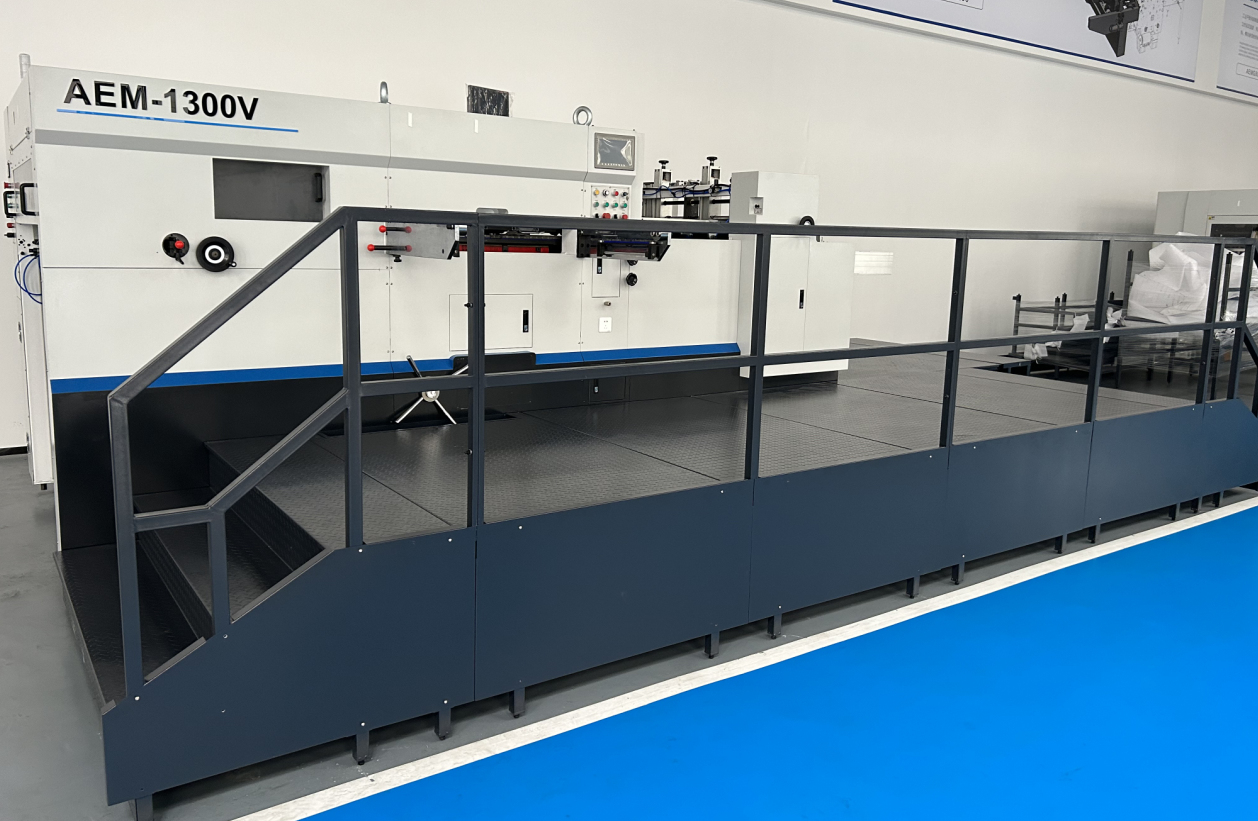

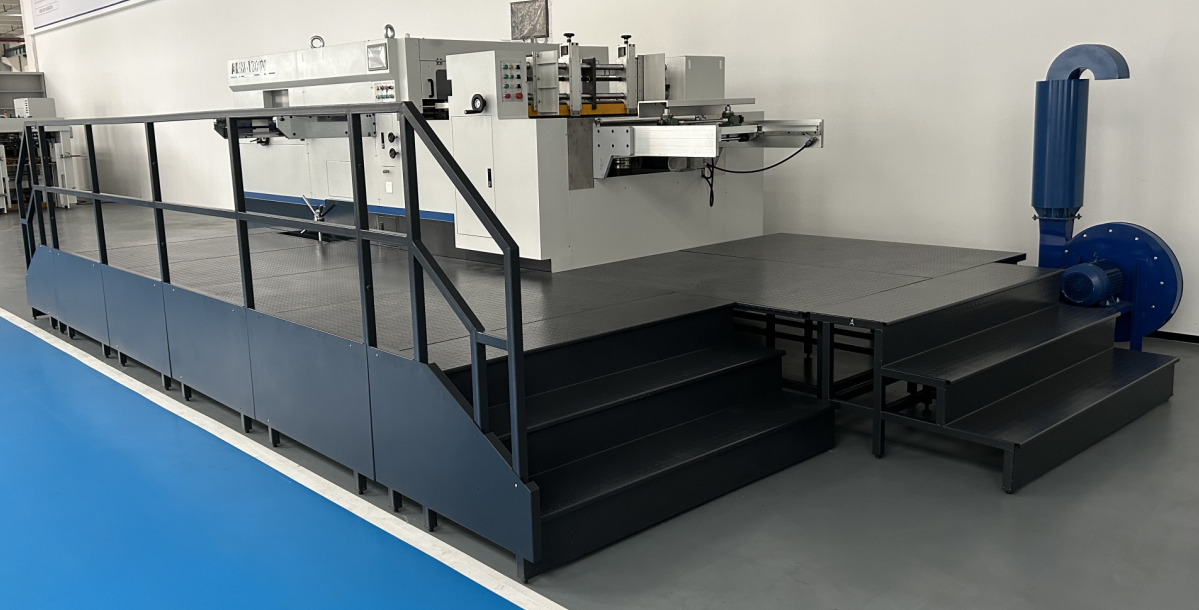

| >>Machine Display | |||||||||
 | |||||||||
 | |||||||||

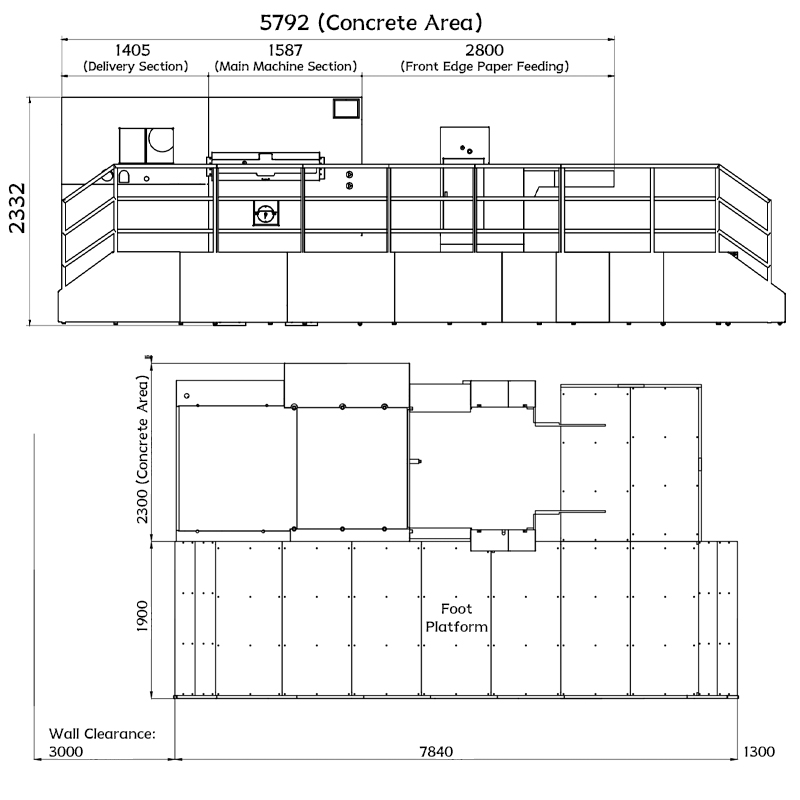

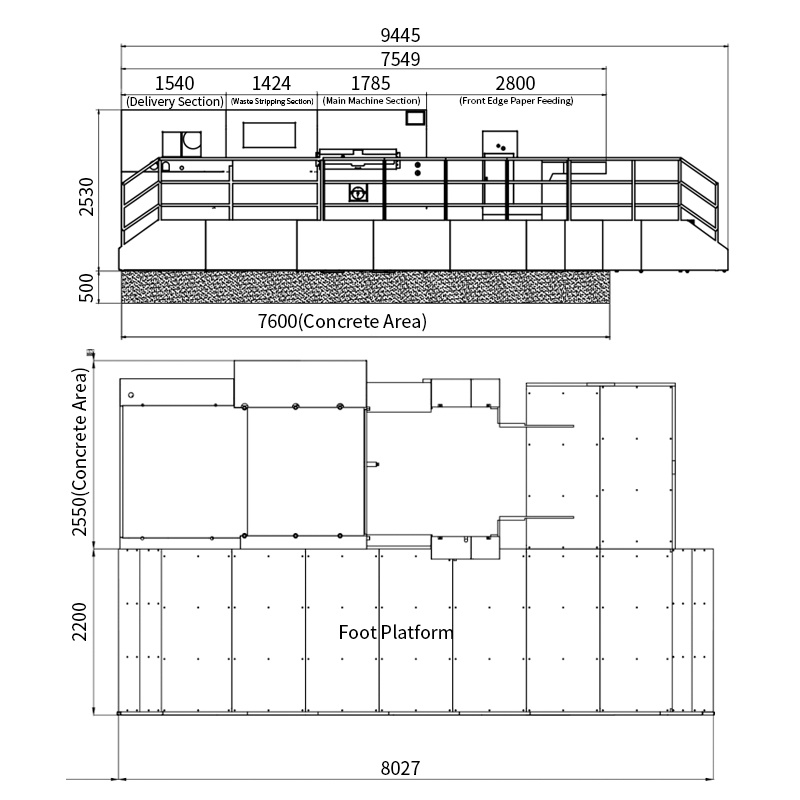

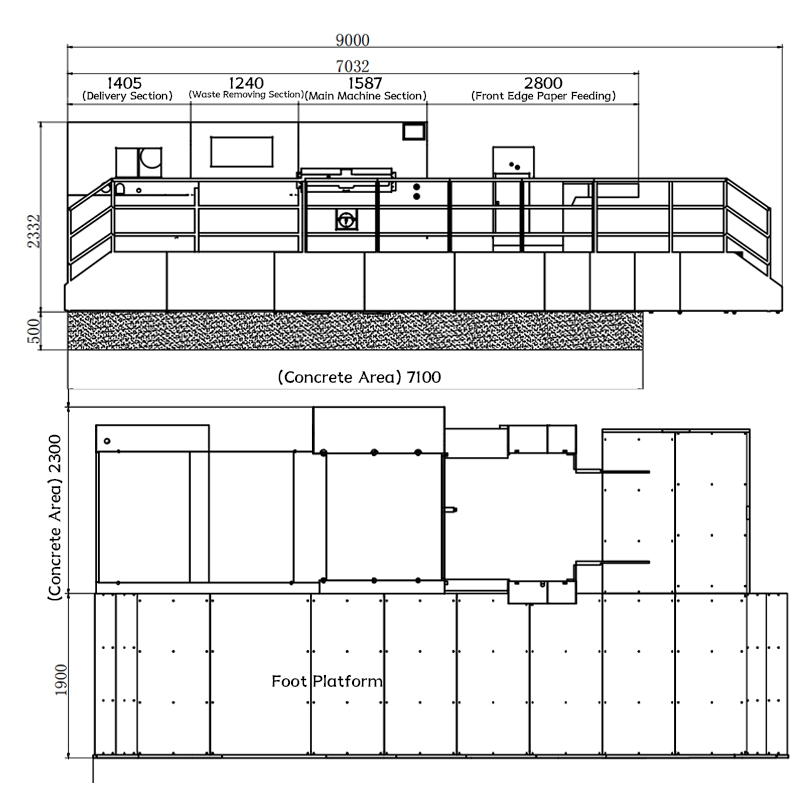

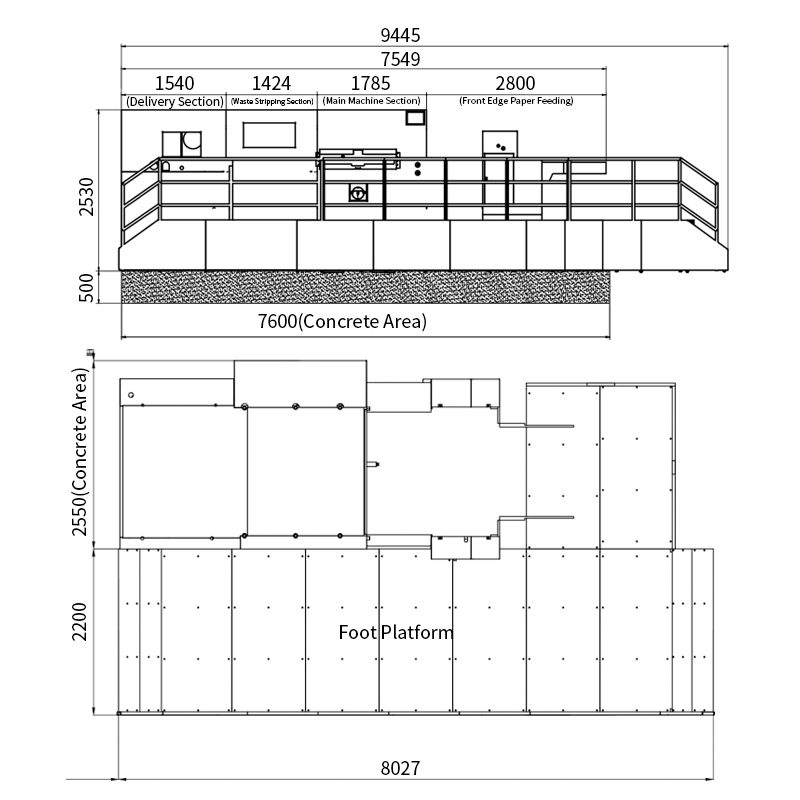

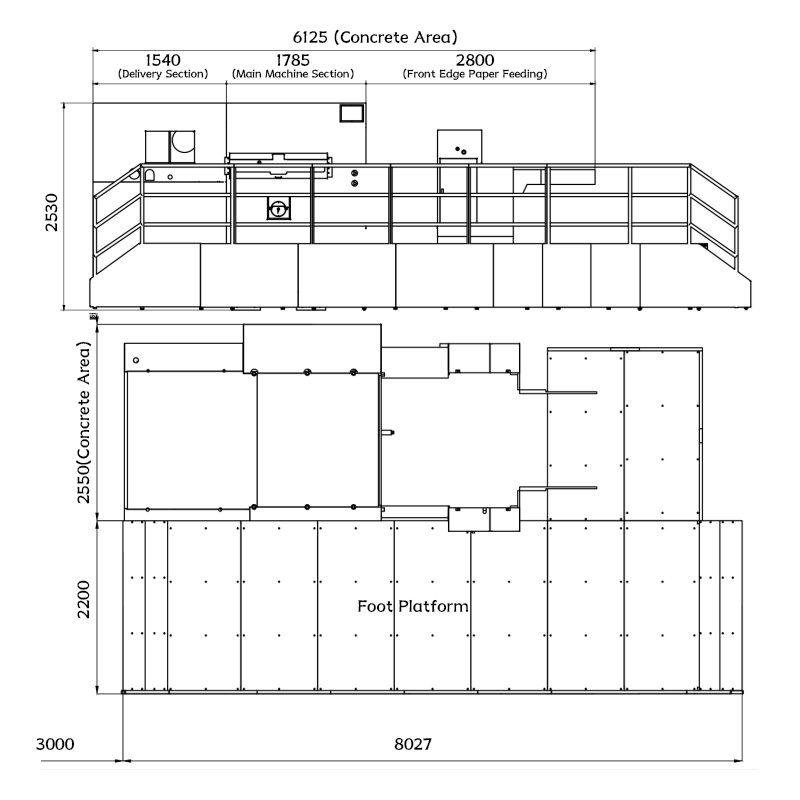

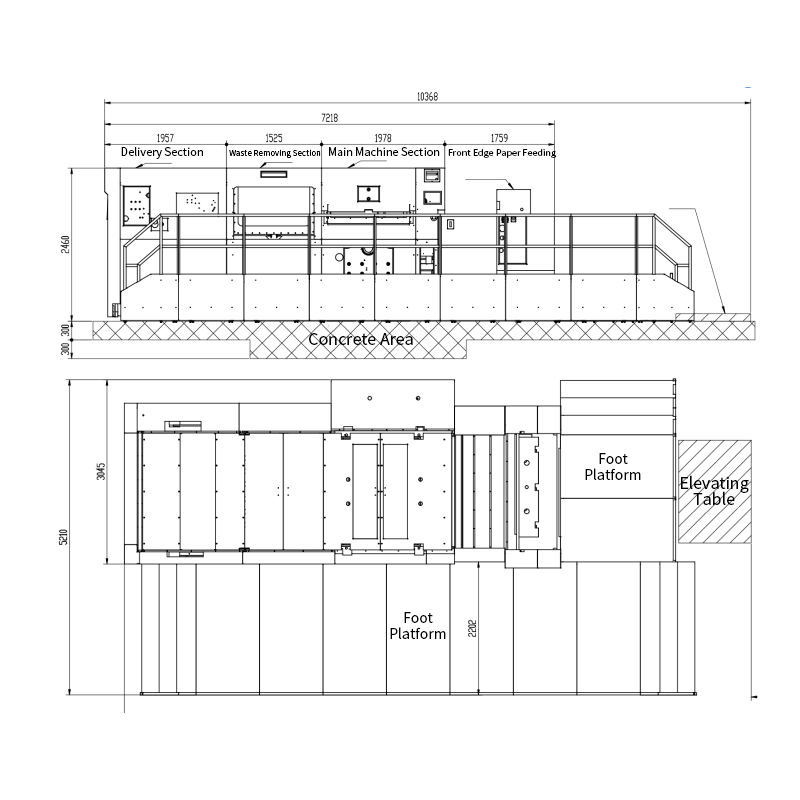

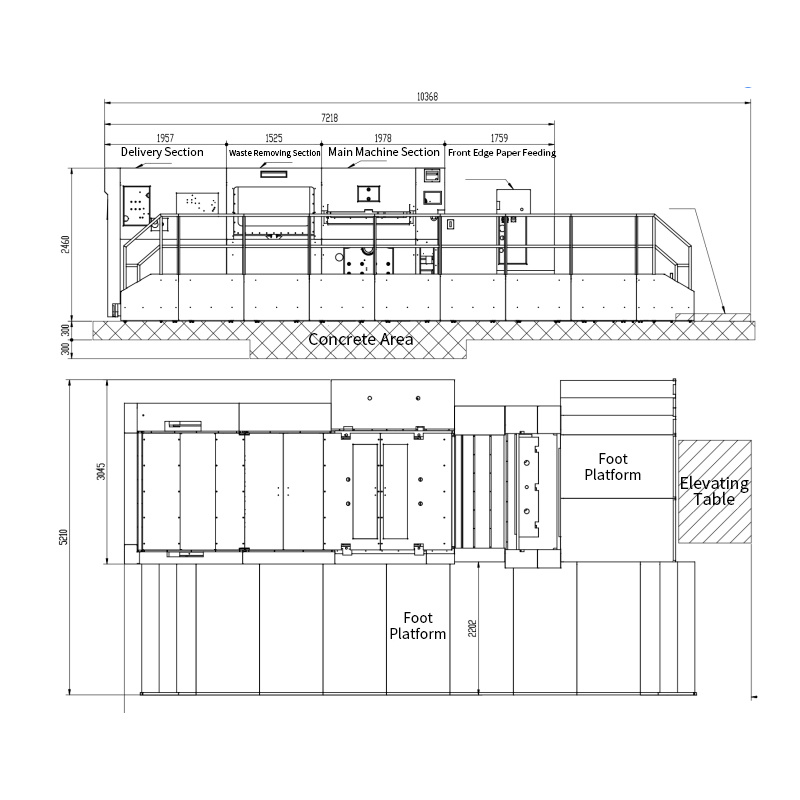

| >>Installation Diagram | |||||||||
| >AEM-1300V | |||||||||
 | |||||||||
| >AEM-1300VQ | |||||||||
 | |||||||||
| >AEM-1500V | |||||||||
 | |||||||||
| >AEM-1500VQ | |||||||||
 | |||||||||
| >AEM-1650VQ | |||||||||
 | |||||||||
