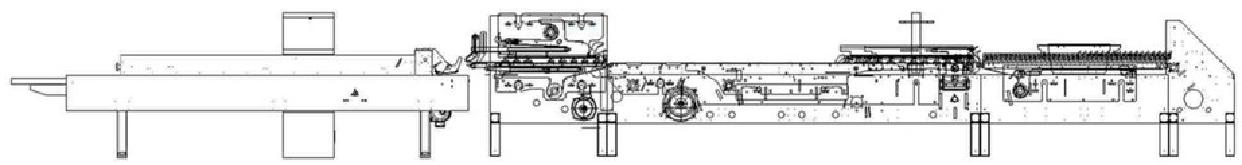

ZH-XT Automatic Folder Gluer(Modylar)

Patented GEN 5 machine, modular, powerful, quiet, anti-curling, upgradeable, space-saving, and beautiful.

1. High Performance
Multi-motor & synchronous belt drive ensures strong power, fast speed, low noise, and longer life.

2. Modular & Upgradeable
Customizable functions pre/post-purchase; reserve four-six corner device for future upgrades.

3. Smart & Compact
Hidden control box saves space; curved arm bracket offers unique, beautiful appearance.

1.A number of national patents,the performance of GEN 5 machine is ahead of the peers.

2.Modular structure,different functions can be combined according to customer needs,and functions can be upgraded after purchase.

3.Multi-motor transmission has strong power,fast speed,longer service life.

4.Synchronous belt transmission with high speed and low noise.

5.The upper and lower conveyor belts are powered,and there is no curling phenomenon.

6.The new curved arm bracket has aunique shape and a beautiful appearance.

7.Reserve the position of the four six corner devices to upgrade at any time.

8.The integrated electrical control box is hidden at the bottom of the conveyor, which saves space.

Parameter	ZH-1100XT	ZH-1250XT	ZH-1450XT	ZH-1650XT	ZH-1850XT
Product Name	Automatic Folder Gluer (Modular)
Paper Material	210-600g/m² paperboard. Compatible with A/B/C/E/F corrugated and double-wall corrugated board
Max. Liner Speed	0-300m/min continuous adjustment
Feeding Way	Automatic feeding

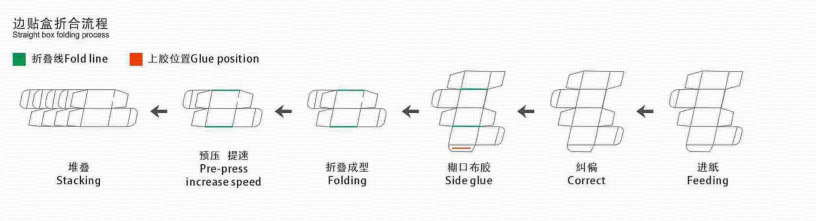

Way of Folding	Single side gluing
Glue Material	Cold glue
Electric Power	14KW AC3PH380V	15KW AC3PH380V	17KW AC3PH380V	19KW AC3PH380V	21KW AC3PH380V
Weight	2500kg	3000kg	3200kg	3500kg	3700kg
Over Dimension (M)	12.21.61.6	12.21.71.6	12.21.91.6	12.22.11.6	12.22.31.6
