ZH-XL Long box automatic Side Gluning Folder Gluer
Patented GEN 5 machine, modular, powerful, quiet, anti-curling, upgradeable, space-saving, and beautiful.
1. High Performance
Multi-motor & synchronous belt drive ensures strong power, fast speed, low noise, and longer life.
2. Modular & Upgradeable
Customizable functions pre/post-purchase; reserve four-six corner device for future upgrades.
3. Smart & Compact
Hidden control box saves space; curved arm bracket offers unique, beautiful appearance.
Description
1.A number of national patents,the performance of GEN 5 machine is ahead of the peers.
2.Multi-motor transmission has strong power,fast speed,longer service life.
3.Synchronous belt transmission with high speed and low noise.
4.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
5.The new curved arm bracket has a unique shape and a beautiful appearance.
6.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
Technical data
| Model | Box Type | A (mm) | B (mm) | C (mm) | D (mm) |
| ZH-600XL | Straight-line long box | 250-600 | 100-1500 | 120 | 50 |
| ZH-800XL | Straight-line long box | 250-800 | 100-1500 | 120 | 50 |
| ZH-1100XL | Straight-line long box | 250-1100 | 100-1500 | 120 | 50 |
Product data
| Parameter | ZH-600XL | ZH-800XL | ZH-1100XL |
| Product Name | Long Box Automatic Side Gluing Folder Gluer | ||
| Paper Material | 210-600g/m² paperboard. Compatible with E/F corrugated | ||
| Max. Liner Speed | 0-300m/min continuous adjustment | ||
| Feeding Way | Automatic feeding | ||
| Way of Folding | Single side gluing | ||
| Glue Material | Cold glue | ||
| Electric Power | 10KW AC3PH380V | ||
| Weight | 2500kg | 3000kg | 3600kg |
| Over Dimension (M) | 15*1.0*1.3 | 15*1.2*1.3 | 15*1.5*1.3 |

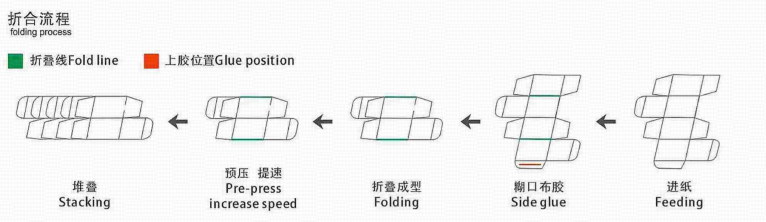

Plane chart
