ZH-X Automatic Side Gluning Folder Gluer(Modular)

Patented GEN 5 machine, modular, powerful, quiet, anti-curling, upgradeable, space-saving, and beautiful.

1. High Performance
Multi-motor & synchronous belt drive ensures strong power, fast speed, low noise, and longer life.

2. Modular & Upgradeable
Customizable functions pre/post-purchase; reserve four-six corner device for future upgrades.

3. Smart & Compact
Hidden control box saves space; curved arm bracket offers unique, beautiful appearance.

1.A number of national patents,the performance of GEN 5 machine is ahead of the peers.

2.Modular structure,different functions can be combined according to customer needs,and functions can be upgraded after purchase.

3.Multi-motor transmission has strong power,fast speed,longer service life.

4.Synchronous belt transmission with high speed and low noise.

5.The upper and lower conveyor belts are powered,and there is no curling phenomenon.

6.The new curved arm bracket has aunique shape and a beautiful appearance.

7.Reserve the position of the four six corner devices to upgrade at any time.

8.The integrated electrical control box is hidden at the bottom of the conveyor, which saves space.

Parameter	ZH-600X	ZH-700X	ZH-800X	ZH-900X
Product Name	Automatic Side Gluing Folder Gluer (Modular)
Paper Material	210-600g/m² Paperboard	210-600g/m² Paperboard	210-600g/m² Paperboard Compatible with E/F corrugated	210-600g/m² Paperboard Compatible with E/F corrugated
Max. Liner Speed	0-300m/min continuous adjustment
Feeding Way	Automatic feeding
Way of Folding	Single side gluing
Glue Material	Cold glue
Electric Power	5KW AC3PH380V	5KW AC3PH380V	5KW AC3PH380V	6.5KW AC3PH380V
Weight	1400kg	1500kg	1700kg	1800kg
Over Dimension (M)	7.61.01.3	7.61.11.3	9.31.21.3	9.41.31.3

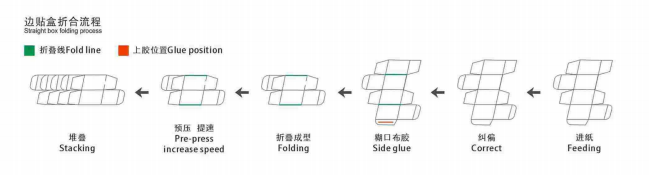

zh x automatic side gluning folder gluermodular -2
