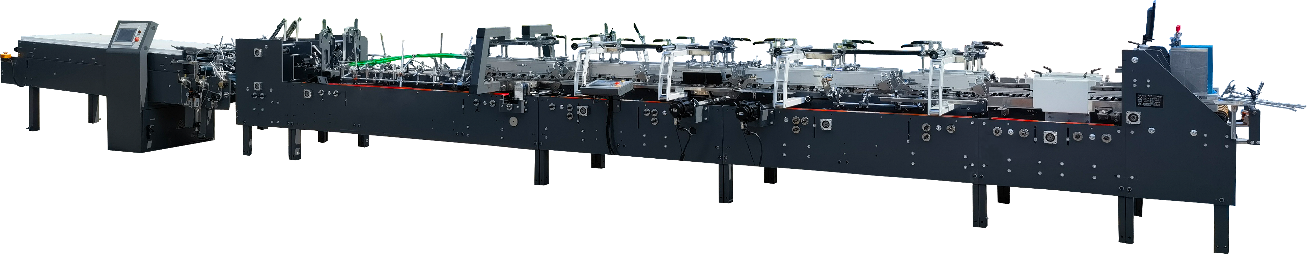

ZH-800XC/ZH-900XC/ZH-1100XC Automatic 4 6 corner Folder Gluer

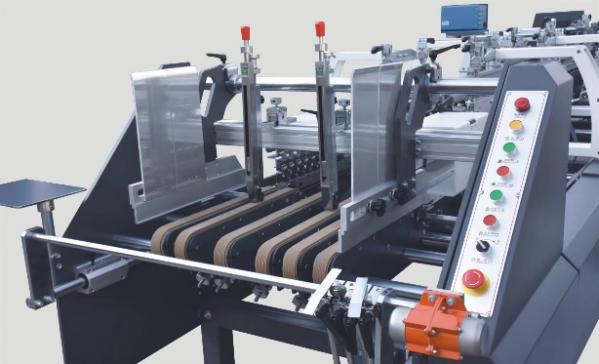

Paper Feeding Section

Equipped with 2 output knives, adjust the asymmetric length according to the actual sample.
The embossing power guide wheel guides the paper output belt, and there are baffles on the left and right sides, which can be moved left and right according to the product style.
The vibrating device cooperates with the motor to feed paper quickly, easily and continuously automatically.

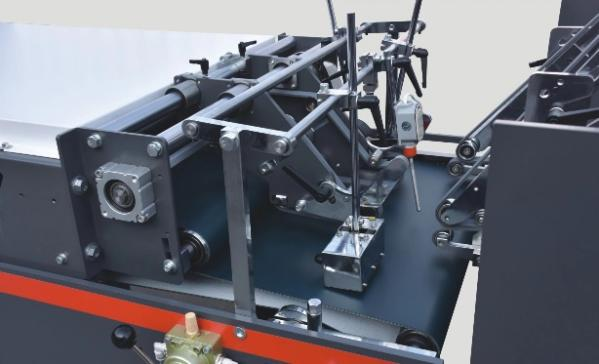

Aligner section

The paper board sent from feeder section will be corrected by aligner section.
to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate differently.
paper board thickness.

Pre-folding section

TThe first line can be pre-folded at 180°, and the third line at 135°, which is perfectly combined with automated packaging.

Crash lock bottom section

A complete set of front flap bottom locking device and servo anti-hook device to ensure accurate bottom locking action. The segmented upper belt board, combined with a special design, can be adjusted by expansion and contraction according to the needs of the product.

Lower gluing tank

Lower gluing tank is large volume. Easy to remove and clean. Electronic upper gluing system by guns.

Folding and closing

The Second and fourth folding line 180°. Folding and closing section transmit from right and left side, the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.

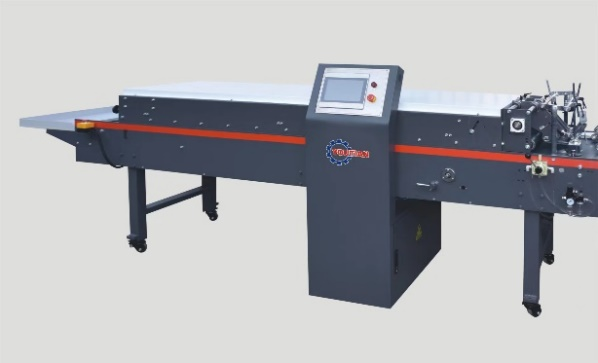

Trombone section

Up and down belt can be adjusted separately. Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack. Also equipped with feeding paper inspection device.

Transmission

Equipped with special additional sponge belt for the press of boxes valley part. Upper section moves back and forward, allowing for different box length.

Box Squaring Device

Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.

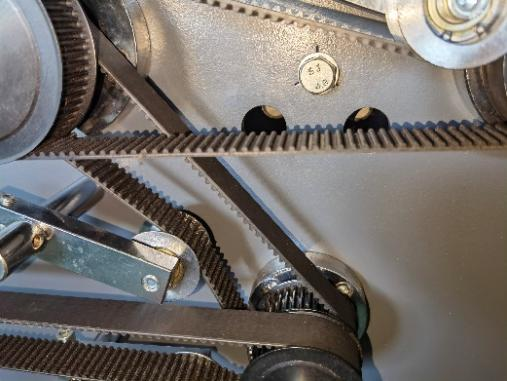

synchronous belt &synchronous wheel

The most efficient mechanical power transmission method currently on the market. Reduce noise, reduce wear, and efficient power transmission system.

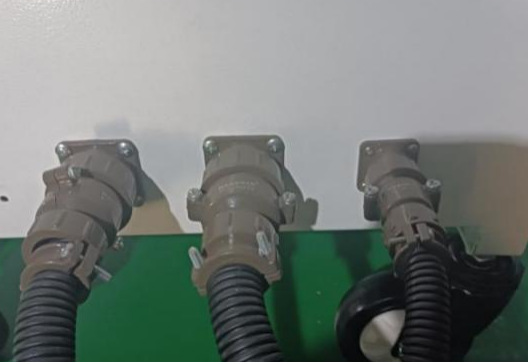

Aviation connector

Easy to install and transport.

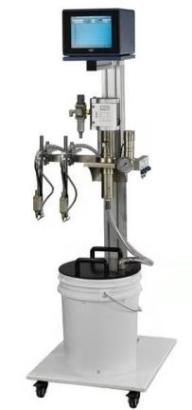

Spraying System (Optional)

Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.

Independent electrical box

The independent structure reduces the interference of the mechanical structure to the electrical system, and it is beautiful and atmospheric.

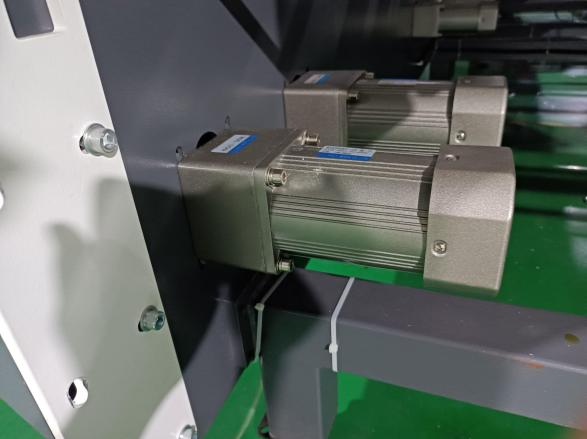

Electric Wallboard move

Accurate and labor-saving wall panel movement.

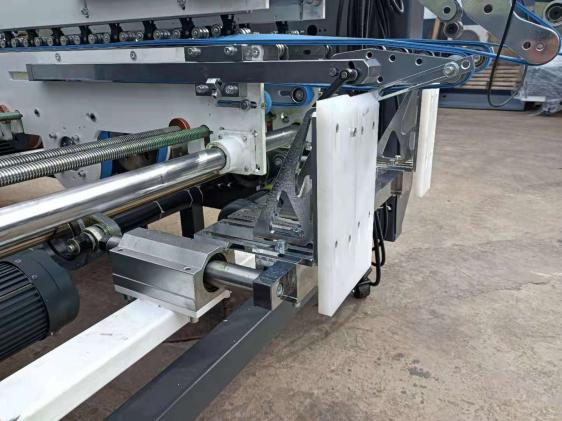

4 and 6-corner back hook

Anti-hook specially equipped for four-hexagonal boxes.

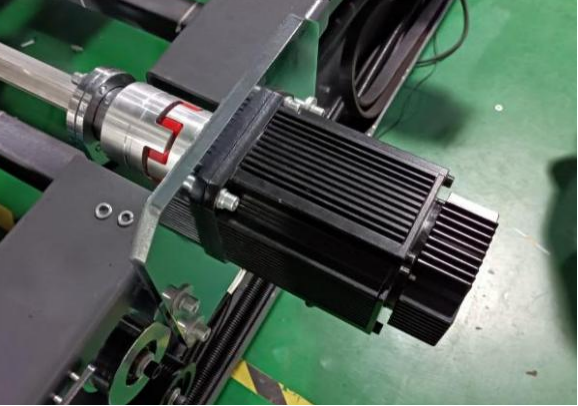

4 and 6-corner device

Motorized and untimed electronic back folding system with intelligent servo motor technology.

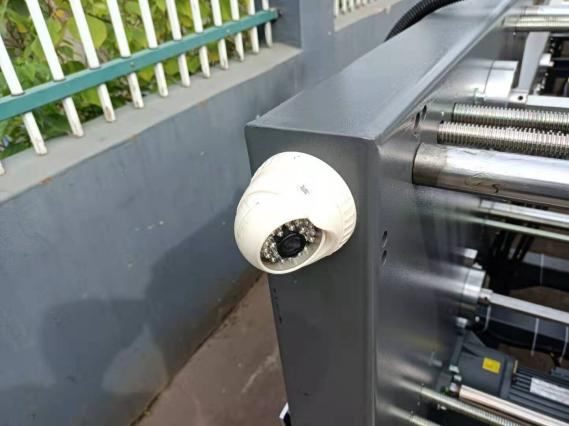

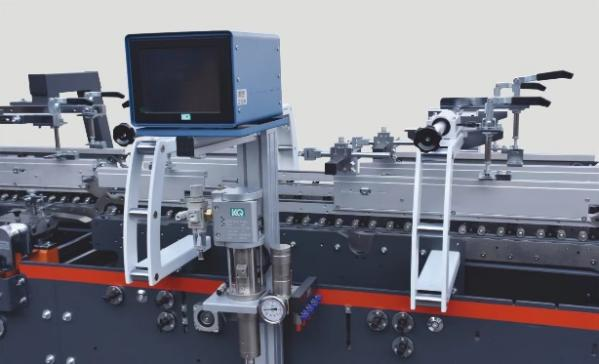

Conveyor monitoring

The situation in front of the conveying section can be observed on the screen of the paper feed section.

Conveying part snapping function

The flat-mouth box can be slapped, so that the product has a better molding effect.
