ZH-400C/600/700/800 Automatic Side Gluing Folder Gluer
Patented GEN 5 machine, modular, powerful, quiet, anti-curling, upgradeable, space-saving, and beautiful.
1. High Performance
Multi-motor & synchronous belt drive ensures strong power, fast speed, low noise, and longer life.
2. Modular & Upgradeable
Customizable functions pre/post-purchase; reserve four-six corner device for future upgrades.
3. Smart & Compact
Hidden control box saves space; curved arm bracket offers unique, beautiful appearance.
Description
1.A number of national patents,the performance of GEN 5 machine is ahead of the peers.
2.Modular structure,different functions can be combined according to customer needs,and functions can be upgraded after purchase.
3.Multi-motor transmission has strong power,fast speed,longer service life.
4.Synchronous belt transmission with high speed and low noise.
5.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
6.The new curved arm bracket has aunique shape and a beautiful appearance.
7.Reserve the position of the four six corner devices to upgrade at any time.
8.The integrated electrical control box is hidden at the bottom of the conveyor, which saves space.

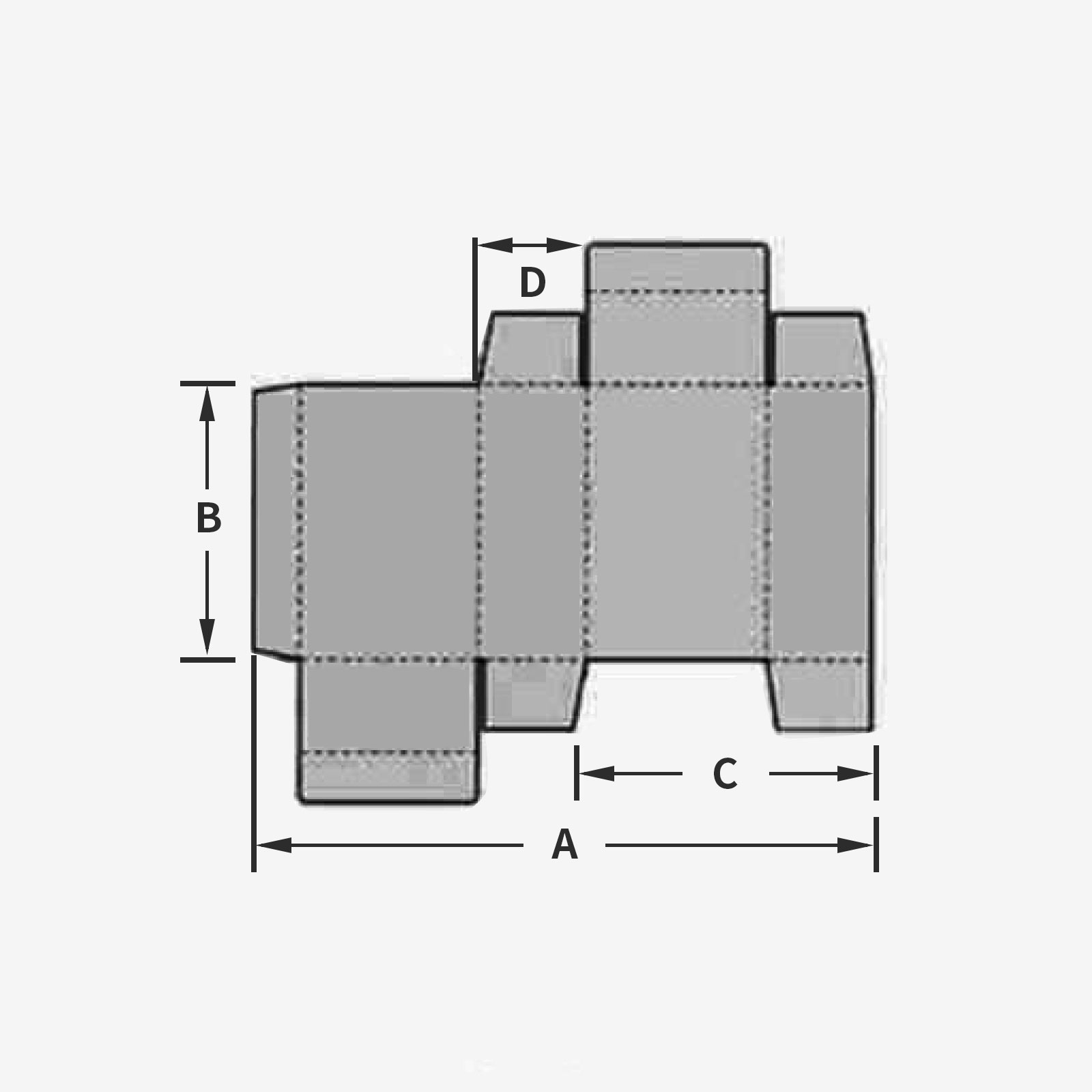

Technical data
| Model | Box Type | A (mm) | B (mm) | C (mm) | D (mm) |
| ZH-400C | Side-glue box | 65-400 | 60-400 | 30 | 8 |
| ZH-600 | Side-glue box | 110-600 | 60-500 | 50 | 8 |
| ZH-700 | Side-glue box | 110-700 | 60-500 | 50 | 10 |
| ZH-800 | Side-glue box | 130-800 | 60-500 | 60 | 12 |
Product data
| Parameter | ZH-400C | ZH-600 | ZH-700 | ZH-800 |
| Product Name | Automatic Side Gluing Folder Gluer | |||
| Paper Material | 210-600g/m² Paperboard Need below 400g/m |
210-600g/m² Paperboard | 210-600g/m² Paperboard | 210-600g/m² Paperboard |
| Max. Liner Speed | 0-180m/min continuous adjustment | |||
| Feeding Way | Automatic feeding | |||
| Way of Folding | Single side gluing or both side gluing | |||
| Glue Material | Cold glue | |||
| Electric Power | 5KW AC3PH380V | |||
| Weight | ≈1T | ≈1T | ≈1T | ≈1.5T |
| Over Dimension (M) | 6*1.3*1.3 | 6*1.3*1.3 | 6*1.4*1.3 | 8*1.5*1.3 |
| Feeding Part | 2700*1100*1235 3.67m³ 670/754KG |
2700*1100*1235 3.67m³ 670/754KG |
2700*1200*1235 3.54m³ 690/780KG |
3380*1300*1235 5.43m³ 830/932KG |
| Conveyor Part | 2660*950*1110 2.8m³ 380/440KG |
2660*950*1110 2.8m³ 380/440KG |
2660*950*1110 2.8m³ 380/440KG |
3660*950*1120 3.86m³ 475/587KG |

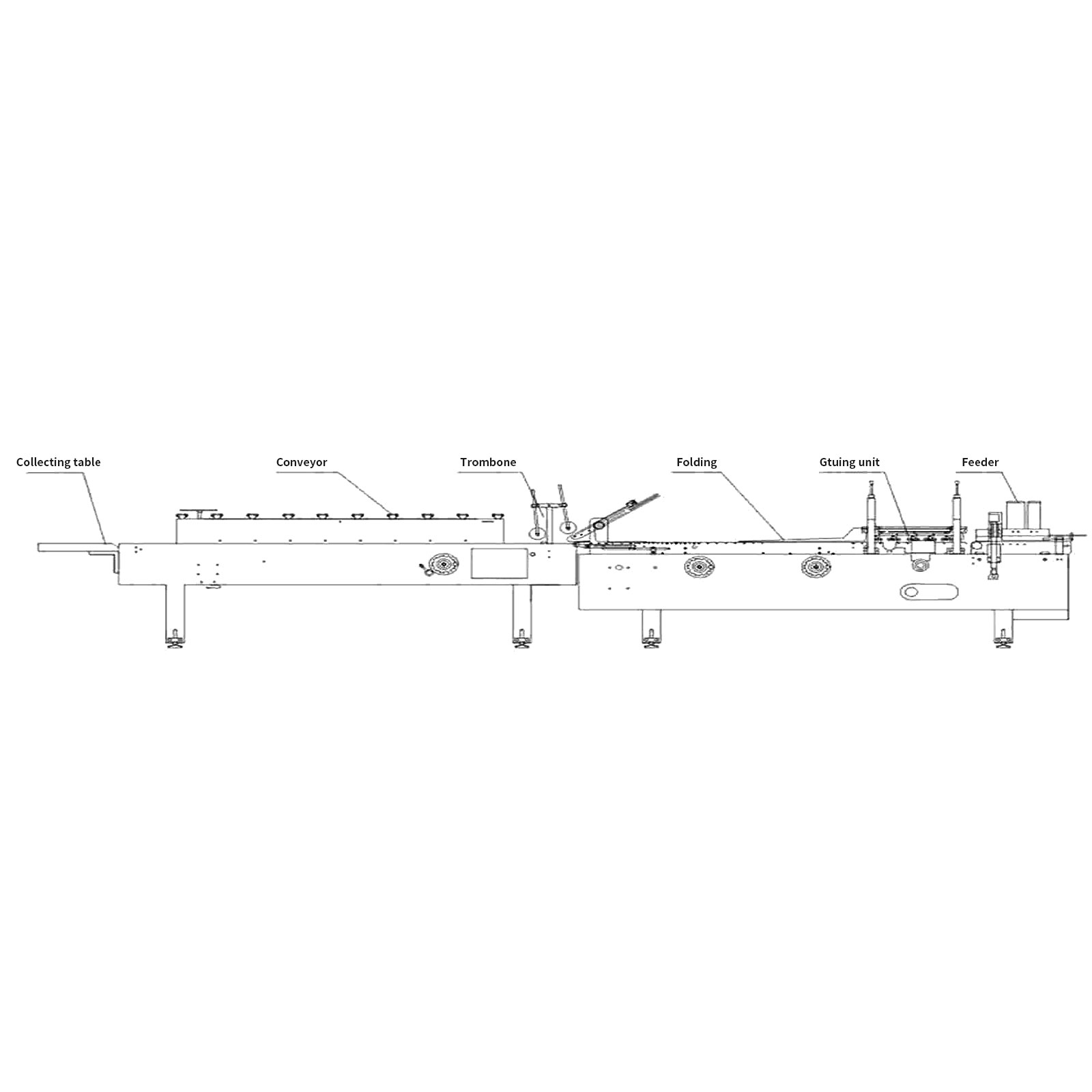

Plane chart
