ZH-300 Mini Automatic Folder Gluer
Economical mini folder gluer, only three meters long, simple operation, fast speed.
1. Compact & Economical
Whole machine length is only three meters, saving floor space and cost.
2. Simple & Reliable
No running deviation, no paper jam, easy operation with stable performance.
3. High Speed Output
Max line speed 200 m/min, producing over 50,000 small boxes per hour.
Description
1.Economical and flexible mini folder gluer.
2.The length of the whole machine is only three meters.
3.The operation is simple,without running deviation,no paper jam
4.The speed is fast,the maximum line speed is 200 m/min(more than 50,000 small boxes per hour).
Technical data

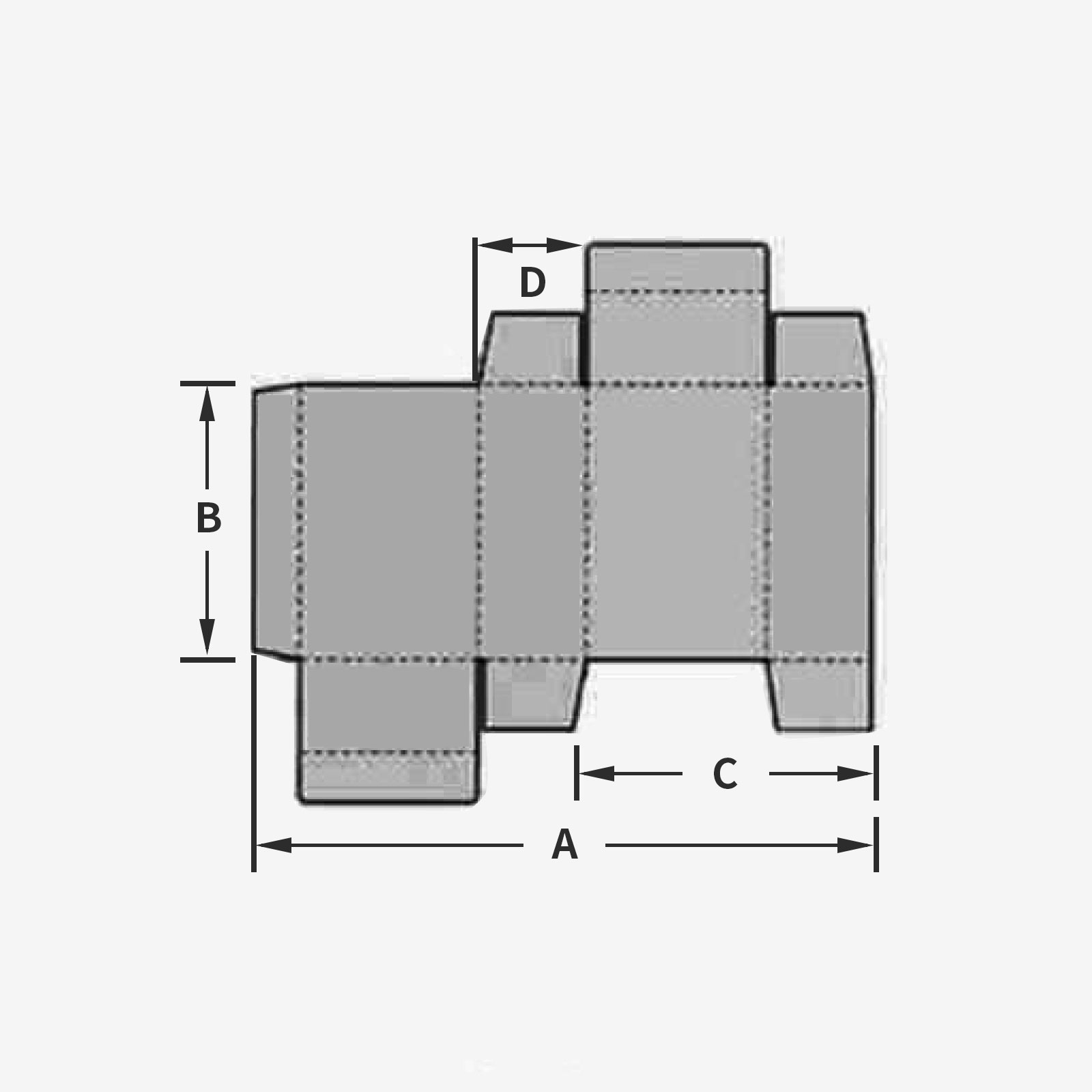

| Model | Box Type | A (mm) | B (mm) | C (mm) | D (mm) |
| ZH-300 | Side-glue box | 65-300 | 50-200 | 30 | 8 |
Product data
| Parameter | ZH-300 |
| Product Name | Mini Automatic Folder Gluer |
| Paper Material | 210-400g/m² paperboard |
| Max. Liner Speed | 0-200m/min continuous adjustment |
| Feeding Way | Automatic feeding |
| Way of Folding | Single side gluing |
| Glue Material | Cold glue |
| Electric Power | 2KW 220V |
| Weight | 1T |
| Over Dimension (M) | 3.6*0.74*1.23 |
| Packing Size | 3.18*0.92*1.3 (M) 786/700kg |

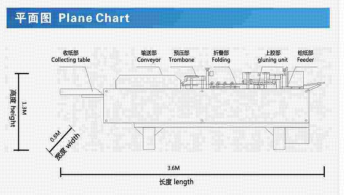

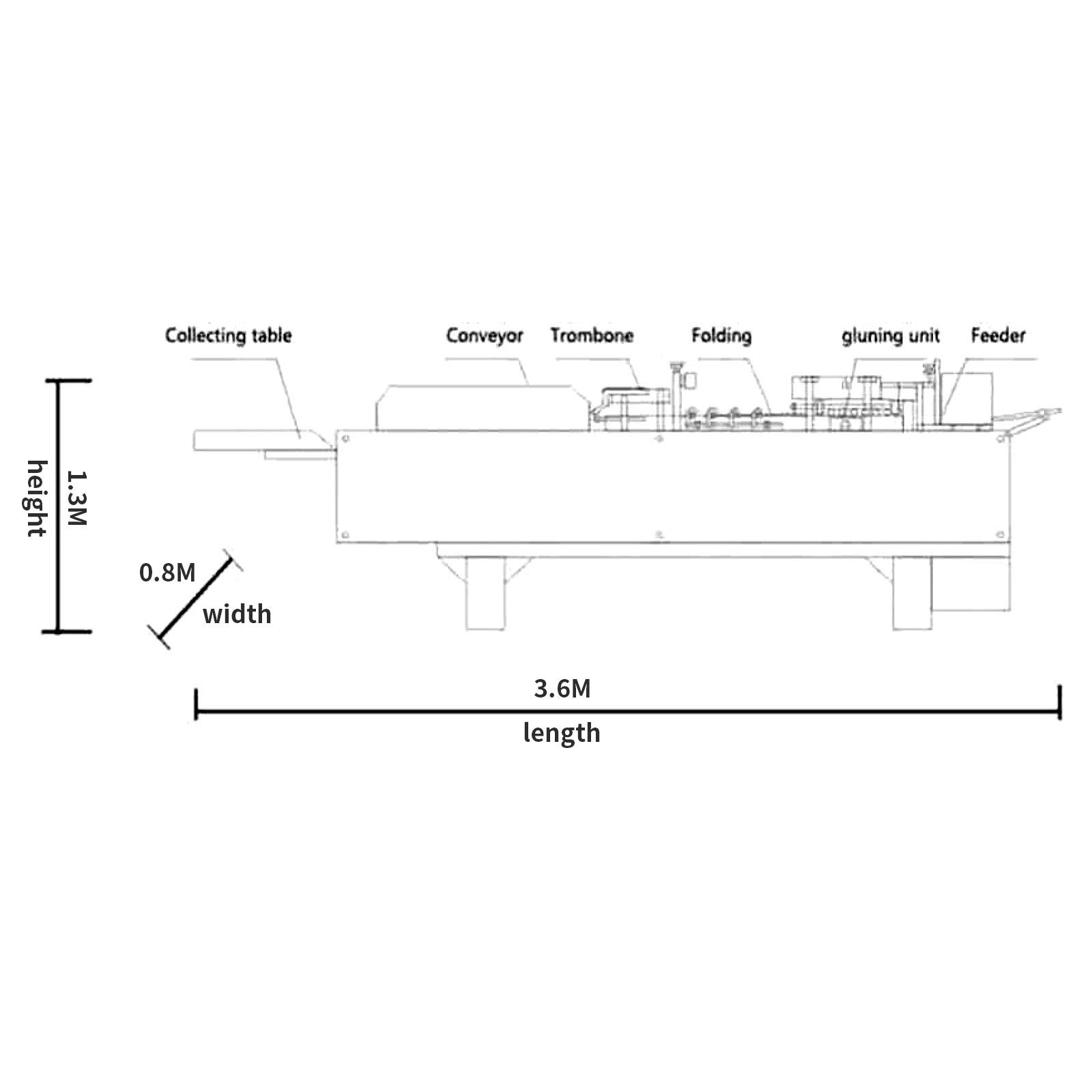

Plane chart
