Paper Feeding Section
Equipped with 3 output knives, adjust the asymmetric length according to the actual sample. The embossing power guide wheel guides the paper output belt, and there are baffles on the left and right sides, which can be moved left and right according to the product style. The vibrating device cooperates with the motor to feed paper quickly, easily, and continuously automatically.
|
|
|

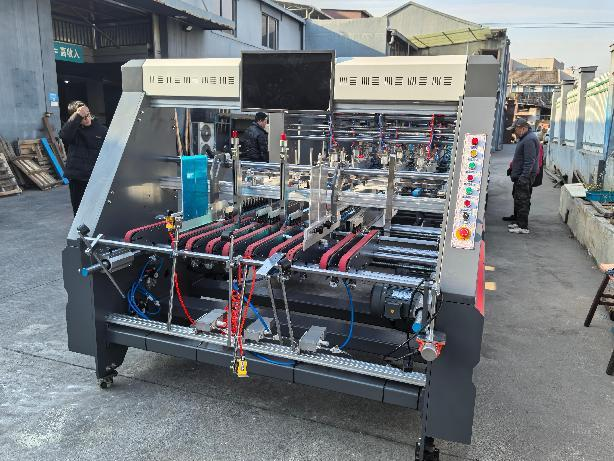

Aligner section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
|
|
|

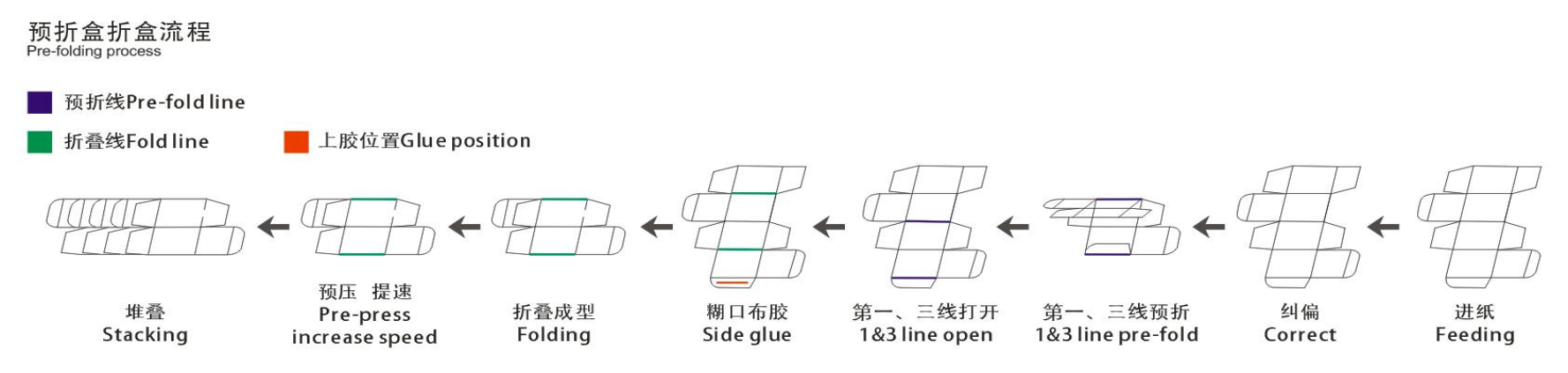

Pre-folding section
TThe first line can be pre-folded at 180°, and the third line at 135°, which is perfectly combined with automated packaging.
|
|
|

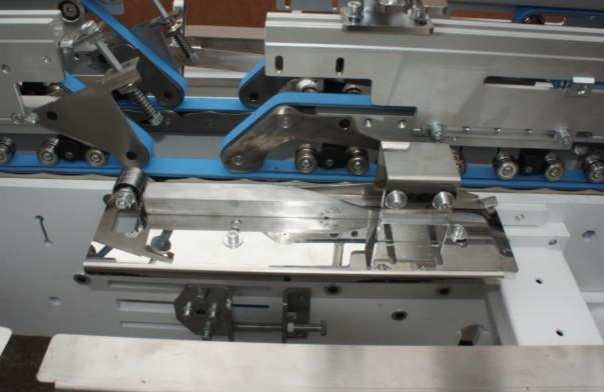

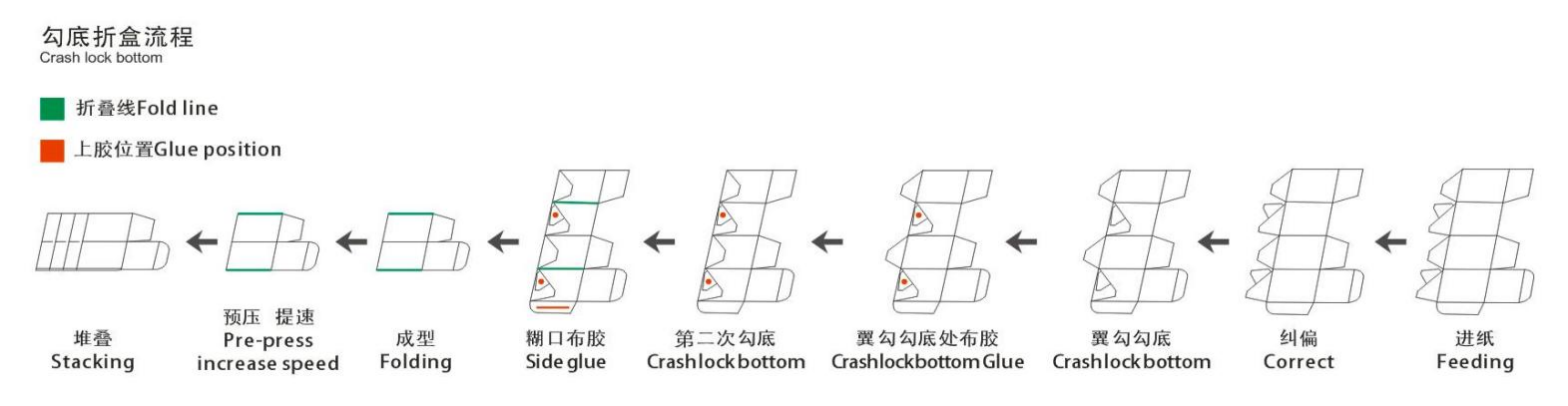

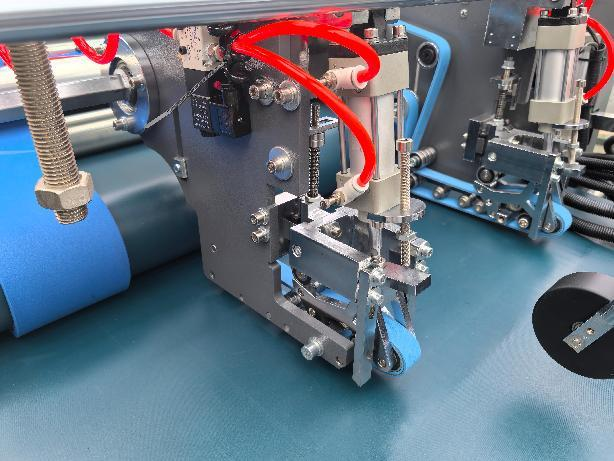

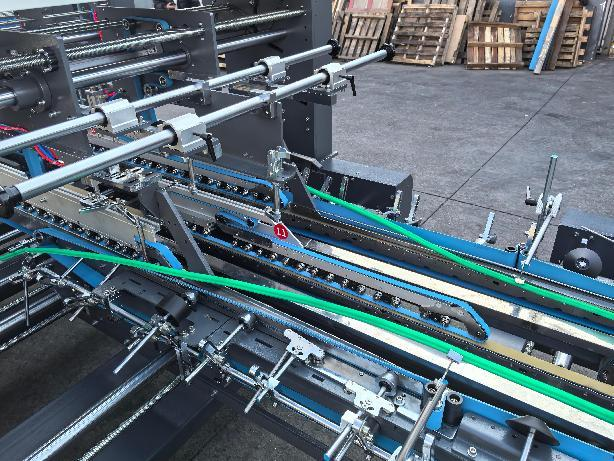

Crash lock bottom section
A complete set of front flap bottom locking device and servo anti-hook device to ensure accurate bottom locking action. The segmented upper belt board, combined with a special design, can be adjusted by expansion and contraction according to the needs of the product.
|
|
|

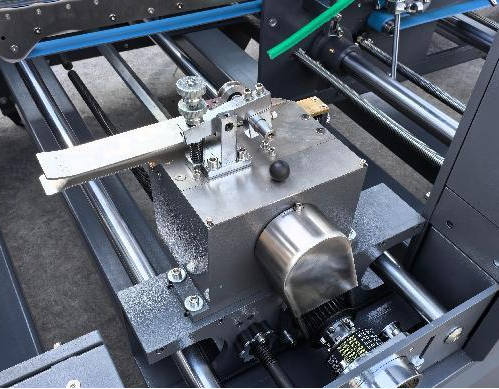

Lower gluing tank
Lower gluing tank is large volume. Easy to remove and clean. Electronic upper gluing system by guns.
|
|
|
Folding and closing
The Second and fourth folding line 180°. Folding and closing section transmit from right and left side, the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
|
|
|
Trombone section
Up and down belt can be adjusted separately. Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack. Also equipped with feeding paper inspection device.
|
|
|

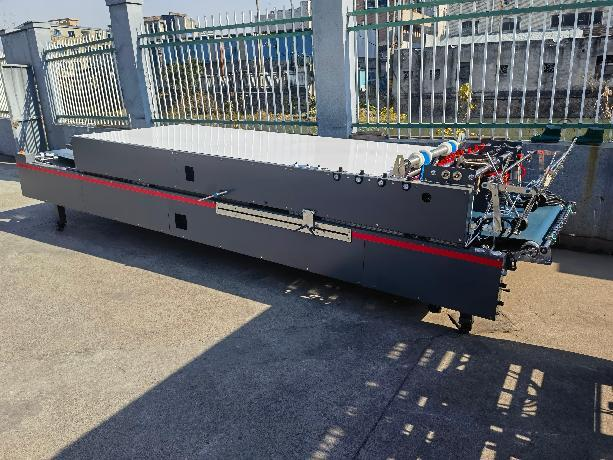

Transmission
Equipped with special additional sponge belt for the press of boxes valley part. Upper section moves back and forward, allowing for different box length.
|
|
|

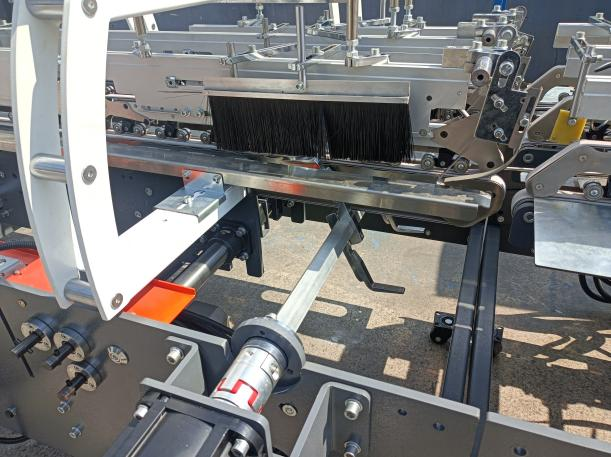

Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.
|
|
|

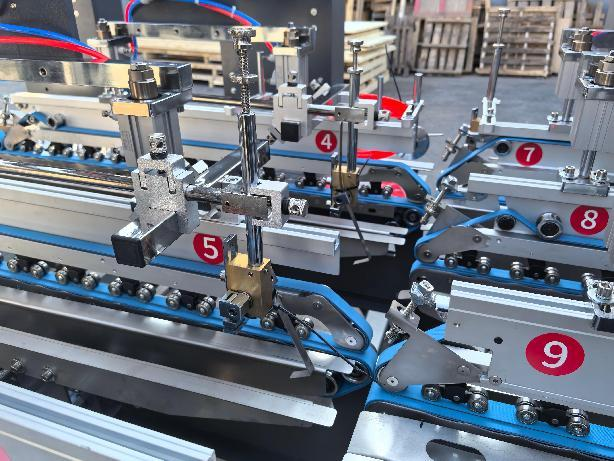

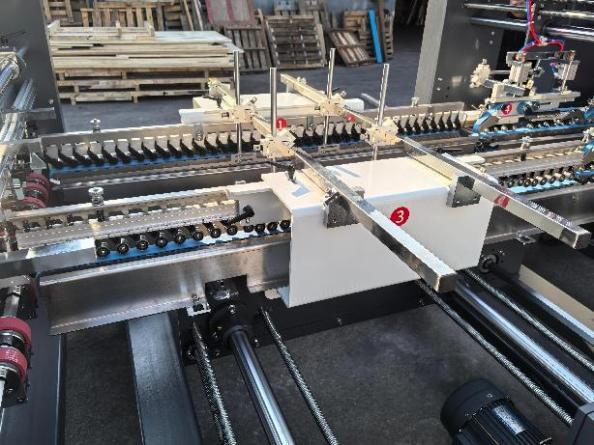

4 and 6-corner back hook
Anti-hook specially equipped for four-hexagonal boxes
|
|
|
4 and 6-corner device
Anti-hook specially equipped for four-hexagonal boxes
|
|
|

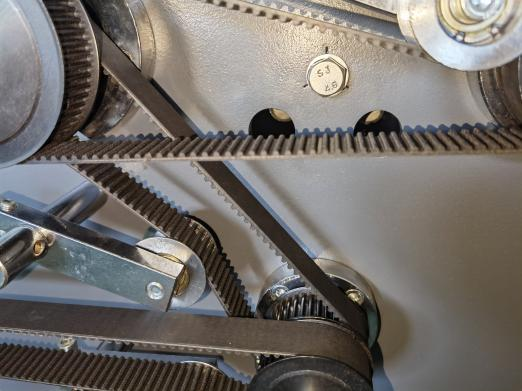

synchronous belt &synchronous wheel
The most efficient mechanical power transmission method currently on the market. Reduce noise, reduce wear, and efficient power transmission system.
|
|
|

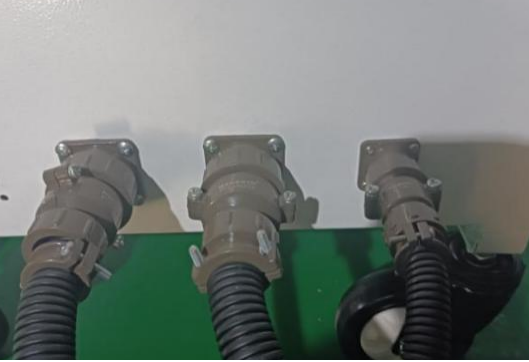

Aviation connector
Easy to install and transport
|
|
|

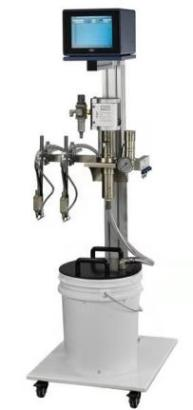

Spraying System
Equipped with three guns, convenient in the production of 4/6 corner
box and various special-shaped box, gluing quickly and accurately sizing
|
|
|

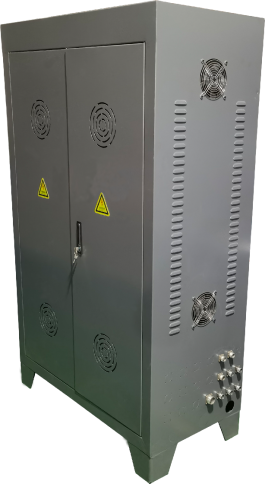

Independent electrical box
The independent structure reduces the interference of the mechanical structure to the electrical system, and it is beautiful and atmospheric
|
|
|
surveillance camera
The output of the box can be observed
|
|
|

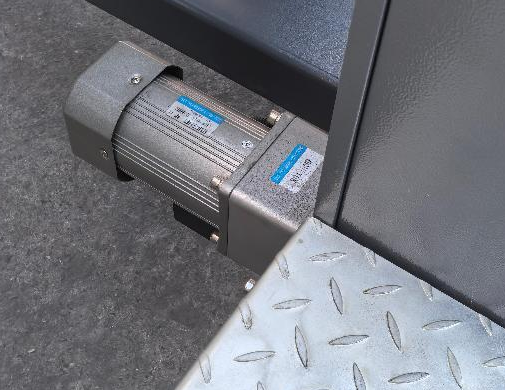

Electric shift row
Button control shift row, save manpower
|
|
|

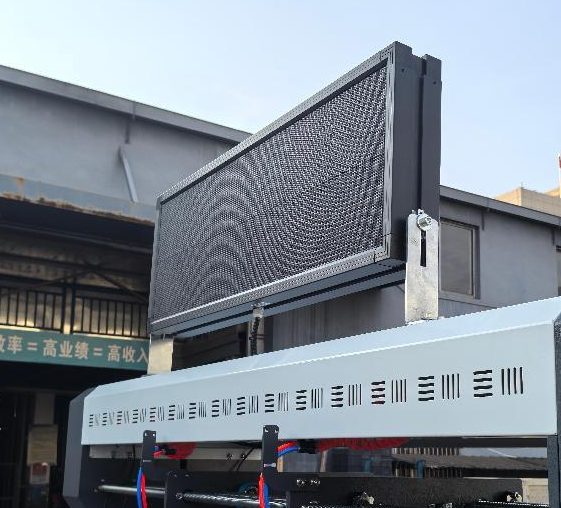

Top LED screen
Easy to observe the batch situation and production efficiency of the box
|
|
|

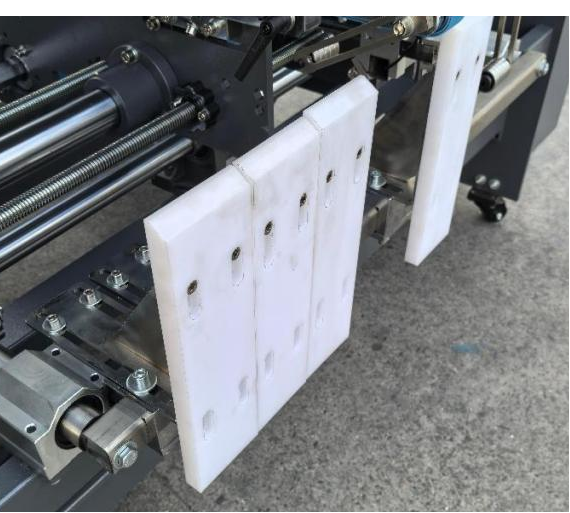

Shoot the structure
The counterline of the flat mouth box can be corrected
|
|
|
Tone wheel
The local folding belt speed can be adjusted separately to correct the box pair line
|
|
|

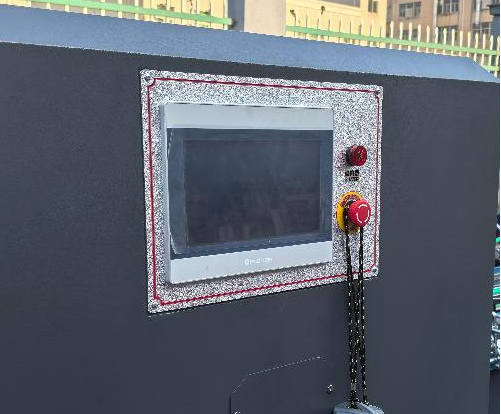

Human-computer interaction and touch screen
Compared with the traditional button, it can adjust the parameters of the machine more intuitively
|
|
|

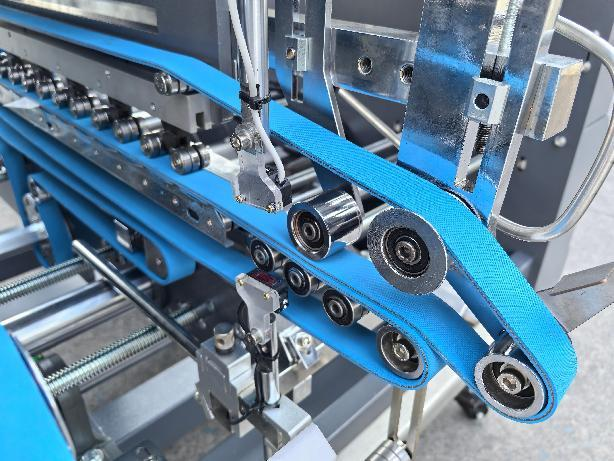

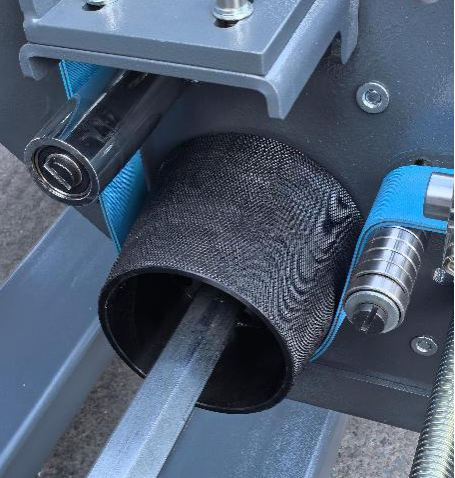

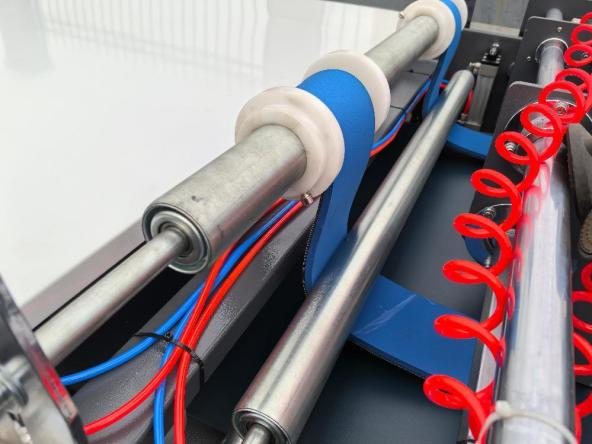

Sponge belt
It can make the box more stable and tight when the output
of the platform
|
