ZH-1450XC Automatic 4&6 corner Folder Gluer

Name

Automatic Folder Gluer

Model

ZH-1450XC

Paper Material

210-600g/m² paperboard.Compatible with E/F corrugated

Max. Liner speed

0-300m/min continuous adjustment

Feeding way

Automatic feeding

Way of folding

single side gluing.Pre-folding.Crash lockbottom.

Glue Material

Cold glue

Electric power

35KW AC3PH380V

Weight

6000KG

Over dimension

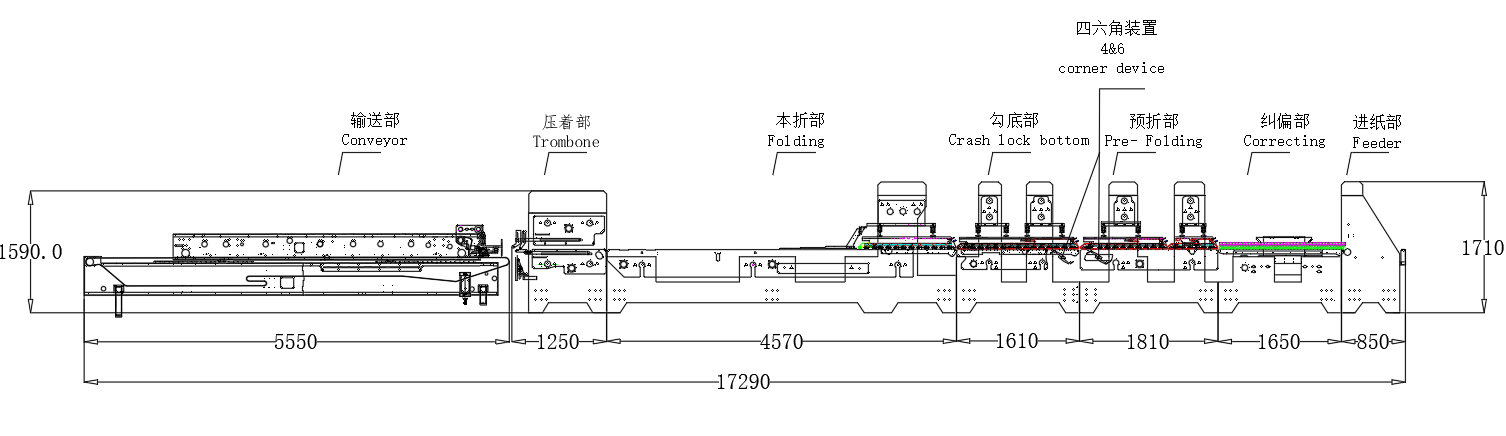

17.5*2.2*1.8（M）

Main Technical Datas Unit: mm

Model

Box type

A

B

C (min)

D (min)

ZH-1450XC

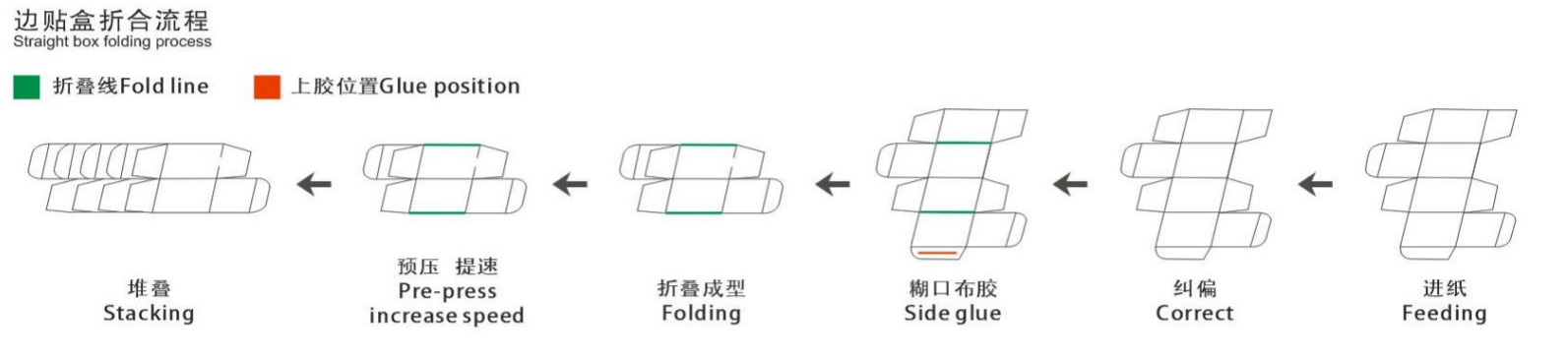

Side-glue box（I）

Flat box（III）

250-1450

150-700

120

50

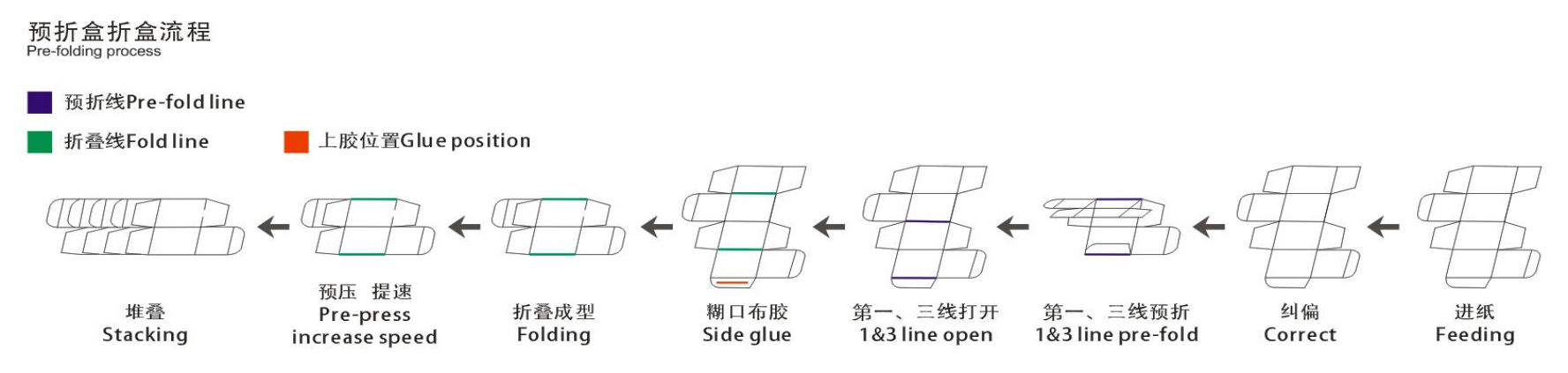

Pre-fold box （I）

250-1450

150-700

120

50

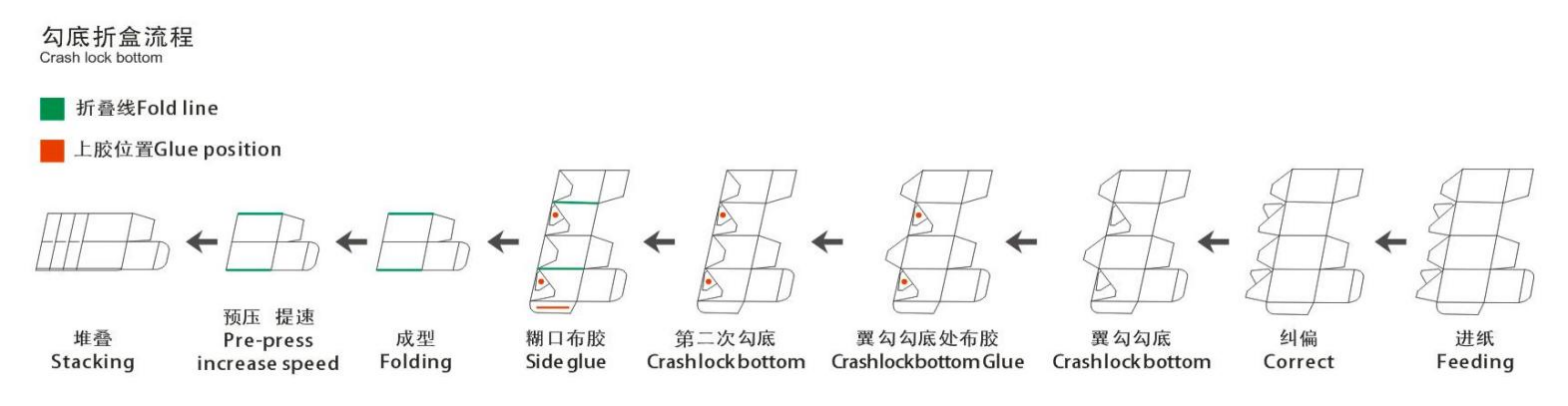

Crash lock bottom box （II）

250-1450

150-700

120

50

4 corner box （IV）

200-1350

200-700

E：30-100

6 corner box （V）

300-1350

200-700

E：30-100

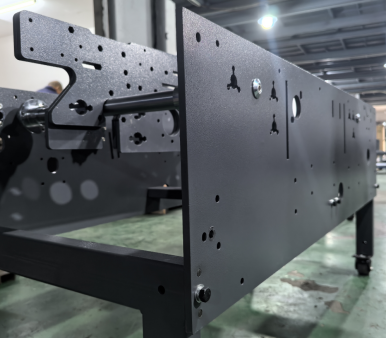

Main Board
16MM hot and cold processed standard steel plate
16mm

Board for conveyor 12MM hot and cold processed standard steel plate
12mm

Mound layer
Special section bar, hot

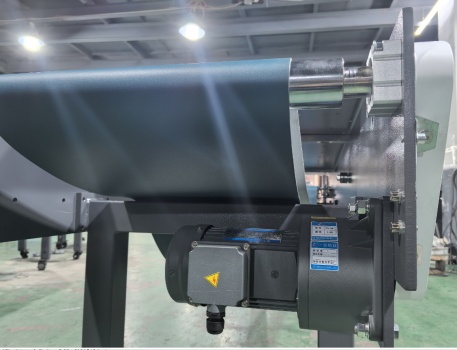

Conveying motor

Taili

Taiwan

Converter

Shihlin

Taiwan

Button

CHNT

Made in china

Circuit Breaker
CHNT
Made in china

Button
CHNT
Made in china


electricity

Made in china

PLC
FATEK
Taiwan

touch screen
WEINVIEW
Taiwan

Press Switch+ Remote controller
Made in china

E-STOP
CHNT
Made in china

Travel Switch
TENGEN
Made in china

Chrome bar
Through quenching-tempering

Switch power supply
Changxin

Made in china

Transmission bearing
HRB
Made in china

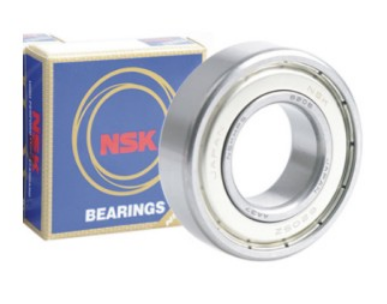

Bearing
NSK
Japan

Main conveyor belt
Made in china

Mound layer, roller
Special section bar, hot processed
