ZH-900XAM Multifunctional Automatic Intelligent Adjustment Servo Cold Glue Electric Pre-fold Box Folder Gluer Machine for Food
Spu:
1601564756004
Description

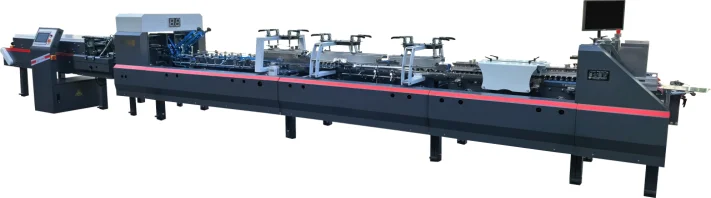

ZH-900XAM Automatic Smart Folder Gluer
Feature
1.Rapid setup:2-minute job changeover with one-key adjustment;
2.Modular flexibility:Upgradable design for instant configuration adaptation;
3.Precision handling:Alignment correction and pre-folding for seamless automated packaging line integration.
2.Modular flexibility:Upgradable design for instant configuration adaptation;
3.Precision handling:Alignment correction and pre-folding for seamless automated packaging line integration.
Technical Parameters
Model |
ZH-900XAM |
Paper Material |
210 ~ 600 g/m² paperboard. compatible with E/F corrugated |
Max. Liner Speed |
0 ~ 300m/min continuous adjustment |
Feeding Way |
automatic feeding |
Way of Folding |
single side gluing or both side gluing and pre-folding |
Glue Material |
cold glue |
Electric Power |
15kw AC 3PH 380V |
Weight |
2500 kg |
Over Dimension |
12 * 1.3 * 1.3 m |
Box Type |
Side-glue Box |
Pre-fold box |
A
|
130 ~ 900 mm |
170 ~ 800 mm |
B
|
60 ~ 700
mm
|
60 ~ 700 mm |
C(min) |
60 mm |
80 mm |
D(min) |
10 mm |
10 mm |

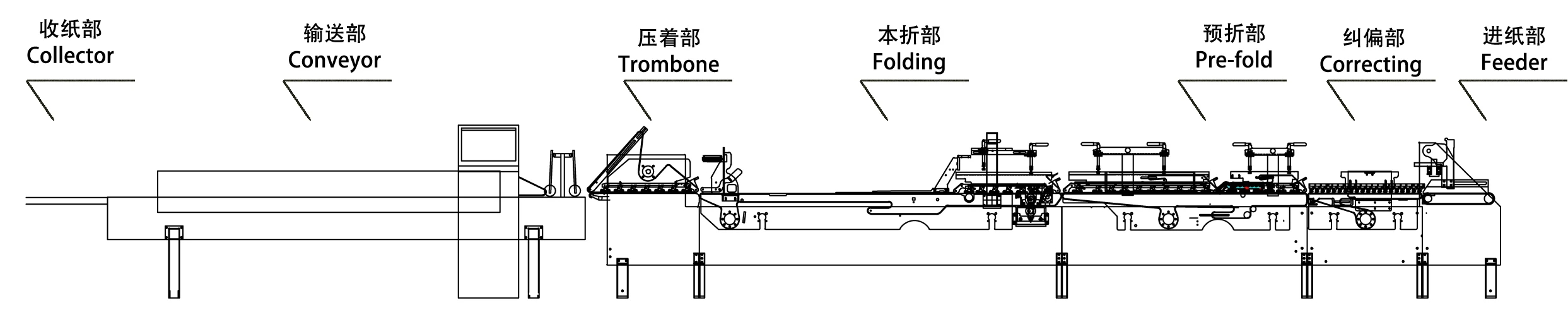

Configuration

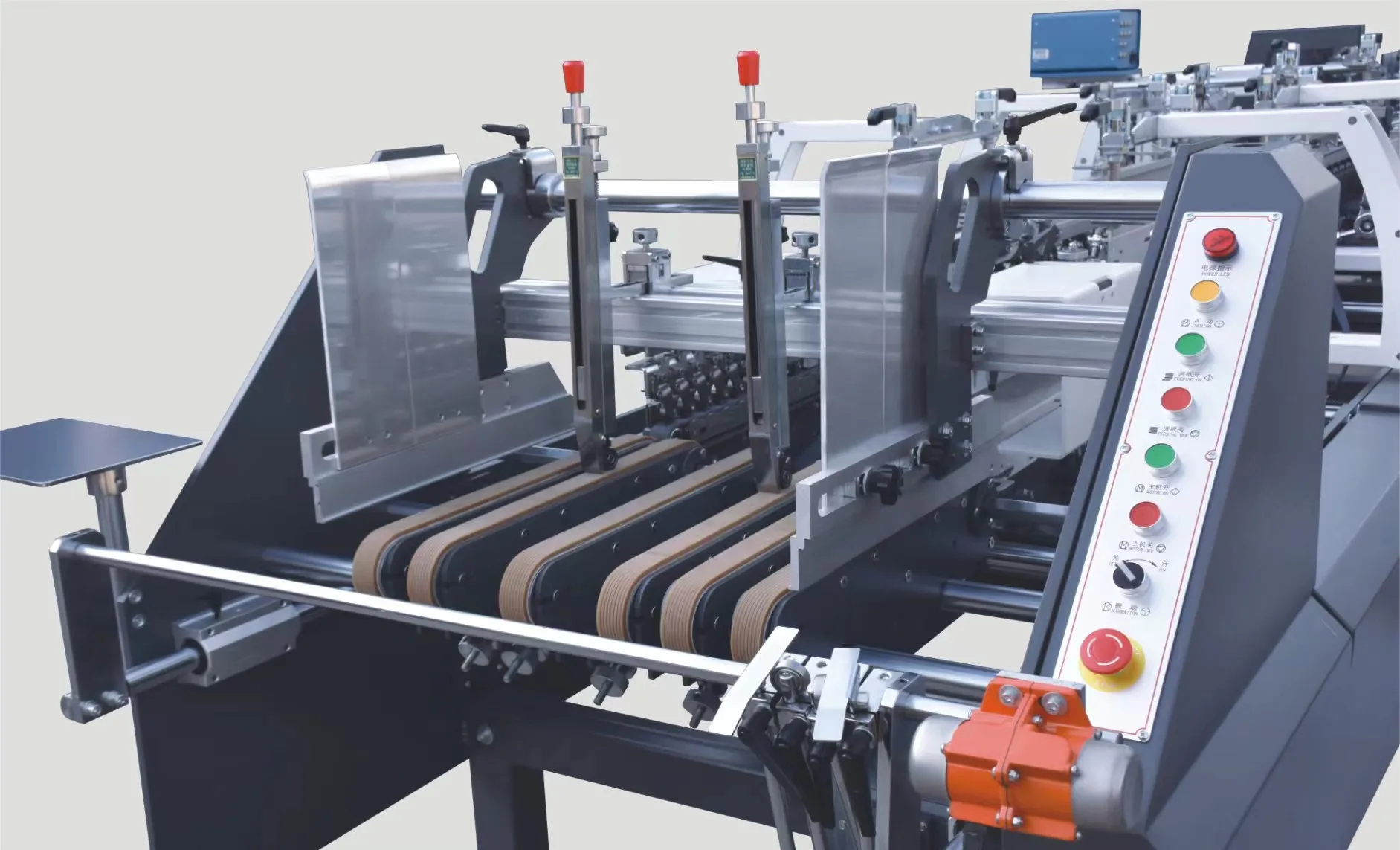

Paper Feeding Section
Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.
Aligner Section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

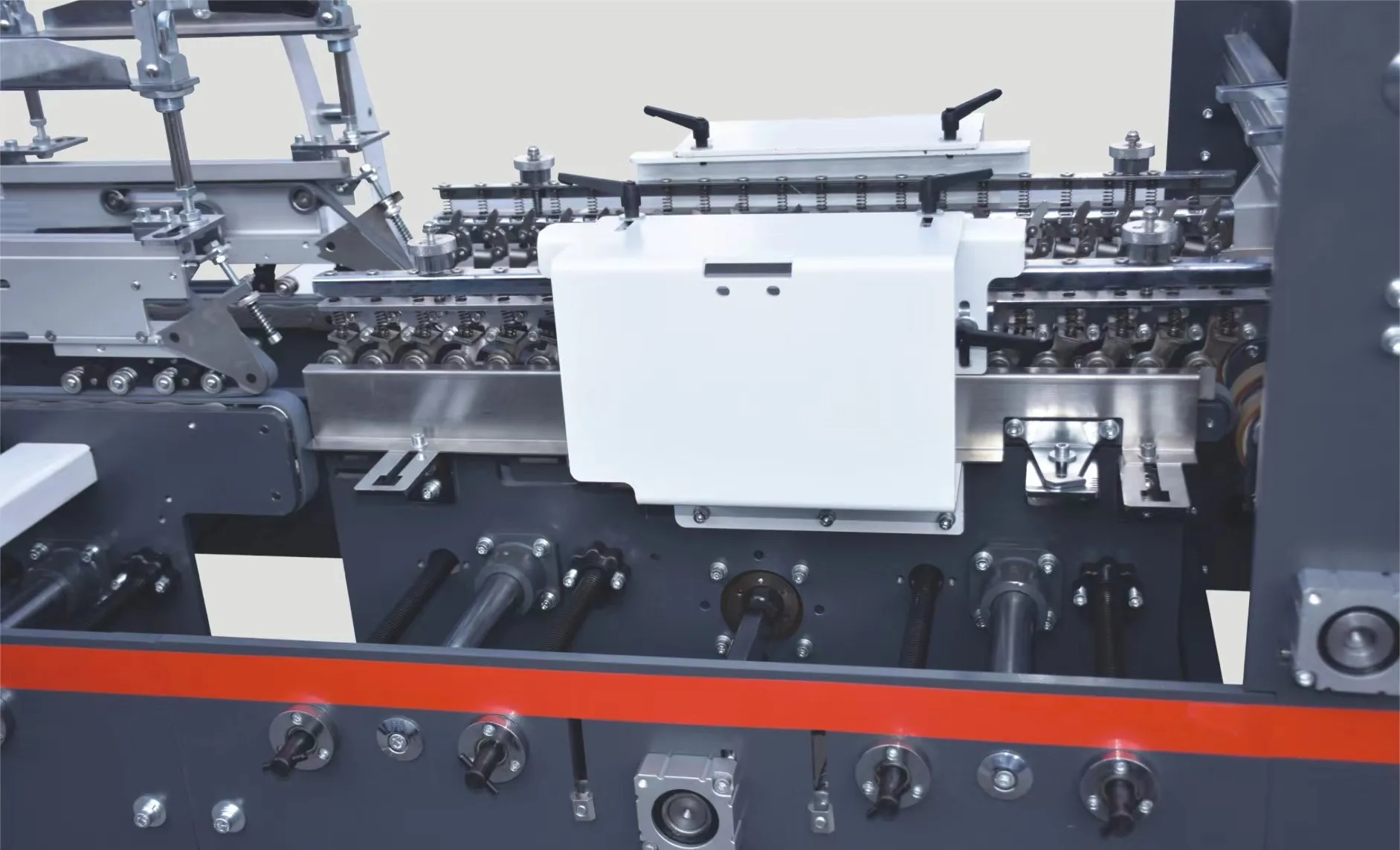

Pre-folding Section
The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.

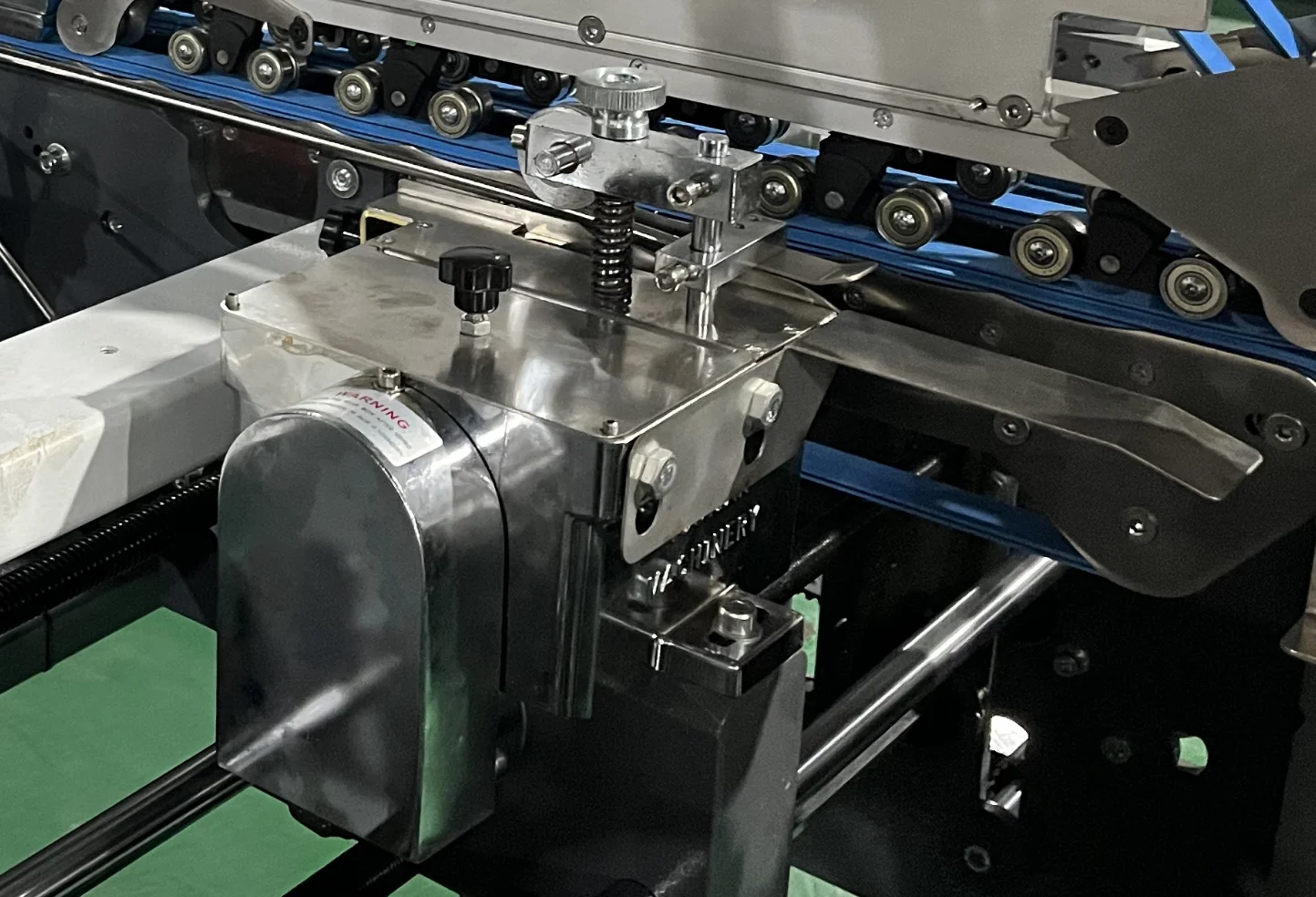

Lower Gluing Tank
Lower gluing tank is large volume.
Easy to remove and clean.
Easy to remove and clean.
Folding and Closing
The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Trombone Section
Up and down belt can be adjusted separately
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Transmission
Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
Upper section moves back and forward, allowing for different box length.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
guaranteeing a well aligned flow.

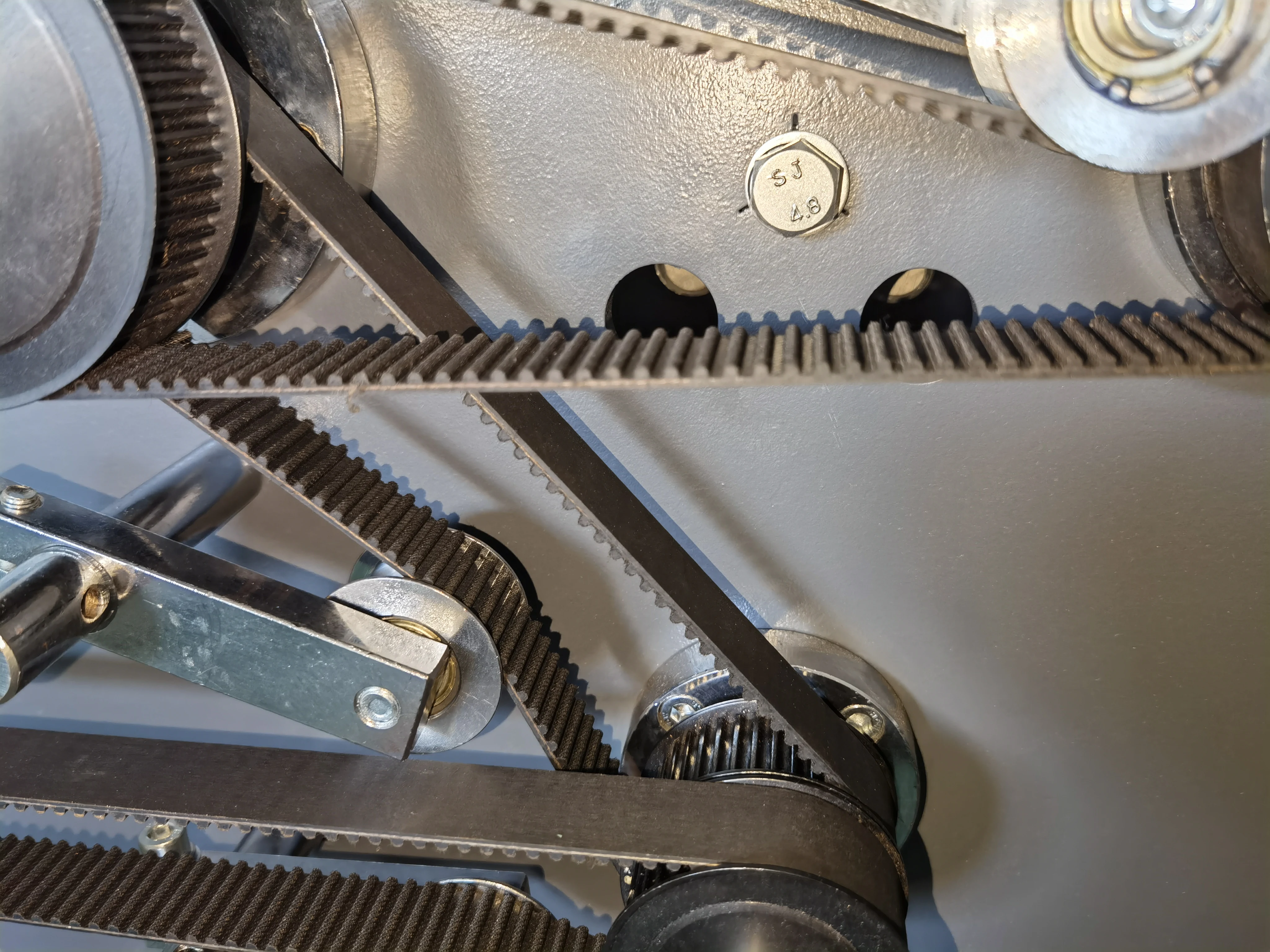

Synchronous Belt & Synchronous Wheel
The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear,and efficient power transmission system.
Aviation Connector
Easy to install and transport.
Independent Electrical Box
The independent structure reduces the interference of the mechanical structure to the electrical system, and it is beautiful and atmospheric

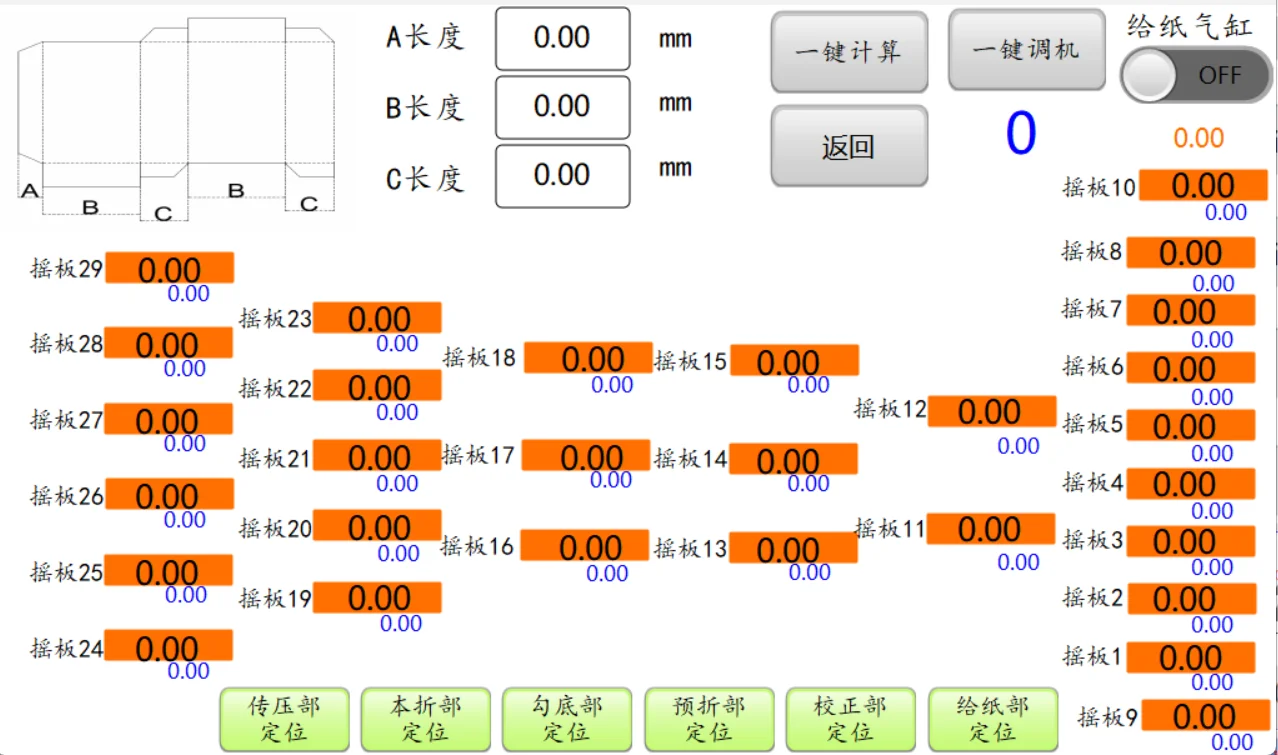

One-button servo adjustment solution(Touch screen interface)
Box Samples
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.
We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.
We have agents in South Africa,Morocco and Italy.
