ZH-800G New Automatic Crash Lock Bottom Paste Paper Box Making Folder Gluer Machine
Spu:
60123706742
Description
Product Description

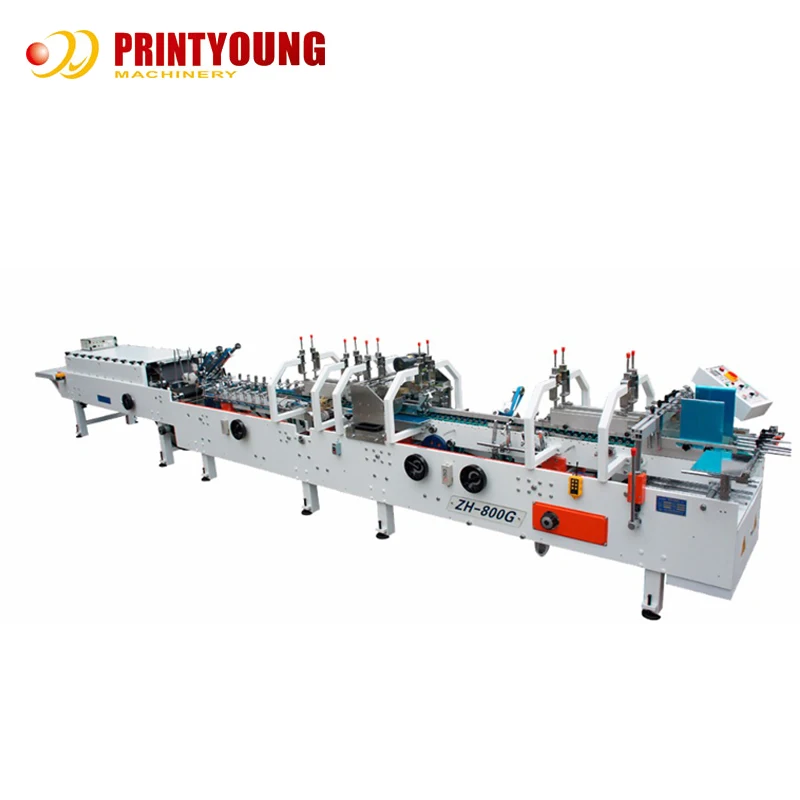

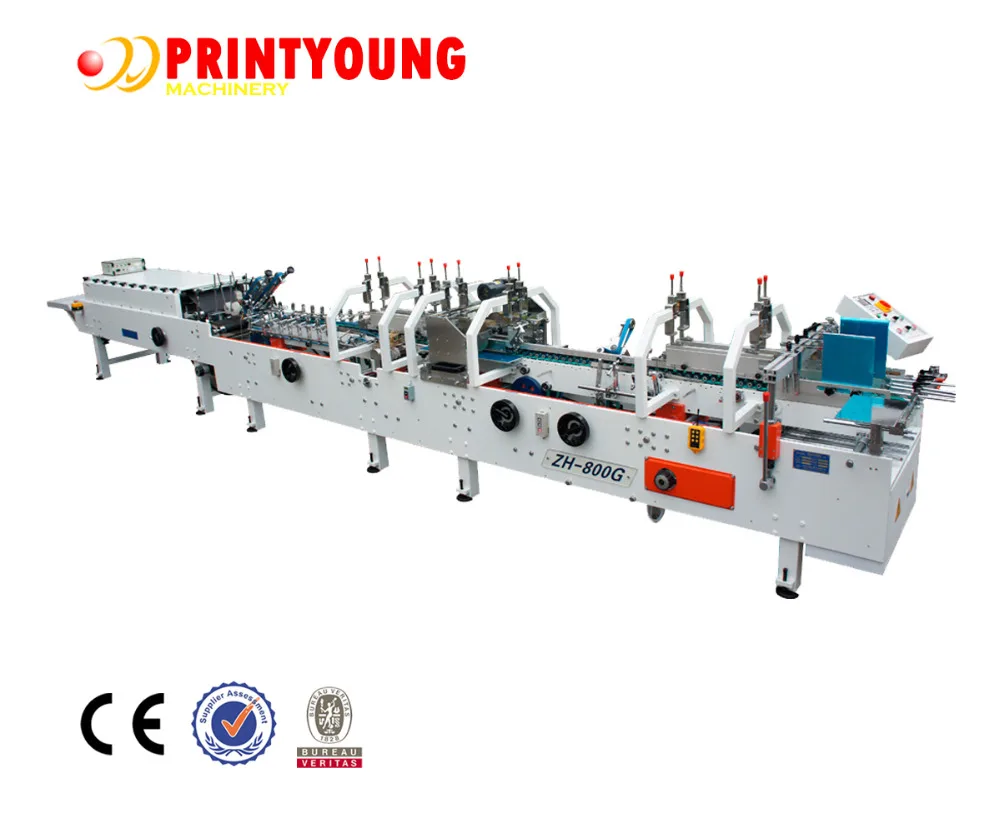

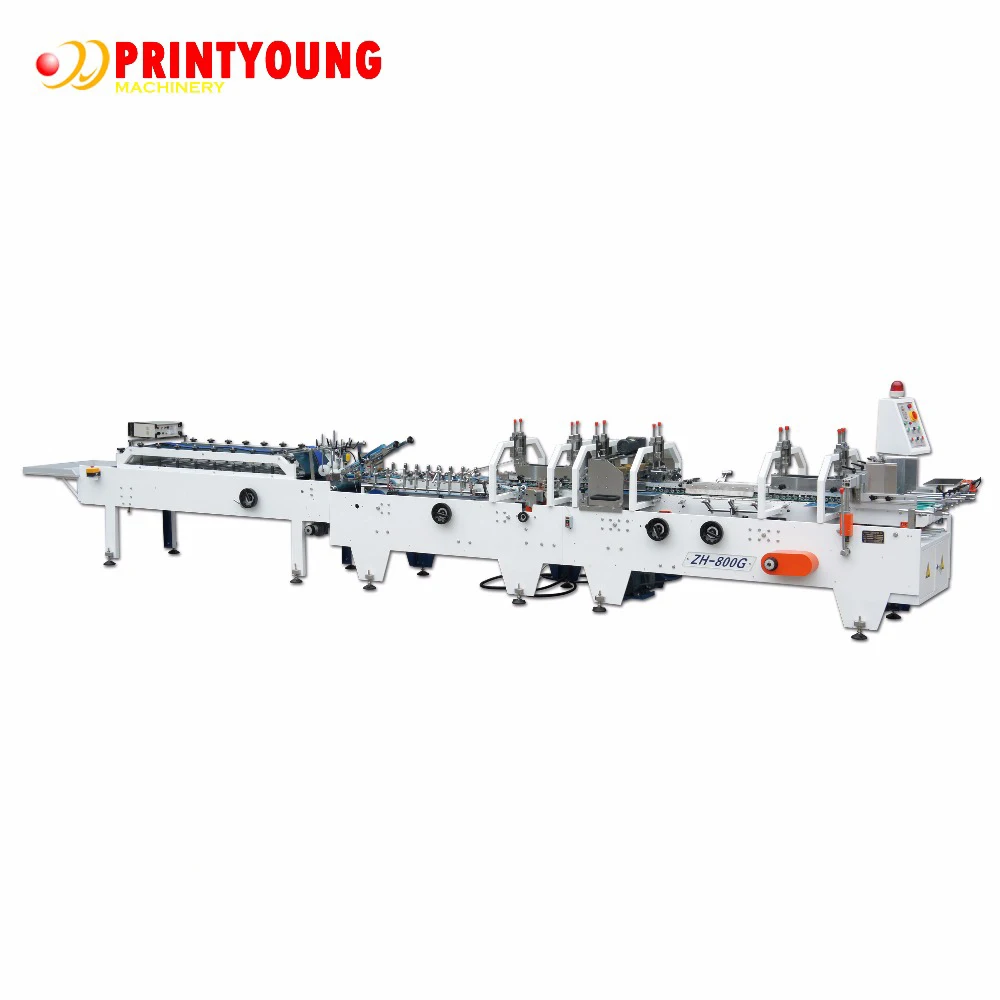

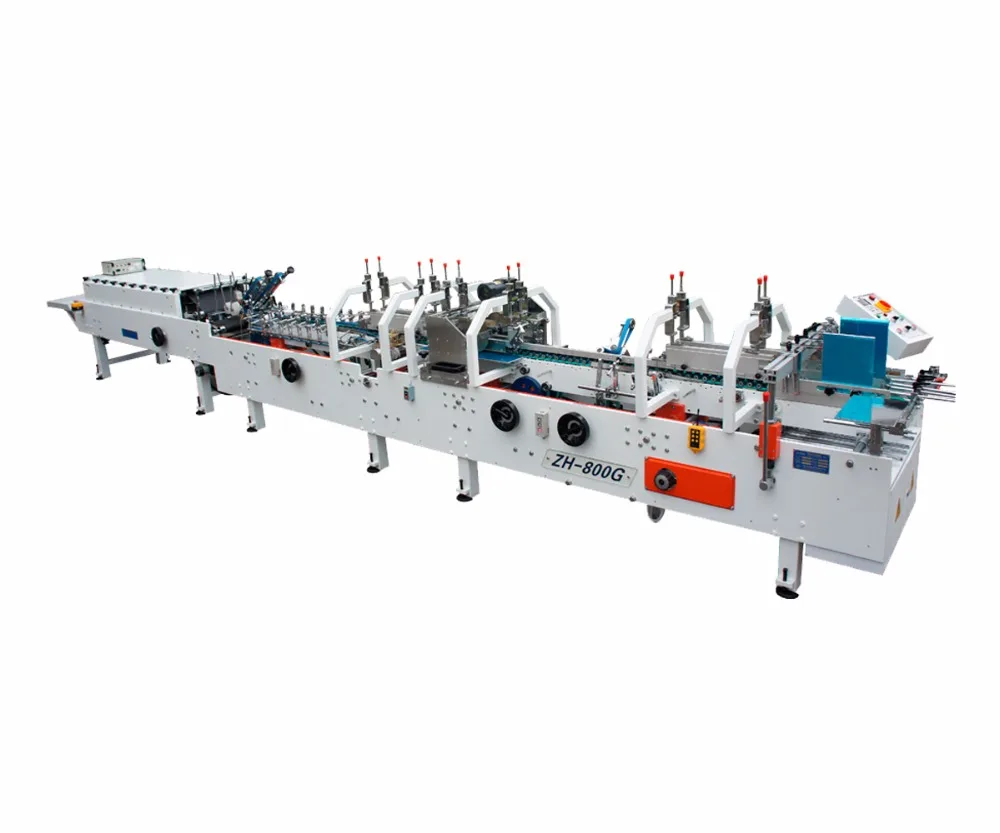

ZH-800G Automatic crash lock bottom paste box machine
ZH800G Automatic corrugated box folder gluer machine is the latest multi-functional crash lock bottom folder gluer; it made indelible contributions to the field of folder gluer. Itcombines a variety of folder gluer features, the general-paste, pre-folded lines with crash lock bottom. We got two patterns for this model. It’spowerful, widelyusage, easy operating and adjusting as well aseconomic. Especially for the current packaging and printing industry, it can solve the problem of many different boxes, less quantity, the delivery of the tight schedule and so on. It will help you to recover the investment cost back quickly.
This folder gluer is widely used in processing medicine box, Wine box, Cosmetics box and Electric appliances packing box
(Fried chips box need optional spare parts.)
Features:
1.Line speed: 0~220m/min adjustable
2.Paperboard: 210~600g/m2 paperboard
3.Box forming:Either side folds, either sides pre-fold, and crash lock bottom
4.Paper board feeding:Continuous automatic
5.Way of folding: First, second and fourth lines fold 180°, third line fold 135°
6.Glue type: Cold glue
7.Power: 3.7Kw, AC220V, Single phase
8.Weight: 2000kg
9.Dimension: 8500×900×1300mm
10.The counting range: 0~999999(full-automatic)
Ten Functions:
Auto feeding, Lower gluing, Double-side grinding, Double-side gluing, Four-side folding, Crash lock bottom, Upper gluing, Folding, Wireless remote controller, Auto counting.
Model |
Box type |
(A Max) |
(A Min) |
(B Max) |
(B Min) |
(C Max) |
(C Min) |
(D Max) |
(E Min) |
ZH-800G |
Straight line box(I) |
560 |
106 |
500 |
65 |
270 |
50 |
7 |
6 |
Pre-fold box(I) |
560 |
180 |
500 |
65 |
270 |
90 |
10 |
6 |
|
Crash lock bottom box(II) |
560 |
160 |
500 |
65 |
270 |
80 |
40 |
6 |
|
ZH-880G |
Straight line box(I) |
660 |
110 |
500 |
65 |
320 |
50 |
7 |
6 |
Pre-fold box(I) |
660 |
180 |
500 |
65 |
320 |
90 |
10 |
6 |
|
Crash lock bottom box(II) |
660 |
160 |
500 |
65 |
320 |
80 |
50 |
6 |
|
ZH-1000G |
Straight line box(I) |
760 |
130 |
600 |
80 |
370 |
60 |
10 |
8 |
Pre-fold box(I) |
760 |
180 |
600 |
80 |
370 |
90 |
15 |
8 |
|
Crash lock bottom box (II) |
760 |
180 |
600 |
80 |
370 |
90 |
60 |
8 |
