Description

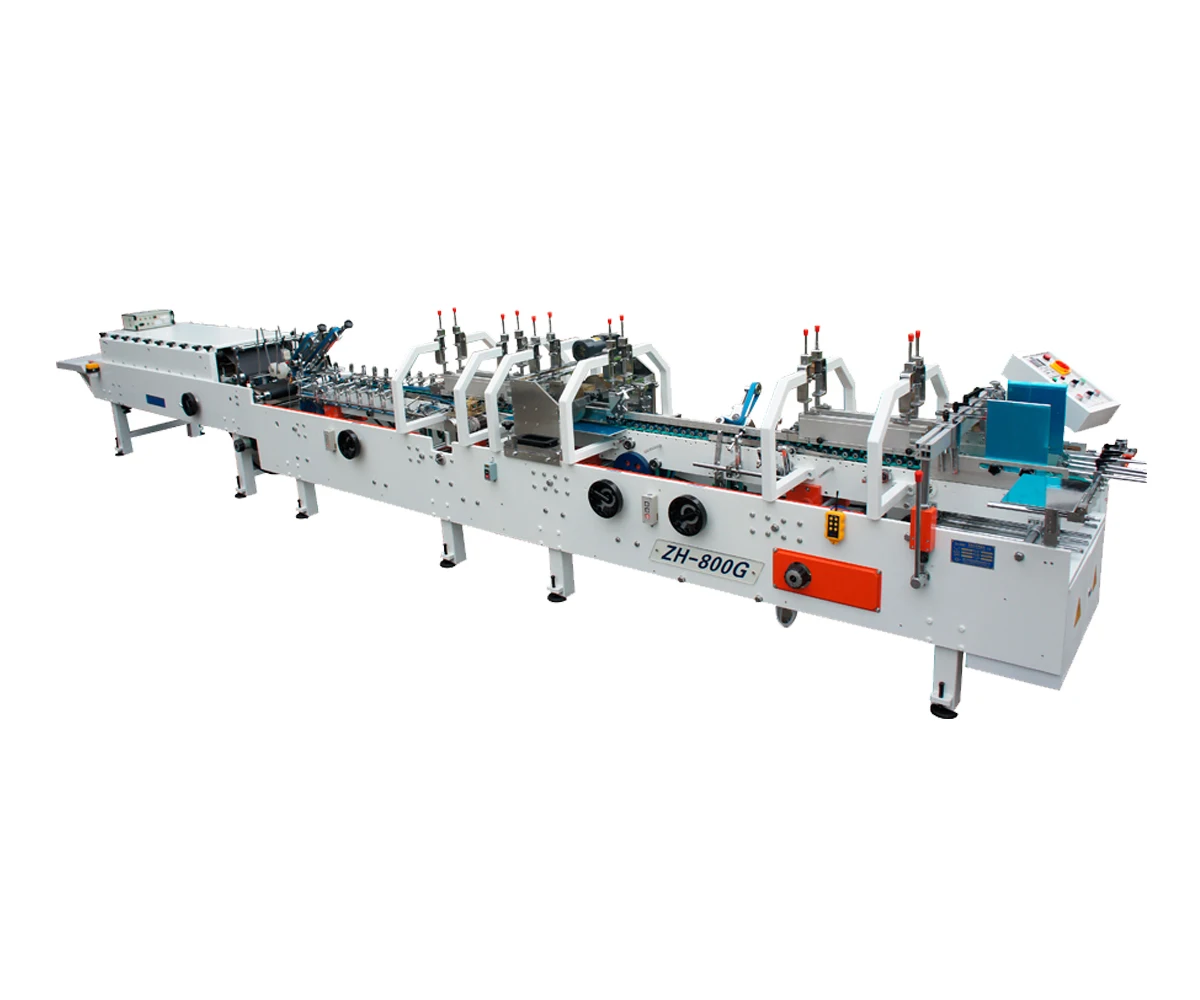

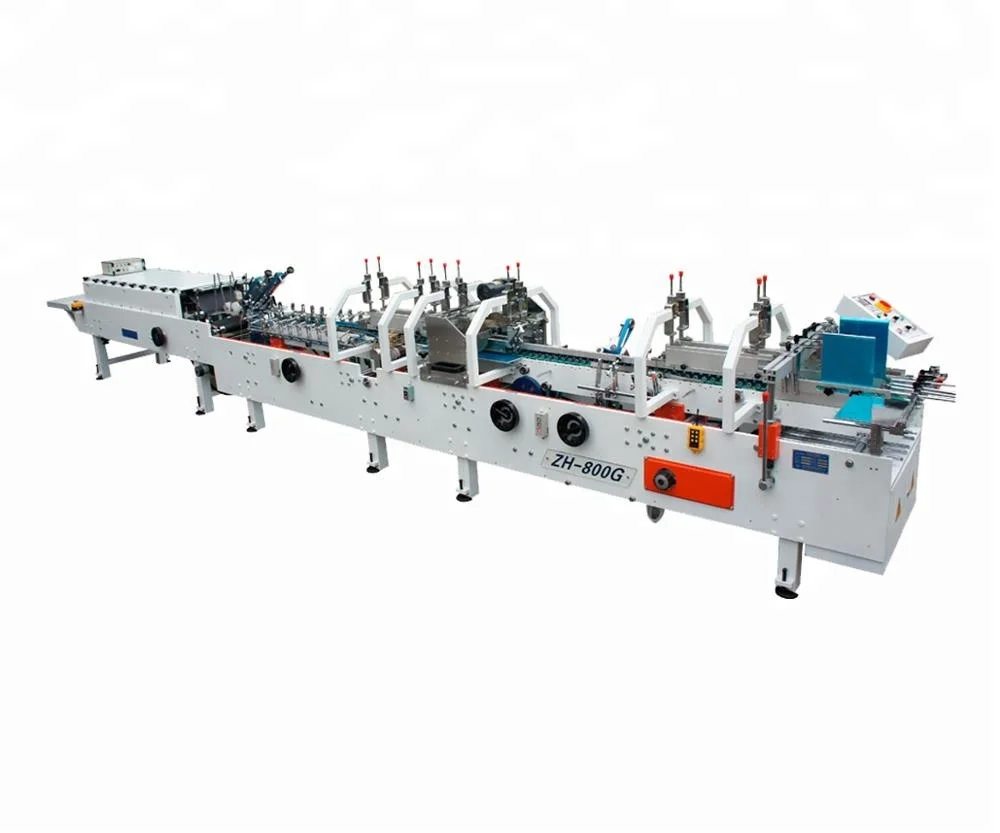

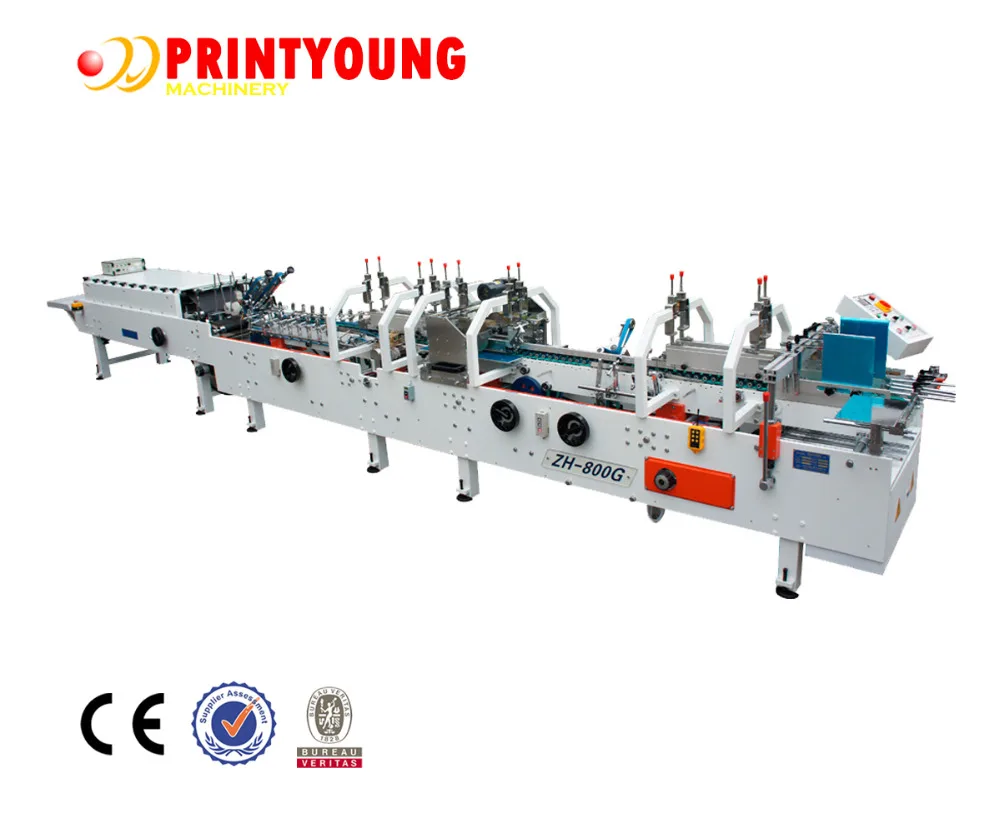

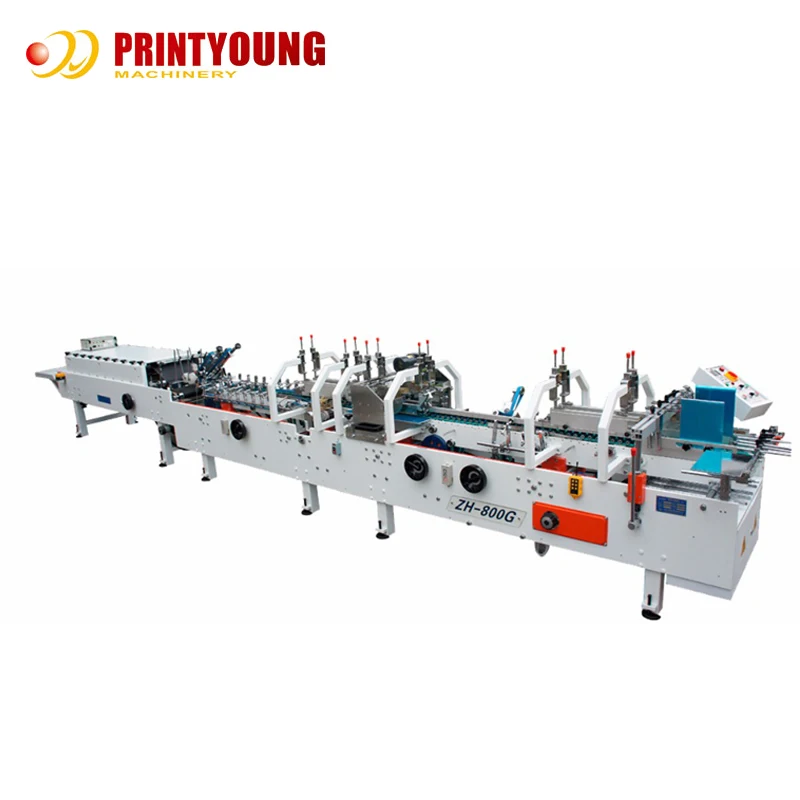

ZH-800G full-auto express paper box making machine
ZH-800G is the latest multi-functional crash lock bottom folder gluer; it made indelible contributions to the field of folder gluer. It combines a variety of folder gluer features, the general-paste, pre-folded lines with crash lock bottom. We got two patterns for this model. It’s powerful, widely usage, easy operating and adjusting as well as economic. Especially for the current packaging and printing industry, it can solve the problem of many different boxes, less quantity, the delivery of the tight schedule and so on. It will help you to recover the investment cost back quickly.
It is widely used in processing medicine box, Wine box, Cosmetics box and Electric appliances packing box etc.
Model |
Box type |
(A Max) |
(A Min) |
(B Max) |
(B Min) |
(C Max) |
(C Min) |
(D Max) |
(E Min) |
ZH-800G |
Straight line box(I) |
560 |
106 |
500 |
65 |
270 |
50 |
7 |
6 |
Pre-fold box(I) |
560 |
180 |
500 |
65 |
270 |
90 |
10 |
6 |
|
Crash lock bottom box(II) |
560 |
160 |
500 |
65 |
270 |
80 |
40 |
6 |
|
ZH-880G |
Straight line box(I) |
660 |
110 |
500 |
65 |
320 |
50 |
7 |
6 |
Pre-fold box(I) |
660 |
180 |
500 |
65 |
320 |
90 |
10 |
6 |
|
Crash lock bottom box(II) |
660 |
160 |
500 |
65 |
320 |
80 |
50 |
6 |
|
ZH-1000G |
Straight line box(I) |
760 |
130 |
600 |
80 |
370 |
60 |
10 |
8 |
Pre-fold box(I) |
760 |
180 |
600 |
80 |
370 |
90 |
15 |
8 |
|
Crash lock bottom box (II) |
760 |
180 |
600 |
80 |
370 |
90 |
60 |
8 |
Main Box Samples:
