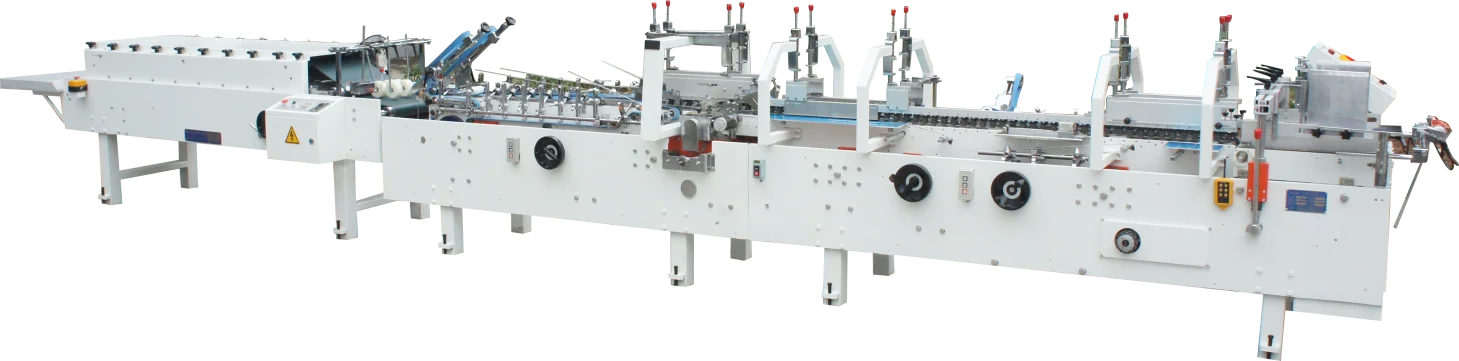

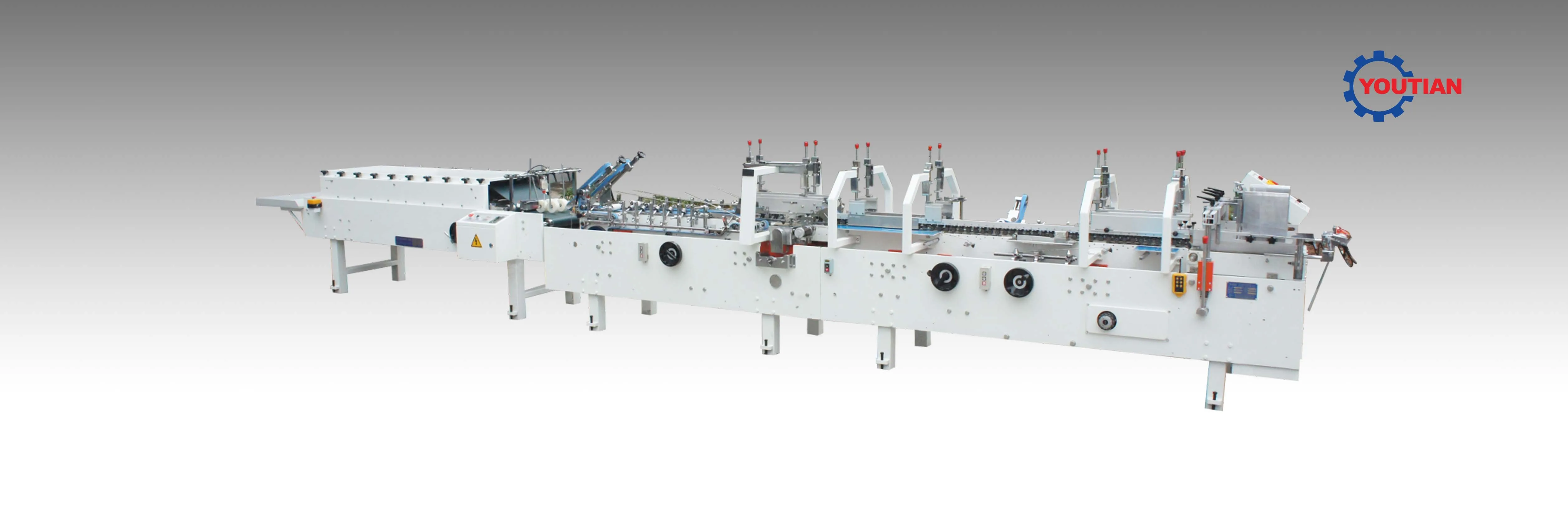

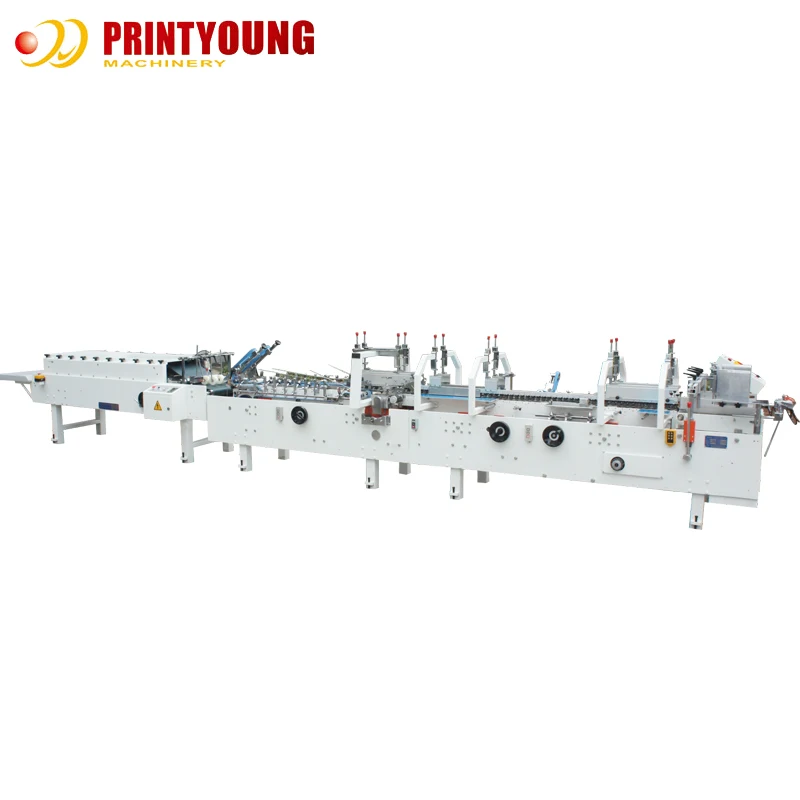

ZH-800A/ZH880A/1000A Electric Automatic Paper Box Pasting Machine with Prefold Easy to Operate
Description

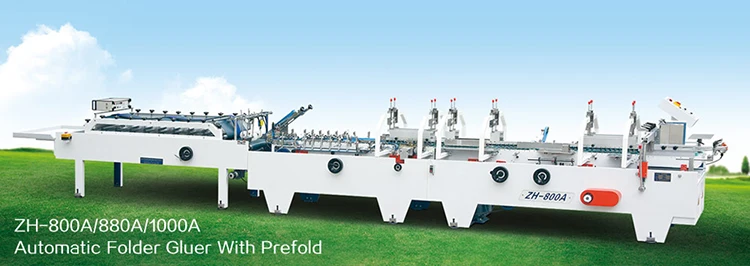

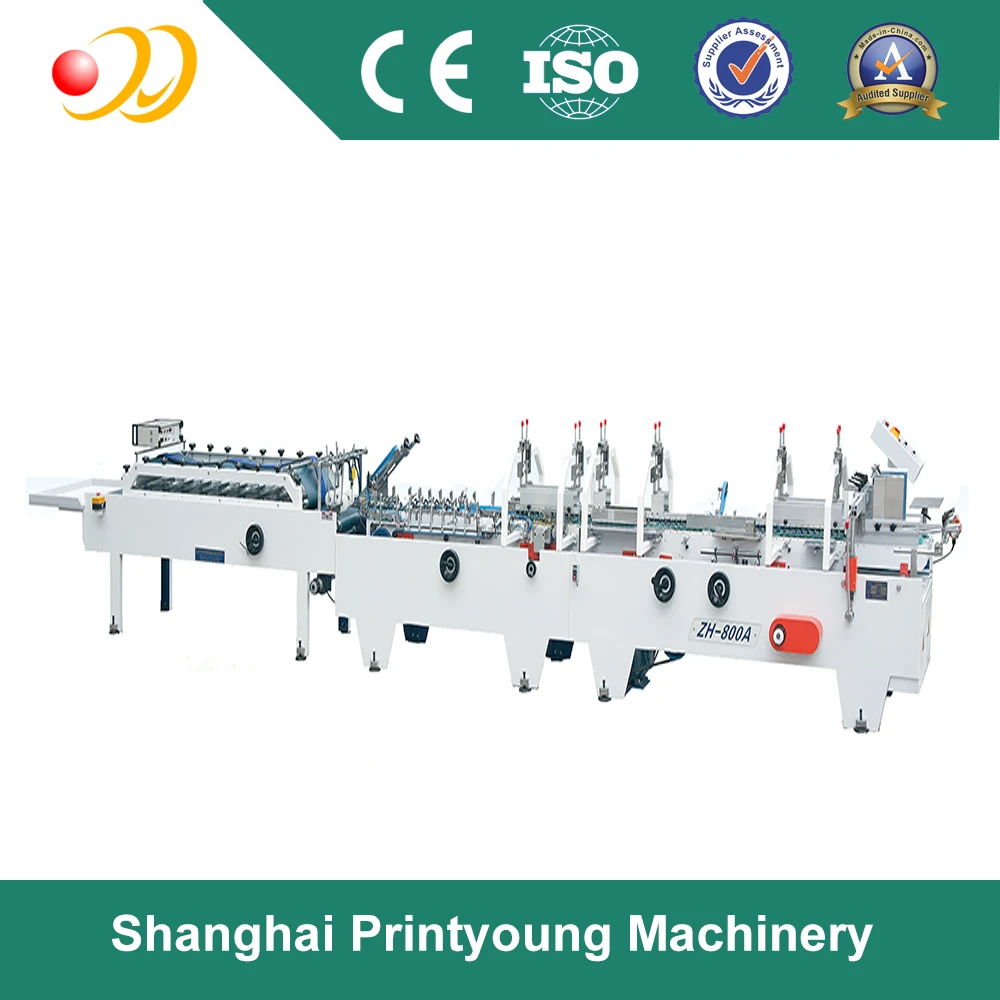

ZH-800A/ZH880A/1000A AUTOMATIC BOX PASTING MACHINE WITH PREFOLD
Introduction
The ZH-800A is one type of the pre-fold equipments. It adds first line folds 180 degree, and third line folds 90 degree with prefold function and the box can be open easily. In the automatic packing area, particularly for the medicine box, it is widely used in medicine box wine box and other box. It’s essential equipment for printing industry.
Features
- Line speed: 0—180m/min continuous adjustable
- Usage paper: 210-660gsm paperboard
- Box forming:Both side folds, the both sides prefold and either side glue.
- Paperboard Feeding; Automatic feeding
- Way of folding: First, second and fourth lines fold 180 degree, third line fold 90 degree.
- Gluing: 2 lower stations, each lower station has a grinding wheel for cleaning UV varnish and ink off the flap before gluing.
- Glue: Water solvable
- Speed: 6000c/min
- Electric: Single-phase, AC220V, 3.7kw
- Weight: 2000kg
- Dimension: 8500×900×1300 mm
-
The counting range: 0~999999(full-automatic)
Model |
Box type |
(A Max) |
(A Min) |
(B Max) |
(B Min) |
(C Max) |
(C Min) |
(D Min) |
(E Min) |
ZH-800A |
Straight line box |
560 |
106 |
500 |
65 |
270 |
50 |
7 |
6 |
Pre-fold box |
560 |
180 |
500 |
65 |
270 |
90 |
10 |
6 |
|
ZH-880A |
Straight line box |
660 |
110 |
500 |
65 |
320 |
50 |
7 |
6 |
Pre-fold box |
660 |
180 |
500 |
65 |
320 |
90 |
10 |
6 |
|
ZH-1000A |
Straight line box |
760 |
130 |
600 |
80 |
370 |
60 |
10 |
8 |
Pre-fold box |
760 |
180 |
600 |
80 |
370 |
90 |
15 |
8 |
