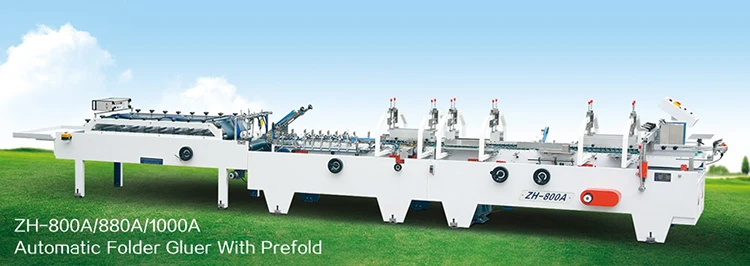

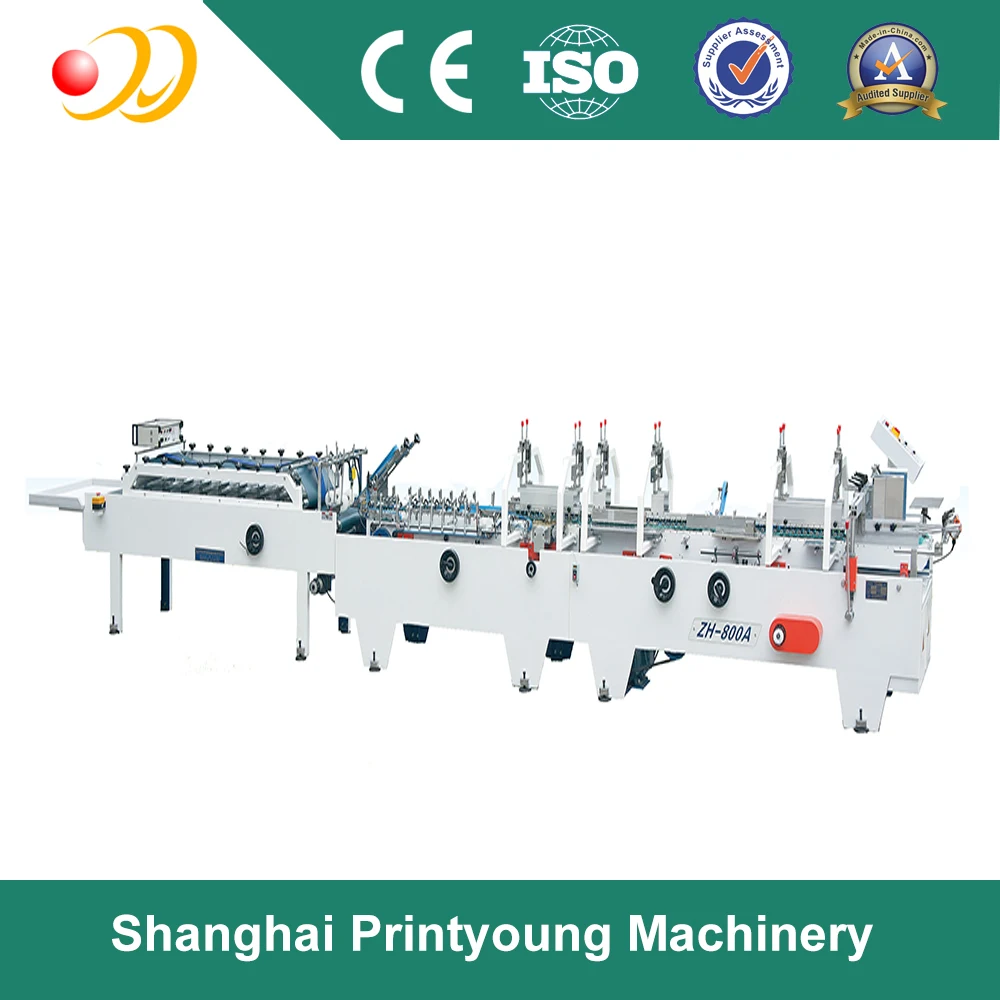

ZH-800A/880A/1000A box pasting equipment with prefold
Introduction
ZH-800A/880A/1000A box pasting equipment with prefold is one type of the pre-fold equipments. It adds first line folds 180 degree, and third line folds 90 degree with prefold function and the box can be open easily. In the automatic packing area, particularly for the medicine box, it is widely used in medicine box wine box and other box. It’s essential equipment for printing industry.
Features
1.Line speed: 0—220m/min continuous adjustable
2.Paperboard: 210-660gsm paperboard
3.Box forming:Both side folds, the both sides pre-fold and either side glue.
4.Paperboard Feeding; Automatic feeding
5.Way of folding: First, second and fourth lines fold 180 degree, third line fold 90 degree.
6.Gluing: 2 lower stations, each lower station has a grinding wheel for cleaning UV varnish and ink off the flap before gluing.
7.Glue: Water solvable
8.Speed: 6000c/min
9.Electric: Single-phase, AC220V, 3.7kw
10.Weight: 2000kg
11.Dimension: 8500×900×1300(mm)
12.The counting range: 0~999999(full-automatic)
13.This machine is able to produce four fold cardboard packing boxes.
Technical data
Model |
Box type |
(A Max) |
(A Min) |
(B Max) |
(B Min) |
(C Max) |
(C Min) |
(D Min) |
(E Min) |
ZH-800A |
Straight line box |
560 |
106 |
500 |
65 |
270 |
50 |
7 |
6 |
Pre-fold box |
560 |
180 |
500 |
65 |
270 |
90 |
10 |
6 |
|
ZH-880A |
Straight line box |
660 |
110 |
500 |
65 |
320 |
50 |
7 |
6 |
Pre-fold box |
660 |
180 |
500 |
65 |
320 |
90 |
10 |
6 |
|
ZH-1000A |
Straight line box |
760 |
130 |
600 |
80 |
370 |
60 |
10 |
8 |
Pre-fold box |
760 |
180 |
600 |
80 |
370 |
90 |
15 |
8 |
