ZH-600X Automatic Straight Line Side-Glue Paper Box Folder Gluer Machine
Spu:
1601123730313
Description
ZH-600X Folder Gluer Machine
Features
1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
Technical Parameters
ZH-600X Folder Gluer Machine |
||||||||||
Line Speed |
0 - 300 m/min (Adjustable) |
|||||||||
Paperboard
|
210 - 600 gsm Paperboard
Compatible with E/F Corrugated Board
|
|||||||||
Box Forming |
Single Side Gluing |
|||||||||
Paper Board Feeding |
Automatic Feeding |
|||||||||
Glue Type |
Cold Glue |
|||||||||
Power |
ZH-600X 7kw AC 3PH 380V
|
ZH-700X 7KW AC 3PH 380V |
ZH-800X 8KW AC 3PH 380V |
ZH-900X 8KW AC 3PH 380V |
ZH-1100X 10KW AC 3PH 380V |
|||||
Weight |
1300 kg |
1400KG |
1700KG |
1800KG |
2000KG |
|||||
Dimension |
7.8 * 1.0 * 1.3 m |
7.8*1.1*1.3M |
9.8*1.2*1.3M |
9.8*1.3*1.3M |
12.8*1.5*1.3M |
|||||
Model |
ZH-600X |
Box Type |
Side-Glue Box |
A |
110 - 600 mm |
B |
60 - 500 mm |
C (Min) |
50 mm |
D (Min) |
10 mm |
Configuration

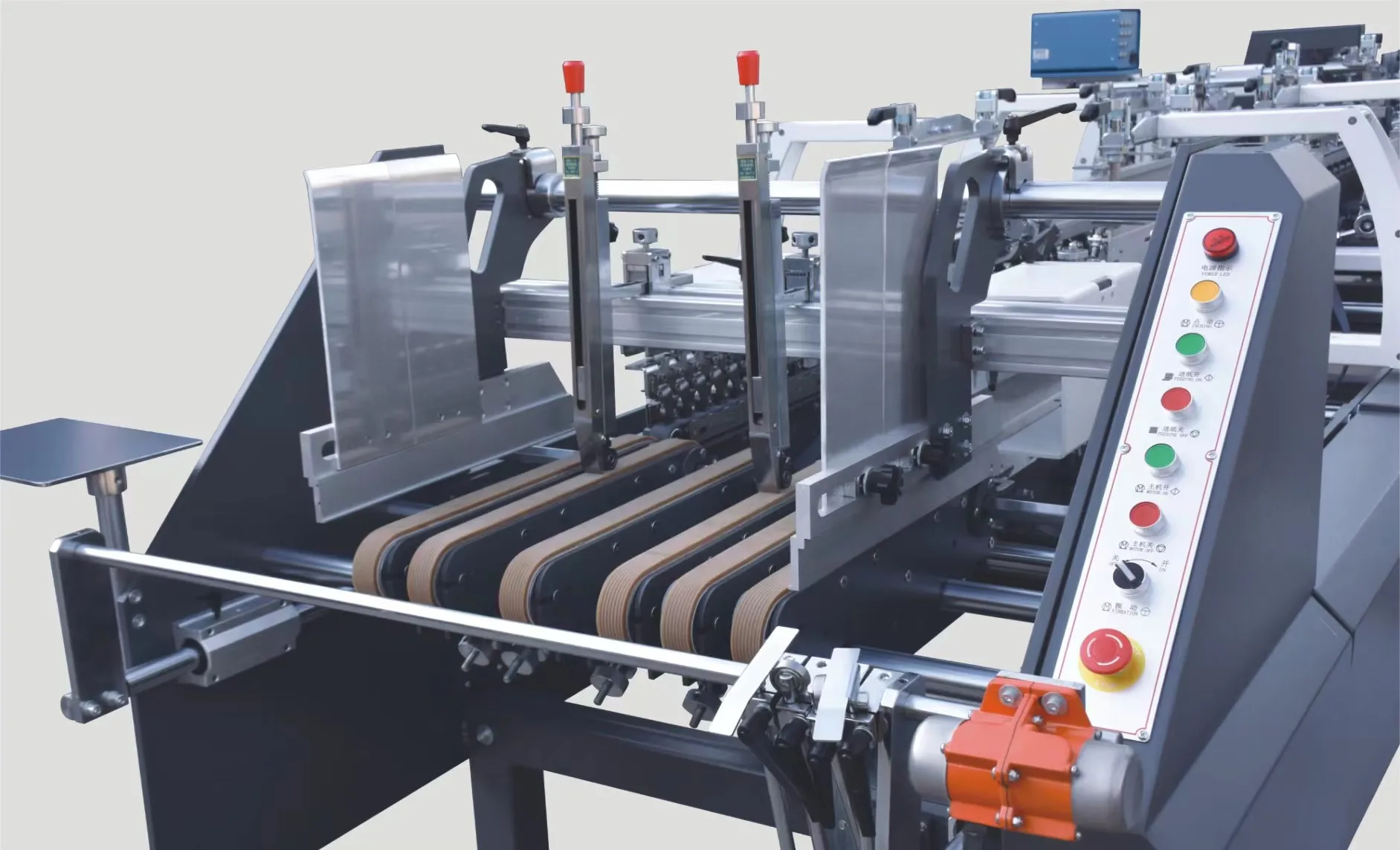

Paper Feeding Section
Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

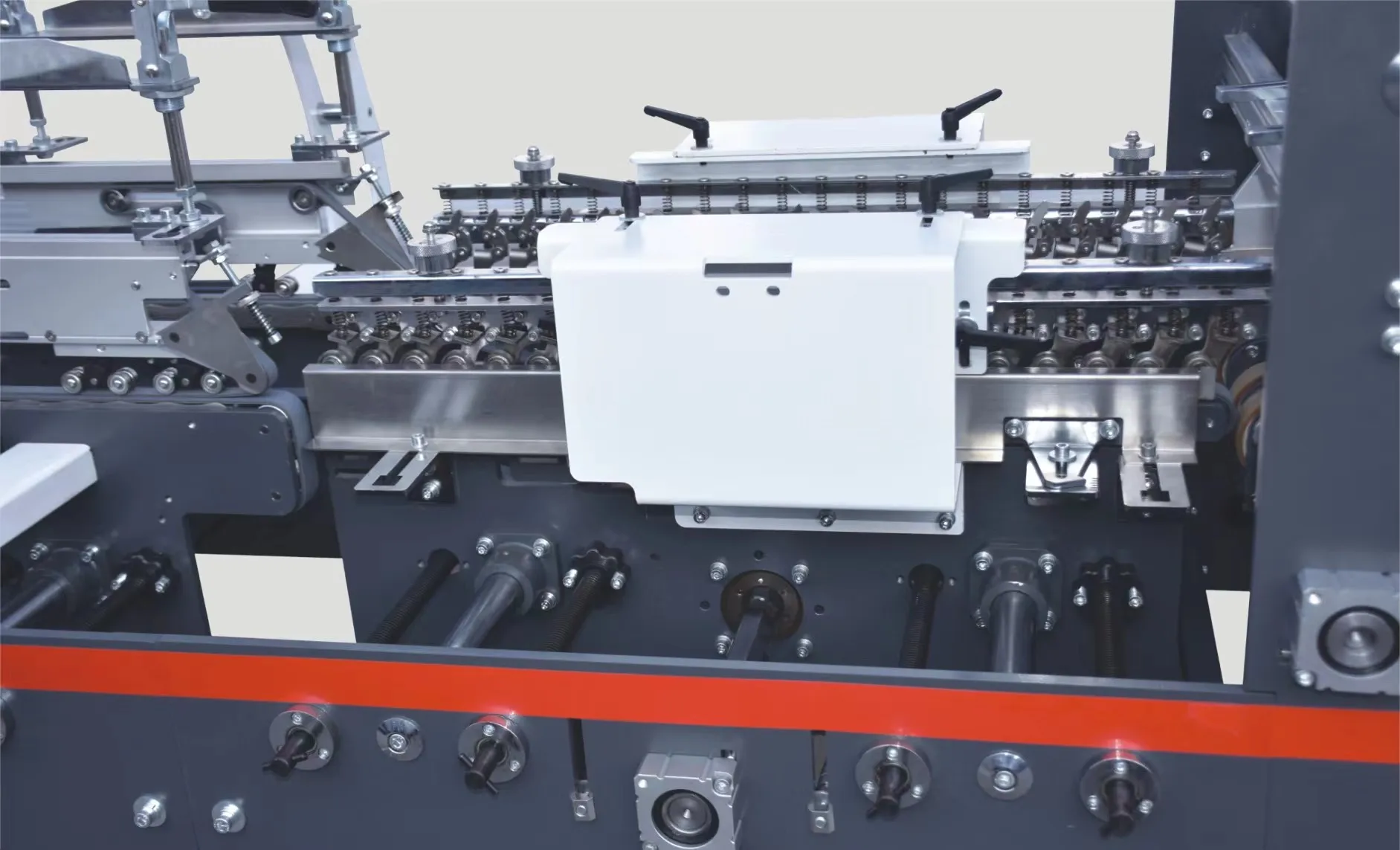

Aligner Section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.

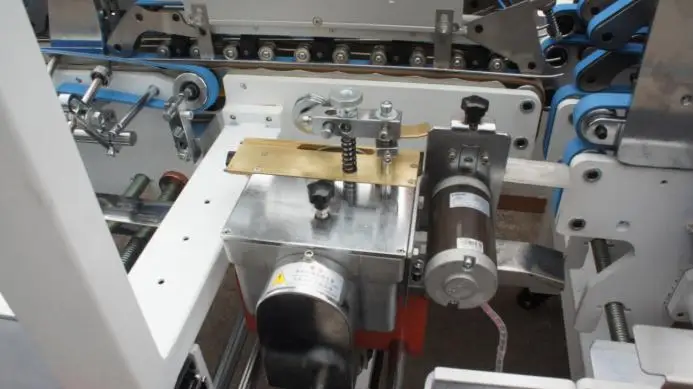

Lower Gluing Tank
Lower gluing tank is large volume.
Easy to remove and clean.
Electronic upper gluing system by guns.
Easy to remove and clean.
Electronic upper gluing system by guns.

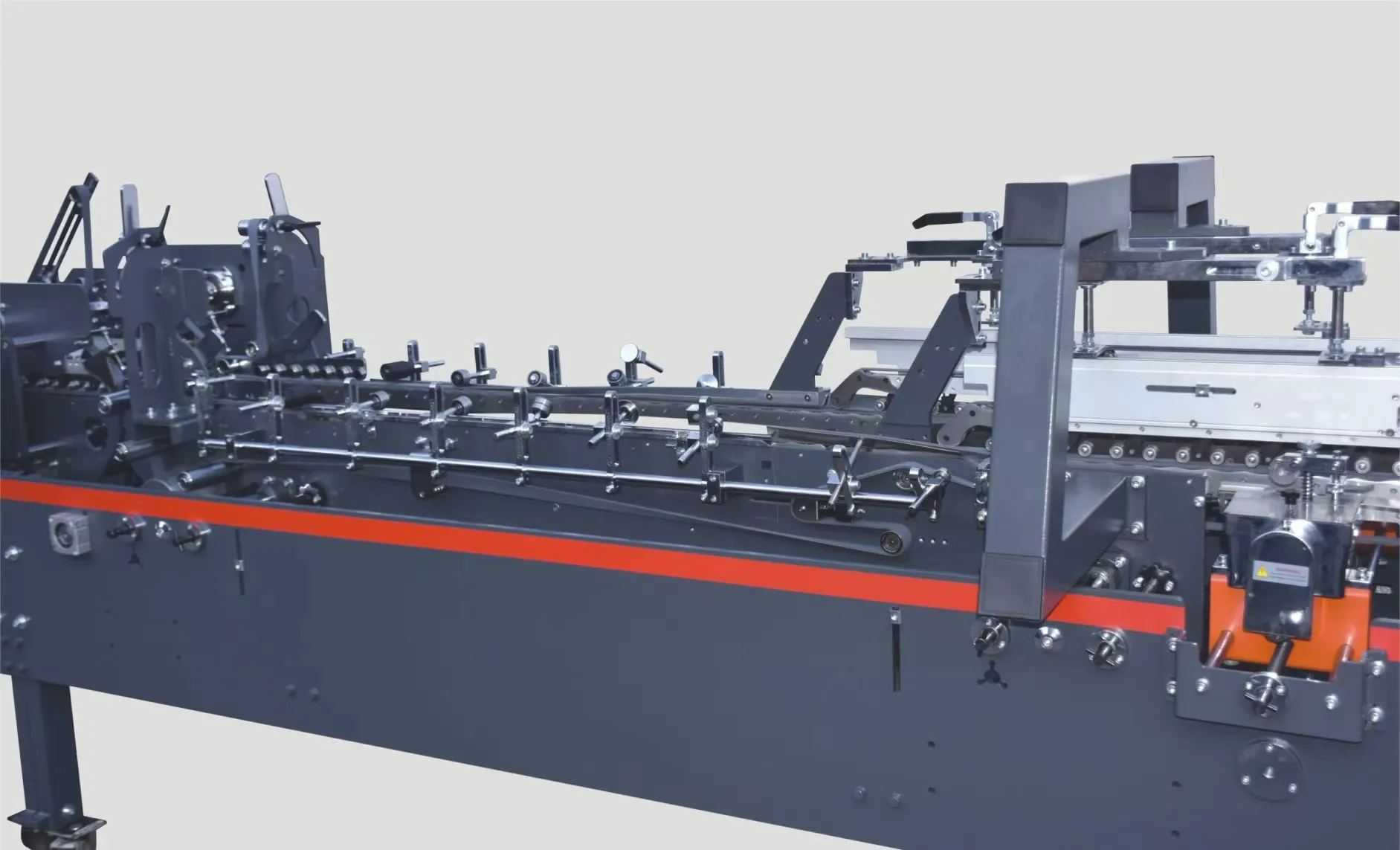

Folding and Closing
The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.

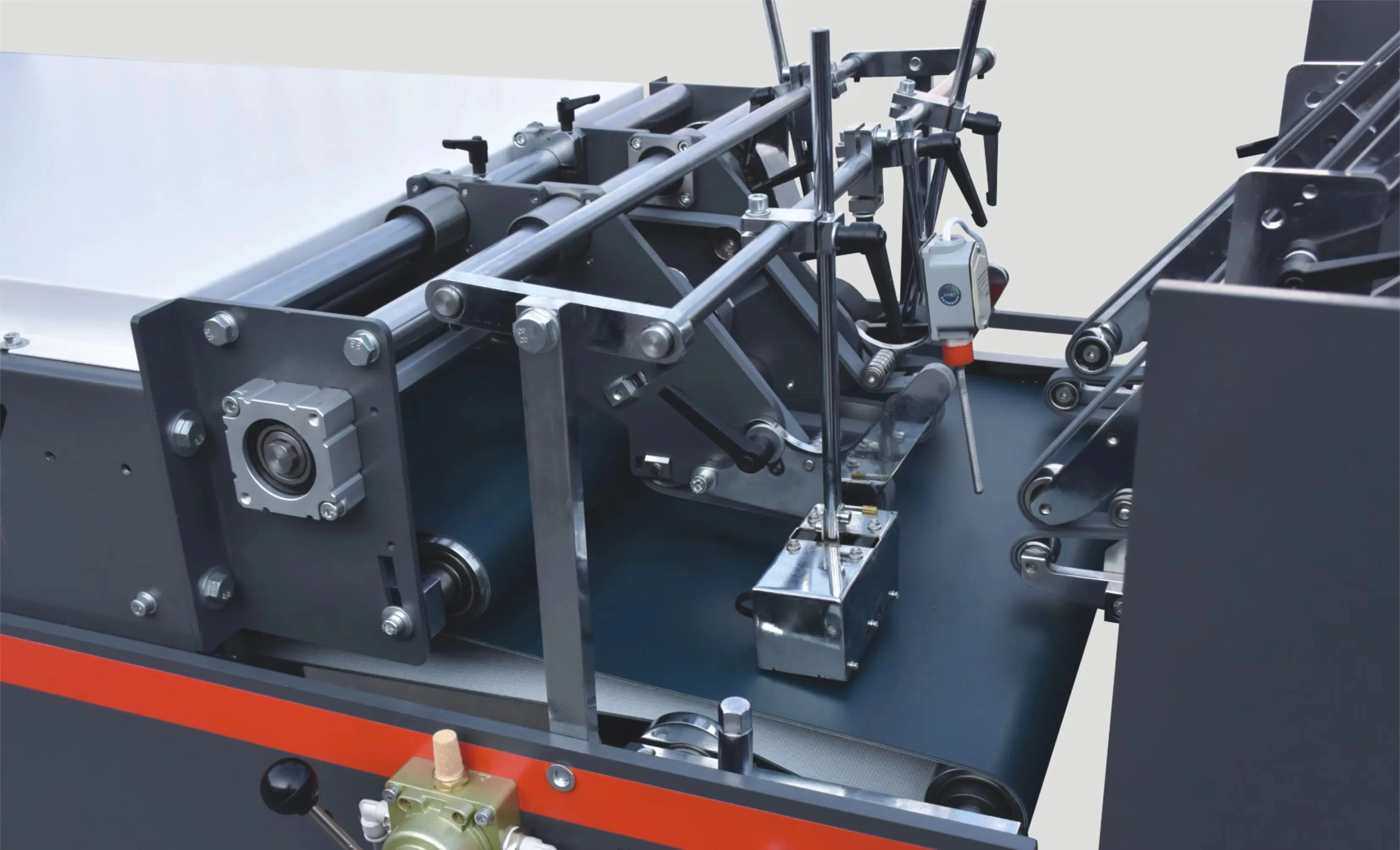

Trombone Section
Up and down belt can be adjusted separately
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Transmission
Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
Upper section moves back and forward, allowing for different box length.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
guaranteeing a well aligned flow.
Synchronous Belt & Wheel
The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear,and efficient power transmission system.
Aviation Connector
Easy to install and transport.
Independent Electrical Box
The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and
atmospheric.
atmospheric.
Spraying System(Optinal)
Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box,gluing quickly and accurately sizing
