ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine
Spu:
1601634427529
Description

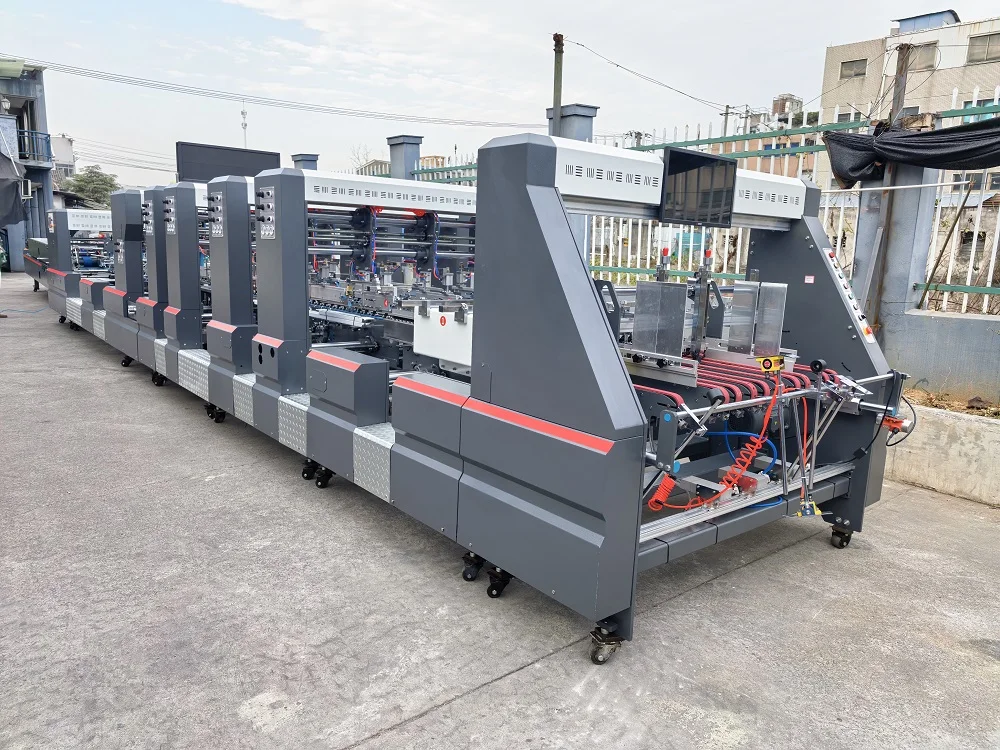

ZH-1450XAG Folder Gluer
Features
1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
Technical Parameters
Paperboard
|
210 ~ 600 gsm paperboard
compatible with E/F corrugated board
|
Box Forming |
single side gluing,pre-folding,crash lock bottom |
Paper Board Feeding |
automatic feeding |
Glue Type |
cold glue |
Electric Power |
30kw AC 3PH 380V |
Weight |
6000 kg |
Over Dimension |
17.5 * 2.2 * 1.8 m |
(I) (II) (III)
Box Type |
A |
B |
C(min) |
D(min) |
Side-glue Box(I)
Flat Box(III)
|
250 ~ 1450 mm
|
150 ~ 700 mm
|
120 mm
|
50 mm
|
Pre-fold Box(I) |
250 ~ 1450 mm |
150 ~ 700 mm |
120 mm |
50 mm |
Crash Lock Bottom Box(II) |
250 ~ 1450 mm |
150 ~ 700 mm |
120 mm |
50 mm |
Configuration

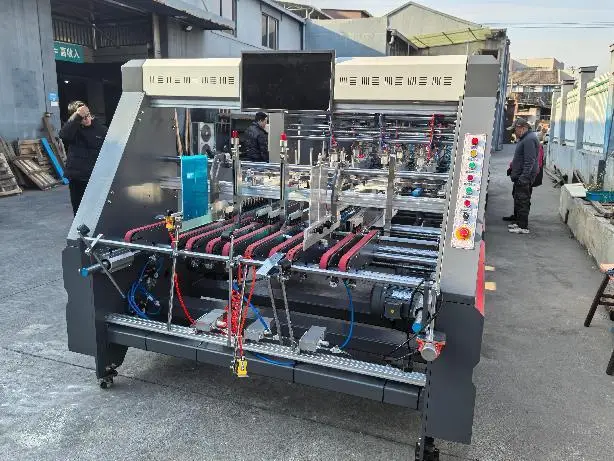

Paper Feeding Section
Equipped with 3 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.
Aligner Section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Pre-folding Section
The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.

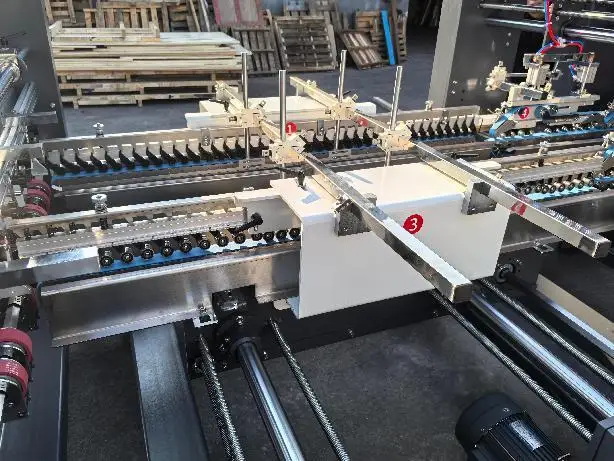

Crash Lock Bottom Section
A complete set of front flap bottom locking device to ensure accurate bottom locking action.The segmented upper belt board,
combined with a special design,can be adjusted by expansion and contraction according to the needs of the product.
combined with a special design,can be adjusted by expansion and contraction according to the needs of the product.
Lower Gluing Tank
Lower gluing tank is large volume.
Easy to remove and clean.
Electronic upper gluing system by guns.
Easy to remove and clean.
Electronic upper gluing system by guns.

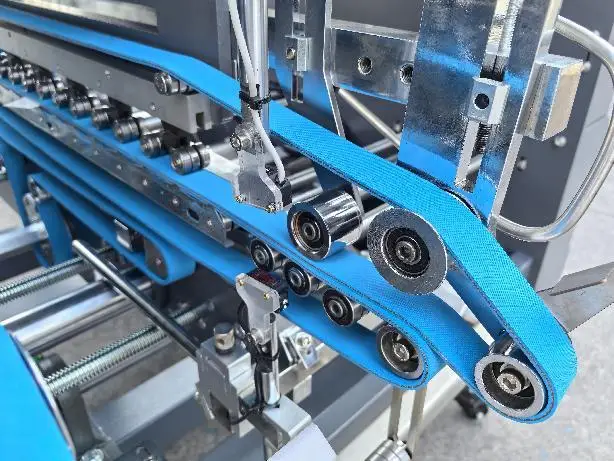

Folding and Closing
The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of
box running to ensure straightly delivery.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of
box running to ensure straightly delivery.

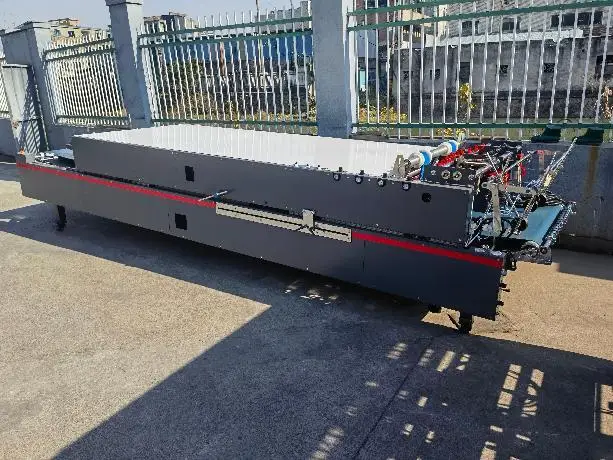

Trombone Section
Up and down belt can be adjusted separately
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it
easy to pack.Also equipped with feeding paper inspection device.
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it
easy to pack.Also equipped with feeding paper inspection device.
Transmission
The upper and bottom of the belt are power, and the pressure can be adjusted by the air source.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
guaranteeing a well aligned flow.
Synchronous Belt & Synchronous Wheel
The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear,and efficient power transmission system.
Aviation Connector
Easy to install and transport.
KQ Spraying System
Equipped with three guns,convenient in the production of various special-shaped box, gluing quickly and accurately sizing.
Surveillance Camera
The output of the box can be observed.
Independent Electrical Box
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Electric Shift Row
Button control shift row,save manpower.
Top LED Screen
Easy to observe the batch situation and production efficiency of the box.
Shoot the Structure
The counterline of the flat mouth box can be corrected.
Tone Wheel
The local folding belt speed can be adjusted separately to correct the box pair line.
Human-computer Interaction and Touch Screen
Compared with the traditional button,it can adjust the parameters of the machine more intuitively.
Sponge Belt
It can make the box more stable and tight when the output of the platform.
Option
Spray Gluing System for Cold Glue with 3 Guns
Super fast and no abrasion electro-magnetic non-contact cold glue spray gun,completes precise cold glue dot and line spray gluing.
Hotmelt Glue System
Special for the box type like files which to be quickly glued and dried(corrugated box),it has features of high stickiness.Quick dry.
Plasma System
It has replaced the traditional function of grinding,able to get rid of the paper surface that is UV coated and laminated;interlocking controlled with the folder gluer on start and stop.
Automatic Box Packing Machine
Box packing machine is a kind of unique multi-purpose tool that can be used to folding the carton,and to make the packaging more easy. collection box for the traditional closed box too late to collect box packing can be used in automatic closing box machine devide, automatic closing box machine design have synchronizer device and the linkage of box pasting machine.
Box samples
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.
We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.
We have agents in South Africa,Morocco and Italy.
