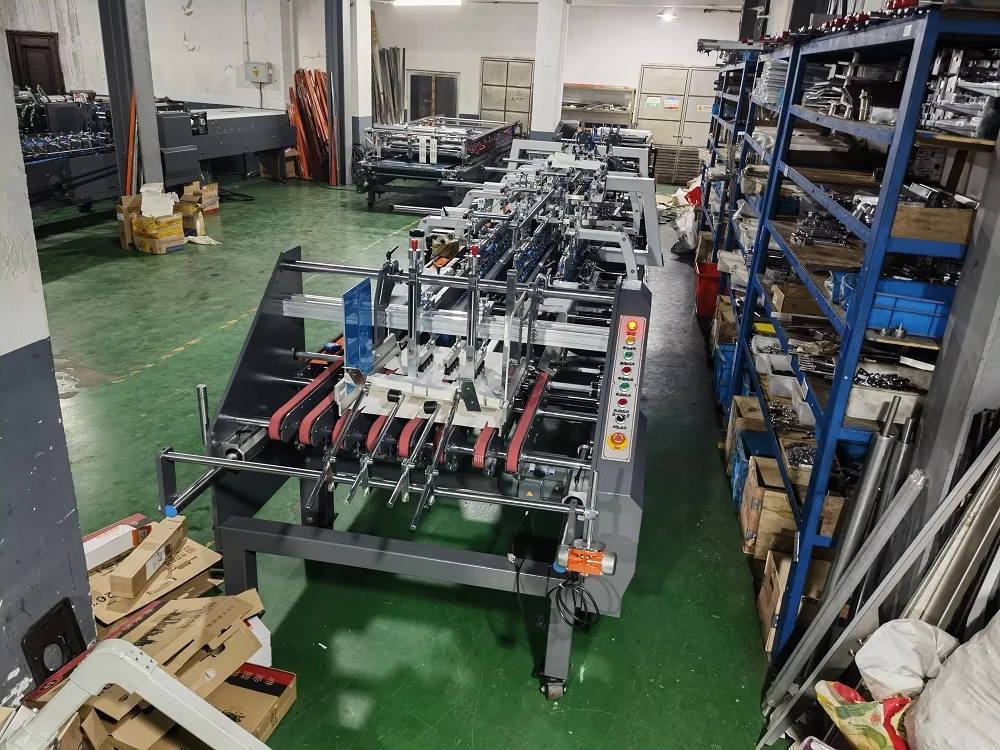

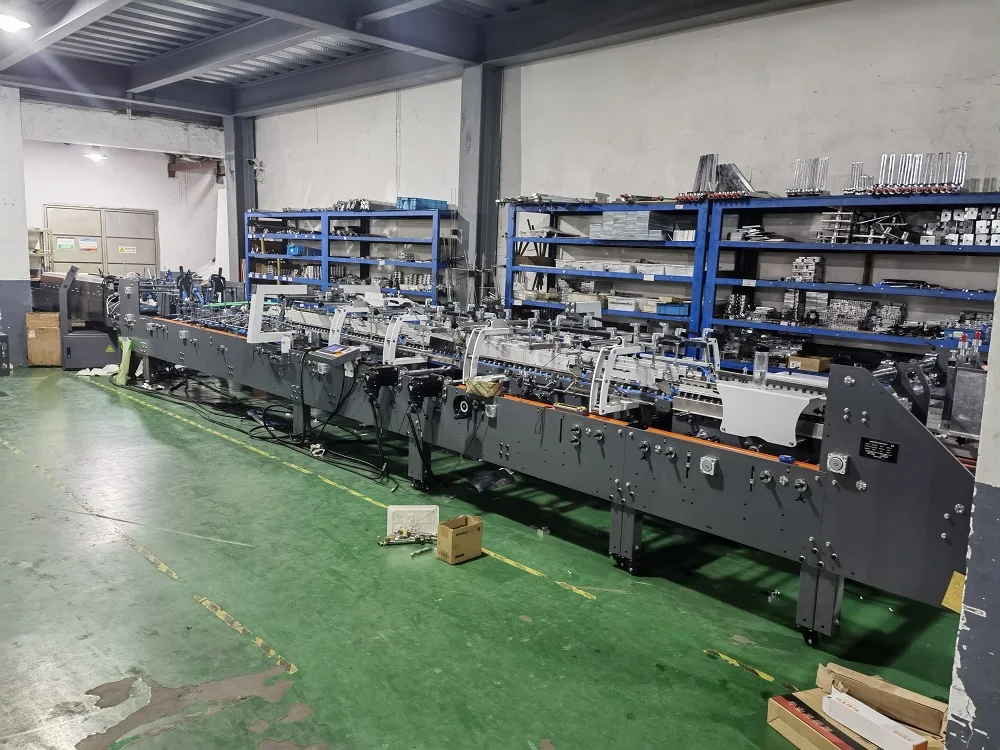

ZH-1100XC Modular Multifunction Fully Automatic Four and Six Corner Box Folding Gluing Machinery
Spu:
1601001091250
Description
ZH-1100XC Folder Gluer Machine
Features
1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.

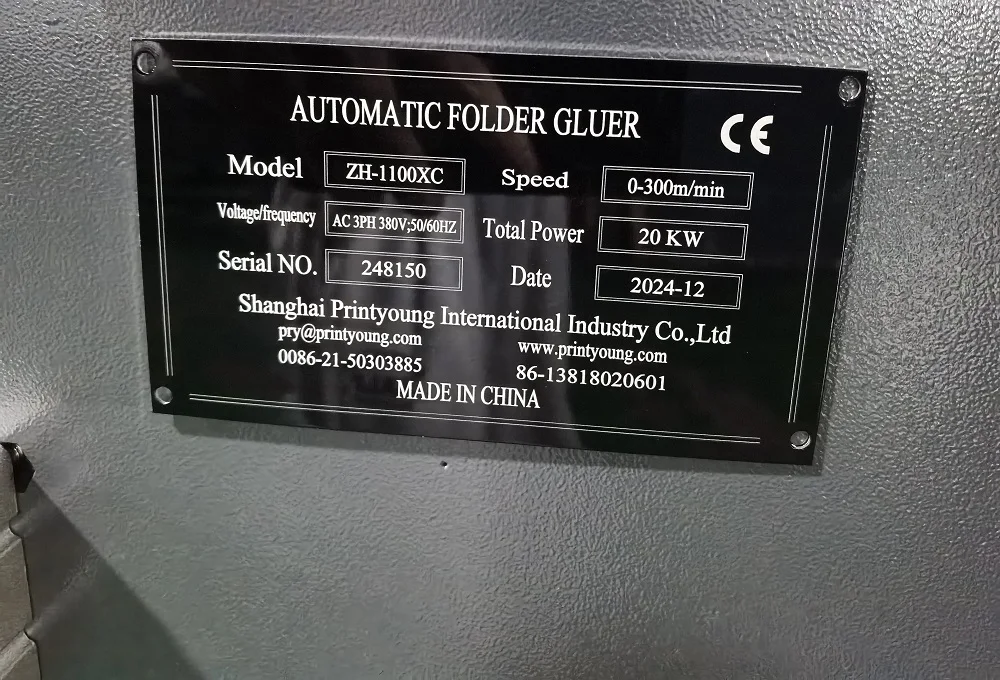

Technical Parameters
ZH-1100XC Folder Gluer Machine |
||||||||||
Line Speed |
0 ~ 300 m/min adjustable |
|||||||||
Paperboard |
210 ~ 600 g/m2 Paperboard compatible with E/F corrugated |
|||||||||
Way of Folding |
single side gluing or both side gluing |
|||||||||
Paper Board Feeding |
Automatic feeding |
|||||||||
Glue Type |
Cold glue |
|||||||||
Power |
15kw AC 3PH 380V |
ZH-700XAG 11KW AC 3PH 380V |
ZH-800XAG 12KW AC 3PH 380V |
ZH-900XAG 12KW AC 3PH 380V |
ZH-1100XAG
25KW AC 3PH380V
|
|||||
Weight |
3000 kg |
2200KG |
2500KG |
2600KG |
5000KG |
|||||
Dimension |
16 * 1.3 * 1.3 m |
11*1.1*1.3 |
13*1.2*1.3 |
13*1.3*13 |
16*1.3*1.3 |
|||||
Box type |
A |
B |
(C MIN) |
(D MIN) |
|
Side-glue box |
180 - 1100 mm |
100 - 700 mm |
100 mm |
50 mm |
|
Pre-fold box |
200 - 1000 mm |
100 - 700 mm |
100 mm |
50 mm |
|
Crash lock bottom box |
200 - 1000 mm |
100 - 700 mm |
100 mm |
50 mm |
|
4 corner box |
200 - 900 mm |
200 - 600 mm |
E : 30 - 100 mm |
||
6 corner box |
300 - 900 mm |
200 - 600 mm |
E : 30 - 100 mm |
||
Configuration

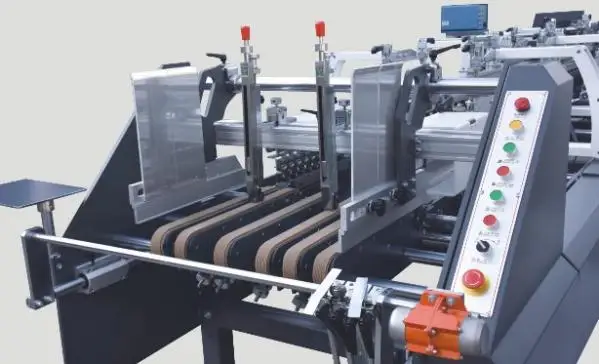

Paper Feeding Section
Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

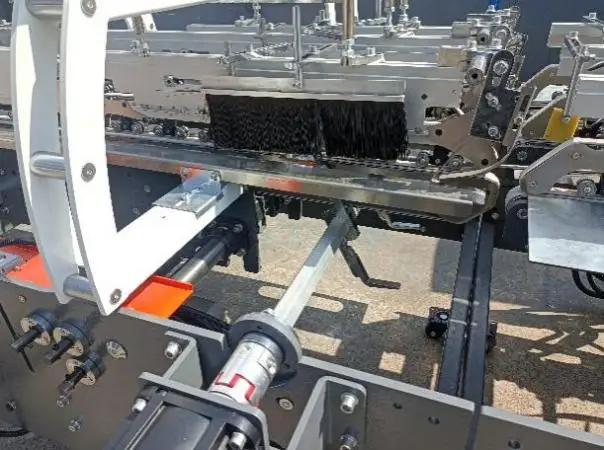

Aligner Section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
Pre-Folding Section
The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.

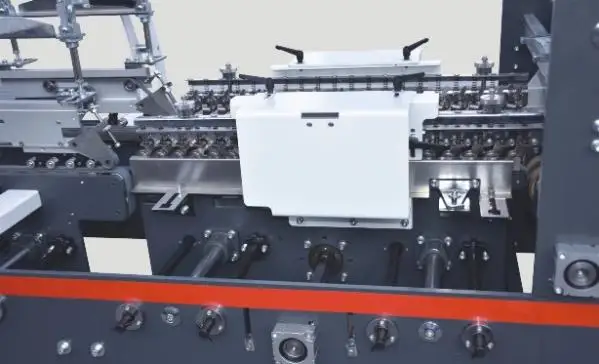

Crash Lock Bottom Section
A complete set of front flap bottom locking device and servo anti-hook device to ensure accurate bottom locking action.The segmented upper belt board,combined with a special design,can be adjusted by expansion and contraction according to the needs of
the product.
the product.
Lower Gluing Tank
Lower gluing tank is large volume.
Easy to remove and clean.
Electronic upper gluing system by guns.
Easy to remove and clean.
Electronic upper gluing system by guns.
Folding and Closing
The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Trombone Section
Up and down belt can be adjusted separately
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Transmission
Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
Upper section moves back and forward, allowing for different box length.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
guaranteeing a well aligned flow.
Synchronous Belt & Wheel
The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear,and efficient power transmission system.
Aviation Connector
Easy to install and transport.
Independent Electrical Box
The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and
atmospheric.
atmospheric.
Electric Wallboard Move
Accurate and labor-saving wall panel movement.

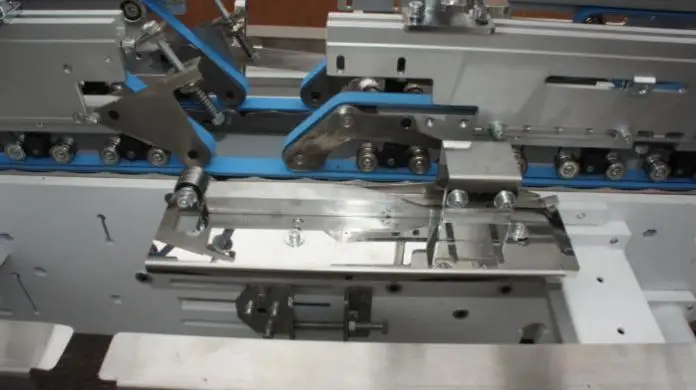

4 and 6-Corner Back Hook
Anti-hook specially equipped for four-hexagonal boxes.
4 and 6-Corner Device
Motorized and untimed electronic back folding system with intelligent servo motor technology.

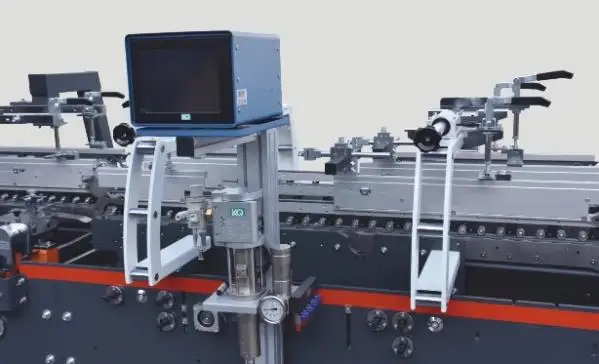

Conveyor Monitoring
The situation in front of the conveying section can be observed on the screen of the paper feed section.
Conveying Part Snapping Function
The flat-mouth box can be slapped,so that the product has a better molding effect.
Spraying System(Option)
Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box,gluing quickly and
accurately sizing
accurately sizing
