ZH-1100XA New High-Power Motor Automatic Paper Prefold Single Side Gluing Straight Line 300m/min Paper Box Folder Gluer Machine
Spu:
1601124705535
Description
ZH-1100XA Folder Gluer Machine
Features
1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
Technical Parameters
ZH-1100XA Folder Gluer Machine |
||||||||||
Line Speed |
0 ~ 300 m/min (Adjustable) |
|||||||||
Paperboard
|
210 ~ 600 gsm Paperboard
Compatible with E/F Corrugated Board
|
|||||||||
Box Forming |
Single Side Gluing , Pre-Folding |
|||||||||
Paper Board Feeding |
Automatic Feeding |
|||||||||
Glue Type |
Cold Glue |
|||||||||
Power |
15 kw AC 3 PH 380 V |
ZH-700XA 11KW AC 3PH 380V |
ZH-800XA 12KW AC 3PH 380V |
ZH-900XA 12KW AC 3PH 380V |
ZH-1100XA 15KW AC 3PH 380V |
|||||
Weight |
2400 kg |
1800KG |
2100KG |
2200KG |
2400KG |
|||||
Dimension |
14.4 * 1.5 * 1.3 m |
9.4*1.1*1.3M |
11.4*1.2*1.3M |
11.4*1.3*1.3M |
14.4*1.5*1.3M |
|||||
Box Type |
Side-Glue Box |
Pre-Fold Box |
A |
180 ~ 1100 mm |
200 ~ 1000 mm |
B |
100 ~ 700 mm |
100 ~ 700 mm |
C (Min) |
100 mm |
100 mm |
D (Min) |
50 mm |
50 mm |
Configuration

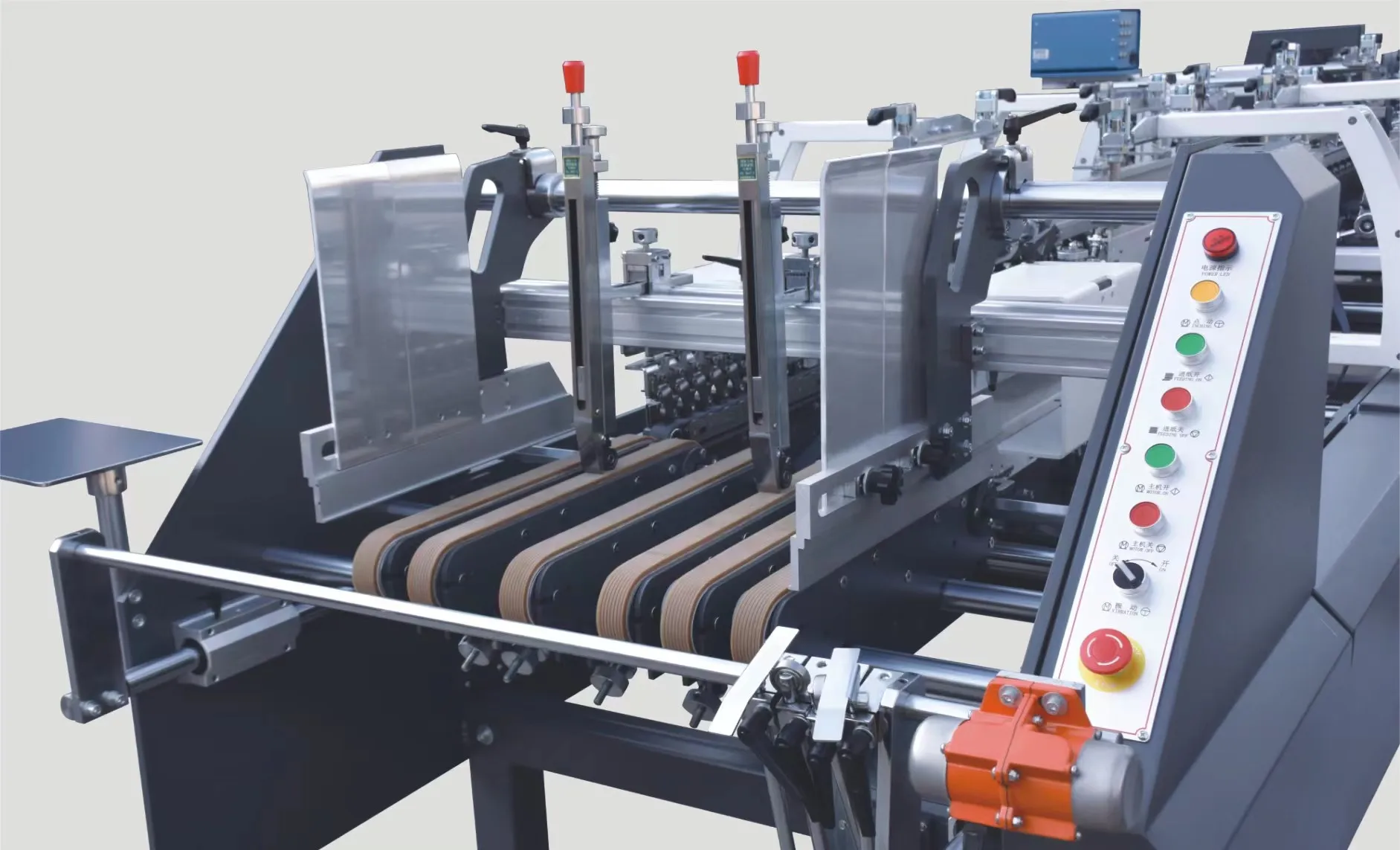

Paper Feeding Section
Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.
Aligner Section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
Pre-Folding Section
The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.
Spraying System(Option)
Equipped with three guns,convenient in the production of 4/6 corner box and various special-shaped box,gluing quickly and
accurately sizing
accurately sizing
Lower Gluing Tank
Lower gluing tank is large volume.
Easy to remove and clean.
Electronic upper gluing system by guns.
Easy to remove and clean.
Electronic upper gluing system by guns.
Folding and Closing
The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Trombone Section
Up and down belt can be adjusted separately
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
Transmission
Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
Upper section moves back and forward, allowing for different box length.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
guaranteeing a well aligned flow.
Synchronous Belt & Wheel
The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear,and efficient power transmission system.
Aviation Connector
Easy to install and transport.
Independent Electrical Box
The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and
atmospheric.
atmospheric.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.
We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.
We have agents in South Africa,Morocco and Italy.
