Semi-Automatic Flat Bed Die Cutting Machine with 4 Suction Hooks High Productivity Computerized 380V Motor 7000 Sheets/H
Description

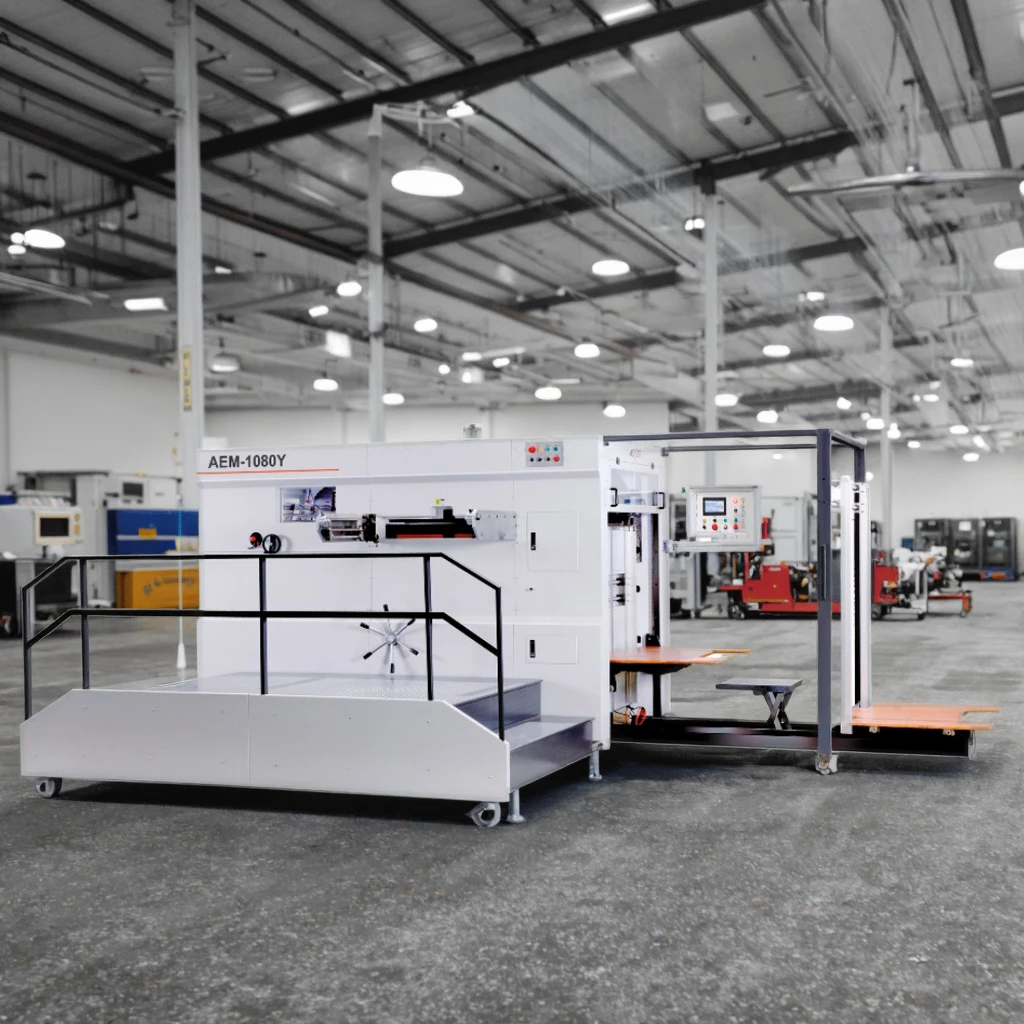

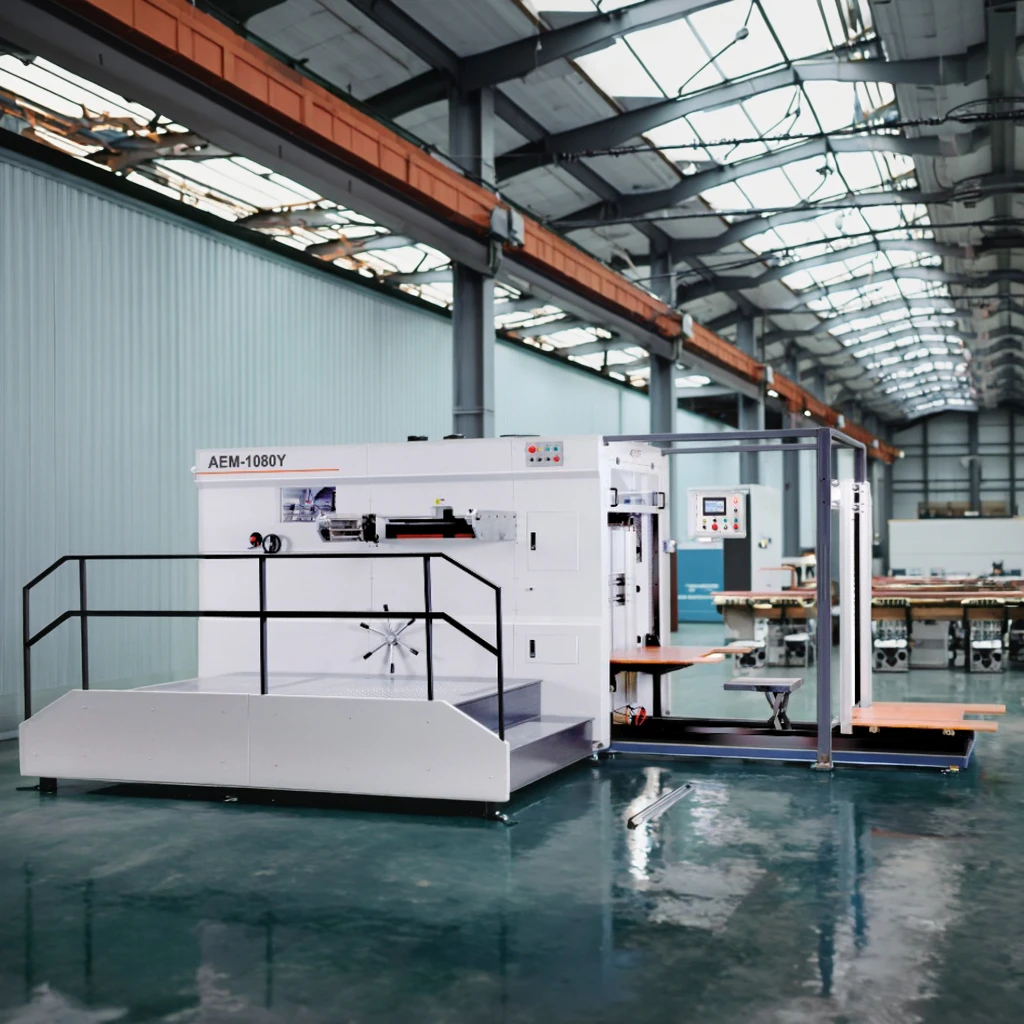

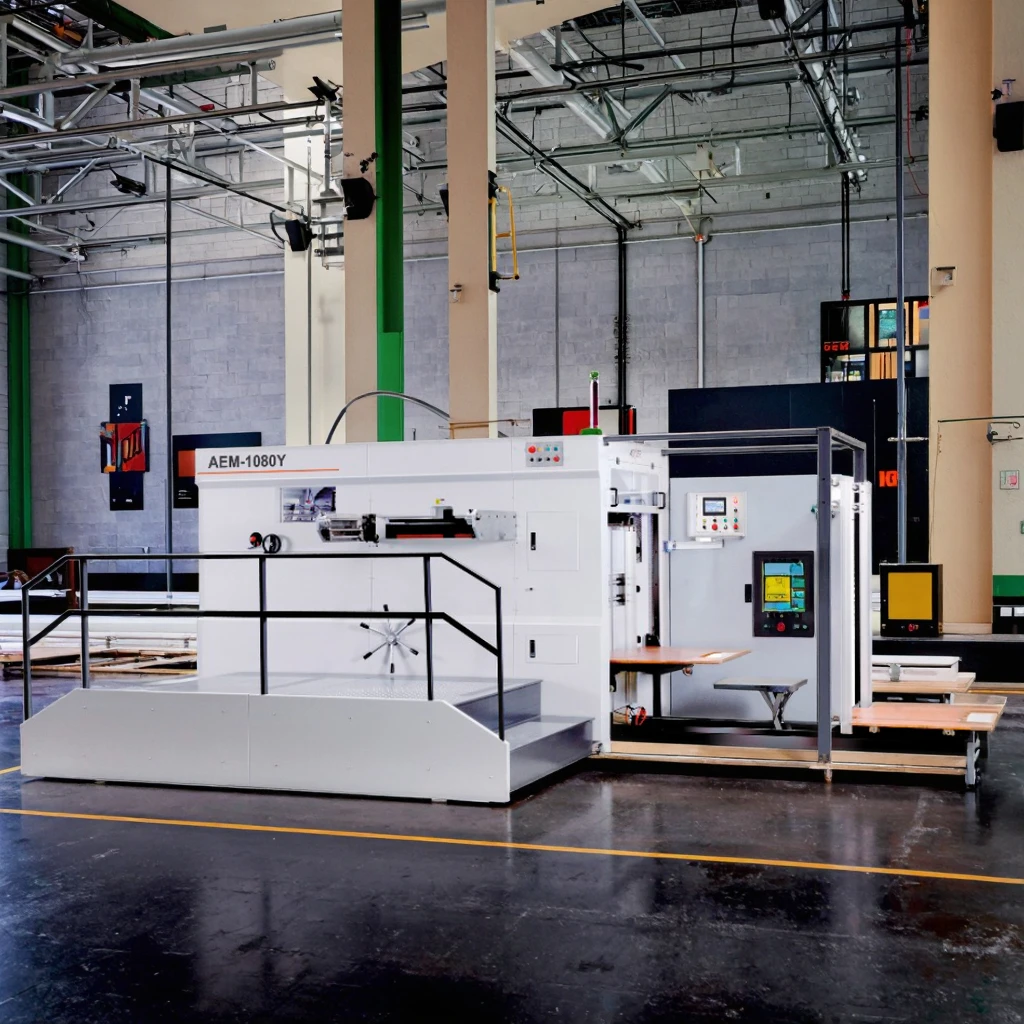

Automatic Flatbed Die Cutting Machine With 4 Suctions Hooks
| Model | PRY-AEM-1080Y |
| Max. Paper size | 1080 x 780mm |
| Min .Paper Size(mm) | 400 x330 mm |
| Max Cutting Size (mm) | 1075 x770 mm |
| The highest die cutting speed | 7000s/h |
| Minimum gripper edge | 7mm |
| Paper size pile height | 1100mm |
| Main motor power(kw) | 11 |
| Heating area Power(kw) | / |
| Total power(T) | 13.5 |
| Weight(T) | 12t |
| Overall dimensions(LxWxH) | 2600(+1650)x2100(+1650)x2350 mm |
| White board | 0.1~2 mm |
| Corrugating Medium Paper | <7mm |
Features
High precision interval mechanism, high cutting precision, running steadily
The gripper bars are made of hardening treated high strength Ti-Al alloy, it is light and durable.
Imported gripper chain was pre-stretched to ensure the precision and durability.
Double protection for torque force controller and main chain protection switch can avoid damaging the movement parts.
Pneumatic fast lock device can make installation and uninstallation faster and safer.
Centering of die frame and scale makes positioning more convenient.
Pneumatic floating function makes cutting steel plate move more flexible to avoid damaging.
Human-friendly design of die frame and cutting plate flip device can improve the efficiency.
Precise pressure adjusting wheel makes pressure adjusting more convenient.
Non-stop feeding and collection device can shorten the auxiliary time, improve the efficiency.
Detais of image
-

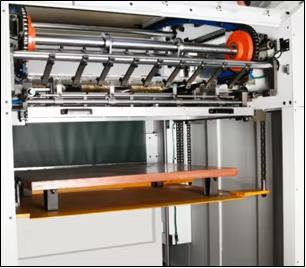

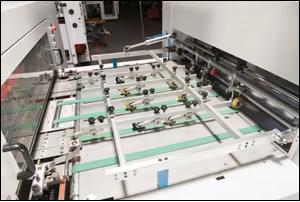

(optional) Secondary positioning, adjustable rubber wheel and brush wheel ensure paper feed to the right position to ensure the cutting precision.
-
Feeding fine tuning device, non-stop adjust. Wear resisting PU feeding wheel.
Collection section:

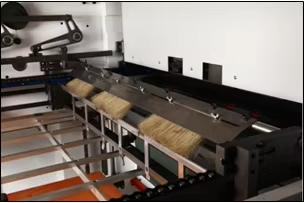

Automatic arrange device, 2 blowing devices ensure all the paper could be well collected whether thin or thick.

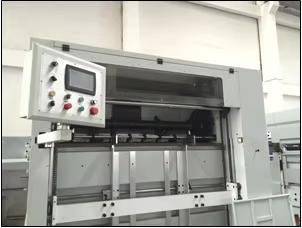

Collection section with control panel, more human-friendly.
Optoelectronic sensor ensure better collection.
Automatic collection board control system.
Manual collection device
Main chain protection device
Rolling back preventing device
| No: | Name | Specification | Brand |
| 1 | Main tooth row of chain | IWIS | Germany IWIS KETTEN |
| 2 | Mold base plate | CHINA | |
| 3 | air clutch | TAIWAN | |
| 4 | pump | SIEG | SIEG |
| 5 | Fastener | 12.9steps | Taiwan Jingyee |
| 6 | ROTARY JOINT | SMC | Japan SMC |
| 7 | INDEXING DRIVES | China | |
| 8 | lubricant pump | Taiwan | |
| 9 | Key bearing | Janpan BEARINGS | |
| 10 | worm and worm gear | super-tolerance | China |
| 11 | KRTL | Taiwan | |
| 12 | The crankshaft materials | Sichromal Steel | China |
