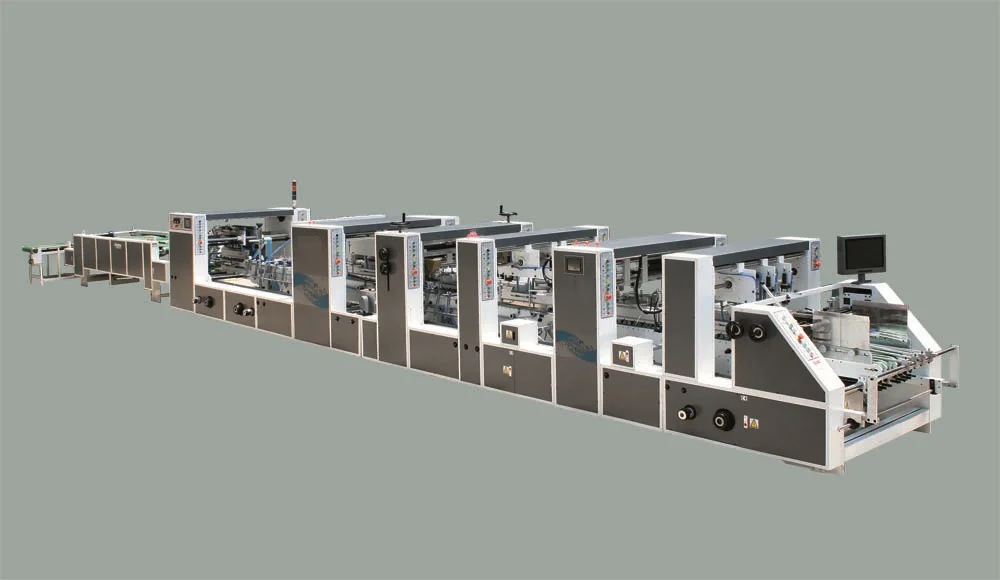

PRY-1100PS/1450PS Electric Automatic Box Making & Gluing Machine for Paper Cartons

Spu:

299419407

Description

Product Description

PRY-1100PS/1450PS (plieuse encolleuse)box making machine

The box making machine is widely used in processing medicine box, Wine box, Cosmetics box and Electric appliances packing box.

Through the microcomputer operation upon the main parts of the machine, it is very easy to run the electronic controller. We adopt transducer, motor, timing belts and so on so that the machine could run well with little noise. Besides these, the conveyer above the making line of aluminum profile is convenient to adjust and run in a stable condition. Tow wheel gluing system has the characters of more stable gluing, quality assurance, cost saving. In order to monitor the quality and check the producing process, we install the electronic eye and monitor system of display screen. Our machine is mainly applied to paper board, A/B/E corrugate package carton, outside carton for beer, food, beverage, milk goods and so on. Due to easy adjustment and operation, high efficiency etc, our machine is the right one for expansion of your business.

I. Technical Specifications

Model	1100PS	1450PS
Paper type	Cardboard & E flute	Cardboard & E flute
Paper feeding	Accurate, automatic and continuous feeding	Accurate, automatic and continuous feeding
Max gluing speed	300m/minute	300m/minute
Box width	225-1000mm	200-1250mm
Adhesive	Soluble adhesive	Soluble adhesive
Machine Size(LWH/M)	13.12.11.7	162.31.7
Gross weight	8.8T	10T
Power	15KW	20KW

For 1100PS:

Way of gluing	Standard fold	Pre-fold	Double side fold	Crash lock	Flat box
Max(mm)	1000*1000	1000*750	1000*800	1000*795	900*650
Min(mm)	225*200	240*240	225*200	250*350	200*240

II. Key components

6 sections: Feeder, Crash lock, Folder, Trombone, Conveyor and Transverse Conveyor.

Feeder		Seven 25mm paper-feeding belts coordinate with vibration motor; 10mm medal plates horizontally adjust and set width, and embossing guide wheel guides paper-delivering belts; Guard plates are provided at right and left sides to move right and left in response to product patterns; Equipped with two delivery cutters to adjust asymmetric length depending on actual needs; The power of vibration motor can be adjusted depending on vibration rack; Achieves overall coordination to ensure easy, fast, automatic, continuous and accurate paper feeding; Equipped with stepless transmission to regulate paper-delivering distance.
Crash lock		All gluing drums can be loaded and unloaded; Two upper gluing drums (right and left) and two lower gluing drums (right and left), to be selected depending on actual needs; Glue quantity in gluing drums is adjustable, thus ensuring stability and easy maintenance; Gluing roller is 5mm thick in standard version and can be customized according to customer requirements; Made with copper, gluing drum is firm and durable; Crash lock is completed by 4 groups of crash-locking mechanism.
Folder		Composed of 30mm bottom belts and 50mm elbow belts; Right and lefts sides complete 180o second crease and 180o fourth crease; Right and left guide wheels allow flexible adjustment of different positions to facilitate folding; Lower bearings enable guide wheels to operate properly.
Trombone		Upper/lower drive mechanism to adjust length; Equipped with automatic belt tension-adjusting system; Adopts continuous and automatic box collecting mechanism to ensure boxes enter the Conveyor section neat and well aligned; Equipped with electronic counter, automatic mark spraying or kick plate can be chosen for counting purposes; Equipped with air compressor system and creasing channel system; Pressure rollers can be adjusted depending on box types and paper type to achieve flawless box creasing
Conveyor		Adopts 700mm-wide, 5mm-thick flexible belts imported from Italy, eliminating the risk of damage to products; Entire conveyor section can move forward and backward; Balanced pressure and neat convey to ensure flawless product quality; automatically regulates speed via host rotation speed in coordination with photoelectric device; also, speed can be manually regulated; Rubber rollers constitute a functional mechanism.
Transverse Conveyor		Adjust belt speed depending on packing speed.
