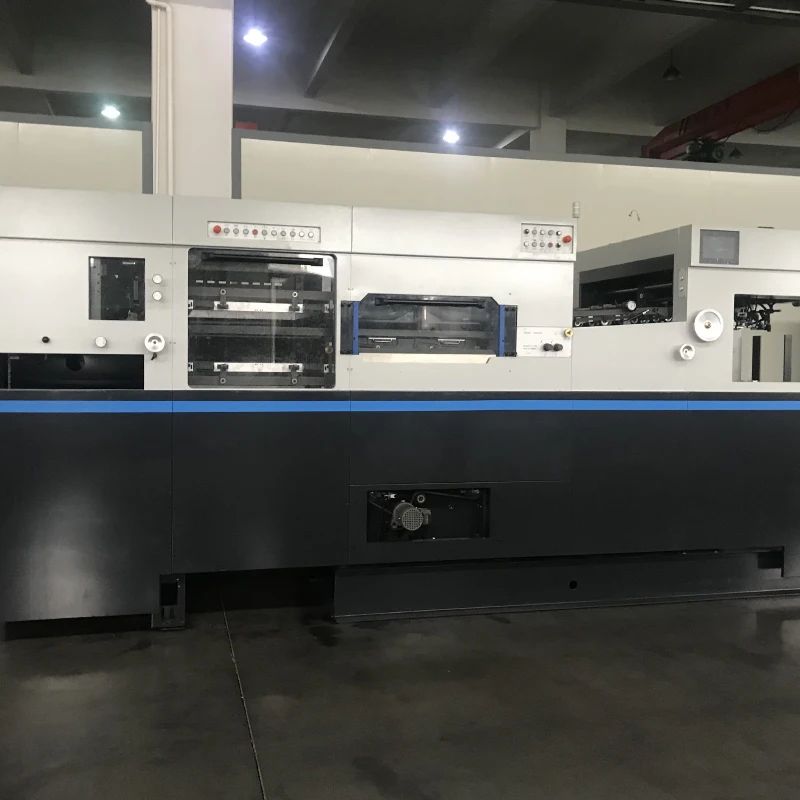

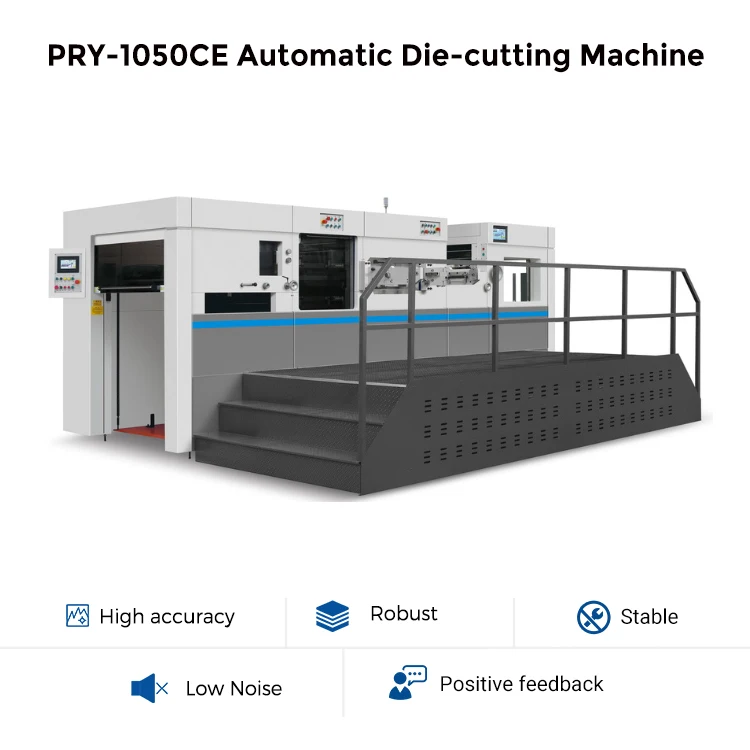

PRY-1050CE 380V 7500 S/h Flat Bed Corrugated Cardboard Paper Automatic Die-Cutting Machine Stripping Motor Gear Core Components
Spu:
62589393653
Description
Products Description
Technical Parameters
PRY-1050CE Automatic Die-Cutting Machine with Stripping |
||
Max Sheet Size |
1050 × 750 mm |
|
Min Sheet Size |
400 × 360 mm |
|
Max Die Cutting Size |
1040 × 720 mm |
|
Gripper Margin |
9 ~ 17 mm |
|
Dimension of Inner Plate Frame |
1080 × 745 mm |
|
Sheet Size |
80 ~ 600 g/m2 |
|
Precision of Die Cutting |
≤ ± 0.1 mm |
|
Max Working Pressure |
300 t |
|
Max Working Speed |
7500 s/h Die Cutting |
|
Max Paper Feeding Stacking Height |
1600 mm (Including Wooden Pallet) |
|
Max Paper Collecting Stacking Height |
1400 mm (Including Wooden Pallet) |
|
Main Motor Power |
11 kw |
|
Total Weight of Machine |
About 17 t |
|
Full-Load Wattage |
16.9 kw |
|
Whole Machine Dimension
|
7700 (Length : Including Pre-Feeding Track) × 4600 (Width:Including the Pedal) × 2400mm
|
|
Configuration
Feeder,Paper Feeding
*Precision feida head that adopts European manufacturing technology,can be used for card paper,corrugated paper and grey board
*Four suction and four sent,the suction angle and height can be adjusted according to the deformation of paper
*Unique paper receiving mechanism,suitable for different deformed papers
*High-speed feida head is specially manufactured for special aluminum alloy material,and all parts are imported
*Four suction and four sent,the suction angle and height can be adjusted according to the deformation of paper
*Unique paper receiving mechanism,suitable for different deformed papers
*High-speed feida head is specially manufactured for special aluminum alloy material,and all parts are imported
*Dual-feida head anti-collision detection
device
*Main and auxiliary paper feeding,can switch without stopping the machine*A set of pre-feeding mechanism (optional)
*Fish scale type paper feeding,smooth and accurate
*Micro-adjusting mechanism for paper feeding platform,can be adjusted without stopping the machine
*Two-purpose paper feeding machine
*A set of auxiliary paper support device and two sets of paper supporting board
Conveying Paper Platform
*Electromechanical dual-sheet detector
*Adopt advanced control system to control the speed of conveying device,making paper feeding smoothly and reducing collision
*Conveying paper platform can be controlled
*Adopt advanced control system to control the speed of conveying device,making paper feeding smoothly and reducing collision
*Conveying paper platform can be controlled
separately,and vacuum conveying paper
platform is optional
*Front gauge detection,to guarantee the arrival rate of paper*Adopt left/right dual-push pull gauge way to meet different printing and alignment requirements

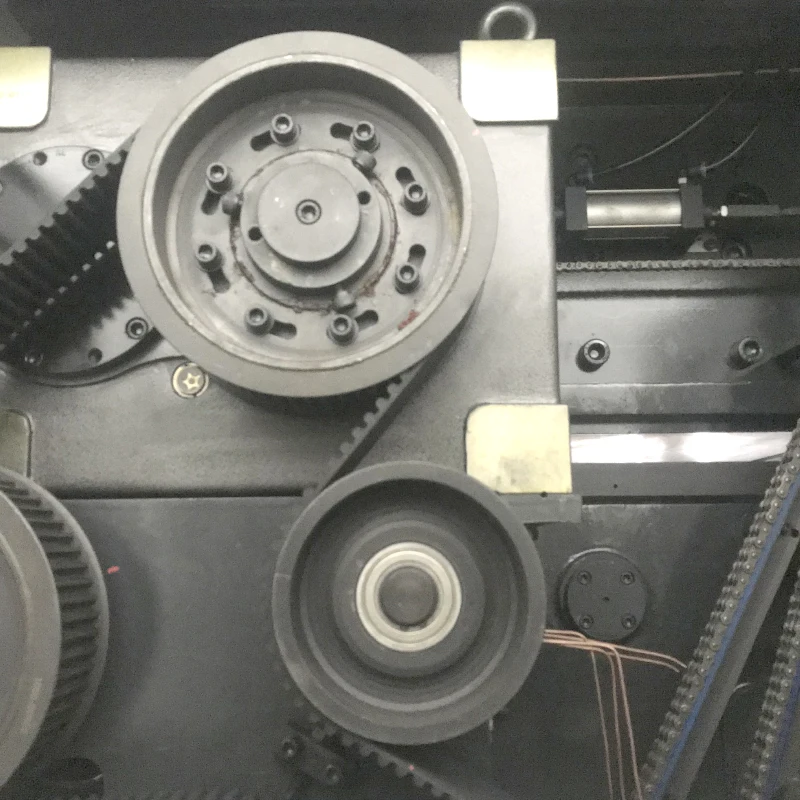

Torque Limiter,Intermittent Segmentation
Taiwan high precision intermittent segmentation ensure high positional precision for long time usage
Taiwan torque limiter can accurately protect the artifical operation accident to guarantee the people and machine safety by its sensitive limit protection performance.
Taiwan torque limiter can accurately protect the artifical operation accident to guarantee the people and machine safety by its sensitive limit protection performance.

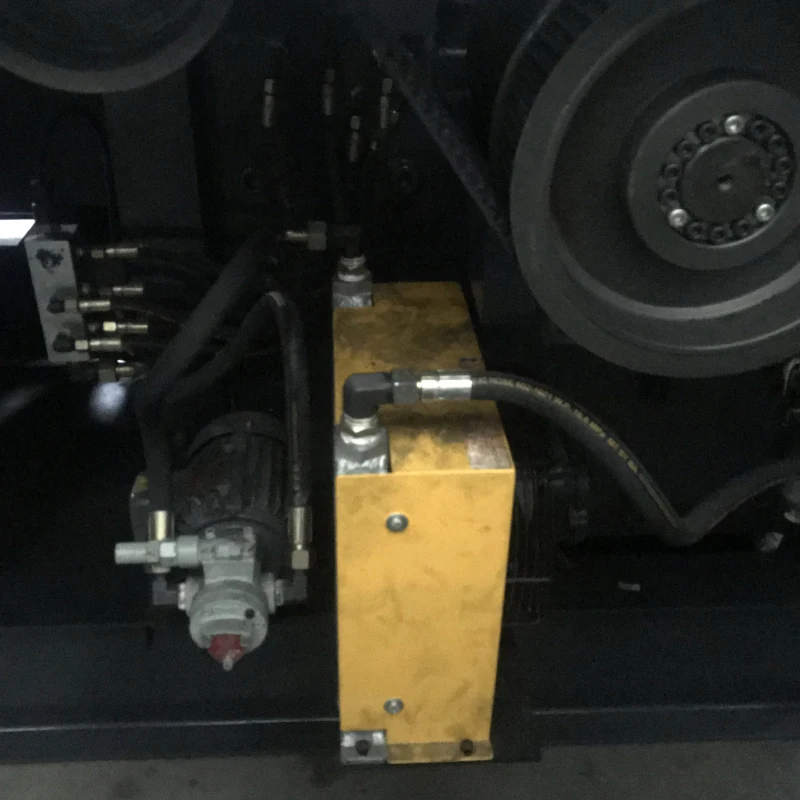

Main Motor Lubrication System
Taiwan made automatic oil pump cooling circulation system to ensure main motor lubrication of high speed for a long time
Equipped with oiil pressure gauge and with oil pressure alarm device
Equipped with oiil pressure gauge and with oil pressure alarm device

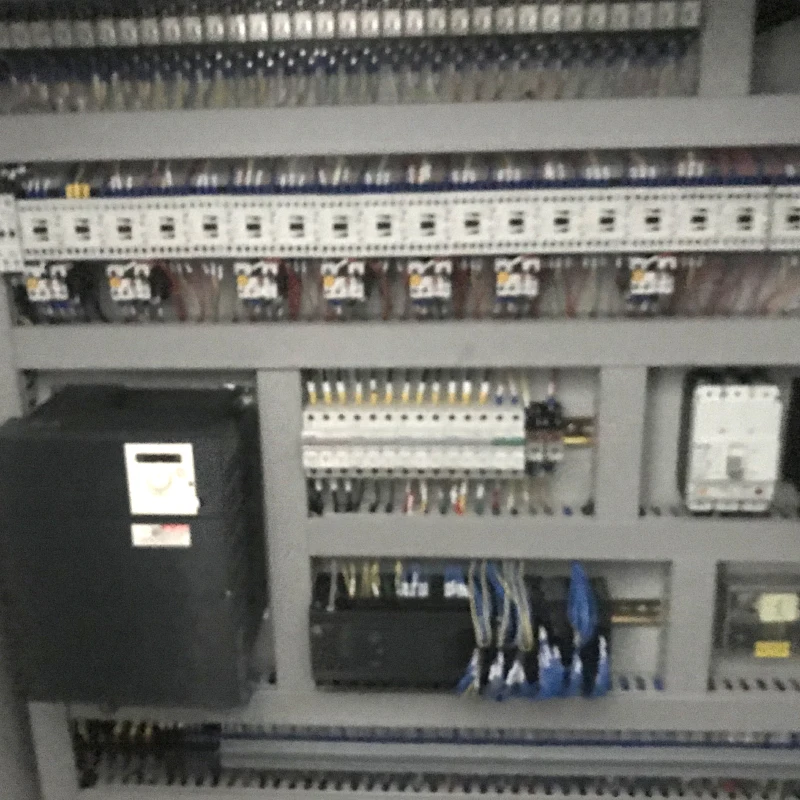

Electrical Parts
*Man-machine interactive touch function,can set different long pull and short pull.
*The alarm will be triggered when the foil is shorter than 6cm.
*The alarm will be triggered when the foil is shorter than 6cm.
*The computer deal with foil monitoring
system,used to display remaining and have
used foil length.* Machine with full set of Schneider (French) Electric components and PLC control system ,ensure machine running stability.
Stripping Part(Front)
*Adopt upper and lower dual-frame stripping mechanism
*Adopt male/female template to realize various stripping
*Adopt central positioning device that matches with the die cutting part to reduce plate replacing time
*Adopt male/female template to realize various stripping
*Adopt central positioning device that matches with the die cutting part to reduce plate replacing time
Stripping Part(The Fourth Side of the Waste Paper)
*Afrer get the paper,tooth raw get off the last side of the waste paper,then use belt feeding side face,in order to achieve the purpose of total four sides stripping

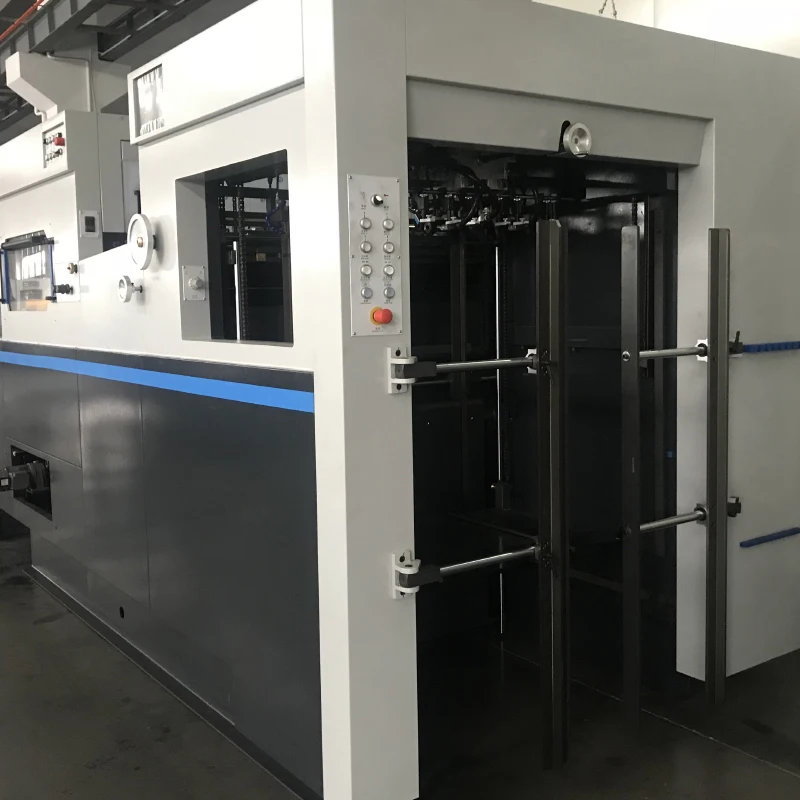

Paper Collection Part
*Automatic paper aligning device and two blowers for paper collection can ensure neat collection of thin and thick papers
*Paper collection part with touch screen control,it is convience for operation and has data display,and all operations can be performed through the touch screen
*Paper collection part is equipped with control panel to realize more personalized operation
*Paper collection part with touch screen control,it is convience for operation and has data display,and all operations can be performed through the touch screen
*Paper collection part is equipped with control panel to realize more personalized operation
*Paper collection photoelectric device,to ensure neat paper collection
*Automatic lift control system of paper collection platform
*Manual auxiliary paper collection system*The main chain protection device
*Prevent the paper returning device
*Equipped with non-stop device
*Paper collecting part with a 10.4 inch screen,can control whole machine
Customer
Company Profile
Why Choose Us
Packaging&Shipping
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
Q7. How about the machine installation and training ?
A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
