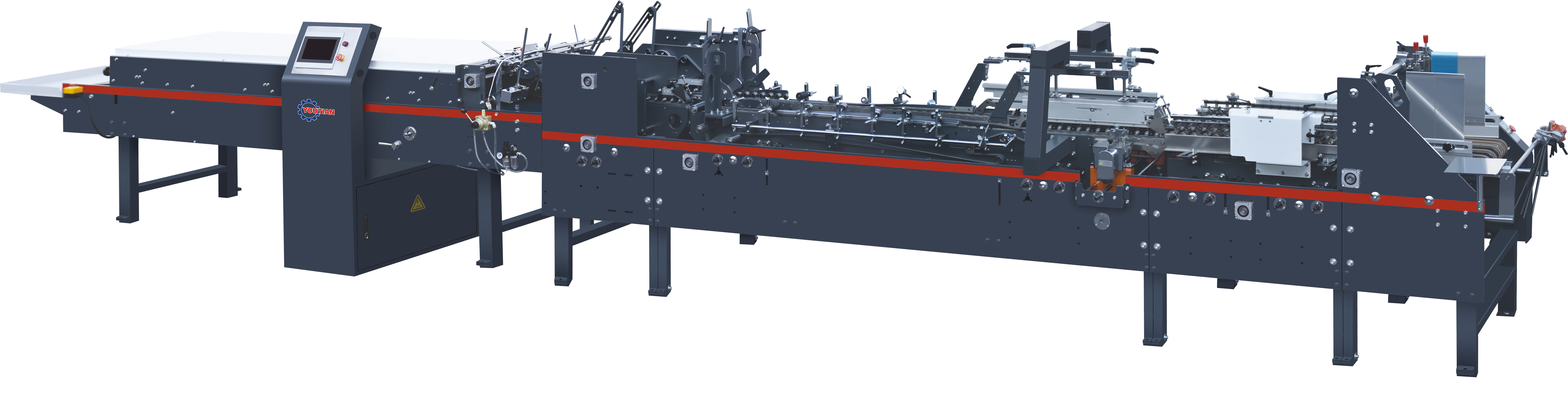

Multifunctional Folder Gluer Machine
Modular Flexibility
Combine functions as needed; modular structure allows upgrades and feature expansion after purchase.
High-Power Transmission
Multi-motor and synchronous belt drive ensure strong power, high speed, durability, and low noise.
Stable & Compact Design
Powered dual conveyors prevent curling; integrated hidden control box saves space and improves appearance.
Description
Machine Advantages:
1. With Several national patents, the performance of the GEN 5 machine is ahead of its peers.
2. Modular structure, different functions can be combined according to customer needs.
3. Functions can be upgraded after purchase.
4. The Multi-motor transmission has strong power, fast speed, and longer service life.
5. Equipped with synchronous belt transmission with high speed and low noise
6. The upper and lower conveyor belts are powered, and there is no curling phenomenon.
7. The new curved arm bracket has a unique shape and a beautiful appearance.
8. Possible to upgrade to the four six-corner devices at any time.
9. The integrated electrical control box is hidden at the bottom of the conveyor, which saves space.

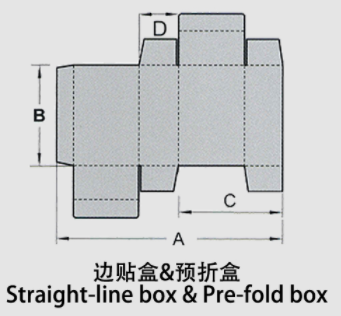

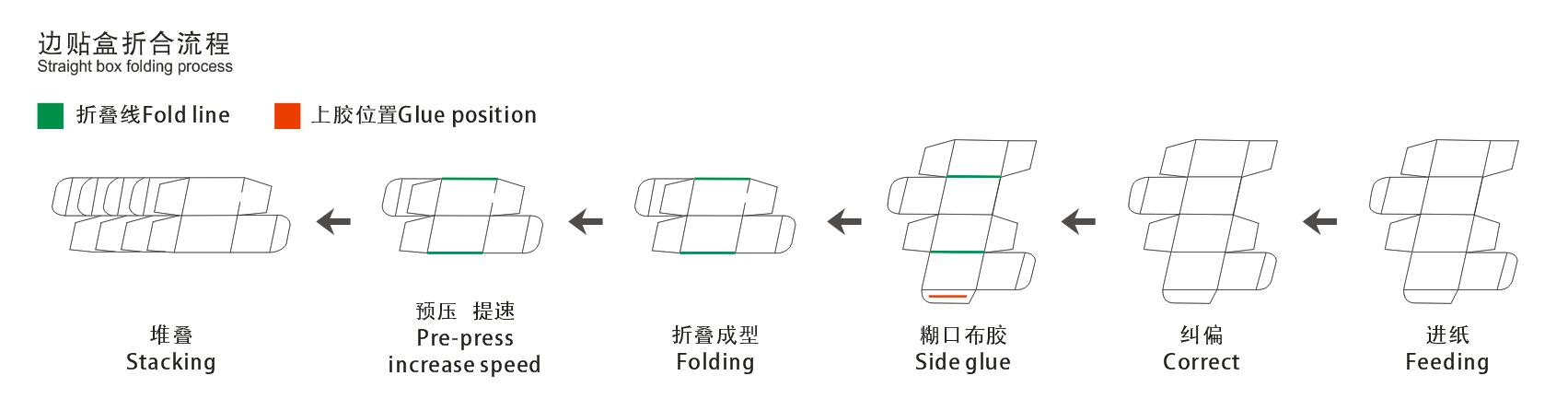

Technical data
|
Model |
Box type |
A |
B |
C (min) |
D (min) |
|
ZH-600X |
Side-glue box |
110-600 |
60-500 |
50 |
10 |
|
ZH-700X |
Side-glue box |
110-700 |
60-500 |
50 |
10 |
|
ZH-800X |
Side-glue box |
130-800 |
60-700 |
60 |
10 |
|
ZH-900X |
Side-glue box |
130-900 |
60-700 |
60 |
10 |
|
ZH-1100X |
Side-glue box |
180-1100 |
100-700 |
100 |
50 |
|
ZH-600XA |
Side-glue box |
110-600 |
60-500 |
50 |
10 |
|
|
Pre-fold box |
170-500 |
60-500 |
80 |
10 |
|
ZH-700XA |
Side-glue box |
110-700 |
60-500 |
50 |
10 |
|
|
Pre-fold box |
170-600 |
60-500 |
80 |
50 |
|
ZH-800XA |
Side-glue box |
130-800 |
60-700 |
60 |
10 |
|
|
Pre-fold box |
170-700 |
60-700 |
80 |
10 |
|
ZH-900XA |
Side-glue box |
130-900 |
60-700 |
60 |
10 |
|
|
Pre-fold box |
170-800 |
60-700 |
80 |
10 |
|
ZH-1100XA |
Side-glue box |
180-1100 |
100-700 |
100 |
50 |
|
|
Pre-fold box |
200-1000 |
100-700 |
100 |
50 |
|
Technical Specification (X series) |
|||||
|
Line speed |
0-300m/min (adjustable) |
||||
|
Paperboard |
210-600gsm paperboard. Compatible with E/F corrugated board. |
||||
|
Box forming |
Single side gluing. |
||||
|
Paper board feeding |
Automatic feeding |
||||
|
Glue type |
Cold glue |
||||
|
power |
ZH-600X 7KW AC 3PH 380V |
ZH-700X 7KW AC 3PH 380V |
ZH-800X 8KW AC 3PH 380V |
ZH-900X 8KW AC 3PH 380V |
ZH-1100X 10KW AC 3PH 380V |
|
weight |
1300KG |
1400KG |
1700KG |
1800KG |
2000KG |
|
dimension |
7.8*1.0*1.3M |
7.8*1.1*1.3M |
9.8*1.2*1.3M |
9.8*1.3*1.3M |
12.8*1.5*1.3M |
|

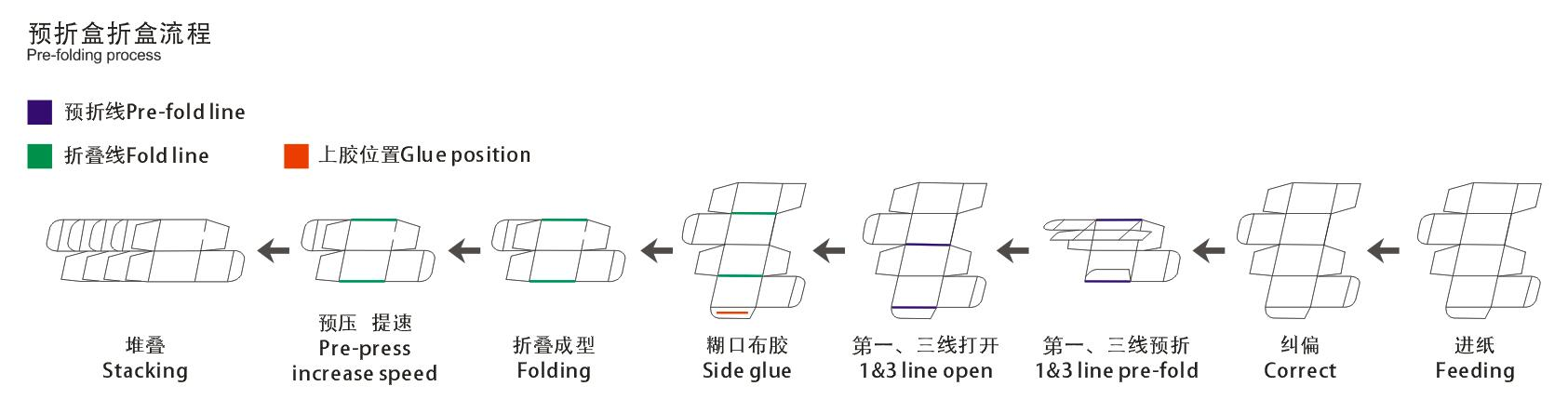

Technical Specification(XA series) |
|||||
|
Line speed |
0-300m/min (adjustable) |
||||
|
Paperboard |
210-600gsm paperboard. Compatible with E/F corrugated board. |
||||
|
Box forming |
Single side gluing, Pre-folding. |
||||
|
Paper board feeding |
Automatic feeding |
||||
|
Glue type |
Cold glue |
||||
|
power |
ZH-600XA 11KW AC 3PH 380V |
ZH-700XA 11KW AC 3PH 380V |
ZH-800XA 12KW AC 3PH 380V |
ZH-900XA 12KW AC 3PH 380V |
ZH-1100XA 15KW AC 3PH 380V |
|
weight |
1700KG |
1800KG |
2100KG |
2200KG |
2400KG |
|
dimension |
9.4*1.0*1.3M |
9.4*1.1*1.3M |
11.4*1.2*1.3M |
11.4*1.3*1.3M |
14.4*1.5*1.3M |

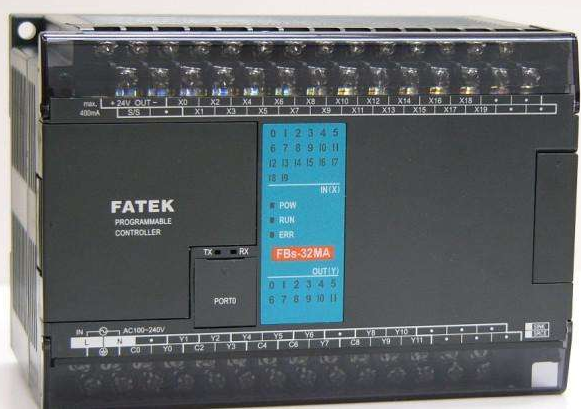

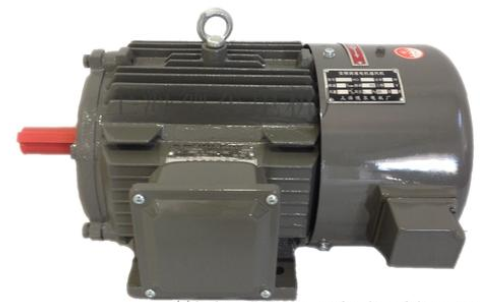

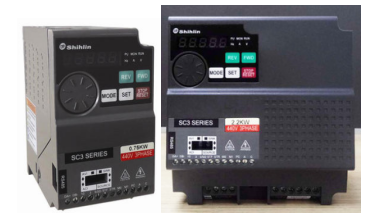

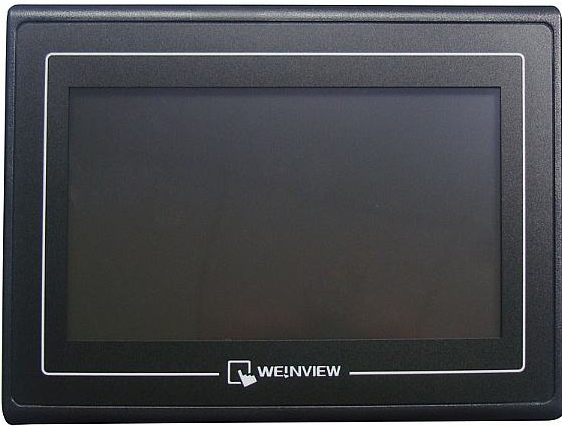

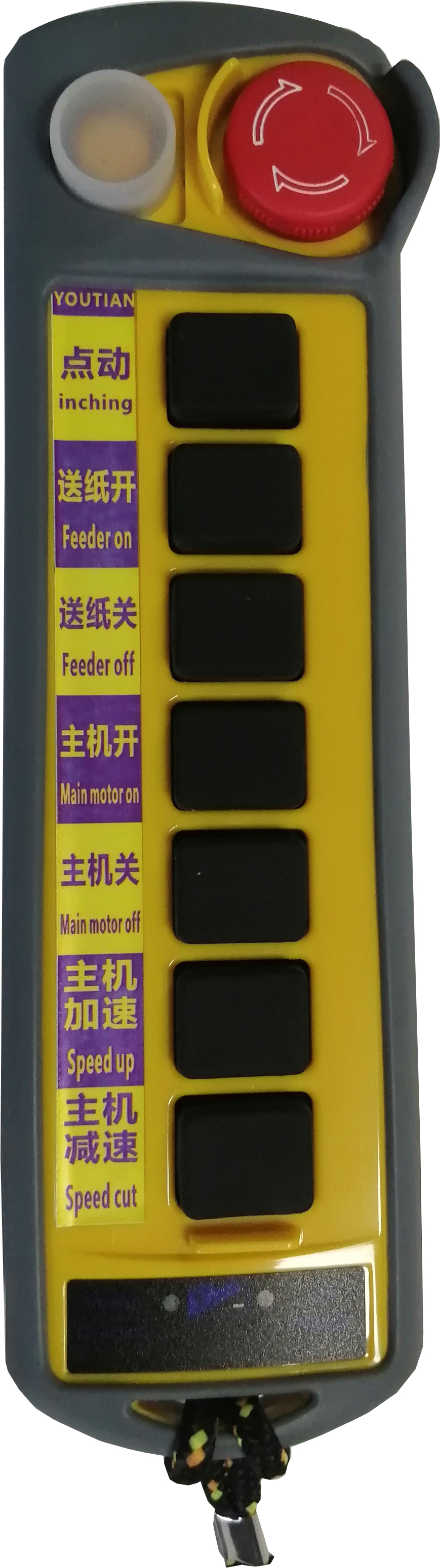

Introduction Configuration

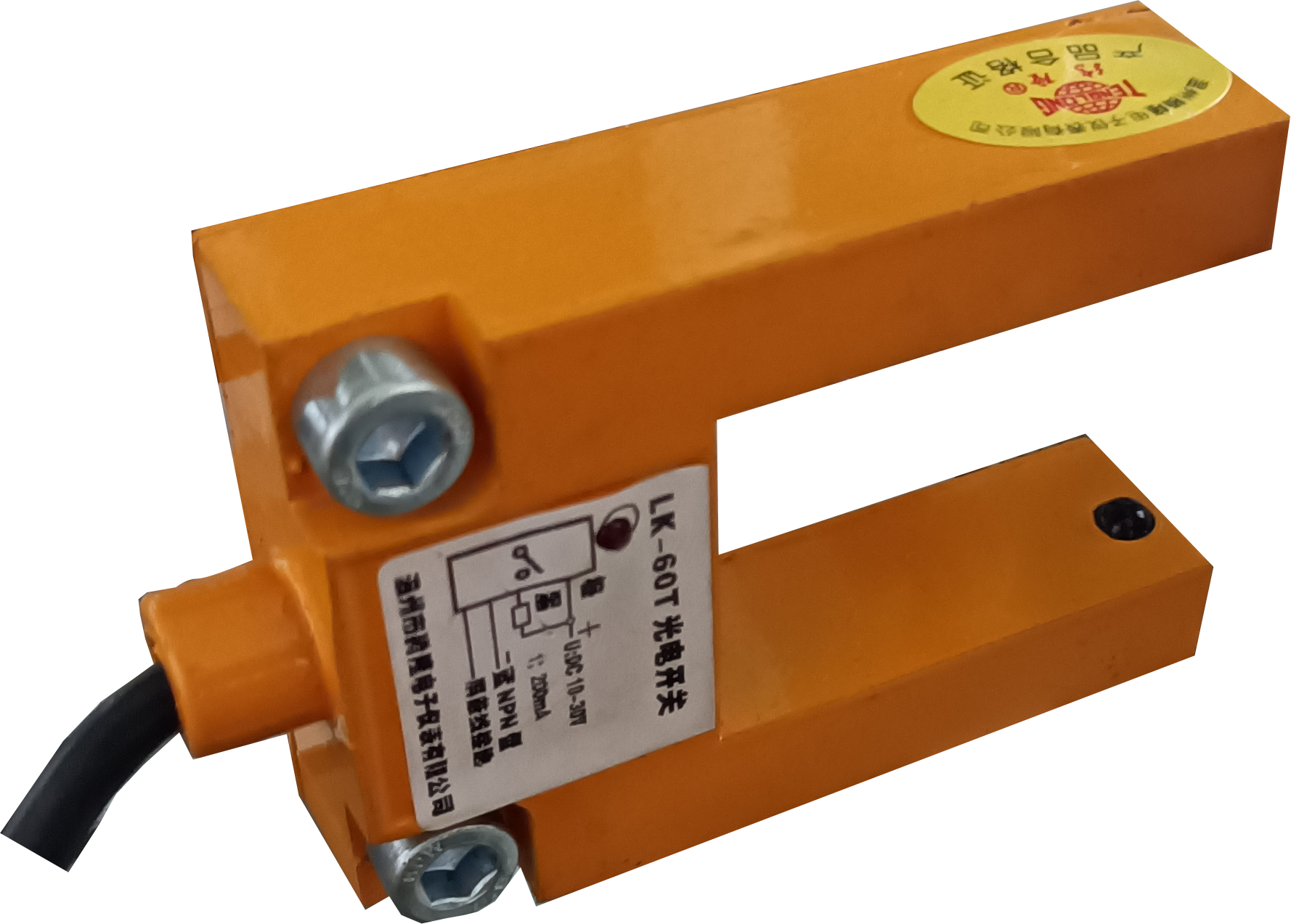

Option

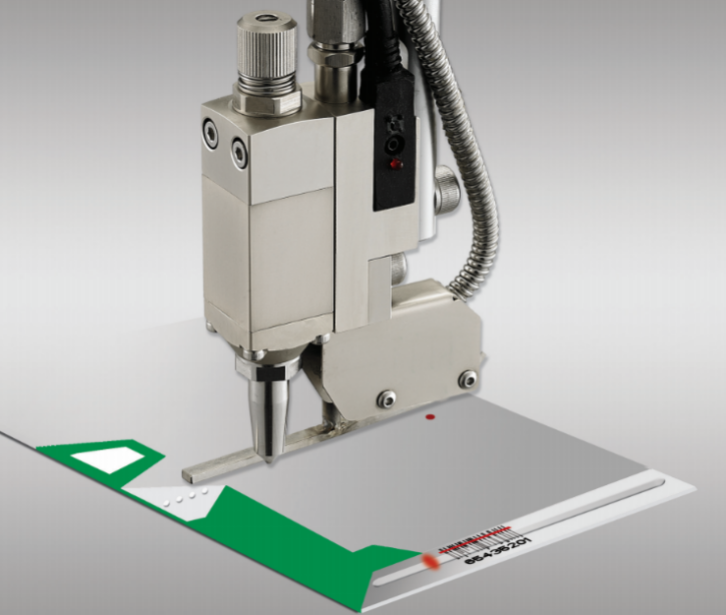

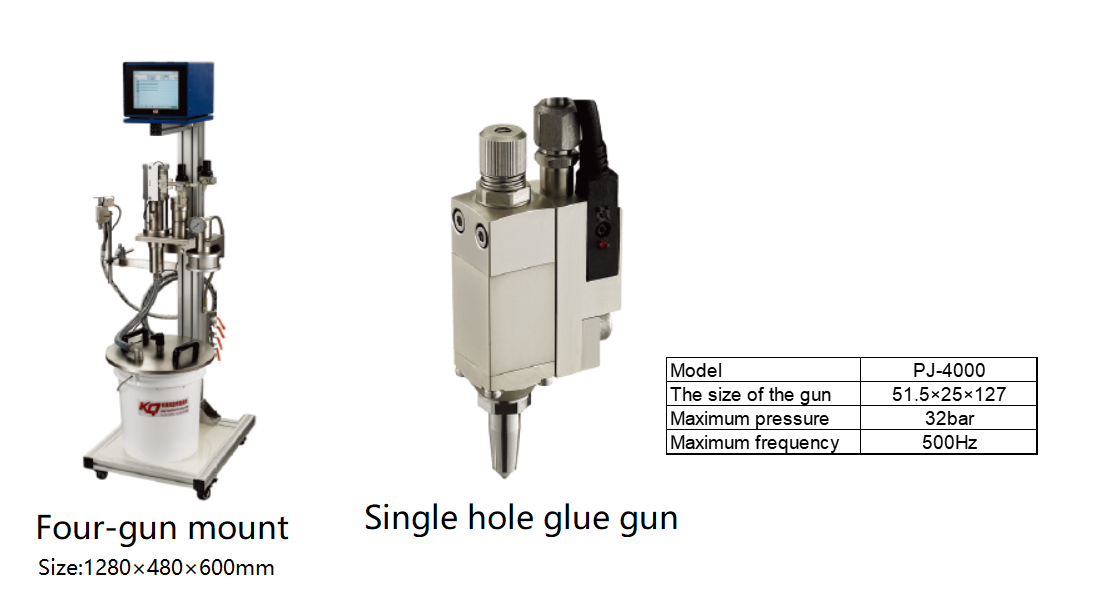

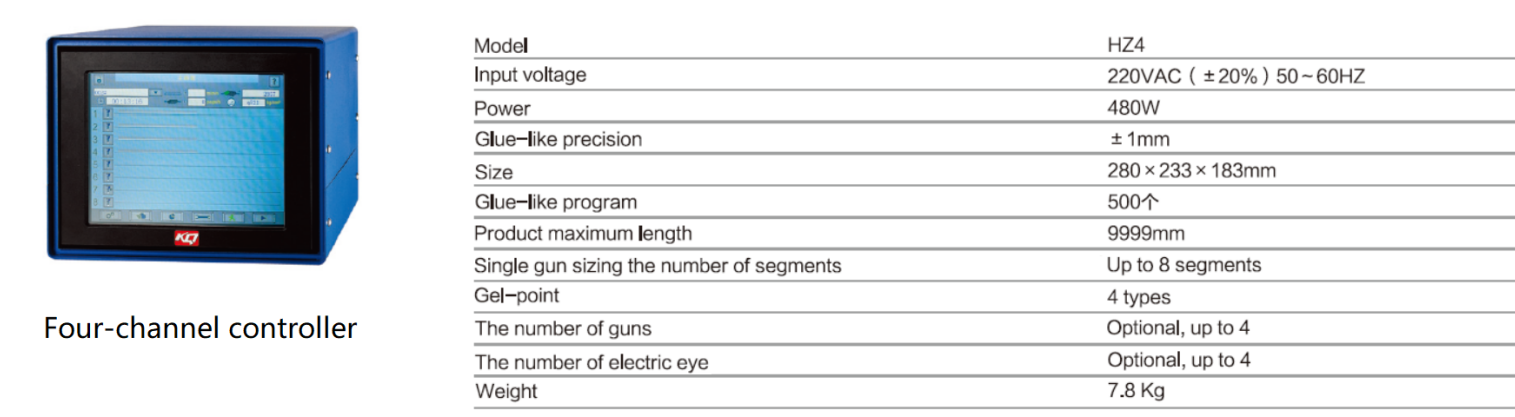

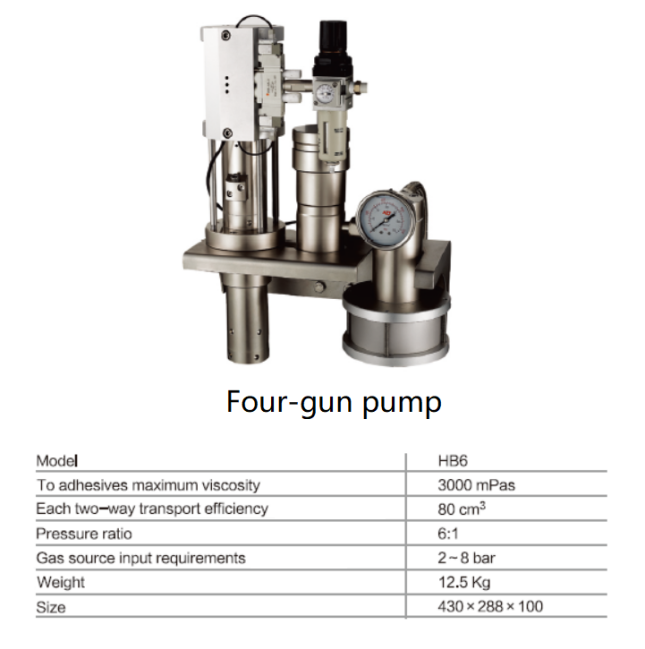

Cold Glue Spray Gluing System with 3 guns(option)
Application of cold glue:
Super fast and no abrasion electro-magnetic non-contact cold glue spray gun, completes precise cold glue dot and line spray gluing.
