Automatic crash lock bottom box Folder gluer
Easy Operation
Simplifies setup and minimizes operator training.
Wide Application
Ideal for straight line, pre-fold, and crash lock bottom boxes.
Competitive Pricing
Offers excellent value, reducing operational costs while enhancing productivity.
Description
ZH600G/700G/800G is our most competitive folder gluer with crash lock bottom which developed by ourselves. It has two National Patents. Its easy operation, reasonable price and wide application make it a new leap forward in the history of folder gluer. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. Our machine is featured by multi-function, wide application, easy operation and competitive price. Compared to older generation folder gluer, our machines simplify the complicated construction, reduce the difficulty of test run and reduce the cost. Especially for the current packaging and printing industry with tough competition, it can help to shorter delivery time and recover your invest easily. It is ideal equipment in printing industry.
Line speed: 0—220m/min adjustable
Usage paper: 210-660g/m²paperboard
Box forming: Either side folds, either sides pre-fold, and crash lock bottom
Paperboard Feeding: Continuous automatic

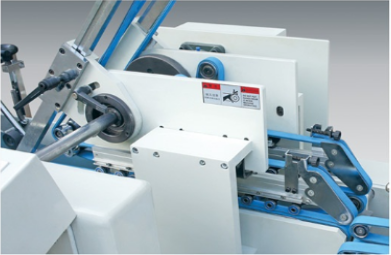

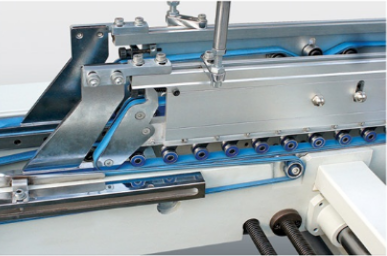

Way of folding: First, second and fourth lines fold 180 degree, third line fold 135 degree.

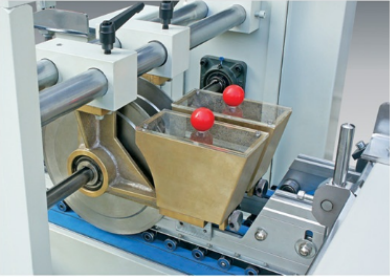

Glue Type: Cold glue
Power: three-phase, AC380V, (600G)3.2kw (700G)3.2kw (800G)4.5kw
Weight: 1600kg,1800kg,2000kg
Dimension: (600G)8500×1200×1300mm (700G)8500*1350*1300mm (800G)10000*1500*1300mm
The counting range: 0～999999(full-automatic)
| |||
Line Speed |
0-220m/min continuous adjustment |
||
Suitable paper |
210-600g/m² paperboard |
||
Box Forming |
single side gluing or both side gluing and pre-folding , crash lock bottom |
||
Paper board feeding |
automatic feeding |
||
Glue |
Cold glue |
||
Power |
ZH-600G: 380V 3.2KW |
ZH-700G: 380V 3.2KW |
ZH-800G: 380V 4.5KW |
Weight |
ZH-600G: 1.6t |
ZH-700G: 1.7t |
ZH-800G: 1.9t |
Dimension |
ZH-600G: 8.5*1.2*1.3M |
ZH-700G:8.5*1.35*1.3M |
ZH-800G:10.2*1.5*1.3M |
Steel frame Packing Size |
ZH-600G 8.94m³ 1585/1817kg |
ZH-700G 9.54m³ 1623/1866kg |
ZH-800G 12.32m³1888/2185kg |
Feeding Part |
2700*950*1235=3.17 m³ 742/827kg |
2700*1050*1235=3.50m³ 763/856kg |
2700*1150*1235=3.83m³ 783/886kg |
Folding Part |
2185*1100*1235=2.97m³ 443/520kg |
2185*1200*1235=3.24m³ 460/540kg |
2885*1300*1235=4.63m³ 630/712kg |
Conveyor Part |
2660*950*1110=2.80 m³ 400/470kg |
2660*950*1110=2.80 m³ 400/470kg |
3660*950*1110=3.86 m³ 475/587kg |
Main Technical Data’s(Unit: mm) | |||||
Model |
Box type |
A |
B |
C(min) |
D(min) |
|
ZH-600G |
Side-glue box(I) |
110-600 |
60-500 |
50 |
10 |
|
Pre-folding box(I) |
170-600 |
60-500 |
80 |
10 |
|
Crash lock bottom box(II) |
180-560 |
100-500 |
80 |
40 |
|
ZH-700G |
Side-glue box(I) |
110-700 |
60-500 |
50 |
10 |
|
Pre-folding box(I) |
170-700 |
60-500 |
80 |
10 |
|
Crash lock bottom box(II) |
180-660 |
100-500 |
80 |
40 |
|
ZH-800G |
Side-glue box(I) |
130-800 |
60-700 |
60 |
10 |
|
Pre-folding box(I) |
170-800 |
60-700 |
80 |
10 |
|
Crash lock bottom box(II) |
180-760 |
100-700 |
90 |
50 |

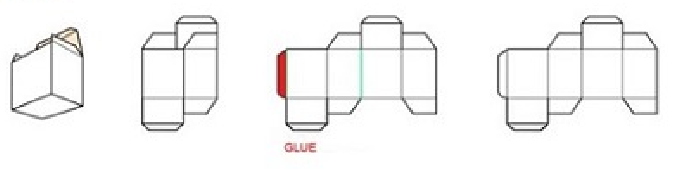

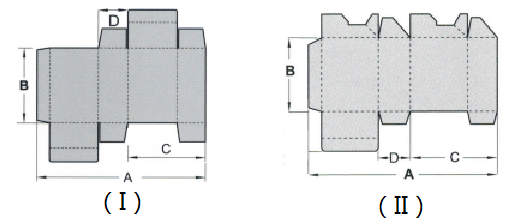

Straight Line(I):

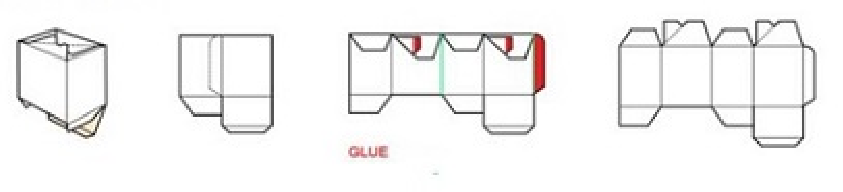

Crash Lock Bottm(II):

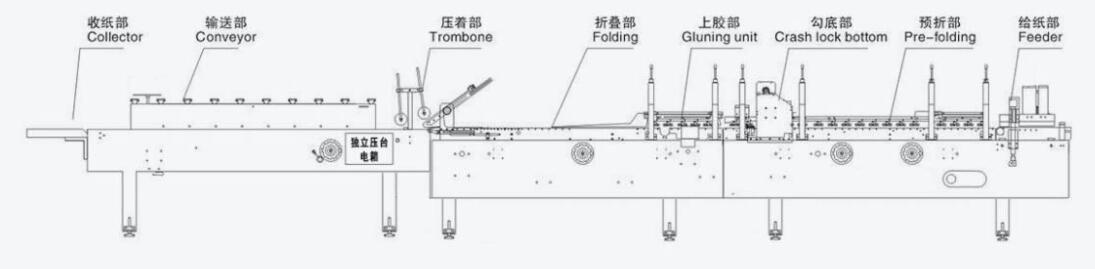

Plane Chart:

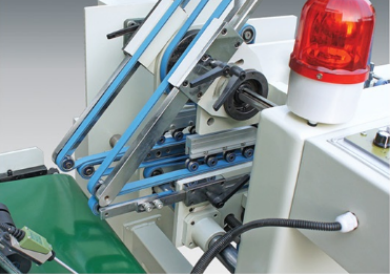

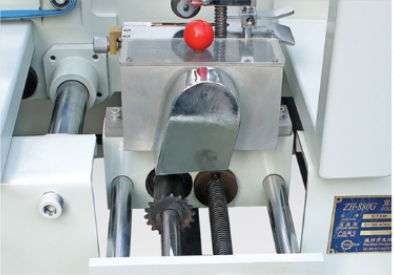

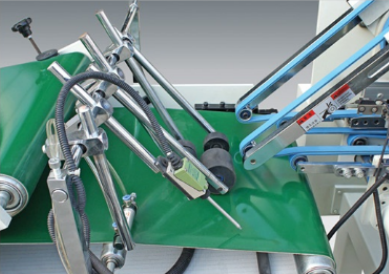

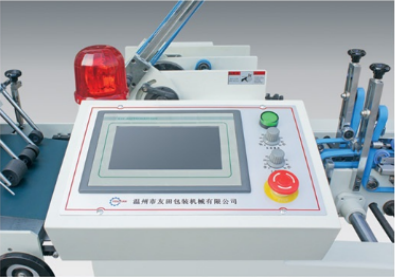

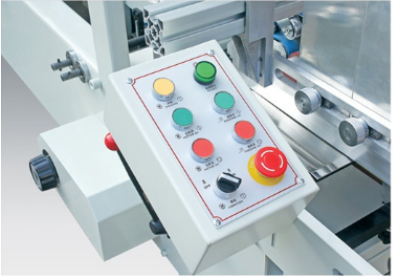

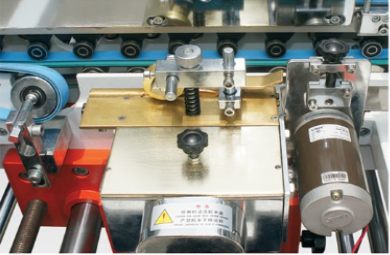

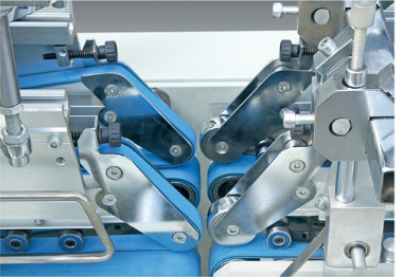

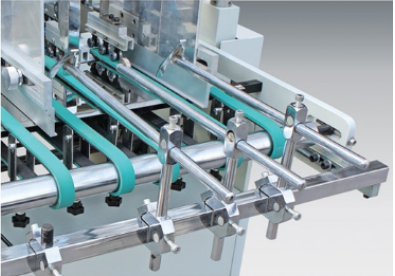

Introduction Configuration
Main Box Samples
Option
Optional parts：

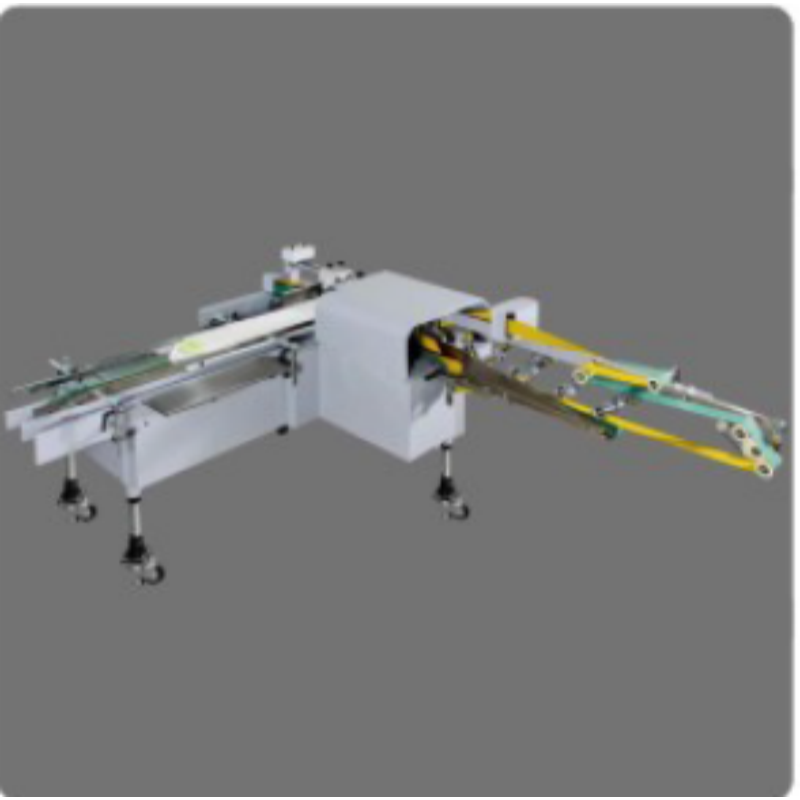

Optional 1:Device for CD Box
This device the folder gluer able to make the boxes it can do formerly and the CD boxes.
Optional 2: Device for Fried Chips Box
This device the folder gluer able to make the boxes it can do formerly and the fried chips box.
Optional 3: Device for Folder
This device the folder gluer able to make the boxes it can do formerly and the folder.

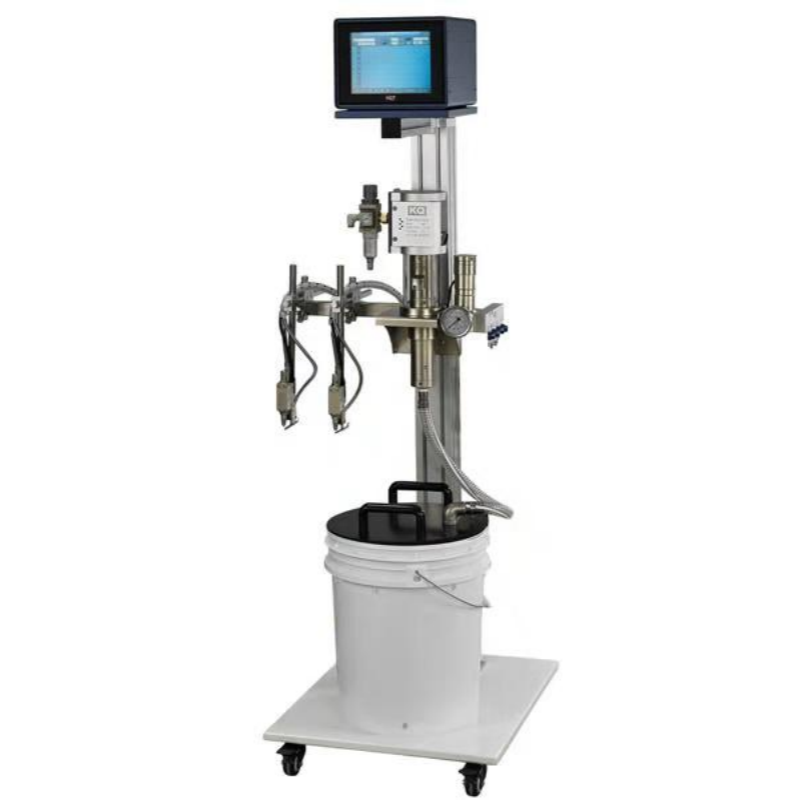

Optional 4: Glue Spraying System
By using cold glue spraying system instead of traditional gluing by rolling wheel, with advantages as high efficient, flexible, stable, easy and convenient for maintenance, good for quickly manufacturing of all various high quality boxes.

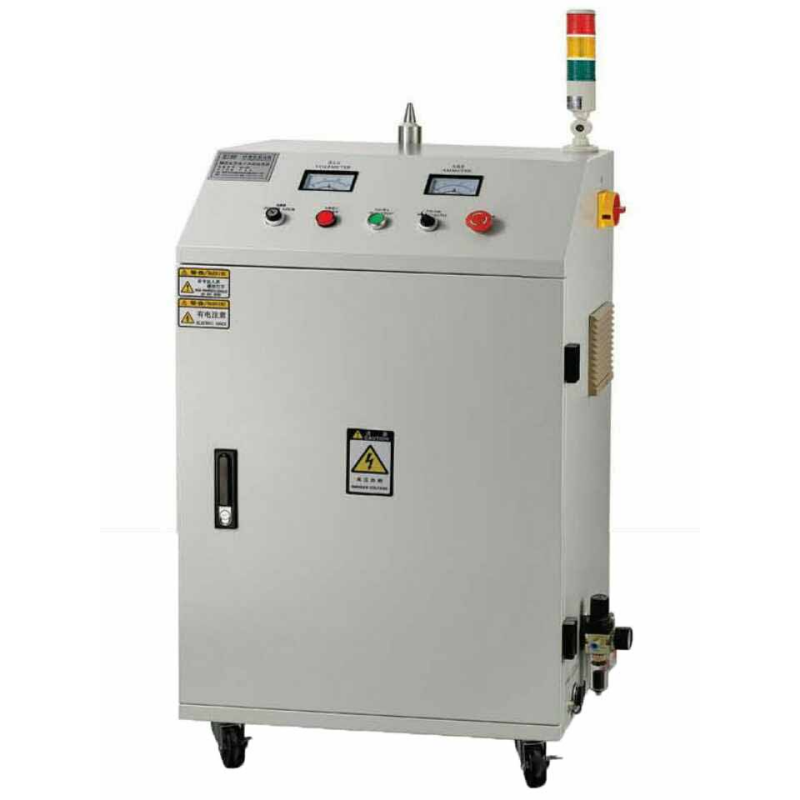

Optional 5: Plasma System
It has replaced the traditional function of grinding, able to get rid of the paper surface that is UV coated and laminated; interlocking controlled with the folder gluer on start and stop.

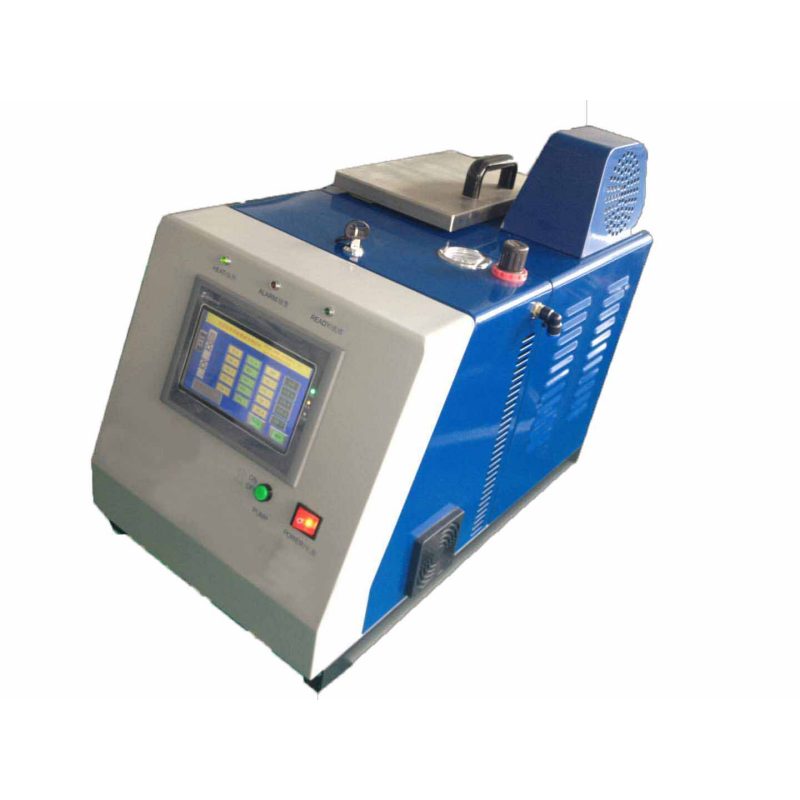

Optional 6: Hotmelt Glue System
Special for the box type like files which to be quickly glued and dried(corrugated box),it has features of high stickiness. Quick dry.
Optional 7: Automatic box packing machine
Box packing machine is a kind of unique multi-purpose tool that can be used to folding the carton, and to make the packaging more easy. collection box for the traditional closed box too late to collect box packing can be used in automatic closing box machine devide, automatic closing box machine design have synchronizer device and the linkage of box pasting machine.
