Description
AEMB-1500Y : USD66000 FOB China
AEMB-1500W with stripping: USD81000 FOB China

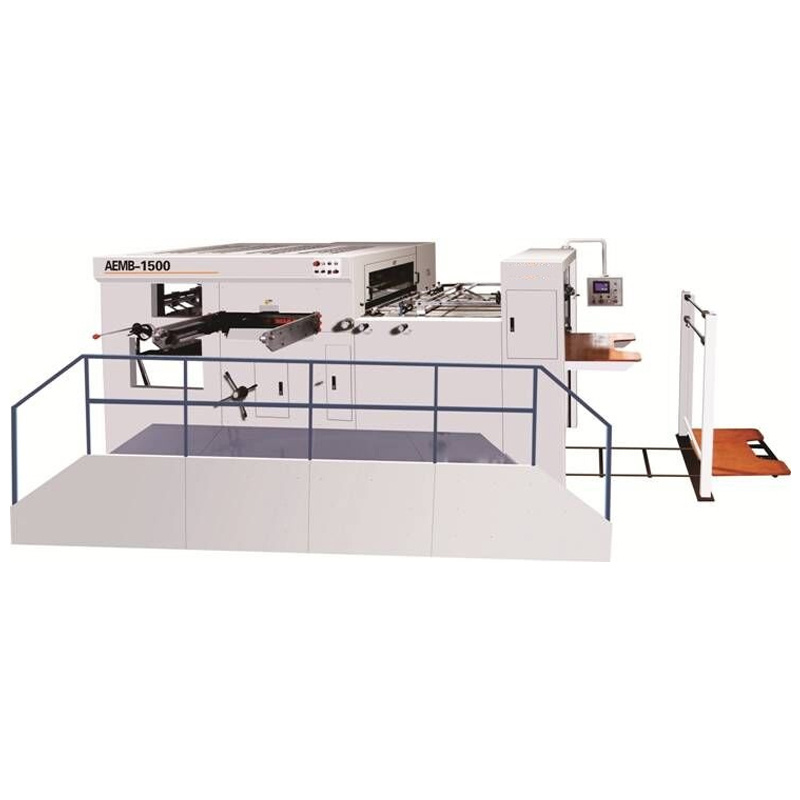

Semi-automatic platen die cutting machine(secondary positioning, waste stripping)
【Professional manufacturer】
AEMB-1500W schematic diagram
★ Complete design, accurate installation, high stability, high security, low noise.
★ Pre stacking device can shorten the assisting time to improve the efficiency.
★ (optional) secondary positioning system includes a optoelectronic sensor to judge double, crooked, empty situation, ensure the paper of right quantity and positon. Improve stability and reduce waste.

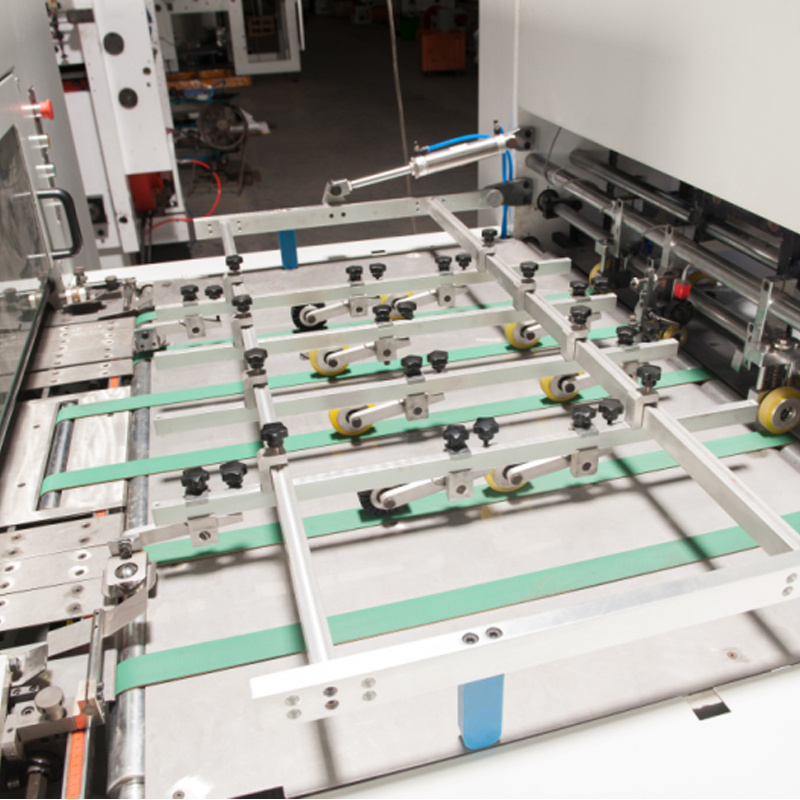

★ (optional) secondary positioning system includes front lay(4), side lay (push& pull), feeding speed fine-tuning device, helps positioning the paper.
Features
★ Pneumatic auxiliary flip the aluminum alloy paper frame, help reduce the labor intensity.
★ (optional) secondary positioning system include high wear-resisting PU feeding wheel, durable in use.

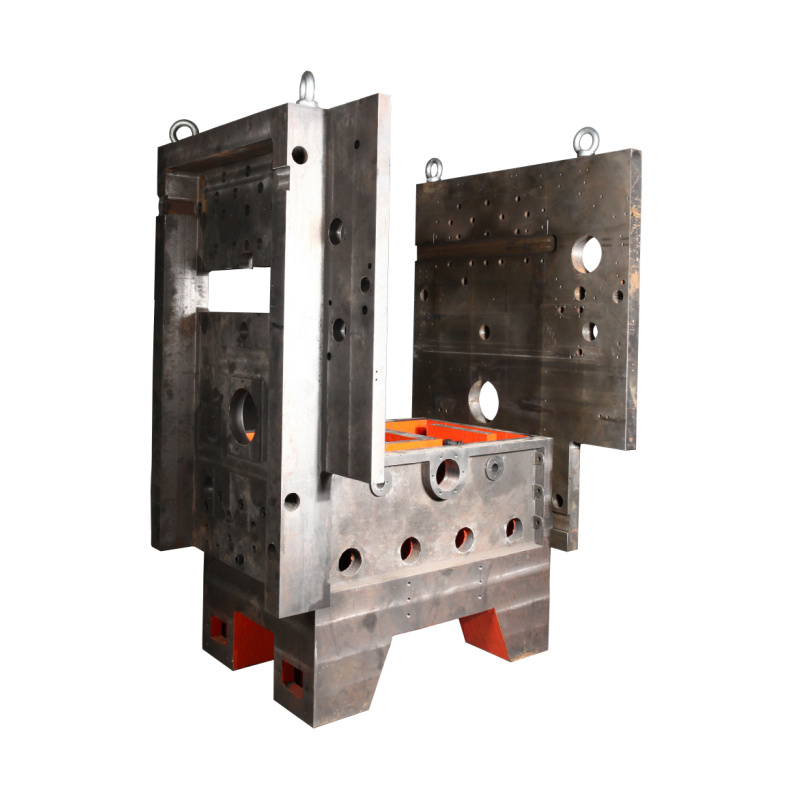

★ The pressure bearing part is made of special process treated high strength ductile iron. It has good rigidity and high strength.

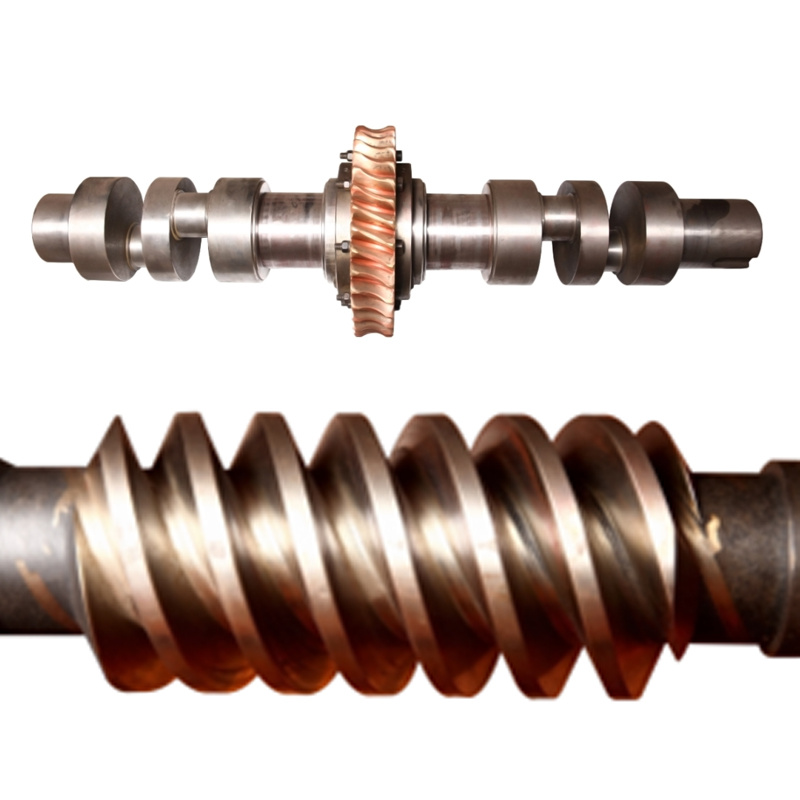

★ Worm and worm gear are made of super wear-resisting material, low noise and high durability.
★ The crankshaft is made of Ni-Cr-Mo alloy with special heat treatment process. It has high cutting pressure and high strength.
★ High precision interval mechanism, high cutting precision, running steadily .

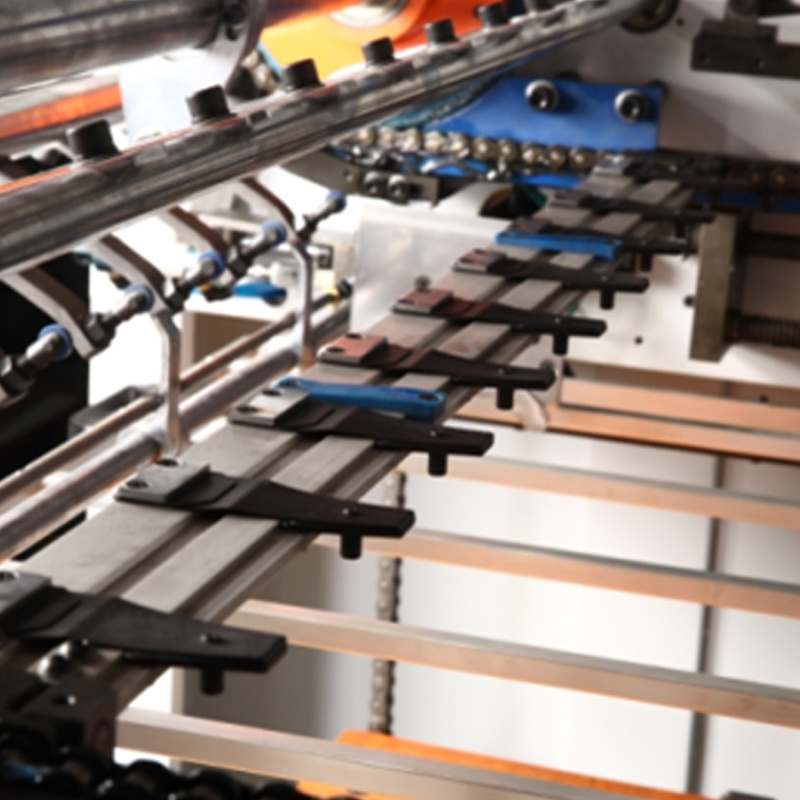

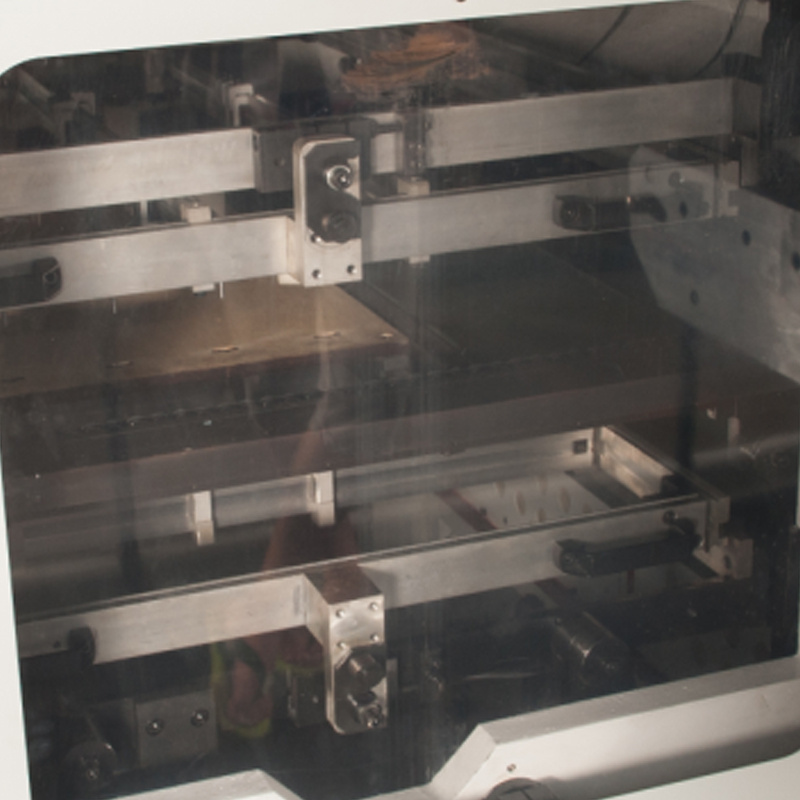

★ The gripper bars are made of hardening treated high strength Ti-Al alloy, it is light and durable.
★ Imported gripper chain was pre-stretched to ensure the precision and durability.
★ Double protection for torque force controller and main chain protection switch can avoid damaging the movement parts.
★ Pneumatic fast lock device can make installation and uninstallation faster and safer.
Features
★ Centering of die frame and scale makes positioning more convenient.
★ High strength, high hardness chromium alloy cutting steel plate make pressure more uniform.
★ Pneumatic floating function makes cutting steel plate move more flexible to avoid damaging.
★ Human-friendly design of die frame and cutting plate flip device can improve the efficiency.
★ Precise pressure adjusting wheel makes pressure adjusting more convenient.
★ Non-stop feeding and collection device can shorten the auxiliary time, improve the efficiency.

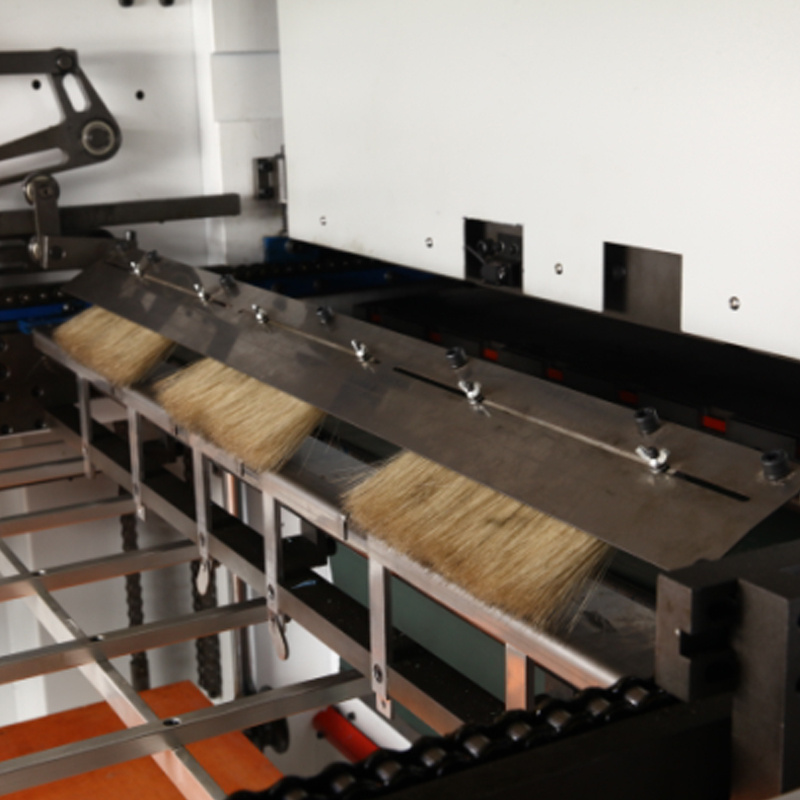

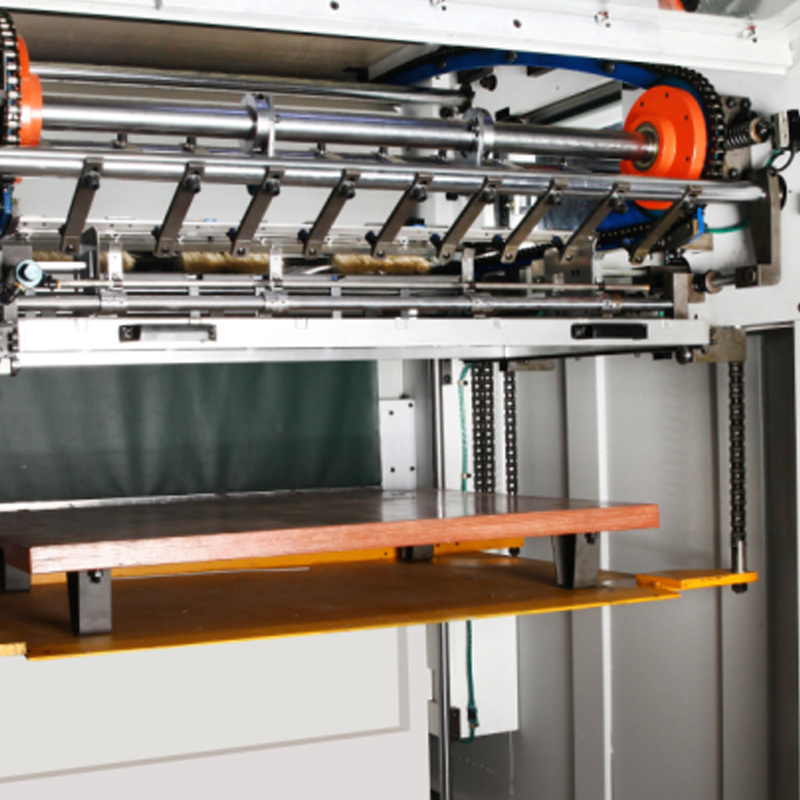

★ Brush device and auxiliary collection blowing device make the paper stack more neatly.
★ An easy setting counting monitor in collection section.
★ (optional) User can set a random number on the separation counter to insert a separate tag.
★ Collection optoelectronic sensor coordinate with the collection delivery, make the stack neat, when the stack is full, the alarm will turn on.
★ Electrical control module, imported electrical components, ensure the precision and reliability.

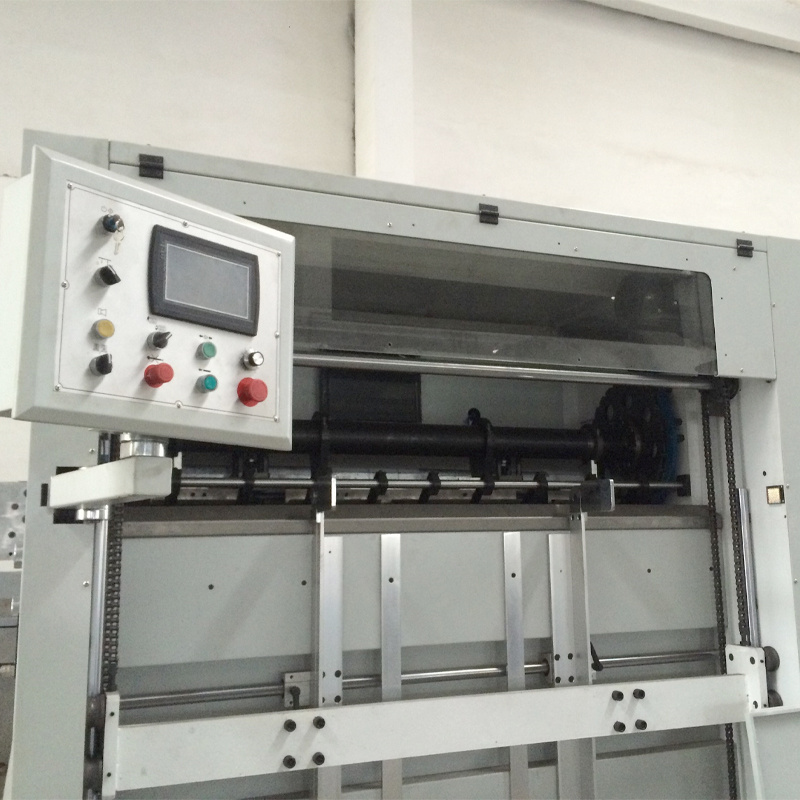

★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling lubrication system, ensure the movement parts get adequately lubricated to ensure the durability.
★ Automatic lubricating oil supply system ensures the movement parts get adequately lubricated to ensure the durability.
★ (optional) waste stripping section was linked to the other sections, human-friendly design, easy to install and uninstall the waste stripping plate.
★ (optional) Automatic waste stripping device can remove the waste easily.
Main technical parameters
| Max paper size | 1500 x 1100 mm |
| Min paper size | 440 x 470 mm |
| Max cutting size | 1490 x 1090 mm |
| Die frame inner size | 1540 x 1100 mm |
| Cutting plate size | 1500 x 1100 mm |
| Cutting precision | ≤±0.3 mm |
| Max cutting pressure | 300 N/cmPP2 |
| Max cutting speed | 4800 s/h |
| Pre-stacking height | 1300 mm |
| Collection stack height | 1200 mm |
| White board | 0.3～2 mm |
| Corrugated paper | <8 mm |
| Main motor power | 15 KW |
| Total power | 18.5 KW |
| Dimension | 【L (+ pre-stacking)x W (+ Platform) xH】 |
| AEM-1500Y Dimension | 3800(+2200)x2600(+2200)x2550 mm |
| AEM-1500W Dimension | 5250(+3100)x2600(+2200)x2550 mm |
| AEMQ-1500Y Dimension | 5200(+2200)x2600(+2200)x2550 mm |
| AEMQ-1500W Dimension | 6700(+3100)x2600(+2200)x2550 mm |
| AEM-1500Y weight | 16 T |
| AEM-1500W weight | 18 T |
| AEMQ-1500Y weight | 18 T |
| AEMQ-1500W weight | 20 T |
Configuration
|
Feeding section ★(optional) Secondary positioning, adjustable rubber wheel and brush wheel ensure paper fed to the right position to ensure the cutting precision. ★(optional) Secondary positioning, double side lay(push and pull). ★Feeding fine tuning device, non-stop adjust. Wear resisting PU feeding wheel.★(optional) Secondary poisoning,, 2 side lay setting to satisfy different printing register requirements. ★(optional) One set of pre stacking device, non-stop transport paper, improve the efficiency. |

|
Standard configuration
|
Host machine section ★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform. ★Alloy crankshaft with special process treatment. ★Wear resisting worm, worm gear. ★Convenient die flipping device. ★Cycling lubrication oil supply system with high pressure oil pump from Taiwan ★High precision interval mechanism. ★Pneumatic brake clutch device from Italy ★Japanese SMC rotary joint. ★Import gripper bar chain. ★Pneumatic die locking device. ★High hardness, strength Ti-Al alloy gripper. ★Precise pressure adjust device. ★PLC and man-machine interface from Taiwan. ★Additional gripper 1set,cutting die 1set,die frame 1 set. |

|
|
(optional) Waste stripping section ★High strength Ti-Al waste stripping frame. ★Light waste stripping needle. ★(optional)High efficiency pre-install device |
 |
|
Collection section ★Automatic arrange device, 2 blowing devices ensure all the paper could be well collected whether thin or thick. ★Collection section with control panel, more human-friendly. ★Optoelectronic sensor ensure better collection. ★Automatic collection board control system. ★Manual collection device ★Main chain protection device ★Rolling back preventing device
|

|
Main configuration list
| NO | Name | Brand | Orgin |
| 1 | Shell, main structure | QT500-7 ductile iron | China |
| 2 | Mold pressing plate | 75Cr1 alloy steel | China |
| 3 | Worm, Worm gear | Xingrui | China |
| 4 | Crankshaft material | Ni-Cr-Mo alloy | China |
| 5 | Gripper | Aluminum alloy | China |
| 6 | Gripper needle | Imported manganese steel | China |

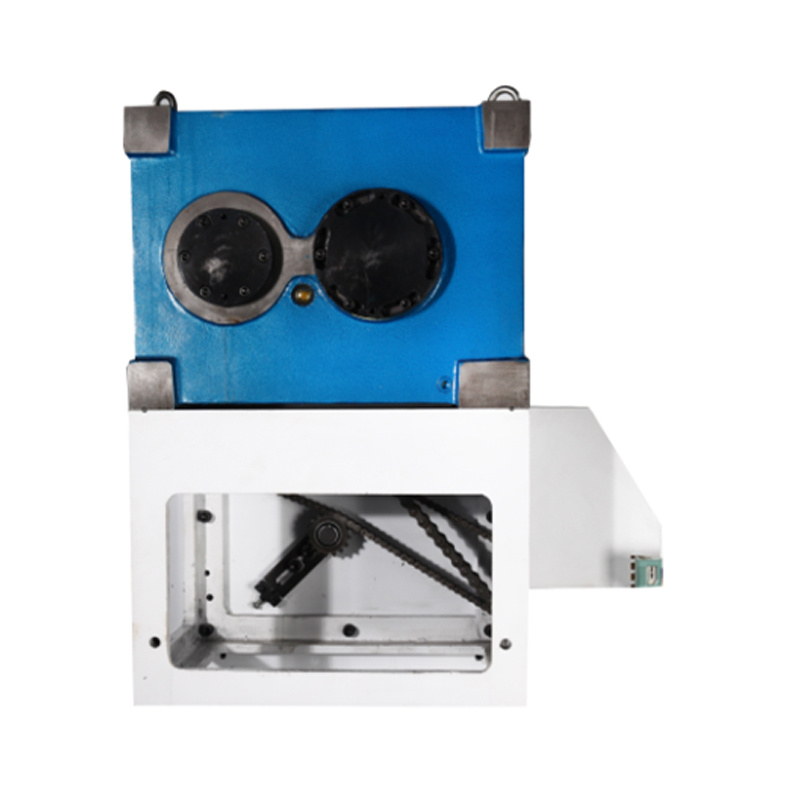

| 7 | Cam indexing unit | Huilin | China |
| 8 | Main transmission chain | Tsubaki | Japan |
| 9 | Secondary chain | KMC | Taiwan |

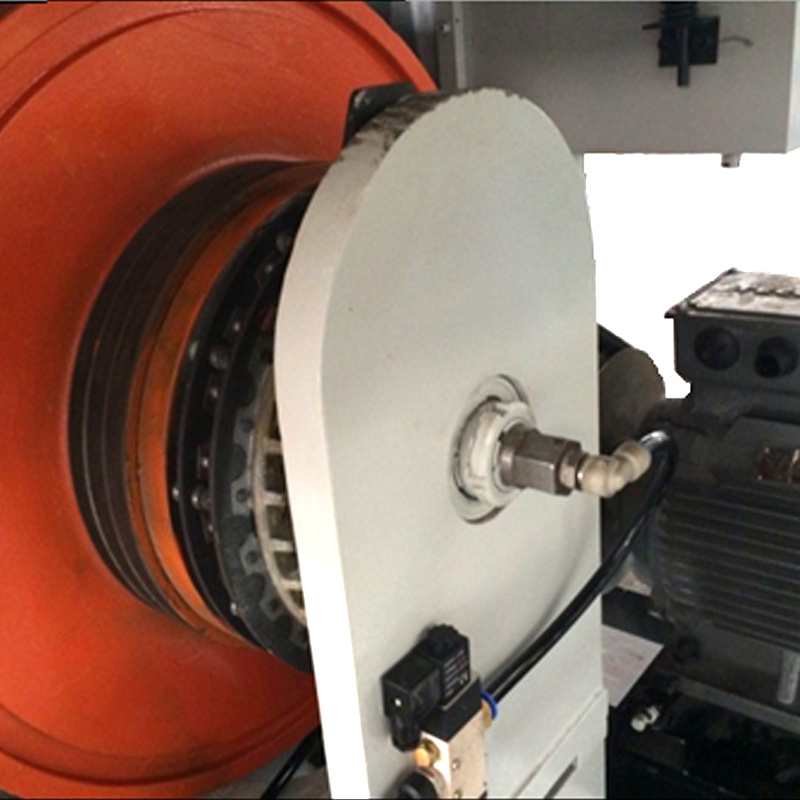

| 10 | Pneumatic clutch | OMPI Yuyi | Italy |
| 11 | Rotary joint | SMC | Japan |
| 12 | Pneumatic solenoid valve | AIRTAC | Taiwan |
| 13 | Air volume regulator | AIRTAC | Taiwan |
| 14 | Feeding belt | Habasit | Sweden |
| 15 | brush | - | China |
| 16 | Main motor | TECO (Export Type) | Taiwan |
| 17 | Collection lift motor | CPG | Taiwan |
| 18 | Cylinder | AIRTAC | Taiwan |
| 19 | Lubrication pump | Weiliang | Taiwan |
| 20 | bearing | FALA | Germany |
| 21 | Linear guide rail | HIWIN | Taiwan |
| 22 | Fastener | JY | Taiwan |
| 23 | Convertor | Panasonic | Japan |
| 24 | Man-machine interface | Taixi | Taiwan |
| 25 | Sensor | Panasonic | Japan |
| 26 | PLC controller | FATEK | Taiwan |
| 27 | Encoder | NEMICON | Japan |
| 28 | Oil pressure, pressure switch | AIRTAC | Taiwan |
| 29 | Proximity switch | FOTEK | Taiwan |
| 30 | Relay | SCHNEIDER | France |
| 31 | Optoelectronic switch | Panasonic | Japan |
| 32 | Alarm light | - | China |
| 33 | Cable | DELIXI | China |
| 34 | Button | SCHNEIDER | France |
| 35 | Pressure adjust system | Sankai | China |
| 36 | AC contactor | SCHNEIDER | France |
| 37 | Circuit breaker | SCHNEIDER | France |
| 38 | Terminal | Tiande | China |

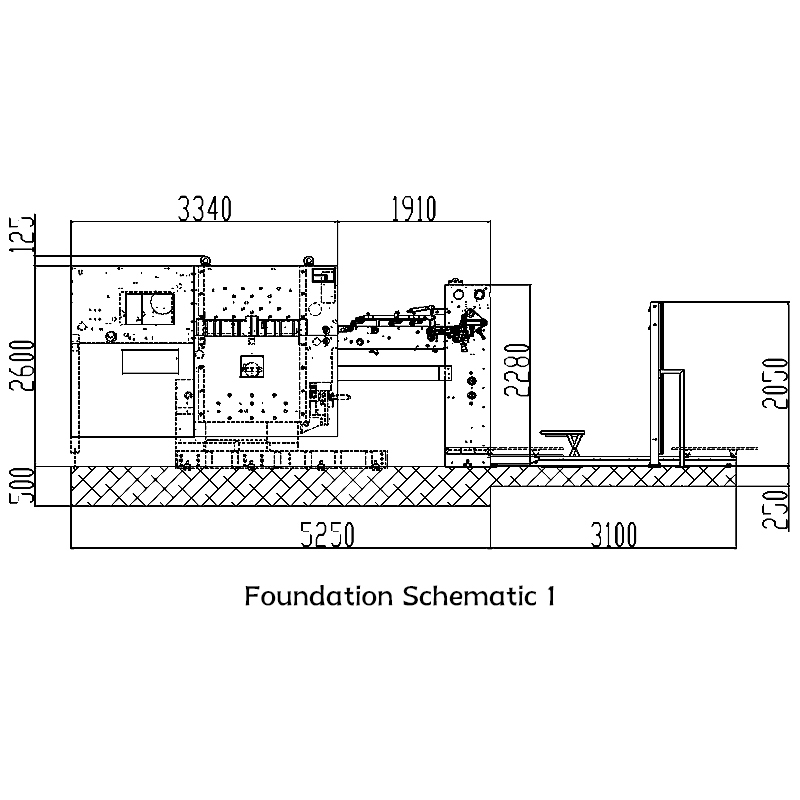

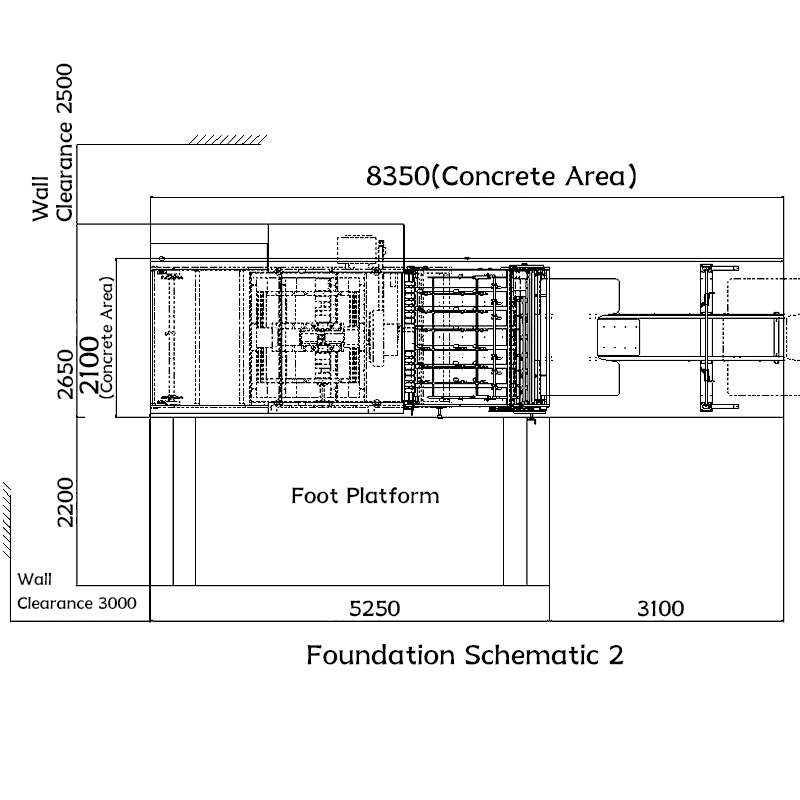

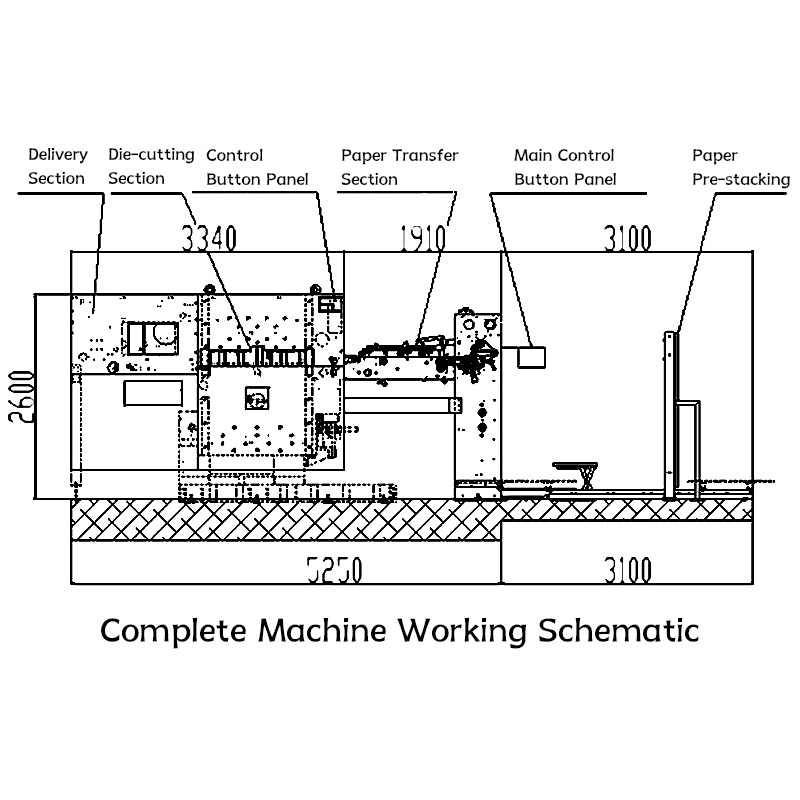

Installation schematic diagram
