AEM-800T automatic hot foil stamping die cutting machine

After sale services and component replacement

One year guarantee. During the period of quality guarantee, we supply the spare part in free for replacement in case of quality problem, if there get a problem with machine, buyer can not solve it, buyer can take a video of machine running then send to seller.

Packaging

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Delivery Date

Within 60 days after payment of deposit.

Terms of Transportation

Seller shall deliver equipment at its factory and may arrange transportation for Buyer but freight shall be for Buyer’s account.

Terms of Payment

50% deposit by T/T upon final confirmation and balance before shipment; or L/C. After completion, buyer shall come to seller’s factory to check and inspect.

Quality Assurance

Seller provides a 12-month guarantee period. After the guarantee, seller shall still provide technical support to buyer.

Training, Installation and Test Run

1. Seller shall provide training for Buyer in Seller’s factory;

2. Or Seller sends technicians (engineers) to Buyer’s factory. Buyer shall pay the round trip air fare and accommodation. Each technician charges USD100/per day.

*This quotation is valid for 60 days.

**All the above prices and conditions are subject to our final confirmation

Wendy Wen

General Sales Manager for

Shanghai PrintYoung International Industry Co., Ltd

Tel: 0086-21-50303885

Fax: 0086-21-60917881

Mobile: 008613816748090

Skype: wendy289

Email: [email protected], [email protected]

Professional Printing Equipment and Materials Manufacturer and Supplier.

AEMT-800T automatic hot foil stamping die cutting machine

AEM-800T Features

★ Complete design, accurate installation, high stability, high security, low noise.

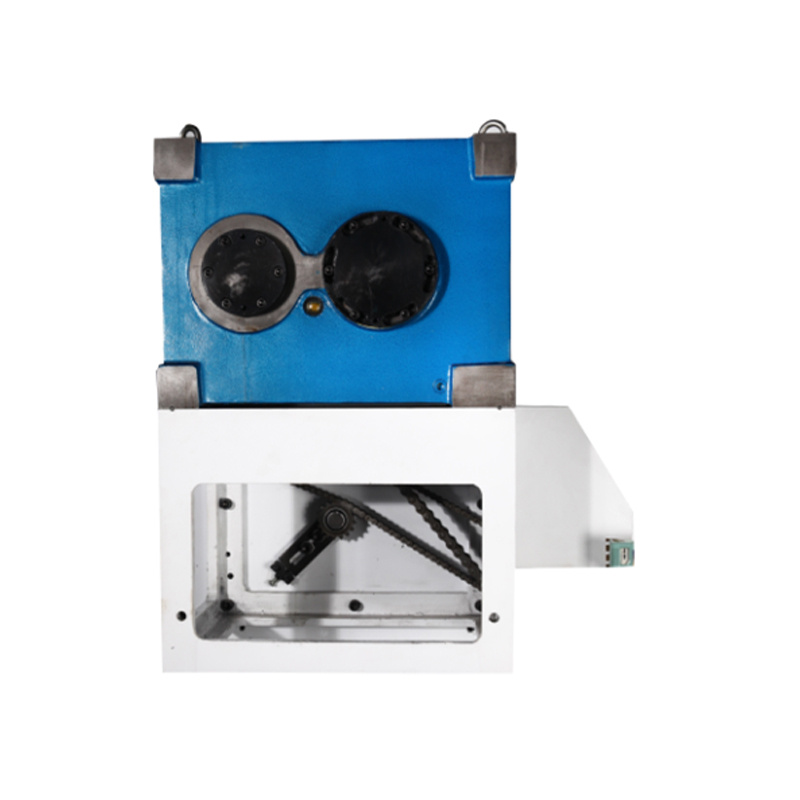

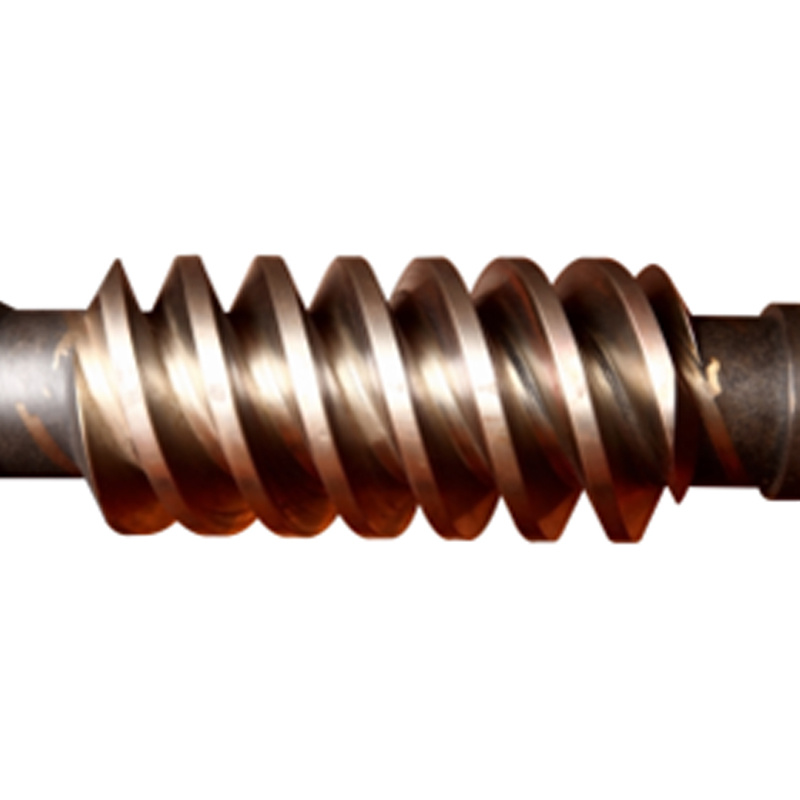

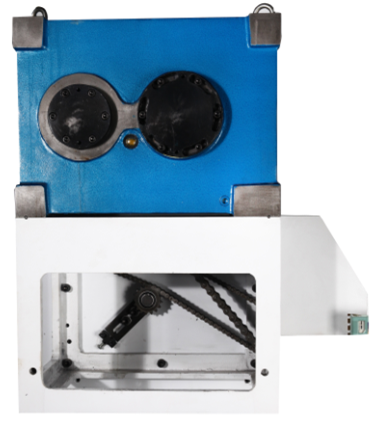

★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.

★ High precision intermittent mechanism, high cutting precision, running steadily.

★ Adopt European feeder technology, suction adjustable, stable, precise, good paper applicability.

★ Non-stop feeding, pre-stacking and delivery mechanism can shorten the auxiliary time, improve the efficiency.

★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.

★ Pneumatic die locking device, die frame fixed more steadily, accurately and time saving.

★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.

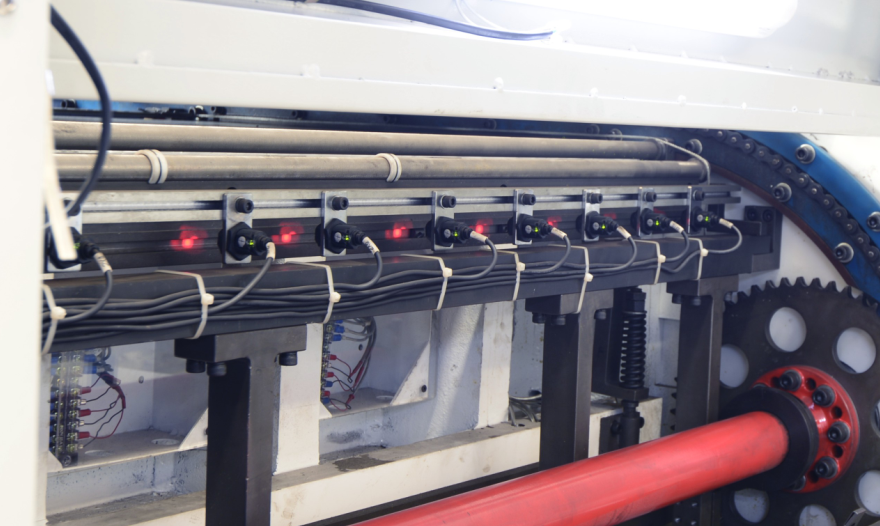

★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.

★ (optional) waste stripping section has 3 linked frames, human-friendly design, easy to install and uninstall the waste stripping plate.

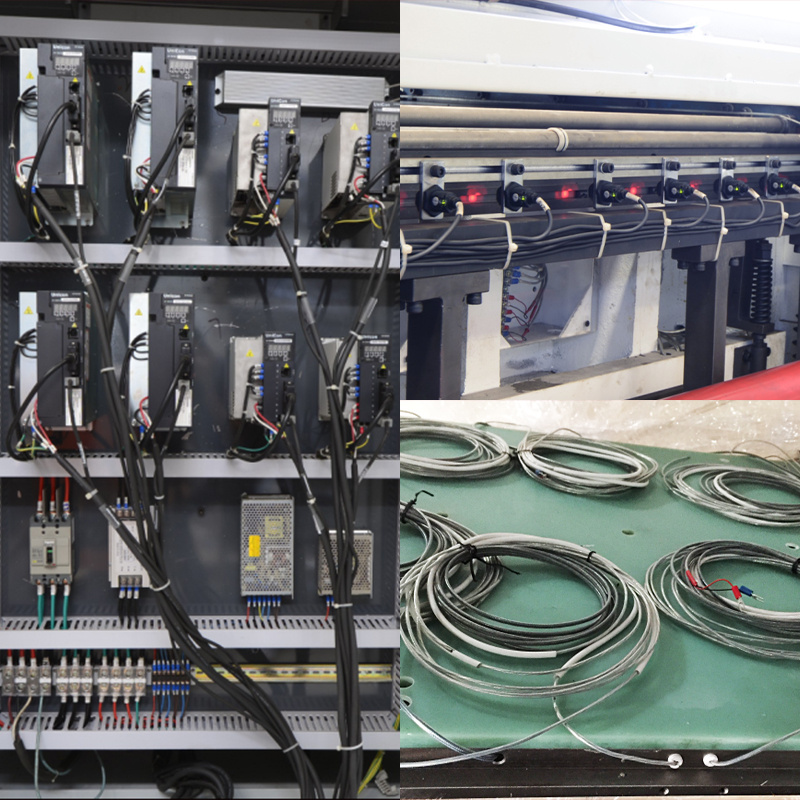

★ Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.

★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, troubleshooting more convenient.

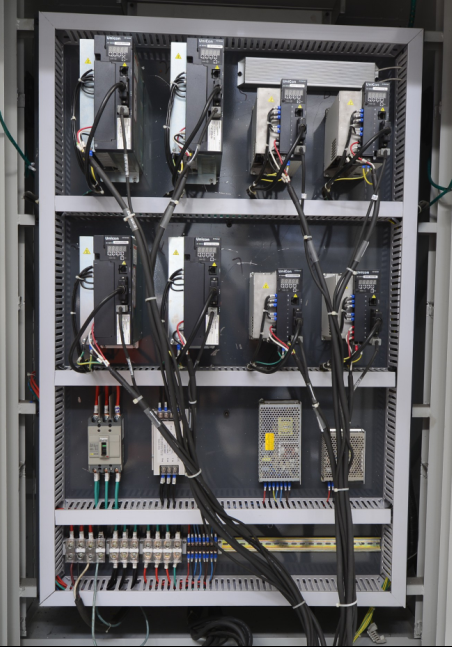

★ Adopt imported server control system for foil stamping, feeding and collecting aluminum foil accurately.

★ Adopt industrial tablet PC, touch screen input data, realize automatic programming, greatly saving aluminum foil.

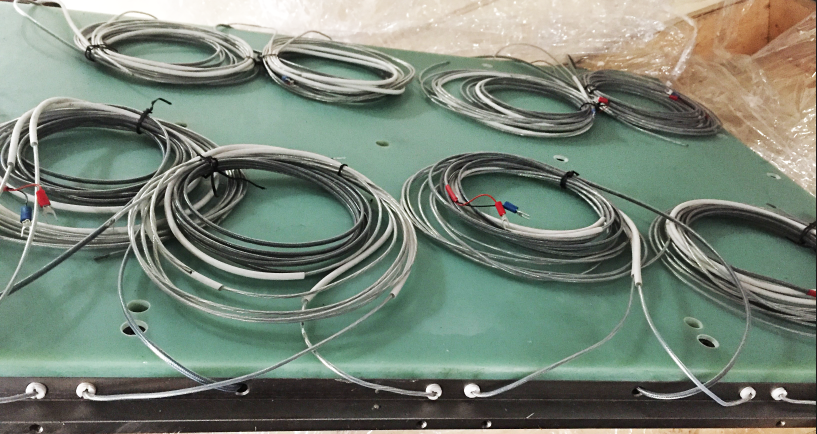

★ Temperature control system has 8 heating area, temperature setting separately, thermostatic control.

★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.

★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

AEM-800T Main technical parameters

Standard configuration

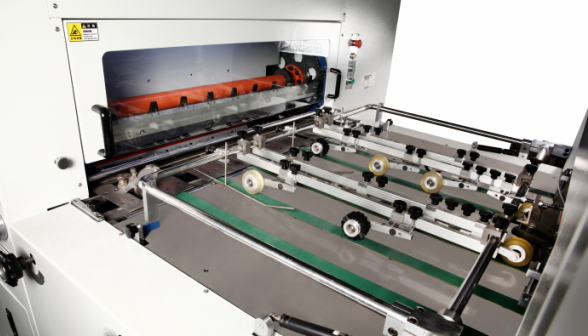

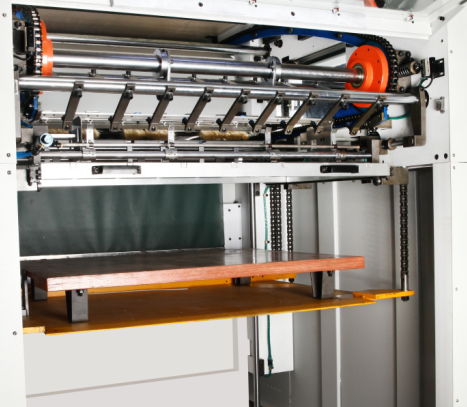

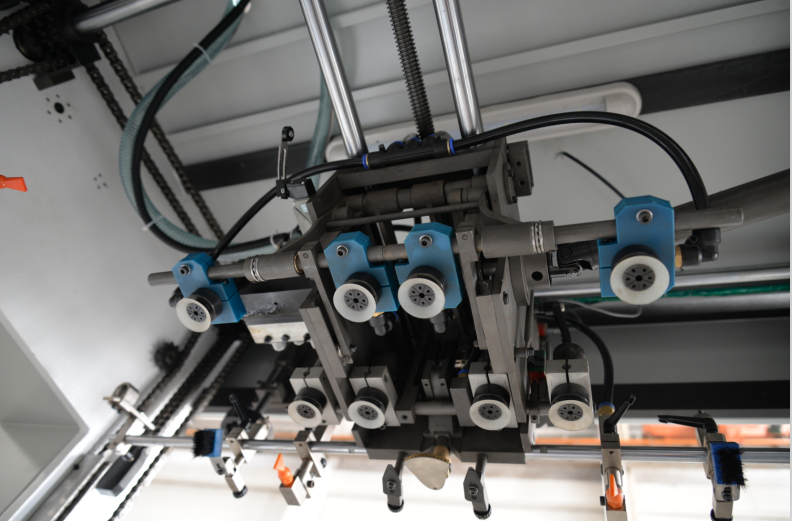

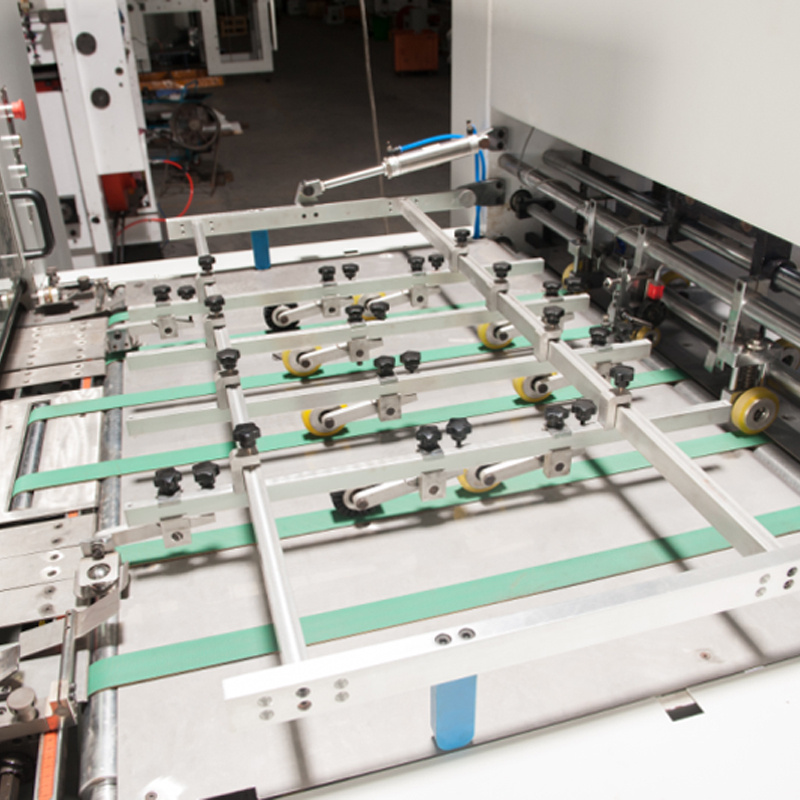

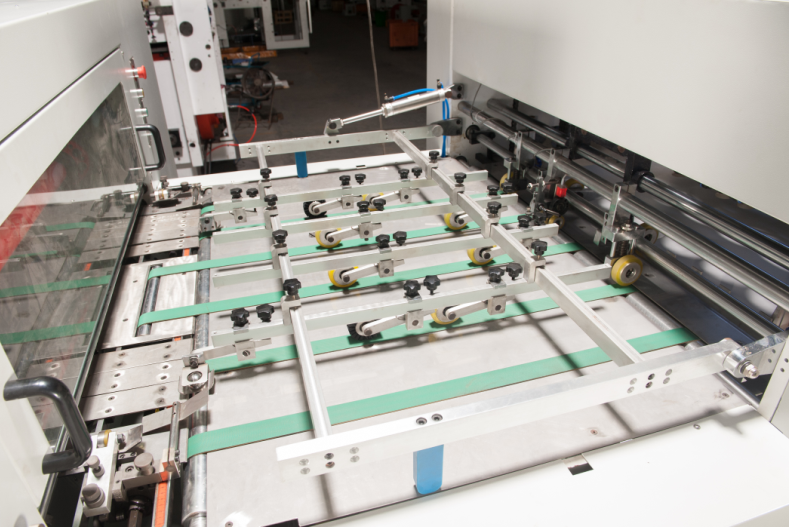

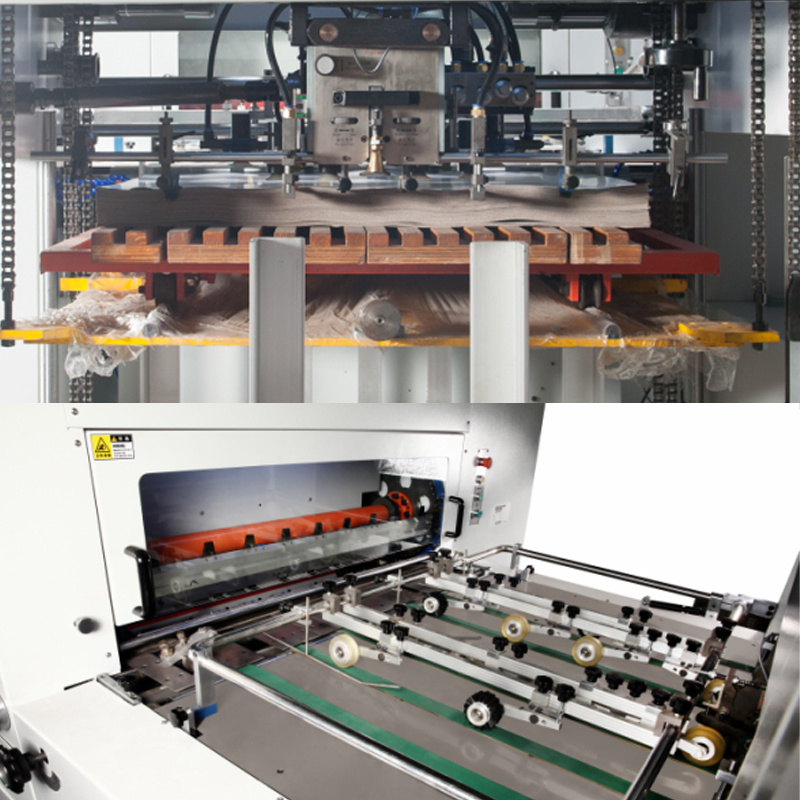

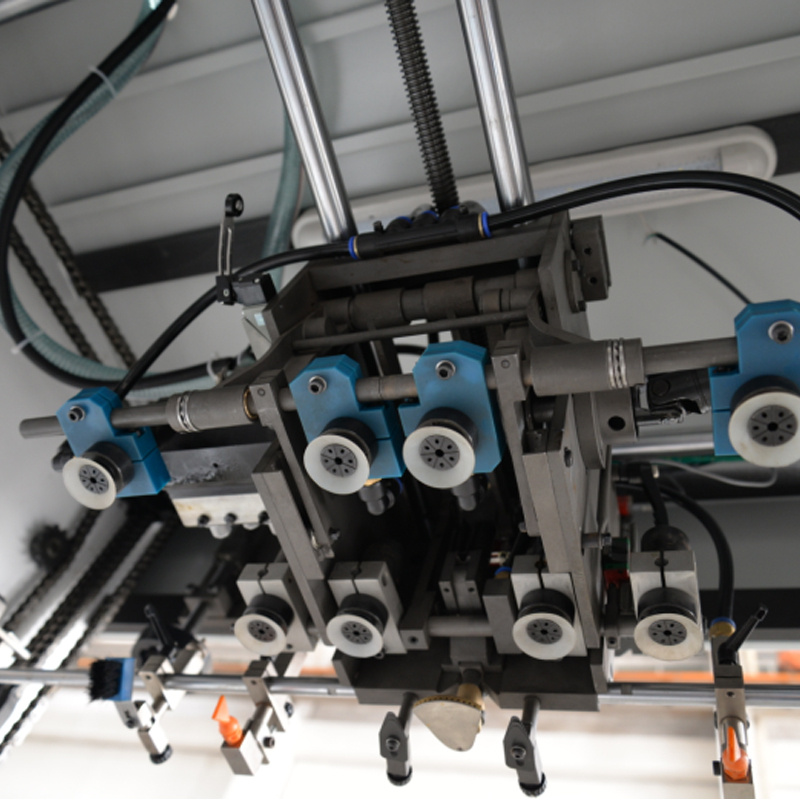

Feeding section ★European technic precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion. ★Double side lay (pull and push). ★Feeding device fine tuning, non-stop adjust. ★Electronic double detector. ★Main, secondary feeding device no-stop switch. ★Wear-resisting PU pressing wheel. ★Dual purpose loader. ★Feeding time fine tuning device. ★Additional carriage rod 1 set, carriage plate 2 set. ★(Optional) pre-stacking device 1 set

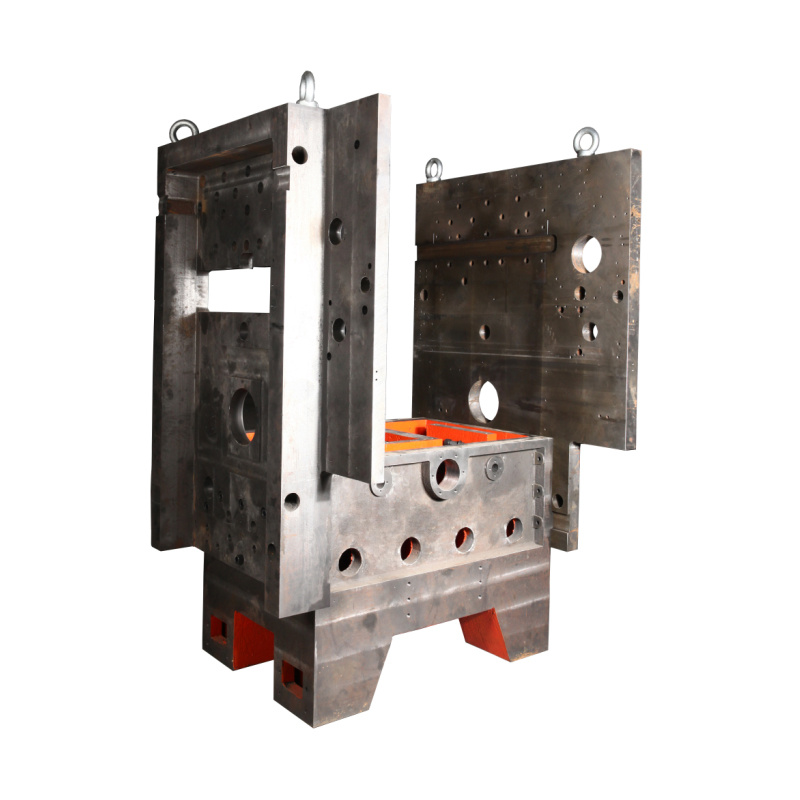

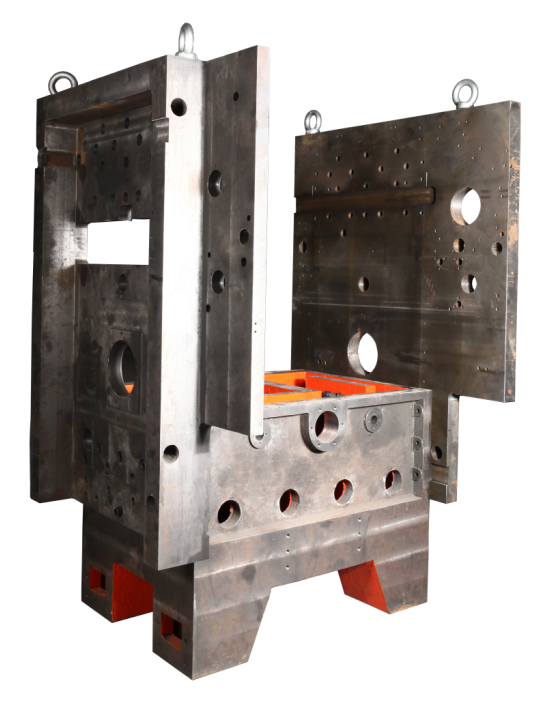

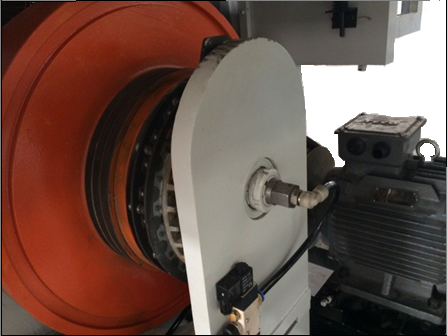

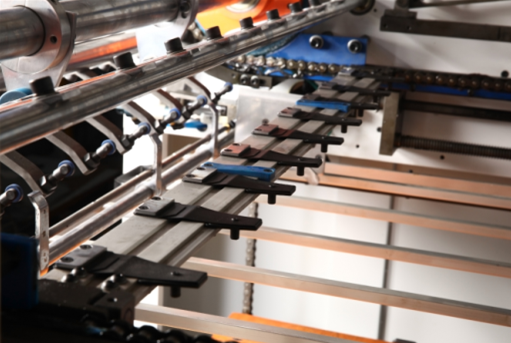

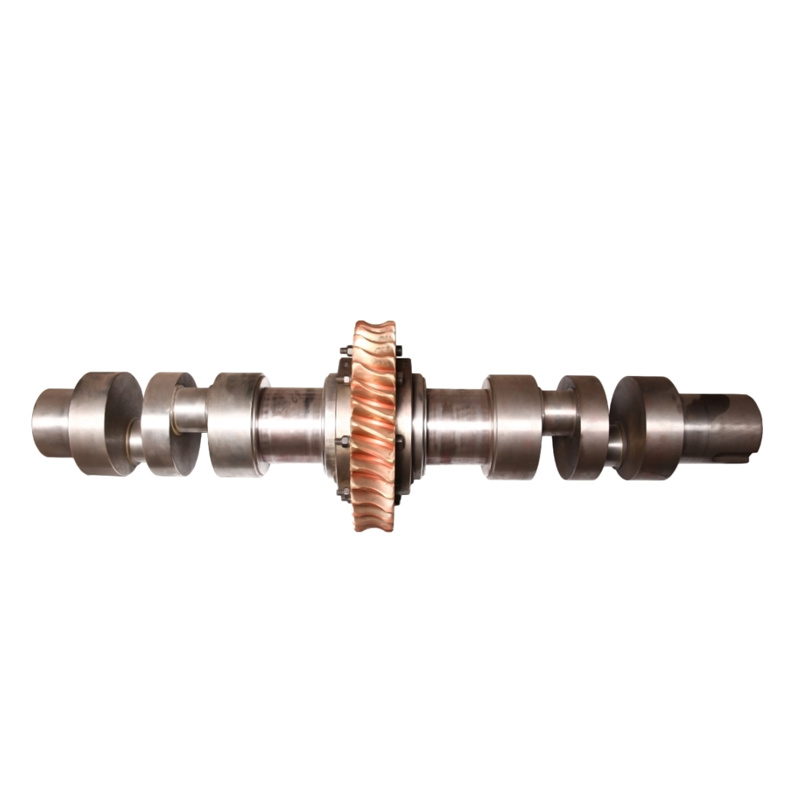

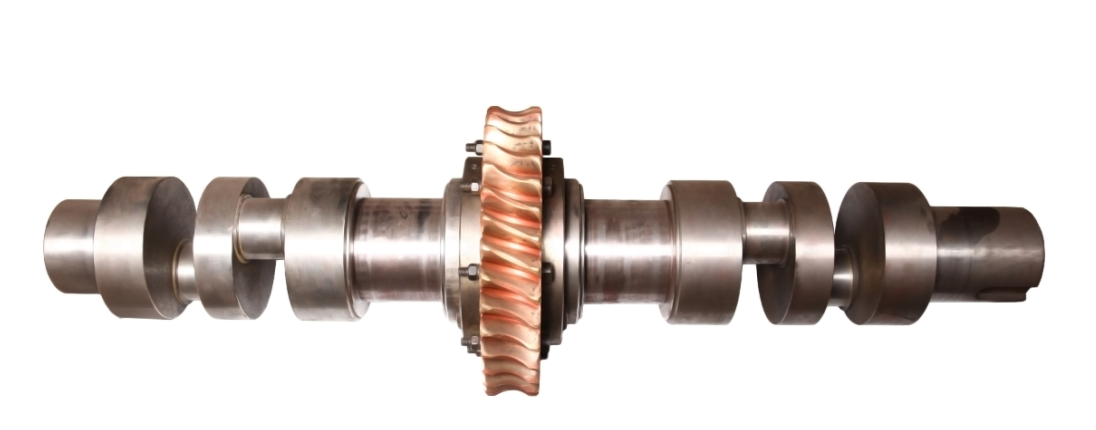

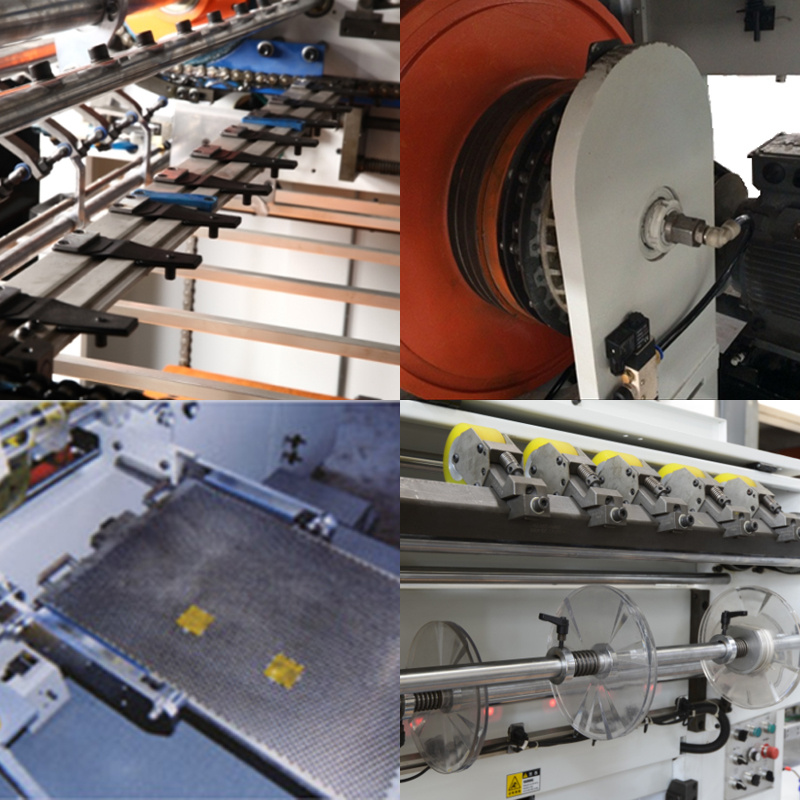

Main machine section ★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform. ★Alloy crankshaft with special process treatment. ★Wear resisting worm, worm gear. ★Convenient die flipping device. ★Cycling lubrication oil supply system with high pressure oil pump from Taiwan ★High precision  interval device. ★Pneumatic brake clutch device from Italy ★Japanese SMC rotary joint. ★Import gripper bar chain. ★Pneumatic die locking device. ★High hardness, strength Ti-Al alloy gripper. ★Precise pressure adjust device. ★PLC and man-machine interface from Taiwan. ★Additional gripper 1set, die cutting 1set,die frame 1 set

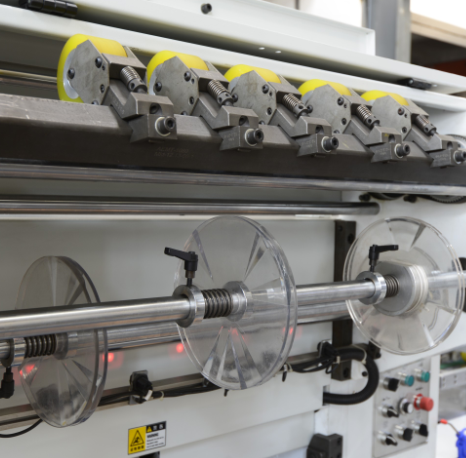

Stamping section ★Industrial tablet PC, screen touch input data, realize automatic program optimization, saving foils. ★Imported servo motor and control system, precisely feeding foil. ★Separate setting temperature of 8 heating area, thermostatic control. ★Electronic pressure control system, during bronzing, if there is no paper, there is no pressure. ★Convenient crosswise foil placing device. ★Special material honey comb heating plate helps locating the bronzing plate. ★Adopte RTCr0.8 heating resist cast iron, no deformation while heating, high strength and high durability.

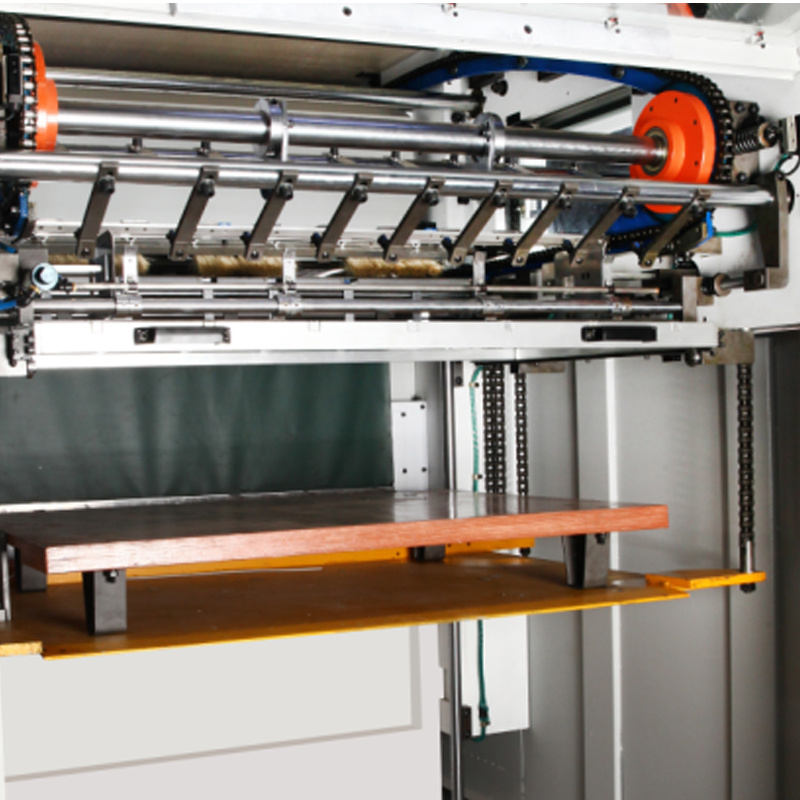

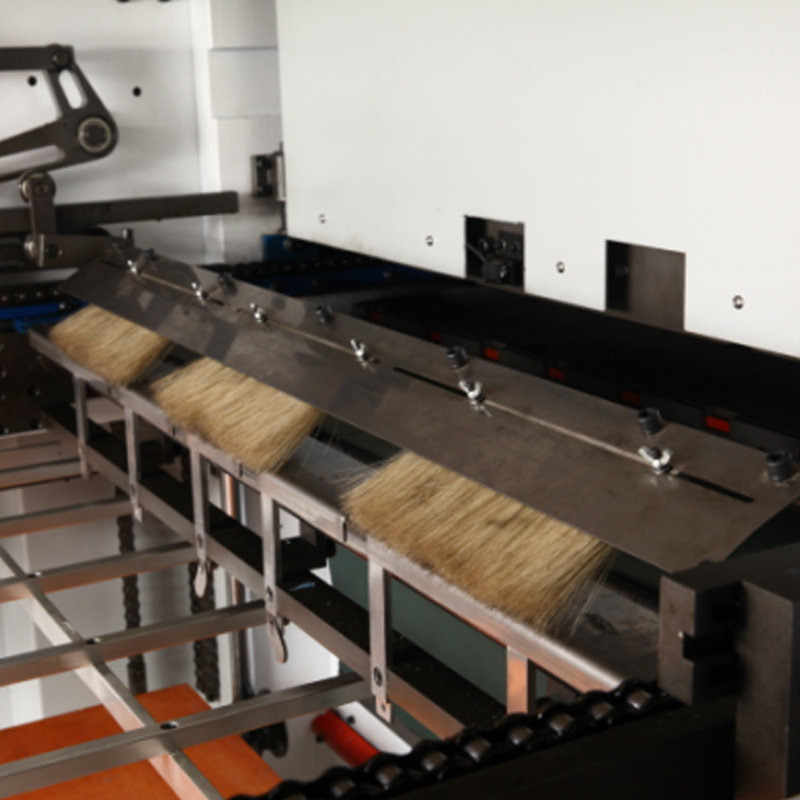

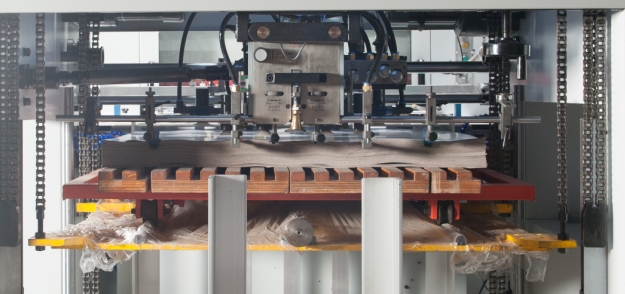

Collection section ★Automatic arranging device, double blowing device ensure the paper can be well collected whether thick or thin. ★Digital display touch screen in collection section makes operation convenient ★Control panel for human- friendly operation. ★Optoelectronic sensor makes the stack neat. ★Collection automatic lift control system. ★Secondary manual collection ★Main chain protection device. ★Roll back prevent device. ★Non-stop collection device

Main configuration list
