AEM-1080B
Automatic flat-bed die cutting machine
Technical instruction
【Professional manufacturer】
Company profile
AOER company is a specialized in R&D and manufacturing of die cutting and hot foil stamping. Now we have two brands: “AOER” and “TIEHU”, and four different series of machines: ML/TYM/AEM/AEMG. Manual machines cover the size from 750-3000mm, automatic machine covers the size from 800-2200mm, around 110 kind of machine for chosen.
Our excellent management team makes us full of vigor and ensures our continuous development. Our professional technical team ensures us keep innovation so that our product can stay in the market securely. Every staff in the company participates in quality management to make sure the whole process is under controlled. Customers satisfaction is our ultimate pursuit.
We stick to the “integrity based, quality first, service first” management philosophy and we are looking forward to the sincere cooperation with our new and old customers and lead us to a victory-victory situation.
Features
★ Complete design, accurate installation, high stability, high security, low noise.

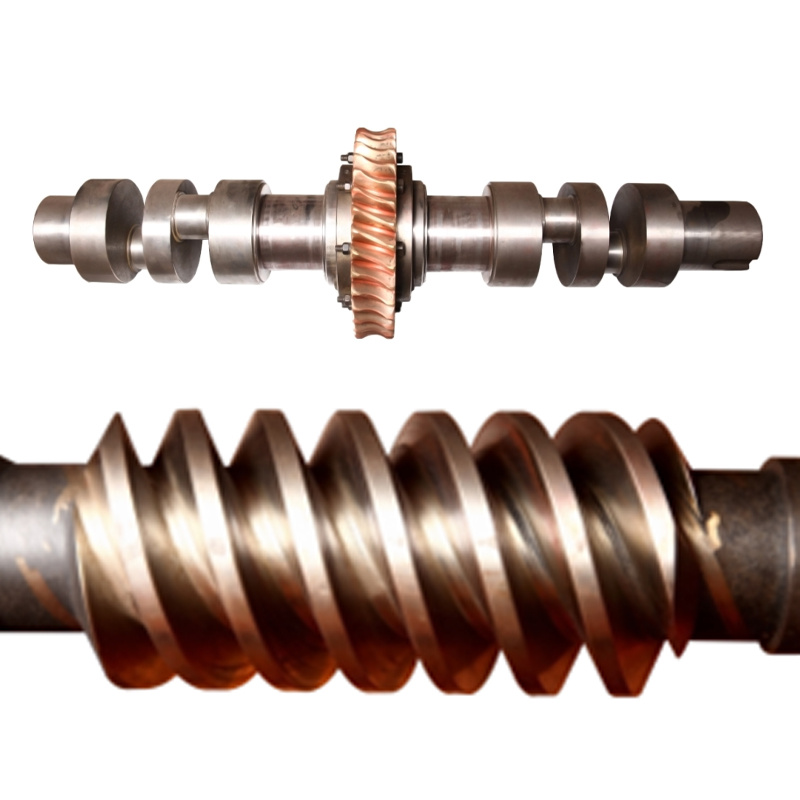

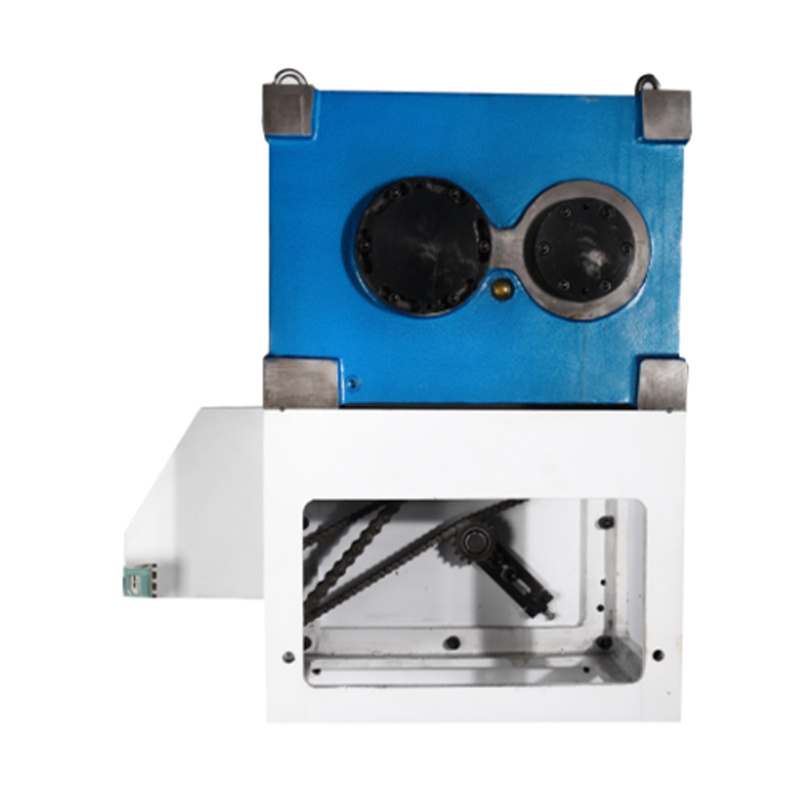

★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
★ High precision interval mechanism, high cutting precision, running steadily.

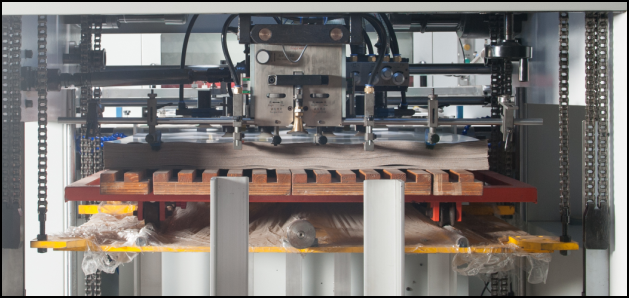

★ Adopt European feeder, suction adjustable, steadily, precise, good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, no-sheet optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
★ (Optional)5+2mm thin plate system, reduce the makeready time.
Main technical parameters
| Max paper size | 1080 x 780 mm |
| Min paper size | 400 x 330 mm |
| Max cutting size | 1075 x 770 mm |
| Die frame inner size | 1100 x 790 mm |
| Cutting plate size | 1080 x 780 mm |
| Min gripper edge size | 7 mm |
| Cutting precision | ≤±0.1 mm |
| Max cutting pressure | 300 T |
| Max cutting speed | 7000 S/H |
| Pre-stacking height | 1550 mm |
| Delivery stack height | 1400 mm |
| Application - Cardboard | 0.1～2 mm |
| Application - Corrugated paper | ＜4 mm |
| Main motor power | 11 KW |
| Total power | 17.8 KW |
| Dimension | 【L(+ pre-stacking)x W(+ platform)x H】 |
| AEM-1080B Dimension | 4880(+1650) x 2100(+1600) x 2350 mm |
| AEM-1080B Weight | 14 T |
Standard configuration
|

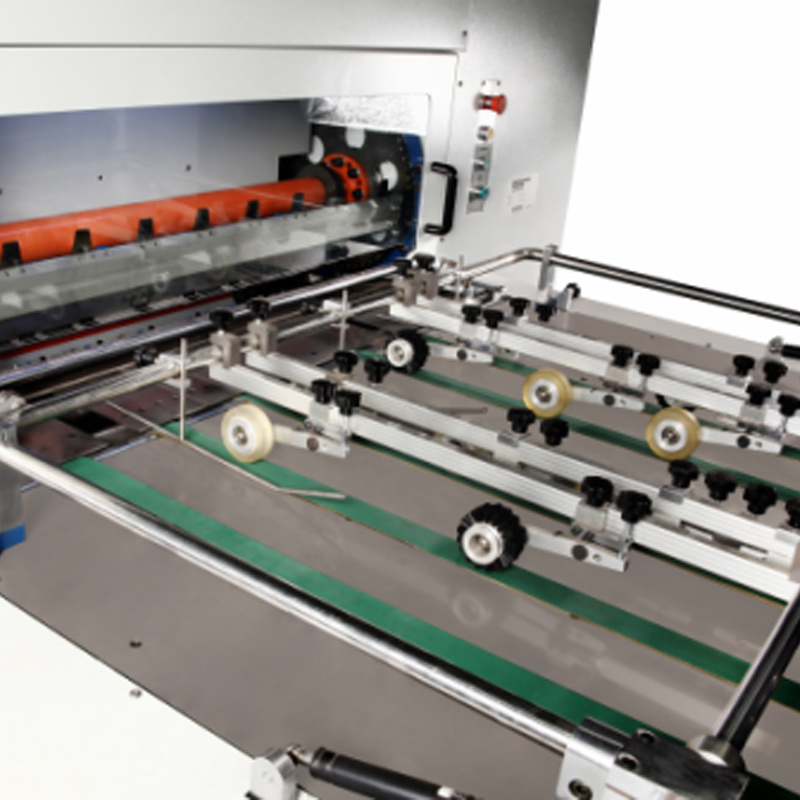

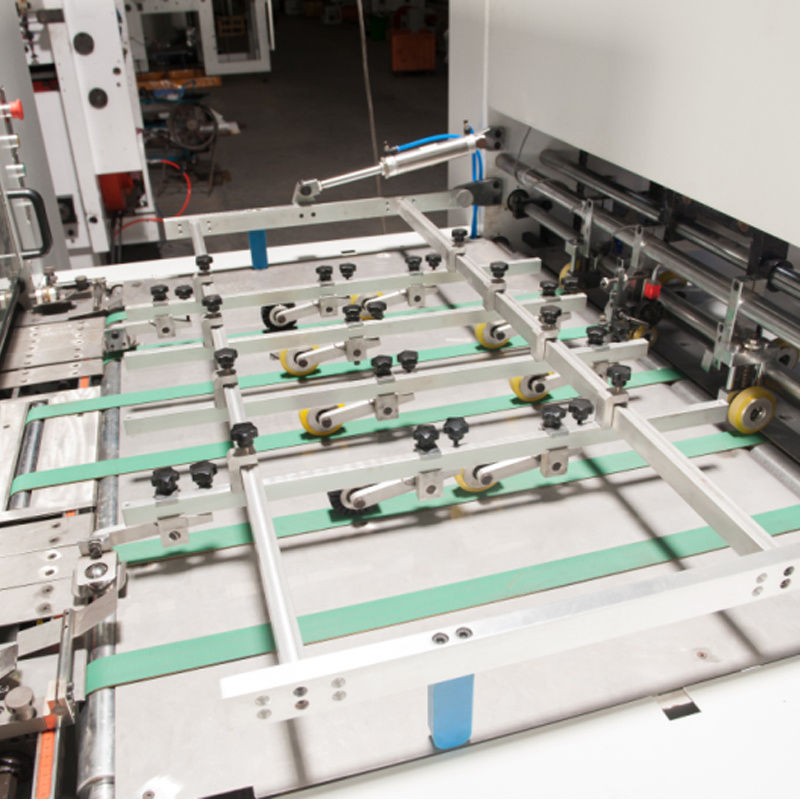

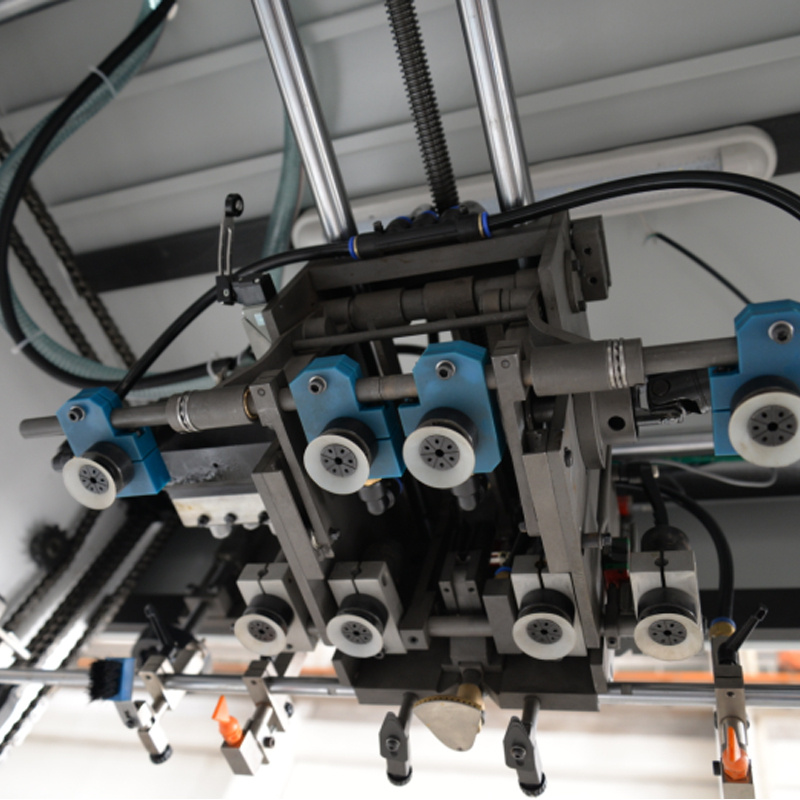

Feeding section ★European technic precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion. ★Double side lay (pull and push). ★Feeding device fine tuning, non-stop adjust. ★Electronic double sheet detector. ★Main, secondary feeding device no-stop switch. ★Wear-resisting PU pressing wheel. ★Dual purpose loader. ★Feeding time fine tuning device. ★Additional carriage rod 1 set, carriage plate 2 set. ★pre-stacking device 1 set. |

|
|

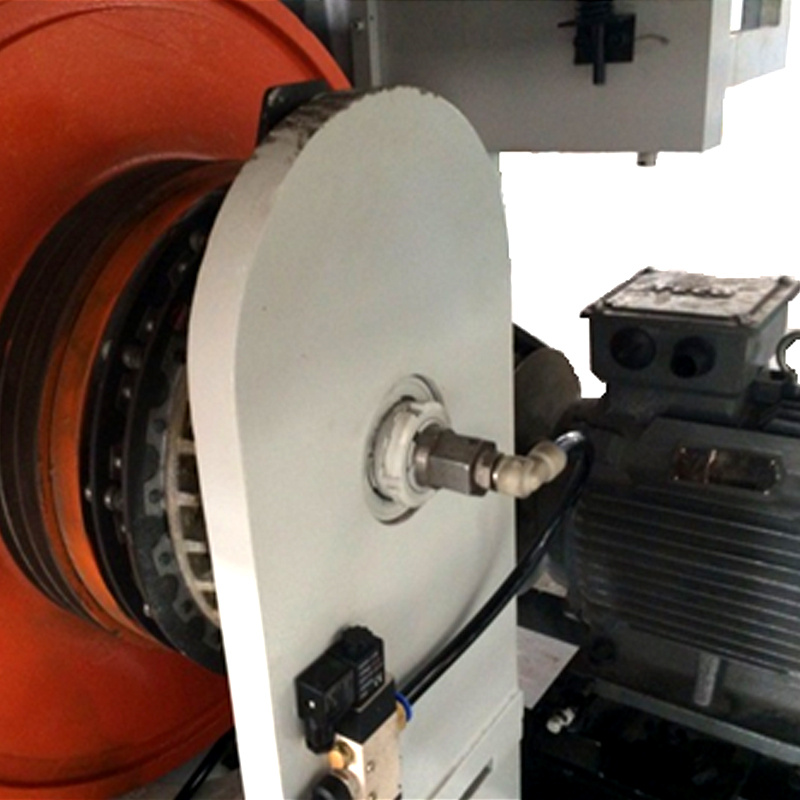

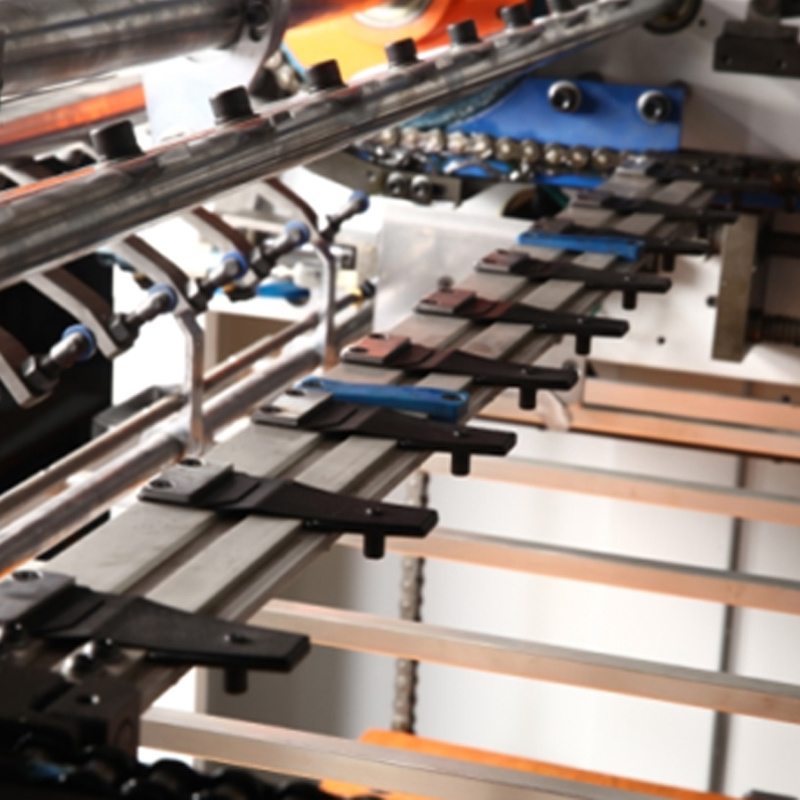

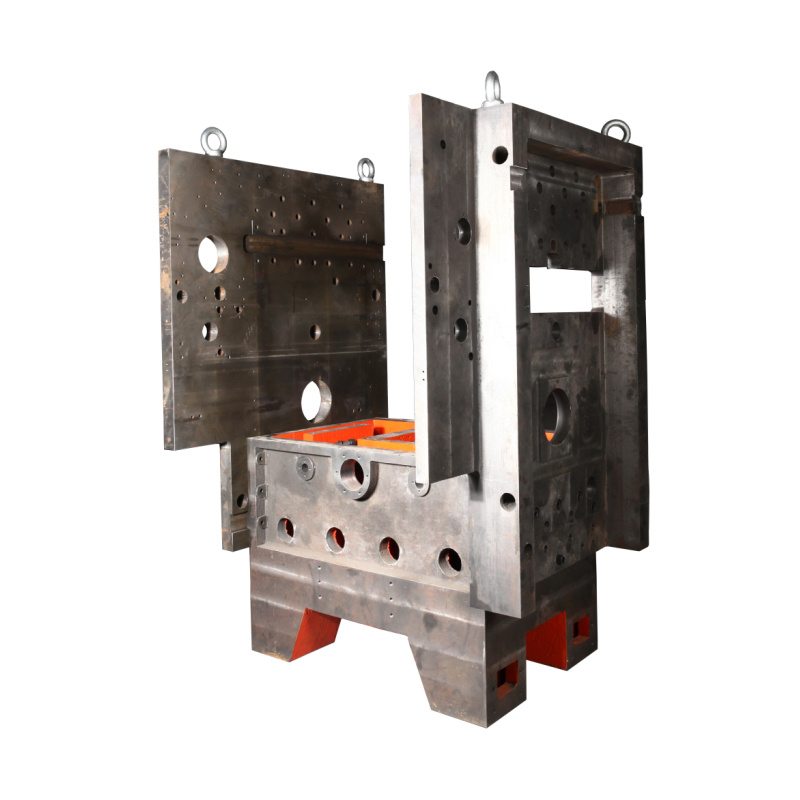

Host machine section ★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform. ★Alloy crankshaft with special process treatment. ★Wear resisting worm, worm gear. ★Convenient die flipping device. ★High precision intermittent device. ★Pneumatic clutch from Italy ★Japanese SMC rotary joint. ★Import gripper bar chain. ★Pneumatic die locking device. ★High hardness, strength Ti-Al alloy gripper. ★Precise pressure adjust device. ★PLC and man-machine interface from Taiwan. ★Additional gripper 1set,cutting die 1set,die frame 1 set. |

|
|

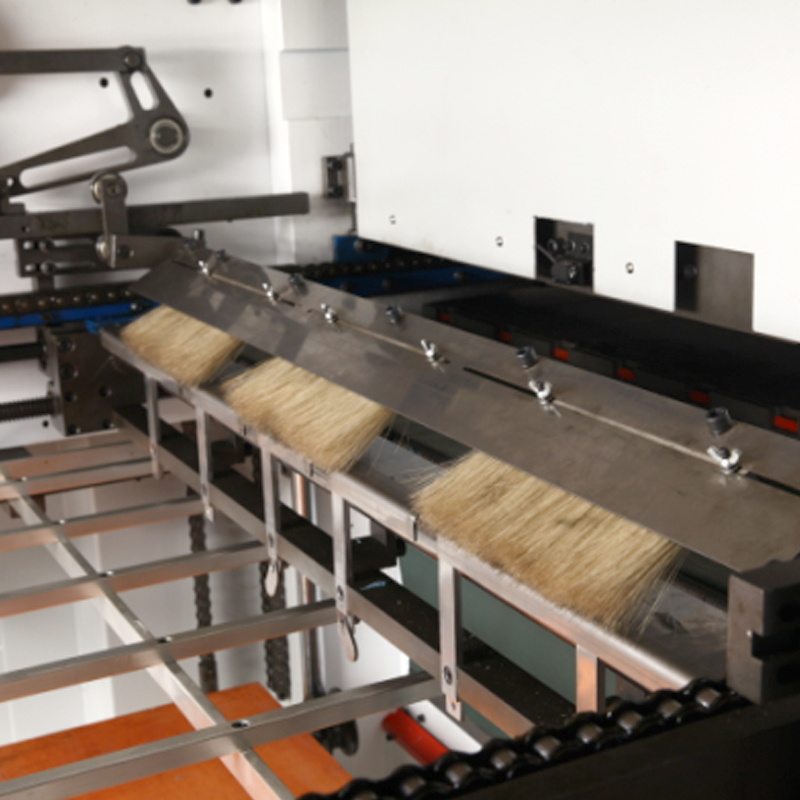

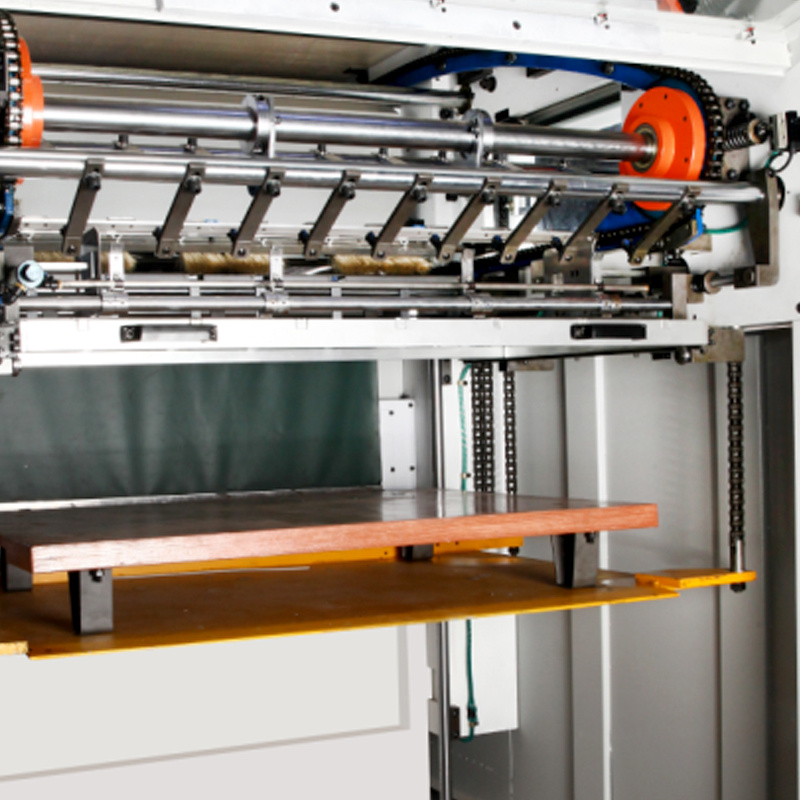

Delivery section ★Automatic aligning device, 2 blowing devices ensure all the paper could be well delivered whether thin or thick. ★Delivery section with control panel, more human-friendly. ★Optoelectronic sensor ensure better Delivery. ★Automatic delivery board control system. ★Manual delivery device ★Main chain protection device ★Rolling back preventing device |

|
Main part list
| No | Name | Brand | Origin | No | Name | Brand | Origin |
| 1 | Shell, main structure | QT500-7 ductile iron | China | 18 | Lubricate oil pump | WLP | Taiwan |
| 2 | Die cutting plate | 75Cr1alloy steel | Germany | 19 | Bearing | NSK | Japan |
| 3 | Worm, Worm gear | XINGTANG | China | 20 | Linear guide rail | HIWIN | Taiwan |
| 4 | Crankshaft material | Ni-Cr-Mo alloy | China | 21 | Fastener | GEN-Year | Taiwan |
| 5 | Gripper bar | Aluminum alloy | China | 22 | Inverter | Panasonic | Japan |
| 6 | Gripper | manganese steel | China | 23 | HMI | TAISEE | Taiwan |
| 7 | Cam indexing unit | HADEX | Taiwan | 24 | Sensor | Panasonic | Japan |
| 8 | Main transmission chain | TYC | Taiwan | 25 | PLC controler | FATEK | Taiwan |
| 9 | Secondary chain | KMC | Taiwan | 26 | Encoder | KUBLER | Germany |
| 10 | Rotary joint | SMC | Japan | 27 | Oil pressure switch | AIRTAC | Taiwan |
| 11 | Pneumatic solenoid valve | AIRTAC | Taiwan | 28 | Proximity switch | FOTEK | Taiwan |
| 12 | Air volume regulator | AIRTAC | Taiwan | 29 | Relay | SCHNEIDER | France |
| 13 | Main motor | TECO | Taiwan | 30 | Optoelectronic switch | Panasonic | Japan |
| 14 | Main feeding motor | DUNGLEE | Taiwan | 31 | Button | SCHNEIDER | France |
| 15 | Delivery lift motor | DUNGLEE | Taiwan | 32 | AC contactor | SCHNEIDER | France |
| 16 | Vacuum pump | TONGYOU | China | 33 | Circuit breaker | SCHNEIDER | France |
| 17 | Cylinder | AIRTAC | Taiwan | 34 |
